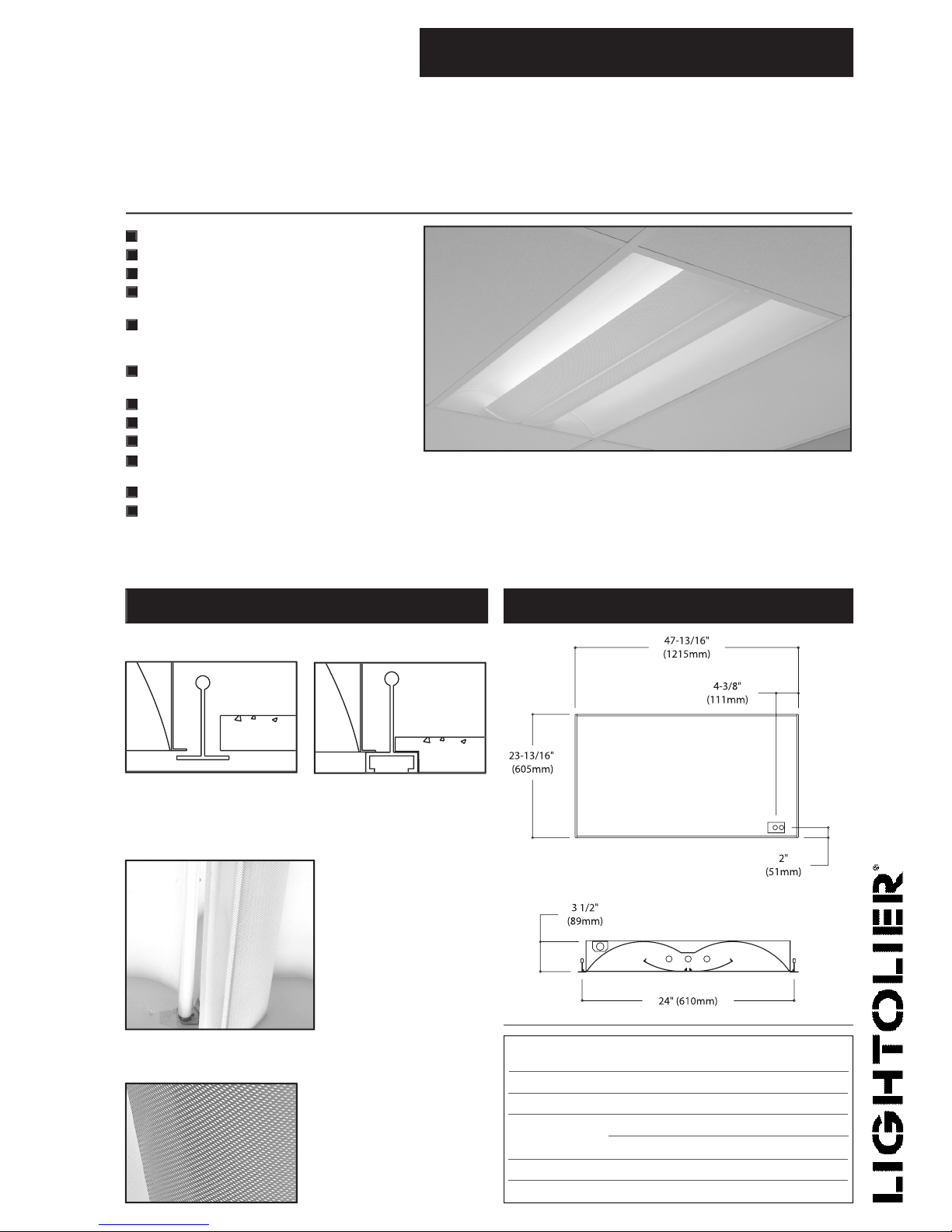

ALTER ELEGANCE

2’ X 4’ RECESSED FLUORESCENT

3 LAMP, T5, 3 1/2” DEEP

MICROPERFORATED MESH LAMP SHIELD

STATIC

Efficiency 50.8%.

Use linear T5 technology.

Only 3 1/2'' deep.

Swing down microperforated lamp shield

for easy relamping and maintenance.

Alter soft white film on inside of mesh conceals

lamp image and provide balance between

reflected light and direct light.

Fully recessed luminaire and lamp

compartment.

95% Reflective Alter soft white paint finish.

Specular interior reflector.

One piece body for easy installation.

Easy access to ballast through lamp

compartment.

Fits standard T-Grid ceilings.

Optional acrylic drop-down visual element.

MOUNTING METHODS/FEATURES DIMENSIONS

FIXTURE TYPE

JOB IN FOR MA TION:

VOLTS

L30-71

QVE2GPFOS 3 X T5

Suited to standard exposed Slot T-grid ceilings

Swing down optical system for

easy relamping and maintenance

Microperforated mesh lamp shields

Ceiling compatibility

Suited to standard exposed T-grid ceilings

Microperforated mesh lamp shields

Genlyte Thomas Company

=Open slot (no acrylic)

ORDERING INFORMATION

Explanation of Catalogue Number Example: QVE2GPFOS328120PI

SPECIFICATIONS

MATERIALS:

One piece chassis constructed from die formed

20 gauge cold rolled steel.

Optic -

95% reflectance baked white acrylic

matte paint finish. Specular interior reflector. Soft white acrylic film on

inside of lamp shield conceals lamp image.

FINISH: Chassis exterior -

phosphate undercoating, baked white acrylic

matte high reflectance paint finish.

ELECTRICAL:

HPF, thermally protected class “P” ballast. If K.Os are within

3” of ballast use wire suitable for at least 90C.

LABELS:

Listed by CSA, UL

QVE2GPFOS 3 X T5

QVE

ALTER

ELEGANCE

FIXTURE

WIDTH

CEILING

TYPE

LAMP

SHIELD

LAMP

QUANTITY

LAMP/FIXTURE

LENGTH

120

OPTIONS

= I

nternal Fusing

(consult factory)

= Emergency Lighting

System (for U.S.)

=Emergency Lighting

System (for Canada)

=Radio Interface

Filter

Standard exposed

T-grid ceilings

= 28W T5

= 54W T5

Recessed direct

indirect soft light

optical system

=Micro-

perforated

= Solid

BALLAST

= Electronic linear T5, IS

= T5 electronic program S.

= iGEN DALI †

DA = iGEN DALI †DA

† Not available in 347V.

CLEAR POLISHED

ACRYLIC DROP

DOWN VISUAL ELEMENT

We reserve the right to change, materials and finish in any way that will not alter installed appearance or reduce function and per form ance.

ALTER ELEGANCE

2’ X 4’ RECESSED FLUORESCENT

2’

Genlyte Thomas Company

631 Airport Road, Fall River, MA 02720 - Tel. (508) 679-8131

C.F.I. Division of Canlyte, Inc.

525 Education Road, Cornwall, Ontario

Canada K6H 6C7 - (613) 938-6221

Photometry

Model No. : QVE2GPFOS328120PI

VOLTAGE

UNV (120/277V)

120, 277, 347
