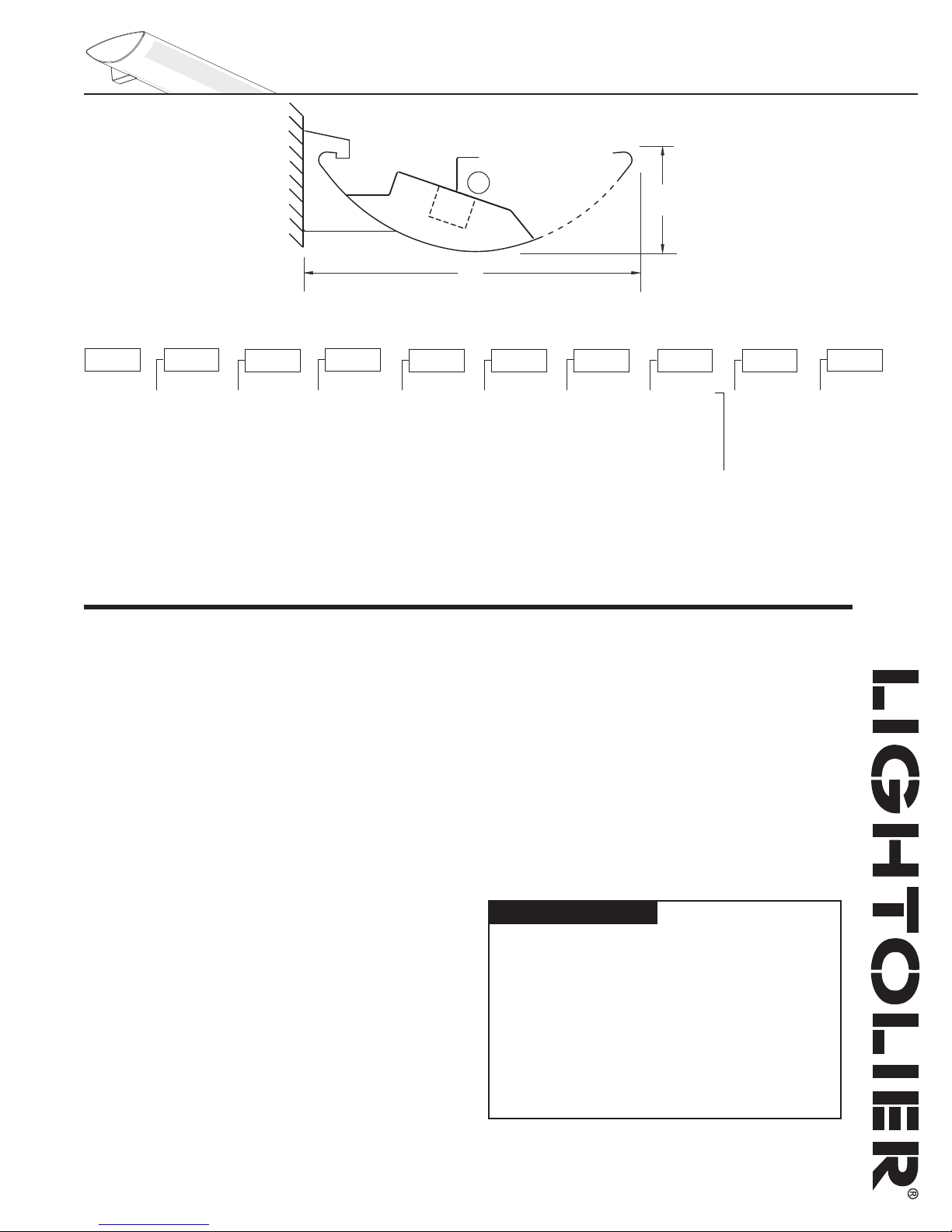

Lighting Systems Baselyte-BSL20

Page 1 of 4 1 Light T5 HO Wall Mount Semi-Indirect

Job Information Type:

Job Name:

Cat. No.:

Lamp(s):

Notes:

Lightolier a Genlyte Company www.lightolier.com

631 Airport Road, Fall River, MA 02720 • (508) 679-8131 • Fax (508) 674-4710

We reserve the right to change details of design, materials and finish.

Ordering Information

Family

H= T5 HO

8 = Wall Mount

01 LN

BSL

01 = 1 Light 04 = 4’

08 = 8’

12 = 12’

C= Custom Color

W= Standard

White

Distribution Lamp Type No. of Lamps Housing Module Length Wiring Voltage Ballast Finish

Weight = 3.0 lb./ft

LN = Perforated 1= 1cct.

3 = 1cct.

w/EC/NL

5= 1cct.

w/EM Battery

7= 1cct.

w/Dimming

8 = 1cct. w/1cct.

Thru wire

E = Standard

<10% THD

F = Standard

<10% THD

w/fusing

Note: Please

consult wiring

section of spec

sheets for more

wiring options.

Specifications

Features

1. Housing: die-formed 20ga. cold rolled steel

2. End Set: die-cast metal with baked powder coat finish

3. Lamping: one T5 HO lamp

4. Configuration: 4’, 8’ and 12’ module lengths or continuous rows

5. Ballasts: electronic 120V or 277V

Finish

High-quality white powder coat with textured matte finish.

Custom colors available. Consult factory.

Mounting

Flexible mounting locations.

Electrical

All luminaires are factory pre-wired to module ends with quick-wire

connectors.

Joints & Intersections

Self-aligning joining system with hands-free pre-joining wire access.

Labels

UL, CSA standards.

Individual Fixtures

1. Determine the number of individual modules required

2. Order one end set per module

3. Order one non-power mount per module

4. Order one power mount per module

Continuous Rows*

1. Determine run length

2. Order the appropriate number and length of modules for complete run

3. Order one end set for each run

4. Order one non-power mount for each module

5. Order one power mount per run

6. Order one joiner per module minus one (e.g. 3 modules requires 2 joiners)

*Note: Some runs may require additional power mounts. Please see the

‘Run Configuration’ table on the next page for more details.

Ordering Instructions

D= Dual 120V

& 277V

1= 120V

2= 277V

Note: Option‘D’ is

standard. Voltage

options 1 and 2 are

only available with

EM Battery and

Dimming wiring

options.





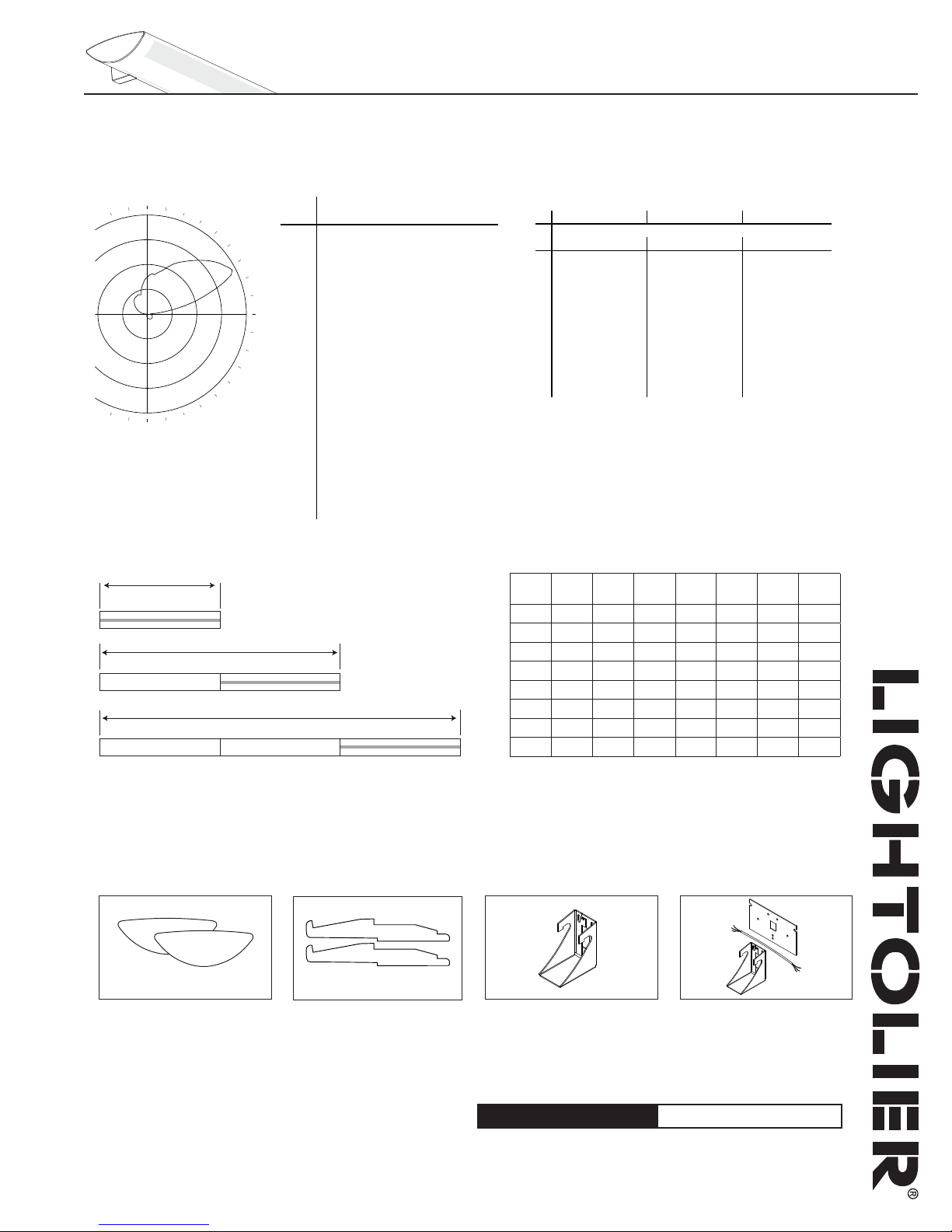

Lighting Systems Baselyte-BSL20

Page 2 of 4 1 Light T5 HO Wall Mount Semi-Indirect

Lightolier a Genlyte Company www.lightolier.com

631 Airport Road, Fall River, MA 02720 • (508) 679-8131 • Fax (508) 674-4710

We reserve the right to change details of design, materials and finish.

Job Information Type:

Performance

Candlepower Curve Candlepower Summary Coefficients of Utilization

Report No: 9900157

Lamps: F54T5

Lumens per Lamp: 4650

Efficiency: 71.5%

Up: 93.3% Down: 6.7%

Zonal Lumen Summary

ZONE LUMENS %BARE LAMP %LUMINAIRE

















































































CANDLEPOWER SUMMARY

ZONE CANDLEPOWER

DEG. 0 45 90 135 180

180 633 633 633 633 633

175 685 673 631 599 581

165 742 678 612 478 414

155 912 740 575 338 367

145 1100 846 527 337 352

135 1303 946 469 309 321

125 1516 1040 401 266 264

115 1589 1113 305 199 200

105 864 921 171 129 136

95 168 195 31 60 71

90 48 23 1 9 15

85 60 31 3 3 3

75 79 46 7 3 3

65 93 61 12 4 4

55 102 72 22 7 5

45 105 79 34 10 7

35 102 82 45 19 13

25 94 80 53 32 24

15 83 75 59 45 40

5 70 68 62 57 55

0 63 63 63 63 63

COEFFICIENTS OF UTILIZATION

% EFFECTIVE CEILING CAVITY REFLECTANCE

80 70 50

% WALL REFLECTANCE

50 30 10 50 30 10 50 30 10

0 69 69 69 60 60 60 42 42 42

1 60 57 54 51 49 47 36 35 34

2 52 48 44 45 41 39 32 29 28

3 45 40 36 39 35 32 28 25 23

4 40 35 31 34 30 27 24 22 19

5 35 30 26 30 26 23 22 19 16

6 31 26 22 27 23 19 19 16 14

7 28 23 19 24 20 17 17 14 12

8 25 20 16 22 17 14 15 13 10

9 23 18 14 20 15 13 14 11 9

10 21 16 13 18 14 11 13 10 8

ZONAL LUMEN SUMMARY

ZONE LUMENS % BARE LAMP %LUMINAIRE

0-90

90-180

0-180 3324

3102

222 6.7

93.3

100.0

4.8

66.7

71.5

COEFFICIENTS OF UTILIZATION

% EFFECTIVE CEILING CAVITY REFLECTANCE

80 70 50

% WALL REFLECTANCE

50 30 10 50 30 10 50 30 10

0 69 69 69 60 60 60 42 42 42

1 60 57 54 51 49 47 36 35 34

2 52 48 44 45 41 39 32 29 28

3 45 40 36 39 35 32 28 25 23

4 40 35 31 34 30 27 24 22 19

5 35 30 26 30 26 23 22 19 16

6 31 26 22 27 23 19 19 16 14

7 28 23 19 24 20 17 17 14 12

8 25 20 16 22 17 14 15 13 10

9 23 18 14 20 15 13 14 11 9

10 21 16 13 18 14 11 13 10 8

ZONAL LUMEN SUMMARY

ZONE LUMENS % BARE LAMP %LUMINAIRE

0-90

90-180

0-180 3324

3102

222 6.7

93.3

100.0

4.8

66.7

71.5

Module Lengths & Mounting Distances Run Configuration

Run

Length

4’

Module

8’

Module

12’

Module Joiner End Set Mount Power

Mount*

4’ run 1 1 1 1

8’ run 1 1 1 1

12’ run 1 1 1 1

16’ run 2 1 1 2 1

20’ run 1 1 1 1 2 1

24’ run 2 1 1 2 1

28’ run 2 1 2 1 3 1

32’ run 1 2 2 1 3 1

-ODULE,ENGTH

-OUNTING$ISTANCE

-ODULE,ENGTH-OUNTING$ISTANCE

@

@

@

Joiner

BSLEWW = wall mount standard white

End Set

BSLJW = wall mount joiner

System Components & Accessories

Non-Power Wall Mount Power Wall Mount

BSLWP1 = 1-power mount

BSLWP2 = 2-power mount

BSLWN = non-power wall mount

Note: Shaded area indicates locations of emergency sections (emergency wiring

controls all lamps or optional battery pack controls one or two lamps).

*Note: Additional power mounts may be required for some runs with T5 HO

lamping options, longer runs, and runs with wiring options that are more complex.

Please consult factory for assistance.

Lighting Systems Baselyte-BSL20

Page 3 of 4 1 Light T5 HO Wall Mount Semi-Indirect

Lightolier a Genlyte Company www.lightolier.com

631 Airport Road, Fall River, MA 02720 • (508) 679-8131 • Fax (508) 674-4710

We reserve the right to change details of design, materials and finish.

Job Information Type:

Wiring Options: 1 Circuit

1 Circuit with Emergency Circuit/Night Light (EC/NL)

One 4’ section in a one circuit fixture to be wired on a separate thru circuit. Leads for both normal

circuit and EC/NL circuit wired to fixture ends. All lamps in EC/NL section to be wired together.

Type 3: 1cct. w/EC/NL

All lamps wired on one circuit.

1 Circuit

Type 5: Chloride standard

CTP700

Type M: Bodine standard

LP550

Type E: Chloride high performance

CTP1300

Type P: Bodine high performance

LP600

All lamps wired on one circuit, plus a battery pack is wired to one lamp. A hot lead is connected

to the battery pack and would function as a ‘trigger’ wire when connected to a constant hot by

installer. Leads for both normal circuit and battery pack are wired to fixture ends.

1 Circuit with Emergency Battery Pack (EM)

One 4’ section in a one circuit fixture to be wired on a separate thru circuit, in addition, a battery

pack is wired to one lamp. Installer can connect ‘trigger’ wire to EC hot lead if controlled together

or wire separately if controlled independently. Leads for normal circuit, EC/NL circuit and EM wired

to fixture ends. All lamps in EC/NL section to be wired together.

1 Circuit with Emergency Circuit/Night Light and Emergency Battery Pack

Type J: Chloride standard

CTP700

  

  %#.,

%-

��

  %#.,%-

Type 1: 1cct.

Type 8: 1cct. w/1cct. thru wire

Type H: 1cct. w/2cct. thru wire

Type 7: 1cct. w/dimming

Lighting Systems Baselyte-BSL20

Page 4 of 4 1 Light T5 HO Wall Mount Semi-Indirect

Lightolier a Genlyte Company www.lightolier.com

631 Airport Road, Fall River, MA 02720 • (508) 679-8131 • Fax (508) 674-4710

We reserve the right to change details of design, materials and finish.

Job Information Type:

Wiring Options: 2 Circuit A/B Switching (alternate 4’ sections)

Type D: Chloride standard

CTP700

Type O: Bodine standard

LP550

Type G: Chloride high performance

CTP1300

Type R: Bodine high performance

LP600

Fixture wired for two circuits (A/B switching), plus a battery pack is wired to one lamp. A hot lead

is connected to the battery pack and would act as a ‘trigger’ wire when connected to a constant hot

by installer. Leads for both normal circuit and battery pack are wired to fixture ends.

2 Circuit A/B Switching (alternate 4’ sections) with Emergency Battery Pack (EM)

Fixture wired for two circuit. Lamps wired for A/B switching in alternate 4’ sections.

2 Circuit A/B Switching (alternate 4’ sections)

Type B: 2cct.

Type A: 2cct. w/1cct. thru wire

Type S: 2cct. w/2cct. thru wire

2 Circuit A/B Switching (alternate 4’ sections) with Emergency Circuit/Night Light (EC/NL)

One 4’ section in a two circuit fixture (A/B switching) to be wired on a separate thru circuit. Leads

for both normal circuit and EC/NL circuit wired to fixture ends.

Type C: 2cct. w/EC/NL

One 4’ section in a two circuit fixture (A/B switching) to be wired on a separate thru circuit, in

addition, a battery pack is wired to one lamp. Installer can connect ‘trigger’ wire to EC hot lead if

controlled together or wired separately if controlled independently. Leads for normal circuit, EC/NL

circuit and battery pack are wired to fixture ends. All lamps in EC/NL module to be wired together.

2 Circuit A/B Switching (alternate 4’ sections) with Emergency Circuit/Night Light and Emergency Battery Pack

Type L: Chloride standard

CTP700

 



%-

%#.,%-

%#.,
