Lighting Systems Baselyte-BSL8

Page 1 of 4 1 Light T8 Wall Mount Direct/Indirect

Job Information Type:

Job Name:

Cat. No.:

Lamp(s):

Notes:

Lightolier a Genlyte Company www.lightolier.com

631 Airport Road, Fall River, MA 02720 • (508) 679-8131 • Fax (508) 674-4710

We reserve the right to change details of design, materials and finish.

Ordering Information

Family

T= T8

8 = Wall Mount

01 CN

BSL

01 = 1 Light 04 = 4’

08 = 8’

12 = 12’

1= 120V

2= 277V

C= Custom Color

W= Standard

White

Distribution Lamp Type No. of Lamps Housing Module Length Wiring Voltage Ballast Finish

Weight = 3.0 lb./ft

CN = cutout

w/baffles E = Standard

<20% THD

F = Standard

<20% THD

w/fusing

G = <10% THD,

Instant Start

H = <10% THD,

Instant Start

w/fusing

J = <10% THD,

Program Start

K = <10% THD,

Program Start

w/fusing

Specifications

Features

1. Housing: die-formed 20ga. cold rolled steel

2. End Set: die-cast metal with baked powder coat finish

3. Lamping: one T8 lamp

4. Configuration: 4’, 8’ and 12’ module lengths or continuous rows

5. Ballasts: electronic 120V or 277V

Finish

High-quality white powder coat with textured matte finish.

Custom colors available. Consult factory.

Mounting

Flexible mounting locations.

Electrical

All luminaires are factory pre-wired to module ends with quick-wire

connectors.

Joints & Intersections

Self-aligning joining system with hands-free pre-joining wire access.

Labels

UL, CSA standards.

Individual Fixtures

1. Determine the number of individual modules required

2. Order one end set per module

3. Order one non-power mount per module

4. Order one power mount per module

Continuous Rows*

1. Determine run length

2. Order the appropriate number and length of modules for complete run

3. Order one end set for each run

4. Order one non-power mount for each module

5. Order one power mount per run

6. Order one joiner per module minus one (e.g. 3 modules requires 2 joiners)

*Note: Some runs may require additional power mounts. Please see the

‘Run Configuration’ table on the next page for more details.

1= 1cct.

3 = 1cct. w/EC/NL

5= 1cct. w/EM Battery

7= 1cct. w/Dimming

8 = 1cct. w/1cct.

Thru wire

Note: Please consult

wiring section of spec

sheets for more

wiring options.

Ordering Instructions





Lighting Systems Baselyte-BSL8

Page 2 of 4 1 Light T8 Wall Mount Direct/Indirect

Lightolier a Genlyte Company www.lightolier.com

631 Airport Road, Fall River, MA 02720 • (508) 679-8131 • Fax (508) 674-4710

We reserve the right to change details of design, materials and finish.

Job Information Type:

Performance

Candlepower Curve Candlepower Summary Coefficients of Utilization

Report No: 2101677

Lamps: F32T8

Lumens per Lamp: 2950

Efficiency: 59.7%

Up: 55.3% Down: 44.7%

Zonal Lumen Summary

ZONE LUMENS %BARE LAMP %LUMINAIRE

100

110

120

130

140

150

160

170

180

600

450

300

150

190

200

210

220

230

240

250

260

270

280

290

300

310

320

330

340

350

CANDLEPOWER SUMMARY

ZONE CANDLEPOWER

DEG. 0 45 90 135 180

180 252 252 252 252 252

175 265 260 251 243 240

165 289 273 242 221 214

155 317 280 226 196 179

145 368 291 202 154 127

135 404 313 173 110 88

125 404 315 139 73 63

115 312 284 102 46 41

105 210 189 58 26 26

95 112 98 16 10 12

90 44 38 1 2 2

85 54 45 7 1 0

75 89 81 25 1 0

65 144 150 52 2 1

55 233 236 114 17 4

45 331 330 187 22 19

35 423 418 264 36 18

25 500 462 331 123 47

15 501 475 386 238 174

5 462 452 418 360 334

0 423 423 423 423 423

COEFFICIENTS OF UTILIZATION

% EFFECTIVE CEILING CAVITY REFLECTANCE

80 70 50

% WALL REFLECTANCE

50 30 10 50 30 10 50 30 10

0 63 63 63 58 58 58 48 48 48

1 55 53 51 50 48 47 42 40 39

2 48 45 42 44 41 39 37 35 33

3 43 38 35 39 35 32 33 30 28

4 38 33 30 35 31 28 29 26 24

5 34 29 26 31 27 24 26 23 21

6 30 26 22 28 24 21 24 20 18

7 27 23 19 25 21 18 21 18 16

8 25 20 17 23 19 16 20 16 14

9 23 18 15 21 17 15 18 15 13

10 21 17 14 19 16 13 17 14 11

ZONAL LUMEN SUMMARY

ZONE LUMENS % BARE LAMP %LUMINAIRE

0-90

90-180

0-180 1761

973.5

787.5 44.7

55.3

100.0

26.7

33.0

59.7

Module Lengths & Mounting Distances Run Configuration

Run

Length

4’

Module

8’

Module

12’

Module Joiner End Set Mount Power

Mount*

4’ run 1 1 1 1

8’ run 1 1 1 1

12’ run 1 1 1 1

16’ run 2 1 1 2 1

20’ run 1 1 1 1 2 1

24’ run 2 1 1 2 1

28’ run 2 1 2 1 3 1

32’ run 1 2 2 1 3 1

-ODULE,ENGTH

-OUNTING$ISTANCE

-ODULE,ENGTH-OUNTING$ISTANCE

@

@

@

Joiner

BSLEWW = wall mount standard white

Dust Cover

End Set

BSLJW = wall mount joiner

BSLDCW = 4’ wall mount dust cover

System Components & Accessories

Non-Power Wall Mount Power Wall Mount

BSLWP1 = 1-power mount

BSLWP2 = 2-power mount

BSLWN = non-power wall mount

COEFFICIENTS OF UTILIZATION

% EFFECTIVE CEILING CAVITY REFLECTANCE

80 70 50

% WALL REFLECTANCE

50 30 10 50 30 10 50 30 10

0 63 63 63 58 58 58 48 48 48

1 55 53 51 50 48 47 42 40 39

2 48 45 42 44 41 39 37 35 33

3 43 38 35 39 35 32 33 30 28

4 38 33 30 35 31 28 29 26 24

5 34 29 26 31 27 24 26 23 21

6 30 26 22 28 24 21 24 20 18

7 27 23 19 25 21 18 21 18 16

8 25 20 17 23 19 16 20 16 14

9 23 18 15 21 17 15 18 15 13

10 21 17 14 19 16 13 17 14 11

ZONAL LUMEN SUMMARY

ZONE LUMENS % BARE LAMP %LUMINAIRE

0-90

90-180

0-180 1761

973.5

787.5 44.7

55.3

100.0

26.7

33.0

59.7

Note: Shaded area indicates locations of emergency sections (emergency wiring

controls all lamps or optional battery pack controls one or two lamps).

*Note: Additional power mounts may be required for some runs with T5 HO

lamping options, longer runs, and runs with wiring options that are more complex.

Please consult factory for assistance.

Lighting Systems Baselyte-BSL8

Page 3 of 4 1 Light T8 Wall Mount Direct/Indirect

Lightolier a Genlyte Company www.lightolier.com

631 Airport Road, Fall River, MA 02720 • (508) 679-8131 • Fax (508) 674-4710

We reserve the right to change details of design, materials and finish.

Job Information Type:

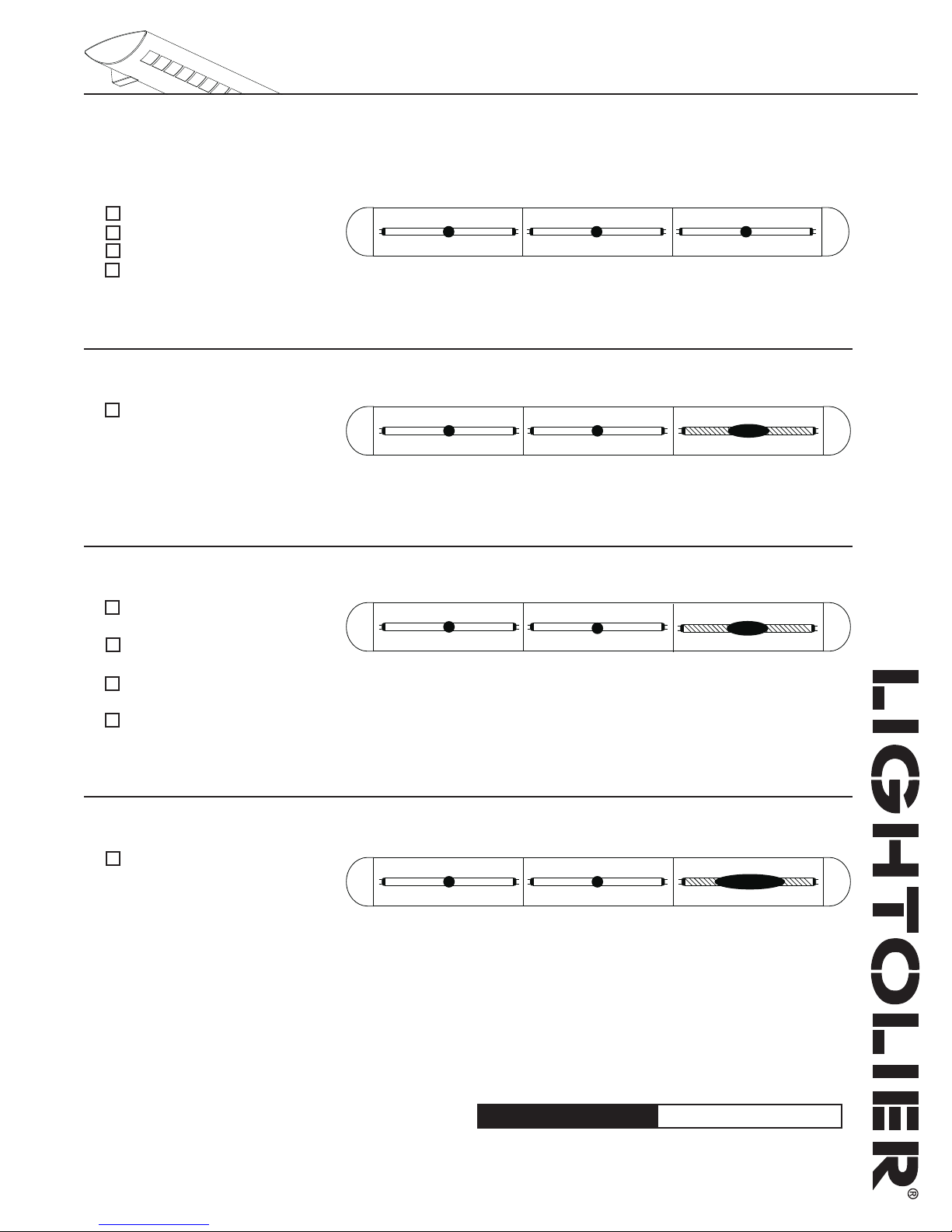

Wiring Options: 1 Circuit

1 Circuit with Emergency Circuit/Night Light (EC/NL)

One 4’ section in a one circuit fixture to be wired on a separate thru circuit. Leads for both normal

circuit and EC/NL circuit wired to fixture ends. All lamps in EC/NL section to be wired together.

Type 3: 1cct. w/EC/NL

All lamps wired on one circuit.

1 Circuit

Type 5: Chloride standard

C700A

Type M: Bodine standard

B70A

Type E: Chloride high performance

C1400

Type P: Bodine high performance

B50

All lamps wired on one circuit, plus a battery pack is wired to one lamp. A hot lead is connected

to the battery pack and would function as a ‘trigger’ wire when connected to a constant hot by

installer. Leads for both normal circuit and battery pack are wired to fixture ends.

1 Circuit with Emergency Battery Pack (EM)

One 4’ section in a one circuit fixture to be wired on a separate thru circuit, in addition, a battery

pack is wired to one lamp. Installer can connect ‘trigger’ wire to EC hot lead if controlled together

or wire separately if controlled independently. Leads for normal circuit, EC/NL circuit and EM wired

to fixture ends. All lamps in EC/NL section to be wired together.

1 Circuit with Emergency Circuit/Night Light and Emergency Battery Pack

Type J: Chloride standard

C700A

  

  %#.,

%-

��

  %#.,%-

Type 1: 1cct.

Type 8: 1cct. w/1cct. thru wire

Type H: 1cct. w/2cct. thru wire

Type 7: 1cct. w/dimming

Lighting Systems Baselyte-BSL8

Page 4 of 4 1 Light T8 Wall Mount Direct/Indirect

Lightolier a Genlyte Company www.lightolier.com

631 Airport Road, Fall River, MA 02720 • (508) 679-8131 • Fax (508) 674-4710

We reserve the right to change details of design, materials and finish.

Job Information Type:

Wiring Options: 2 Circuit A/B Switching (alternate 4’ sections)

Type D: Chloride standard

C700A

Type O: Bodine standard

B70A

Type G: Chloride high performance

C1400

Type R: Bodine high performance

B50

Fixture wired for two circuits (A/B switching), plus a battery pack is wired to one lamp. A hot lead

is connected to the battery pack and would act as a ‘trigger’ wire when connected to a constant hot

by installer. Leads for both normal circuit and battery pack are wired to fixture ends.

2 Circuit A/B Switching (alternate 4’ sections) with Emergency Battery Pack (EM)

Fixture wired for two circuit. Lamps wired for A/B switching in alternate 4’ sections.

2 Circuit A/B Switching (alternate 4’ sections)

Type B: 2cct.

Type A: 2cct. w/1cct. thru wire

Type S: 2cct. w/2cct. thru wire

2 Circuit A/B Switching (alternate 4’ sections) with Emergency Circuit/Night Light (EC/NL)

One 4’ section in a two circuit fixture (A/B switching) to be wired on a separate thru circuit. Leads

for both normal circuit and EC/NL circuit wired to fixture ends.

Type C: 2cct. w/EC/NL

One 4’ section in a two circuit fixture (A/B switching) to be wired on a separate thru circuit, in

addition, a battery pack is wired to one lamp. Installer can connect ‘trigger’ wire to EC hot lead if

controlled together or wired separately if controlled independently. Leads for normal circuit, EC/NL

circuit and battery pack are wired to fixture ends. All lamps in EC/NL module to be wired together.

2 Circuit A/B Switching (alternate 4’ sections) with Emergency Circuit/Night Light and Emergency Battery Pack

Type L: Chloride standard

C700A

 



%-

%#.,%-

%#.,

Inhaltsverzeichnis

Andere Lightolier Beleuchtungsausrüstung Handbücher

Lightolier

Lightolier Calculite ProSpec PA2H3870 Bedienungsanleitung

Lightolier

Lightolier 1000LV Bedienungsanleitung

Lightolier

Lightolier Calculite ProSpec PA2M1675 Bedienungsanleitung

Lightolier

Lightolier PRE-WIRED COMPACT FLUORESCENT EMERGENCY... Leitfaden

Lightolier

Lightolier Lytecaster 1100AICMFT Bedienungsanleitung

Lightolier

Lightolier Calculite C6T6VW Bedienungsanleitung

Lightolier

Lightolier LSB-15 Bedienungsanleitung

Lightolier

Lightolier FBP30 Bedienungsanleitung

Lightolier

Lightolier Brisa FP14U_3d Bedienungsanleitung

Lightolier

Lightolier Calculite C6P30MHA Bedienungsanleitung

Lightolier

Lightolier PRE-WIRED COMPACT FLUORESCENT Leitfaden

Lightolier

Lightolier QVB2SPGOS2FT Bedienungsanleitung

Lightolier

Lightolier Lytespan 9376 Bedienungsanleitung

Lightolier

Lightolier MBS2GPW224 Bedienungsanleitung

Lightolier

Lightolier Lytecaster 1004ICX Bedienungsanleitung

Lightolier

Lightolier Lighting Systems ALETTA AR2T8 Bedienungsanleitung

Lightolier

Lightolier FBP Series Fluorescent Emergency Ballast... Bedienungsanleitung

Lightolier

Lightolier Lighting Systems EG2-3 Bedienungsanleitung

Lightolier

Lightolier Lytespan 8727 Bedienungsanleitung

Lightolier

Lightolier Lighting Systems EC2-10 Bedienungsanleitung

Lightolier

Lightolier Lighting Systems IS_SORA-PB Bedienungsanleitung

Lightolier

Lightolier Lytespan 7610 Bedienungsanleitung

Lightolier

Lightolier XP1GVA232 Bedienungsanleitung

Lightolier

Lightolier MBS2GHP154 Bedienungsanleitung

Beliebte Beleuchtungsausrüstung Handbücher anderer Marken

Brizo

Brizo 8SP-MU-4 Bedienungsanleitung

LUCE&LIGHT

LUCE&LIGHT BROM 1.0 Bedienungsanleitung

IKEA

IKEA BJÖRKSPIREA Bedienungsanleitung

Laserworld

Laserworld Evolution Series ES-400RGB Bedienungsanleitung

Alien

Alien RG STAR Bedienungsanleitung

EuroLite

EuroLite LED B-40 Bedienungsanleitung

Qazqa

Qazqa Suplux SL 3 Black 103062 Bedienungsanleitung

Commercial Electric

Commercial Electric 54568141 Bedienungsanleitung

CREE LIGHTING

CREE LIGHTING 304 Series Bedienungsanleitung

Goobay

Goobay 49867 Bedienungsanleitung

ECOMAN ITALIA

ECOMAN ITALIA LED T8 Bedienungsanleitung

Alkalite

Alkalite Krypton KT-81 Bedienungsanleitung

Clas Ohlson

Clas Ohlson GU10 Bedienungsanleitung

DTS

DTS DELTA 10 F Bedienungsanleitung

ring

ring Solar Steplight Bedienungsanleitung

One Stop Gardens

One Stop Gardens 57696 Montageanleitung

Chauvet DJ

Chauvet DJ COREpar UV120 ILS Bedienungsanleitung

SIREM

SIREM Swimeo A2 Bedienungsanleitung
