Flanged Trimless

Top View

13"

83/4"

Depth

6" OC

21 1/2" L X 10" W

12" L X 6" W Opening

1 3/4"

24 1/4"

16"

Calculite®ProSpec®Linear Downlight PB2H3039

Page 1 of 2 2 Light PAR30 MH Series B

Job Information Type:

Job Name:

Cat. No.:

Lamp(s):

Notes:

L ghtol er a Genlyte Thomas Company www.lightolier.com

631 Airport Road, Fall River, MA 02720 • (508) 679-8131 • Fax (508) 674-4710

We reserve the right to change details of design, materials and finish.

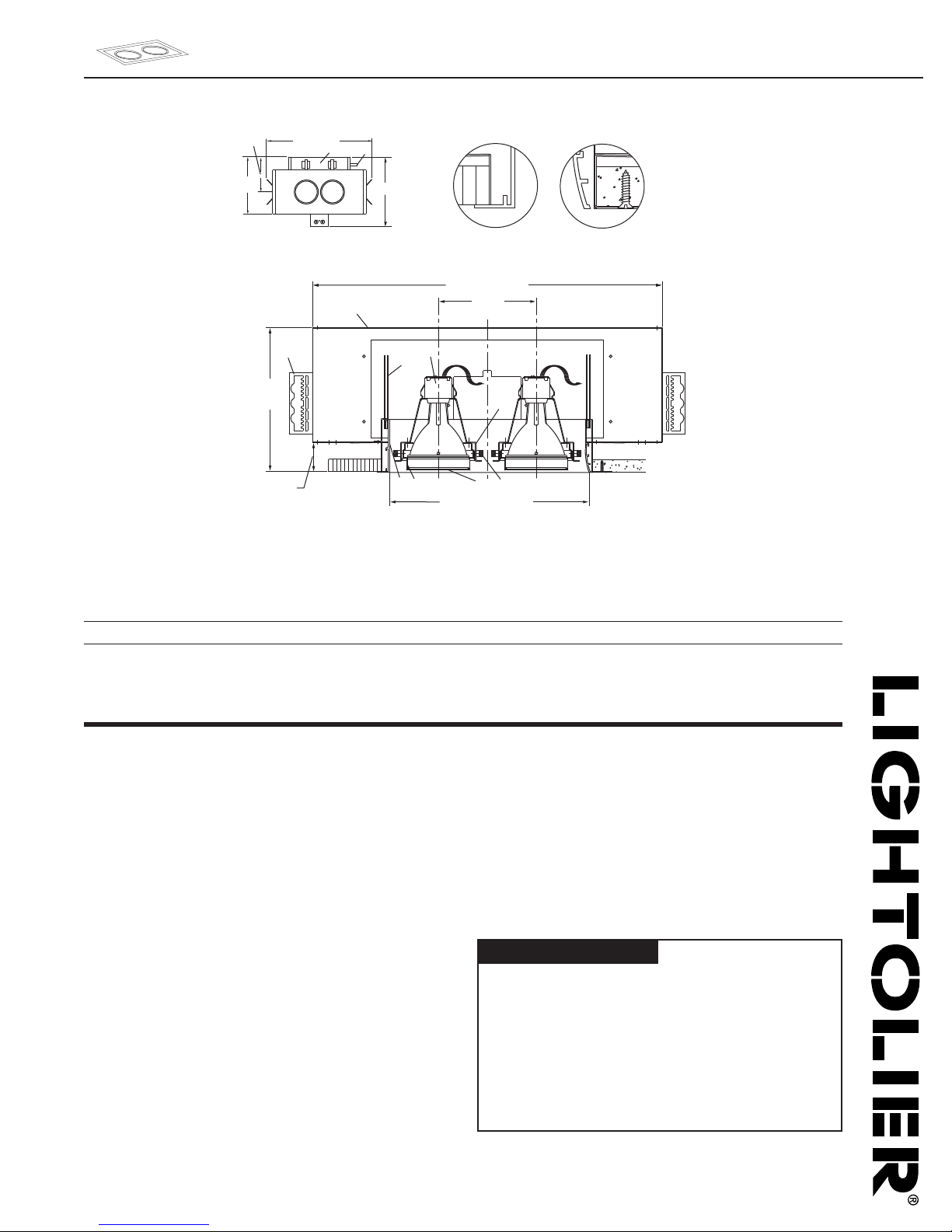

Features

1. Aperture Frame: Provides clean support for lamp holders and overlapping

flange or trimless installation. Extruded aluminum. Rigidly welded together

on all corners.

2. Med a Cartr dge: Allows convenient loading and removal of up to one

accessory. Easily installed and removed for lamping with a simple twisting

motion. Constructed of die-formed aluminum.

3. Adjustable R ng: Allows 360° horizontal, and min. 40°, max. 45° (on length);

30° (on width) vertical adjustment.

4. Tort ont te Spr ng: For easy installation of aperture frame.

5. Hous ng: Die-formed 22 ga. steel. Finish: Black

6. Mount ng Brackets: Adjustable vertically from outside of housing.

7. Thermal Protector: Meets NEC and UL requirement.

8. Lampholder: Porcelain medium based; nickel plated screw shell. 5KV pulse

rated, prewired with #18 SF-1 leads to Ballast Housing.

9. Ballast Hous ng: Die formed 18 ga. steel.

10.Junct on Box: 14 ga. steel, 4" x 3 1/2" x 2" box. Allows inspection from

below.

11.Lamp and Accessory Support: .032" steel, flared for easy entry of Media

Cartridge.

12.Lens Reta n ng R ng: .093" spring steel rod. Holds accessories in place.

Electr cal

Electron c Ballast: Individual for each lamp. High Power Factor. Input watts:

44; line current: .37 amps. Accessible from below.

UL listed for through branch circuit wiring with maximum of (8) no. 12

AWG, 90°C.

Ce l ng Cutout: 13 1/16" L x 7 3/16" W

Order ng Informat on: PAR30 MH Ser es B

Cat. No. Lamp Ce l ng Tr m Aperture F n sh

PB2H3039BL (2) 39W PAR30 MH Overlap Black with White Flange

PB2H3039WL (2) 39W PAR30 MH Overlap White with White Flange

PB2H3039BTL (2) 39W PAR30 MH Trimless Black

PB2H3039WTL (2) 39W PAR30 MH Trimless White

F n sh

All painted finishes are powder coated baked enamel.

Opt ons & Accessor es

Accessor es: 3 3/4" dia. series, filters, lenses, screens, and louvers (1) max.

Label

UL/cul (Suitable for Damp Location), I.B.E.W.

PB2H3039BL (Flanged) Black/White

PB2H3039WL (Flanged) White

PB2H3039BTL (Trimless) Black

PB2H3039WTL (Trimless) White

39W PAR30

(FC) is initial footcandles at center of

beam.Beam length (L) and beam width

(W) are to where the candlepower is

reduced to 50% of center beam

candlepower.

CBCP is center beam candlepower.

beam.

Performance data shown is based on

bare lamp photometrics of MasterColor

lamps by Philips Lighting. Contact lamp

manufacturers for availability and

performance.

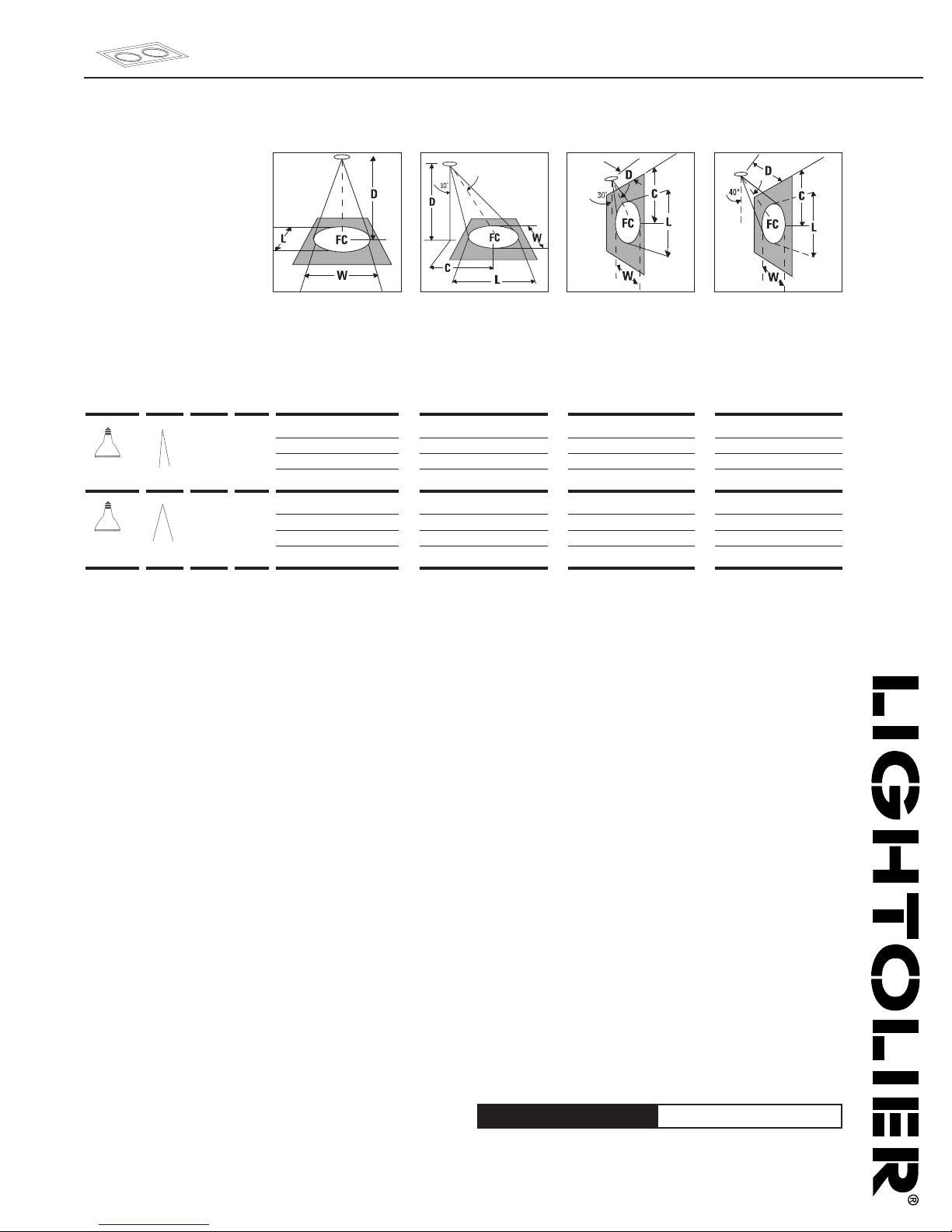

Accent L ght ng Performance Data

0° A m ng Angle 30° A m ng Angle 30° A m ng Angle 40° A m ng Angle

15’ 187 2.6’ 2.6’

20’ 105 3.5’ 3.5’

25’ 67 4.4’ 4.4’

30’ 47 5.2’ 5.2’

7’ 133 3.8’ 3.8’

10’ 65 5.4’ 5.4’

13’ 38 7.0’ 7.0’

16’ 25 8.6’ 8.6’

10’ 5.8’ 273 2.3’ 2.0’

15’ 8.7’ 121 3.5’ 3.0’

20’ 11.5’ 68 4.7’ 4.0’

25’ 14.4’ 44 5.8’ 5.1’

6’ 3.5’ 117 4.4’ 3.7’

9’ 5.2’ 52 6.6’ 5.6’

12’ 6.9’ 29 8.8’ 7.4’

15’ 8.7’ 19 11.0’ 9.9’

5’ 8.7’ 210 3.6’ 1.7’

8’ 13.9’ 82 5.7’ 2.8’

11’ 19.1’ 43 7.9’ 3.8’

14’ 24.2’ 27 10.0’ 4.9’

2’ 3.5’ 203 5.5’ 2.1’

3’ 5.2’ 90 8.2’ 3.2’

4’ 6.9’ 51 10.9’ 4.3’

5’ 8.7’ 33 13.7’ 5.4’

8’ 9.5’ 174 3.4’ 2.2’

12’ 14.3’ 77 5.1’ 3.3’

16’ 19.1’ 44 6.9’ 4.4’

20’ 23.8’ 28 8.6’ 5.5’

4’ 4.6’ 108 5.8’ 3.2’

6’ 7.2’ 48 8.7’ 6.0’

8’ 9.5’ 27 11.6’ 6.7’

10’ 11.9’ 17 14.4’ 8.3’

DFC LW DCFC LW D CFC LW D CFC LW

Beam Spread Rated

50% Max CP CBCP Life-Hrs

9000

42000

6500

39W PAR30

10°

30°

39W

Lamp

Calculite®ProSpec®Linear Downlight PB2H3039

Page 2 of 2 2 Light PAR30 MH Series B

L ghtol er a Genlyte Thomas Company www.lightolier.com

631 Airport Road, Fall River, MA 02720 • (508) 679-8131 • Fax (508) 674-4710

We reserve the right to change details of design, materials and finish.
