HE Series

CLASS I DIVISION 2 EMERGENCY LIGHTING

Page 1 of 2

Job Information Type:

Job Name:

Cat. No.:

Notes:

Features

Illumination: Illumination

is accomplished with lamp

heads mounted on the top of

the unit. The Class I, Div. 2

rated “H” Series lamp head

is available in a variety of

wattages, and is constructed of

gray polycarbonate to match

the housing.

Housing: Constructed of

impact-resistant, fiberglass-

reinforced polyester. Housing

color is gray and includes

stainless steel hardware. The

HE Series is UL listed for

Class I, Division 2, Groups

A, B, C & D; Class I, Zone

2, Groups IIA, IIB (+ H2) &

IIC; and Class II, Division 2,

Groups F & G. View-through

window allows easy monitoring

of the optional voltmeter and

ammeter. Available with Class

I, Div. 2 rated polycarbonate

sealed beam Par 36 tungsten or

halogen lamp heads.

Operating Temperature

Range: Standard location

65°F (19°C) to 85°F (30°C)

Electrical Specifications:

Lead Calcium

6 VDC 25 & 50 W:

0.18 A (120), 0.08 A (277)

12 VDC 25, 50, 100 & 125 W:

0.40 A (120), 0.18 A (277)

NiCad

6 & 12 VDC 25 W:

0.088 A (120), 0.042 A (277)

6 VDC 50 & 75 W, 12 VDC

50 W:

0.19 A (120), 0.084 A (277)

12 VDC 75 & 100 W:

0.29 A (120), 0.14 A (277)

12 VDC 125 & 150 W:

0.39 A (120), 0.18 A (277)

Diagnostic Electronics

(standard): 120/277 VAC

dual voltage input with surge

protection is standard on all

models. Charging system is

microprocessor driven with

software embedded diagnostic

routine and precision

temperature compensation.

Surge protection, brownout,

AC lockout, and low voltage

disconnect features are

standard.

Self-Testing Diagnostics

(optional): The diagnostic/

charging platform with self-

testing mode automatically

runs a one-minute self-test

every 30 days and a 30-minute

test on the sixth and twelfth

month. A one-minute or

90-minute test may be initiated

via the push to test switch on

the unit or by activating the

appropriate test command on

the optional IR test device.

Code Compliance

UL 924 and 844 listed. NFPA

101, NEC, BOCA, OSHA and

IBC illumination standards.

Temperature Rating (T-Rating)

160° (T3C). Class I, Zone 2

T-Rating 200° (T3).

Warranty

Three year full electronics

warranty. One year full plus

four year prorated lead calcium

battery warranty. Five year full

plus five year prorated nickel

cadmium battery warranty.

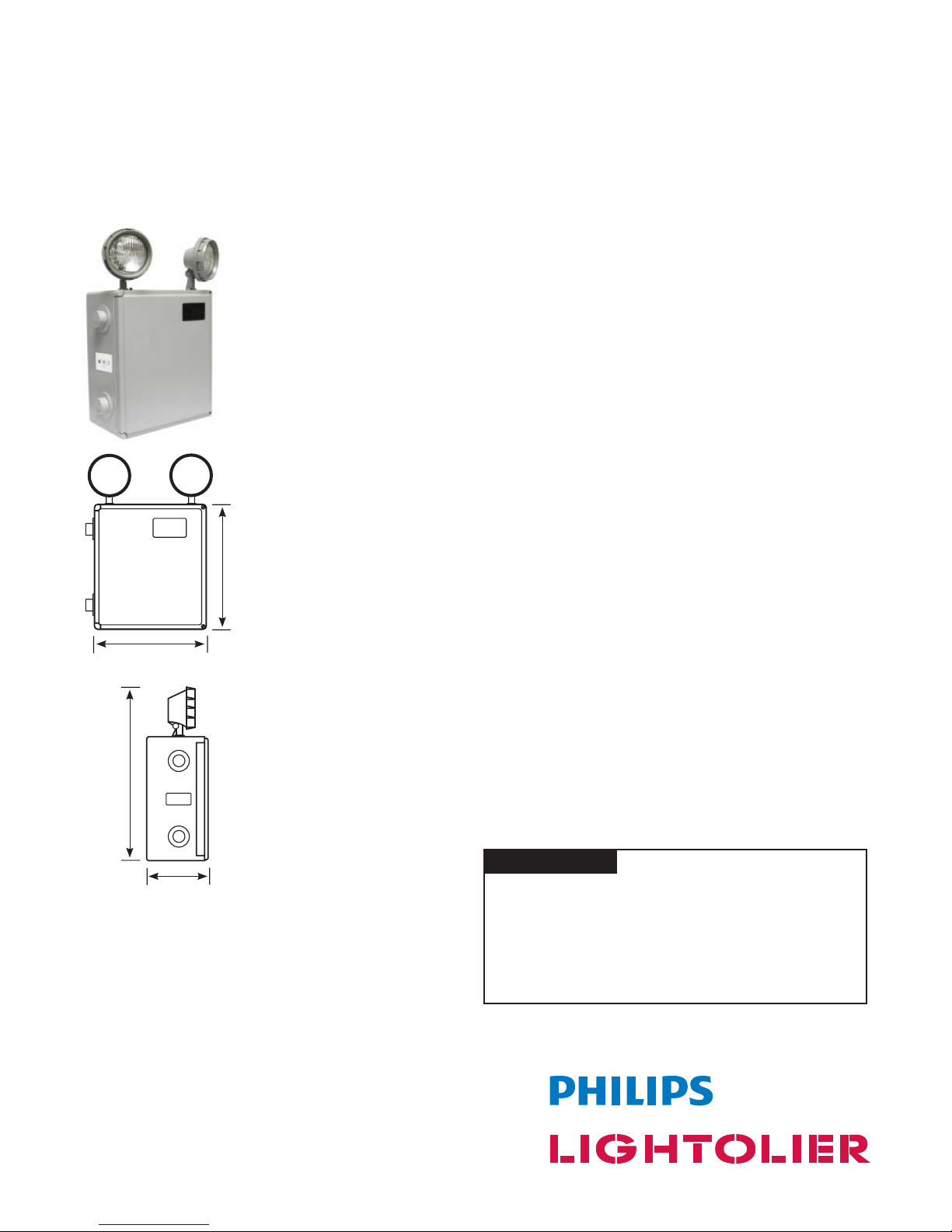

13.2"

(33.5 cm)

15.2"

(38.6 cm)

HE125L2HH8SD2

7.1"

(18.0 cm)

21.4"

(54.4 cm)

HE Series

CLASS I DIVISION 2 EMERGENCY LIGHTING

Page 2 of 2

Philips Lightolier

e: [email protected]

t: (508) 679-8131

w: www.lightolier.com

HE Series August 4, 2011

Specifications are subject to change without notice.

Job Information Type:

Ordering Information

Series

HE1 = 6 VDC

Class I Div. 2

Emergency Lighting

Unit

HE2 = 12 VDC

Class I Div. 2

Emergency Lighting

Unit

6 V Lead Calcium

25L = 25 Watt Unit

50L = 50 Watt Unit

6 V Nickel Calcium

25N = 25 Watt Unit

50N = 50 Watt Unit

75N = 75 Watt Unit

12 V Lead Calcium

25L = 25 Watt Unit

50L = 50 Watt Unit

100L = 100 Watt Unit

125L = 125 Watt Unit

12 V Nickel Calcium

25N = 25 Watt Unit

50N = 50 Watt Unit

75N = 75 Watt Unit

100N = 100 Watt Unit

125N = 125 Watt Unit

150N = 150 Watt Unit

Battery/DC Voltage # of Heads

Blank = No Lamp Heads

1= One Lamp Head

2= Two Lamp Heads

3= Three Lamp Heads

Lamp Heads

6 V Tungsten

HT8 = 8 Watts

HT12 = 12 Watts

HT18 = 18 Watts

HT25 = 25 Watts

6 V Halogen

HH8 = 8 Watts

HH12 = 12 Watts

12 V Tungsten

HT12 = 12 Watts

HT18 = 18 Watts

HT25 = 25 Watts

12 V Halogen

HH8 = 8 Watts

HH12 = 12 Watts

SD2 = Diagnostic

Electronics

Model Designator1

Optics

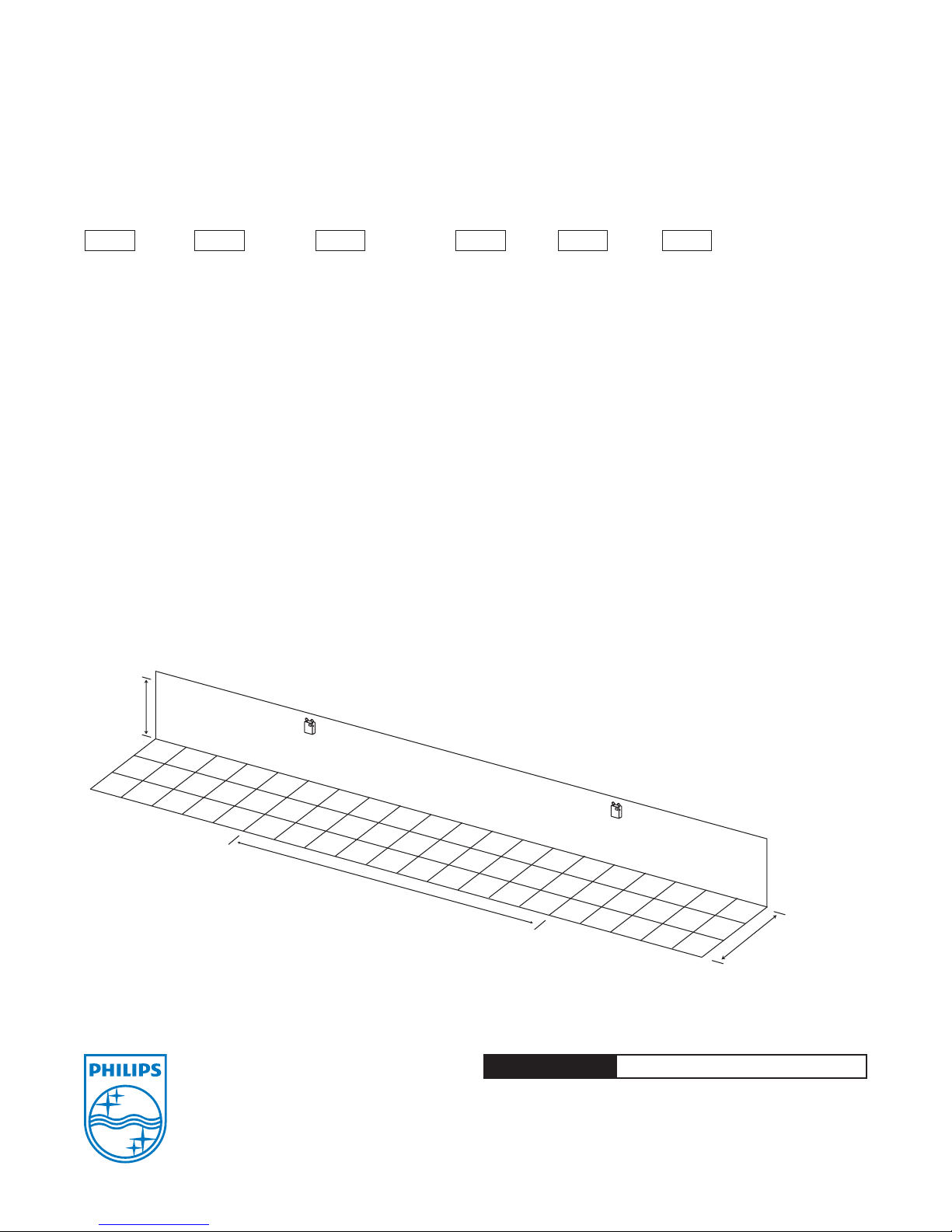

Wall Mounted 7.5' AFF, 12 V 12 W Halogen Lamp Heads Represented

1 FC Average

Note

1) Some option combinations may impact

UL listing. Consult factory for specifications.

7.5 ft.

30 ft.

9 ft.

Average initial footcandles at floor = 1.12

Maximum initial footcandles at floor = 4.9

Minimum initial footcandles at floor = 0.2

Maximum to minimum ratio = 24.50

* The optics layout shown is intended to be used as reference only. Standard reflectances used were 80/50/20. Lightolier is not responsible for site specific conditions that

may alter the results.

1.3

2.7

3.1

2.2

2.1

1.0

2.3

1.9

2.7

3.3

1.3

2.8

3.1

2.2

2.0

2.4

1.9

2.6

3.2

1.3

SD2

A= Ammeter

EX = Special Input Transformer (specify

voltage & frequency)

T= Self-Testing Diagnostics

TA = Audible Self-Testing Diagnostics

TD = Time Delay (15 minutes)

V= Voltmeter

Factory Installed Options1

Accessories (order as a separate item)

SDREMOTE = Infrared Remote Test

Device

WG = Wire Guard
