Lightolier Lightolier LP-11 Bedienungsanleitung

Job Information Type:

Job Name:

Cat. No.:

Lamp(s):

Notes:

"JSQPSU3PBE'BMM3JWFS."tt'BY

We reserve the right to change details of design, materials and finish.

XXXMJHIUPMJFSDPN½1IJMJQT(SPVQt

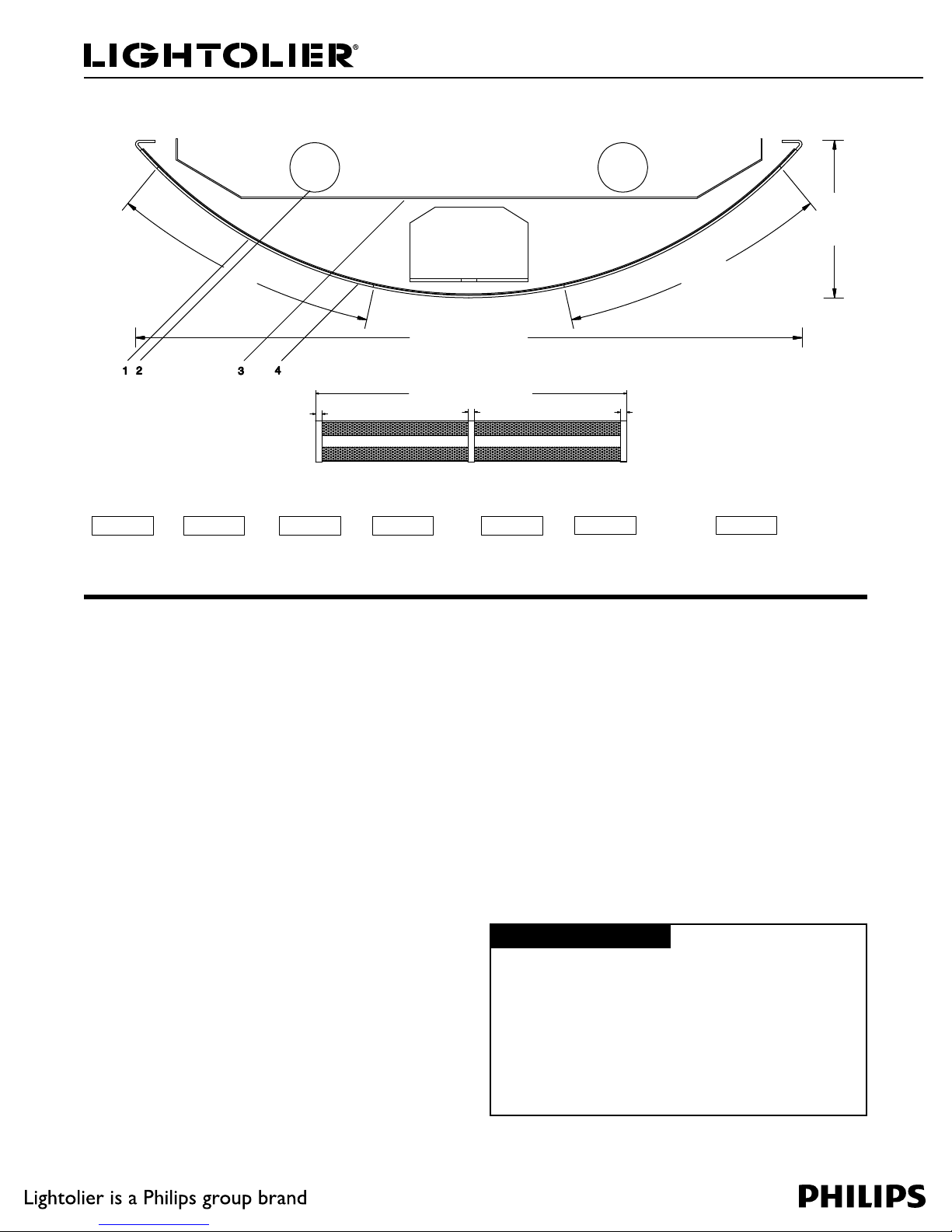

Lighting Systems LP-11

1BHFPG -JOFBS1FSG-ZUFÜDN4FNJ1FSGPSBUFE-JHIU51FS'PPU/PNJOBM4FDUJPO

#

Bottom View

98” (248.92cm)

2” (5.08cm) 2” (5.08cm)2” (5.08cm)

13” (33.02cm)

3”

(7.62cm)

5”

(12.70cm)

Perf

Complete ordering instructions below.

Features

1. Housing:

others.

2. Lamping: Two T8 32 watt fluorescent lamps per 4-foot section. Provided by

3. Reflector: Precision die-formed specular aluminum

Module Ordering Information

Style Series Options

2T8 = 2F32T8 4= 4-Foot U= Universal Voltage Blank = No Options

8= 8-Foot E= Emergency Pack DS = A-B Switch

D1 = Dimming 120v X4 = 4 Wire for Dimming &

Switched Emergency

D2 = Dimming 277v

LP 2 2T8B

LengthLampsType Ballast

Electrical

Ballast is universal voltage, <10% THD, .88 ballast factor, instant start. 3 con-

ductor, 18 gauge wire. Color-coded quick connectors allow ease of connection

for joiner modules. For special circuiting consult factory. Cord is 18/3 SJT. Factory

installed ballast disconnect allows the ballast to be disconnected fromand

reconnected to incoming power under load without turning the entire circuit off.

Dimming: 120/277 VAC, 4 wire feed required.

Emergency Battery Pack: 32 watt: 450 lumens @ 90 minutes.

Options

Dual Switching: Order the DS option for separate row switching. DS option

automatically ships with the X4 option included.

Mountings

Cable Suspension (not shown) - 4-1/2” (11.43cm) diameter flat canopy finished

white enamel, 1/16” (0.16cm) diameter stainless steel aircraft cable adjustable up

to 36” (91.44cm) without cutting. Overlap connector to provide 46” (116.84cm) of

perforated and 2” (5.08cm) solid sections contiguously without the presence of

hairline connections. (See BottomView drawing above)

Ordering Information

Individual Fixtures:

1. Order number of MODULES required.

2. Order one POWER FEED END SET per MODULE.

Continuous Rows:

1. Determine run length.

2. Order the appropriate number of MODULES for the complete run.

3. Order one POWER FEED END SET per run.

4. Order one CABLE ASSEMBLY per MODULE minus one per run.

5. For runs that exceed amperage limits, order the appropriate number of SINGLE

Labels

UL, cUL and I.B.E.W.

Finish

Powder coated baked white enamel. Customcolors available, consult factory.

CABLE & CORD FEEDS.

4. Diffuser: Opal acrylic diffuser.

4 Wire: Order X4 modules for remainder of the run when using dimming and/or

switched emergency battery pack modules. Also, order the 4 Wire Cord Power Feed

End Sets (LP2EC36X4) when using 4 Wire Modules.

Emergency Circuiting: Special circuiting - consult factory.

18 gauge perforated steel with 51% open hole pattern. Holes are

1/8” (0.32cm) diameter on 5/32” (0.40cm) centers. Die-formed steel end cap

with concealed access holes for through wiring. No exposed fasteners or

hardware.

Job Information Type:

"JSQPSU3PBE'BMM3JWFS."tt'BY

We reserve the right to change details of design, materials and finish.

XXXMJHIUPMJFSDPN½1IJMJQT(SPVQt #

Lighting Systems LP-11

1BHFPG -JOFBS1FSG-ZUFÜDN4FNJ1FSGPSBUFE-JHIU51FS'PPU/PNJOBM4FDUJPO

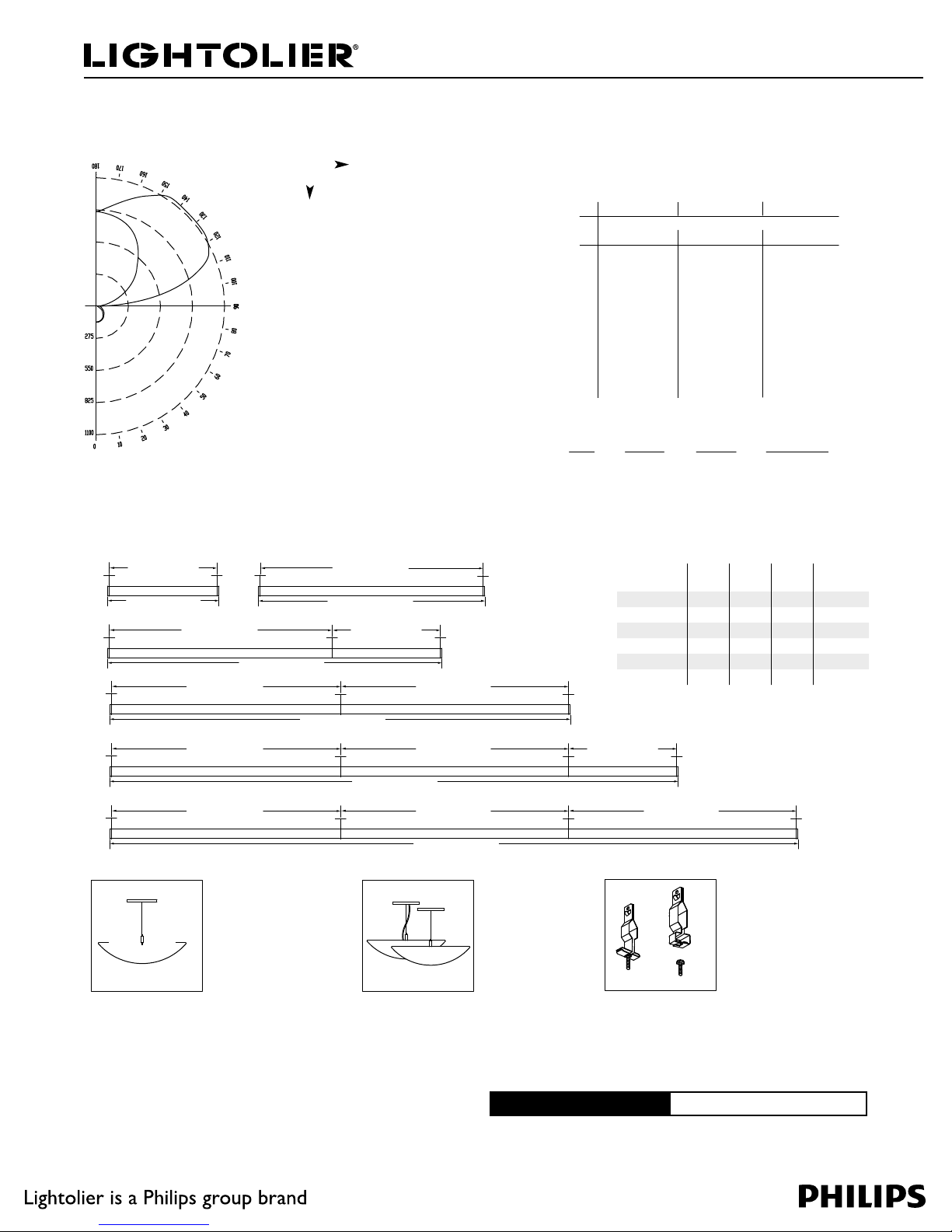

Mounting Accessories

Fixture Lengths & Mounting Locations

Ceiling Grid Kit

CGK

Includes both Standard 1” (2.54cm)

Tee Bar Clip & Slot Tee Clip

Power Feed End Set

Standard Cable Length is 36” (91.44cm)

Straight Cord: LP2EC36

4 Wire Cord*: LP2EC36X4

Cable/Joiner Assembly

Standard Cable Length is 36” (91.44cm)

Single Cable: LP2C36

Single Cable & Cord: LP2CC36

Single Cable & 4 Wire Cord: LP2CC36X4 * use for dimming and/or

emergency battery packs

4’ 8’

48” (121.92cm)

4’ 2” (127.00cm)

96” (243.84cm)

8’ 2” (248.92cm)

12’

96” (243.84cm)

12’ 2” (370.84cm)

96” (243.84cm)

16’ 2” (492.76cm)

96” (243.84cm)

20’ 2” (614.68cm)

96” (243.84cm)

16’

96” (243.84cm)

24’ 2” (736.60cm)

96” (243.84cm)

24’

20’

48” (121.92cm)

96” (243.84cm)

CANDLEPOWER

ZONE 0 22 45 67 90

DEG.

CANDELAS

180 810 810 810 810 810

175 801 811 820 855 838

165 773 825 873 924 933

155 719 815 915 1013 1042

145 621 765 922 1079 1128

135 496 678 890 1075 1120

125 391 613 878 1095 1119

115 253 507 779 976 1064

105 129 382 691 763 781

95 35 197 269 266 270

90 11 17 26 27 31

85 6 16 24 30 33

75 19 23 34 42 46

65 28 35 46 54 58

55 61 65 76 83 82

45 78 79 84 91 94

35 101 102 105 109 110

25 119 119 121 123 124

15 130 130 132 132 132

5 137 135 136 136 137

0 136 136 136 136 136

Performance

REPORT NO: LRL 200-10C

CAT NO: LP2B2T84U

LAMPS: 2 F32T8

LUMENS: 2900

EFFICIENCY: 81.3%

COEFFICIENTS OF UTILIZATION

% EFFECTIVE CEILING CAVITY

REFLECTANCE

80 70 50

WALL REFLECTANCE

70 50 30 70 50 30 50 30 10

0797979696969494949

1726865625957434140

2656055575248373533

3605347524641333028

4544640474035292623

5504135433631262320

6463730393227232017

7423327362923211715

8392923332621191513

9362721312318171411

10 33 24 19 29 21 16 15 12 10

20% FLOOR CAVITY REFLECTANCE

ROOM CAVITY RATIO

CANDLEPOWER CURVE

DISTRIBUTION

Zone Lumens % Lamp % Luminaire

0-90 409 7.1 8.7

90-180 4306 74.2 91.3

0-180 4714 81.3 100.0

4-Foot

Module

8-Foot

Module End Set Cable/

Joiner

4-Foot Run 11

8-Foot Run 11

12-Foot Run 111 1

16-Foot Run 21 1

20'-Foot Run 121 2

24'-Foot Run 31 2
