Lighting Systems LP-15

1BHFPG -JOFBS1FSG-ZUFÜDN'VMM1FSGPSBUFE-JHIU51FS'PPU/PNJOBM4FDUJPO

#

13” (33.02cm)

3”

(7.62cm)

Perf

Bottom View

98” (248.92cm)

2” (5.08cm) 2” (5.08cm)2” (5.08cm)

Complete ordering instructions below.

Features

1. Housing: 18 gauge perforated steel with 51% open hole pattern. Holes are

1/8” (0.32cm) diameter on 5/32” (0.40cm) centers. Die-formed steel end cap

with concealed access holes for through wiring. No exposed fasteners or

hardware.

others.

automatically ships with the X4 option included.

2. Lamping: Two T8 32 watt fluorescent lamps per 4-foot section. Provided by

3. Reflector: Precision die-formed CRS painted high reflectance white.

4. Diffuser: Opal acrylic diffuser.

Module Ordering Information

Style Series Options

2T8 = 2-F32T8 4= 4-Foot U= Universal Voltage Blank = No Options

8= 8-Foot E= Emergency Pack DS = A-B Switch

D1 = Dimming 120v X4 = 4 Wire for Dimming &

Switched Emergency

D2 = Dimming 277v

LP 2 2T8B

LengthLampsType Ballast

Electrical

Ballast is universal voltage, <10% THD, .88 ballast factor, instant start. 3 con-

ductor, 18 gauge wire. Color-coded quick connectors allow ease of connection

for joiner modules. For special circuiting consult factory. Cord is 18/3 SJT. Factory

installed ballast disconnect allows the ballast to be disconnected fromand

reconnected to incoming power under load without turning the entire circuit off.

Dimming: 120/277 VAC, 4 wire feed required.

Emergency Battery Pack: 32 watt: 450 lumens @ 90 minutes.

Options

Dual Switching: Order the DS option for separate row switching. DS option

Mountings

Cable Suspension (not shown) - 4-1/2” (11.43cm) diameter flat canopy finished

white enamel, 1/16” (0.16cm) diameter stainless steel aircraft cable adjustable up

to 36” (91.44cm) without cutting. Overlap connector to provide 46” (116.84cm) of

perforated and 2” (5.08cm) solid sections contiguously without the presence of

hairline connections. (See BottomView drawing above)

Ordering Information

Individual Fixtures:

1. Order number of MODULES required.

2. Order one POWER FEED END SET per MODULE.

Continuous Rows:

1. Determine run length.

2. Order the appropriate number of MODULES for the complete run.

3. Order one POWER FEED END SET per run.

4. Order one CABLE ASSEMBLY per MODULE minus one per run.

5. For runs that exceed amperage limits, order the appropriate number of SINGLE

Labels

UL, cUL and I.B.E.W.

Finish

Powder coated baked white enamel. Customcolors available, consult factory.

CABLE & CORD FEEDS.

4 Wire: Order X4 modules for remainder of the run when using dimming and/or

switched emergency battery pack modules. Also, order the 4 Wire Cord Power Feed

End Sets (LP2EC36X4) when using 4 Wire Modules.

Emergency Circuiting: Special circuiting - consult factory.

Job Information Type:

"JSQPSU3PBE'BMM3JWFS."tt'BY

We reserve the right to change details of design, materials and finish.

XXXMJHIUPMJFSDPN½1IJMJQT(SPVQt #

Lighting Systems LP-15

1BHFPG -JOFBS1FSG-ZUFÜDN'VMM1FSGPSBUFE-JHIU51FS'PPU/PNJOBM4FDUJPO

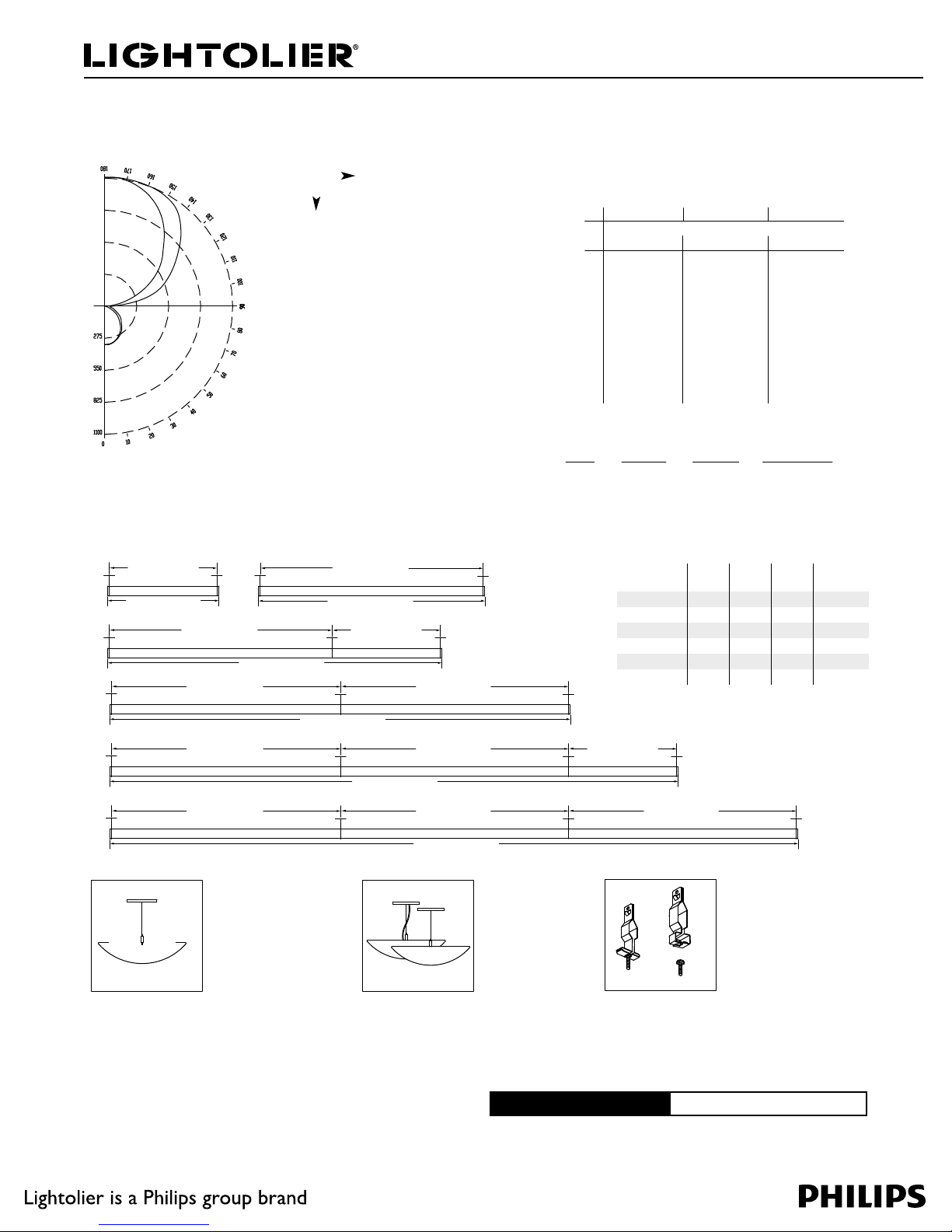

Mounting Accessories

Fixture Lengths & Mounting Locations

Ceiling Grid Kit

CGK

Includes both Standard 1” (2.54cm)

Tee Bar Clip & Slot Tee Clip

Power Feed End Set

Standard Cable Length is 36” (91.44cm)

Straight Cord: LP2EC36

4 Wire Cord*: LP2EC36X4

Cable/Joiner Assembly

Standard Cable Length is 36” (91.44cm)

Single Cable: LP2C36

Single Cable & Cord: LP2CC36

Single Cable & 4 Wire Cord: LP2CC36X4 * use for dimming and/or

emergency battery packs

4’ 8’

48” (121.92cm)

4’ 2” (127.00cm)

96” (243.84cm)

8’ 2” (248.92cm)

12’

96” (243.84cm)

12’ 2” (370.84cm)

96” (243.84cm)

16’ 2” (492.76cm)

96” (243.84cm)

20’ 2” (614.68cm)

96” (243.84cm)

16’

96” (243.84cm)

24’ 2” (736.60cm)

96” (243.84cm)

24’

20’

48” (121.92cm)

96” (243.84cm)

Performance

ROOM CAVITY RATIO

CANDLEPOWER CURVE CANDLEPOWER

ZONE 0 22 45 67 90

DEG.

CANDELAS

180 1107 1107 1107 1107 1107

175 1109 1108 1111 1110 1110

165 1072 1079 1097 1107 1105

155 996 1015 1045 1084 1092

145 875 919 972 1032 1049

135 713 778 840 914 926

125 573 639 726 790 762

115 392 475 536 591 610

105 208 285 356 433 448

95 41 112 135 156 161

90 0 18 33 48 55

85 8 19 28 40 45

75 29 37 54 70 75

65 59 70 89 105 111

55 129 133 147 165 165

45 177 180 186 198 202

35 237 239 243 250 253

25 282 282 284 288 289

15 313 314 314 316 315

5 331 330 331 328 330

0 330 330 330 330 330

COEFFICIENTS OF UTILIZATION

% EFFECTIVE CEILING CAVITY

REFLECTANCE

80 70 50

WALL REFLECTANCE

70 50 30 70 50 30 50 30 10

0808080717171535353

1737067646259464543

2676157595450413836

3615449544843363331

4564842494237322926

5514236453832292522

6473832413428262219

7433428383025232017

8403125352722211715

9372822332520191613

10 34 25 20 30 22 18 17 14 11

20% FLOOR CAVITY REFLECTANCE

DISTRIBUTION

Zone Lumens % Lamp % Luminaire

0-90 859 14.8 18.3

90-180 3822 65.9 81.7

0-180 4681 80.7 100.0

REPORT NO: LRL 1199-5A

CAT NO: LP2C2T84U

LAMPS: 2 F32T8

LUMENS: 2900

EFFICIENCY: 80.7%

4-Foot

Module

8-Foot

Module End Set Cable/

Joiner

4-Foot Run 11

8-Foot Run 11

12-Foot Run 111 1

16-Foot Run 21 1

20'-Foot Run 121 2

24'-Foot Run 31 2
