WELD PAK™ 2000

OPERATOR’S MANUAL

ENGLISH

Lincoln Electric Bester Sp. z o.o.

ul. Jana III Sobieskiego 19A, 58-263 Bielawa, Poland

www.lincolnelectric.eu

English English

Declaration of conformity

Lincoln Electric Bester Sp. z o.o.

Declares that the welding machine:

WELD PAK™2000

conforms to the following directives:

2006/95/CEE, 2004/108/CEE

and has been designed in compliance with the

following standards:

EN 60974-1, EN 60974-5, EN 60974-10:2007

01.05.2014

PawełLipiński

Operations Director

Lincoln Electric Bester Sp. z o.o., ul. Jana III Sobieskiego 19A, 58-263 Bielawa, Poland

07/11

English English

12/05

THANKS! For having chosen the QUALITY of the Lincoln Electric products.

Please Examine Package and Equipment for Damage. Claims for material damaged in shipment must be notified

immediately to the dealer.

For future reference record in the table below your equipment identification information. Model Name, Code &

Serial Number can be found on the machine rating plate.

Model Name:

………………...…………………………….…………………………………………………………………………………………..

Code & Serial number:

………………….……………………………………………….. …………………………………………………….……………..

Date & Where Purchased:

…………………………………………………………………... ……………………….…………………………………………..

ENGLISH INDEX

Technical Specifications .................................................................................................................................................. 1

Electromagnetic Compatibility (EMC) .............................................................................................................................. 2

Safety .............................................................................................................................................................................. 3

Introduction...................................................................................................................................................................... 4

Installation and Operator Instructions .............................................................................................................................. 4

WEEE............................................................................................................................................................................ 13

Spare Parts.................................................................................................................................................................... 13

Electrical Schematic ...................................................................................................................................................... 13

Suggested Accessories ................................................................................................................................................. 13

English English

Technical Specifications

WELD PAK™ 2000

NAME INDEX

WELD PAK™2000 K14134-1

INPUT

Input Voltage U1EMC Class Frequency

230 V ± 10%

1 – phase A 50 / 60 Hz

Input Power at Rated Cycle Input Amperes

I1max PF

7,6 kVA @ 20 % Duty Cycle (40°C) 33 A 0,66

RATED OUTPUT

Open Circuit Voltage Duty Cycle 40°C

(based on a 10 min. period) Output Current Output Voltage

GMAW

49 Vdc

100 80 A 18 Vdc

20 180 A 23 Vdc

FCAW-

49 Vdc

100 80 A 18 Vdc

20 180 A 23 Vdc

SMAW

49 Vdc

100 70 A 23,2 Vdc

20 160 A 26,4 Vdc

WELDING CURRENT RANGE

GMAW FCAW-SS SMAW

20 A – 200 A 20 A – 200 A 20 A – 160 A

RECOMMENDED INPUT CABLE AND FUSE SIZES

Fuse (time delayed) or Circuit Breaker Size Power Lead

230 V

D 25 A 3 Conductor, 1,5 mm2

DIMENSIONS AND WEIGHT

Weight Height Width Length

27,5 kg 600 mm 280 mm 800 mm

Protection Rating Operating Temperature Storage Temperature

IP23 from -10 ºC to +40 ºC from -25 ºC o +55 ºC

English English

Electromagnetic Compatibility (EMC)

01/11

This machine has been designed in accordance with all relevant directives and standards. However, it may still generate

electromagnetic disturbances that can affect other systems like telecommunications (telephone, radio, and television) or

other safety systems. These disturbances can cause safety problems in the affected systems. Read and understand

this section to eliminate or reduce the amount of electromagnetic disturbance generated by this machine.

This machine has been designed to operate in an industrial area. The operator must install and operate

this equipment as described in this manual. If any electromagnetic disturbances are detected the operator

must put in place corrective actions to eliminate these disturbances with, if necessary, assistance from

Lincoln Electric

Before installing the machine, the operator must check the work area for any devices that may malfunction because of

electromagnetic disturbances. Consider the following.

Input and output cables, control cables, and telephone cables that are in or adjacent to the work area and the

machine.

Radio and/or television transmitters and receivers. Computers or computer controlled equipment.

Safety and control equipment for industrial processes. Equipment for calibration and measurement.

Personal medical devices like pacemakers and hearing aids.

Check the electromagnetic immunity for equipment operating in or near the work area. The operator must be sure

that all equipment in the area is compatible. This may require additional protection measures.

The dimensions of the work area to consider will depend on the construction of the area and other activities that are

taking place.

Consider the following guidelines to reduce electromagnetic emissions from the machine.

Connect the machine to the input supply according to this manual. If disturbances occur if may be necessary to take

additional precautions such as filtering the input supply.

The output cables should be kept as short as possible and should be positioned together. If possible connect the

work piece to ground in order to reduce the electromagnetic emissions. The operator must check that connecting

the work piece to ground does not cause problems or unsafe operating conditions for personnel and equipment.

Shielding of cables in the work area can reduce electromagnetic emissions. This may be necessary for special

applications.

WARNING

The Class A equipment is not intended for use in residential locations where the electrical power is provided by the public

low-voltage supply system. There can be potential difficulties in ensuring electromagnetic compatibility in those locations,

due to conducted as well as radio-frequency disturbances.

WARNING

This equipment does not comply with IEC 61000-3-12. If it is connected to a public low voltage system, it is the

responsibility of the installer or user of the equipment to ensure, by consultation with the distribution network operator,

that the equipment may be connected.

English English

Safety

01/11

WARNING

This equipment must be used by qualified personnel. Be sure that all installation, operation, maintenance and repair

procedures are performed only by qualified person. Read and understand this manual before operating this equipment.

Failure to follow the instructions in this manual could cause serious personal injury, loss of life, or damage to this

equipment. Read and understand the following explanations of the warning symbols. Lincoln Electric is not responsible

for damages caused by improper installation, improper care or abnormal operation.

WARNING: This symbol indicates that instructions must be followed to avoid serious personal injury,

loss of life, or damage to this equipment. Protect yourself and others from possible serious injury or

death.

READ AND UNDERSTAND INSTRUCTIONS: Read and understand this manual before operating

this equipment. Arc welding can be hazardous. Failure to follow the instructions in this manual could

cause serious personal injury, loss of life, or damage to this equipment.

ELECTRIC SHOCK CAN KILL: Welding equipment generates high voltages. Do not touch the

electrode, work clamp, or connected work pieces when this equipment is on. Insulate yourself from

the electrode, work clamp, and connected work pieces.

ELECTRICALLY POWERED EQUIPMENT: Turn off input power using the disconnect switch at the

fuse box before working on this equipment. Ground this equipment in accordance with local electrical

regulations.

ELECTRICALLY POWERED EQUIPMENT: Regularly inspect the input, electrode, and work clamp

cables. If any insulation damage exists replace the cable immediately. Do not place the electrode

holder directly on the welding table or any other surface in contact with the work clamp to avoid the

risk of accidental arc ignition.

ELECTRIC AND MAGNETIC FIELDS MAY BE DANGEROUS: Electric current flowing through any

conductor creates electric and magnetic fields (EMF). EMF fields may interfere with some

pacemakers, and welders having a pacemaker shall consult their physician before operating this

equipment.

CE COMPLIANCE: This equipment complies with the European Community Directives.

ARTIFICIAL OPTICAL RADIATION: According with the requirements in 2006/25/EC Directive and

EN 12198 Standard, the equipment is a category 2. It makes mandatory the adoption of Personal

Protective Equipments (PPE) having filter with a protection degree up to a maximum of 15, as

required by EN169 Standard.

FUMES AND GASES CAN BE DANGEROUS: Welding may produce fumes and gases hazardous to

health. Avoid breathing these fumes and gases. To avoid these dangers the operator must use

enough ventilation or exhaust to keep fumes and gases away from the breathing zone.

ARC RAYS CAN BURN: Use a shield with the proper filter and cover plates to protect your eyes from

sparks and the rays of the arc when welding or observing. Use suitable clothing made from durable

flame-resistant material to protect you skin and that of your helpers. Protect other nearby personnel

with suitable, non-flammable screening and warn them not to watch the arc nor expose themselves to

the arc.

WELDING SPARKS CAN CAUSE FIRE OR EXPLOSION: Remove fire hazards from the welding

area and have a fire extinguisher readily available. Welding sparks and hot materials from the welding

process can easily go through small cracks and openings to adjacent areas. Do not weld on any

tanks, drums, containers, or material until the proper steps have been taken to insure that no

flammable or toxic vapors will be present. Never operate this equipment when flammable gases,

vapors or liquid combustibles are present.

WELDED MATERIALS CAN BURN: Welding generates a large amount of heat. Hot surfaces and

materials in work area can cause serious burns. Use gloves and pliers when touching or moving

materials in the work area.

English English

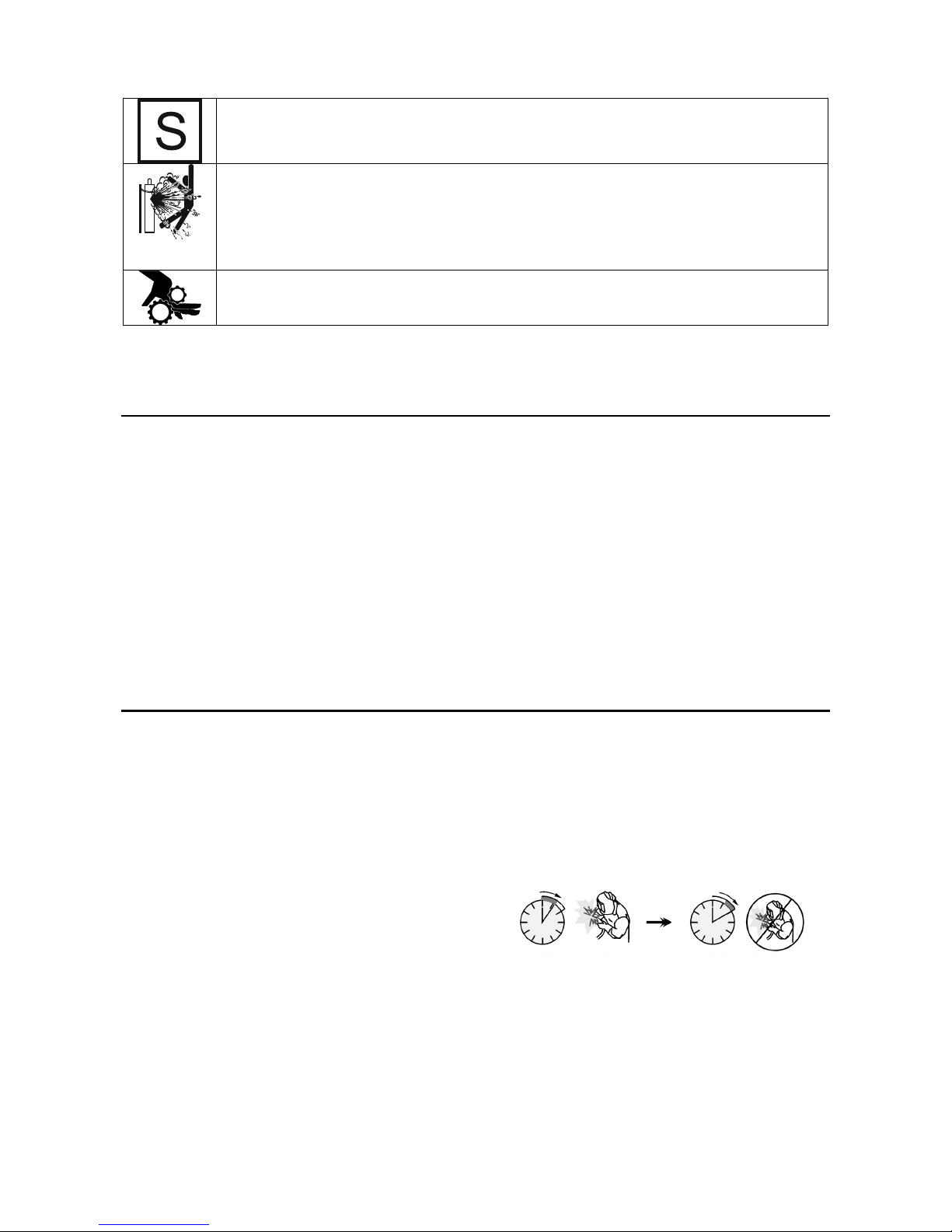

SAFETY MARK: This equipment is suitable for supplying power for welding operations carried out in

an environment with increased hazard of electric shock.

CYLINDER MAY EXPLODE IF DAMAGED: Use only compressed gas cylinders containing the

correct shielding gas for the process used and properly operating regulators designed for the gas and

pressure used. Always keep cylinders in an upright position securely chained to a fixed support. Do

not move or transport gas cylinders with the protection cap removed. Do not allow the electrode,

electrode holder, work clamp or any other electrically live part to touch a gas cylinder. Gas cylinders

must be located away from areas where they may be subjected to physical damage or the welding

process including sparks and heat sources.

MOVING PARTS ARE DANGEROUS: There are moving mechanical parts in this machine, which can

cause serious injury. Keep your hands, body and clothing away from those parts during machine

starting, operating and servicing.

The manufacturer reserves the right to make changes and/or improvements in design without upgrade at the same time

the operator’s manual.

Introduction

The welding machines WELD PAK™ 2000 enables

welding:

GMAW (MIG/MAG)

FCAW-SS

SMAW (MMA)

The following equipment has been added to WELD

PAK™ 2000:

Bracket with rear wheels, M5 screws (4 units) and

M5 lock nuts (4 units)

Gun for GMAW process – 3m

Work lead – 3m

Gas hose – 2m

For GMAW and FCAW-SS process, the technical

specification describes:

Type of welding wire

Wire diameter

Recommended equipment, which can be bought by

user, was mentioned in the chapter "Accessories".

Installation and Operator Instructions

Read this entire section before installation or operation

of the machine.

Location and Environment

This machine will operate in harsh environments.

However, it is important that simple preventative

measures are followed to assure long life and reliable

operation:

Do not place or operate this machine on a surface

with an incline greater than 15° from horizontal.

Do not use this machine for pipe thawing.

This machine must be located where there is free

circulation of clean air without restrictions for air

movement to and from the air vents. Do not cover

the machine with paper, cloth or rags when

switched on.

Dirt and dust that can be drawn into the machine

should be kept to a minimum.

This machine has a protection rating of IP23. Keep

it dry when possible and do not place it on wet

ground or in puddles.

Locate the machine away from radio controlled

machinery. Normal operation may adversely affect

the operation of nearby radio controlled machinery,

which may result in injury or equipment damage.

Read the section on electromagnetic compatibility in

this manual.

Do not operate in areas with an ambient

temperature greater than 40°C.

Duty cycle and Overheating

The duty cycle of a welding machine is the percentage of

time in a 10 minute cycle at which the welder can

operate the machine at rated welding current.

Example: 60% duty cycle

Welding for 6 minutes. Break for 4 minutes.

Excessive extension of the duty cycle will cause the

thermal protection circuit to activate.

The machine is protected from overheating by a

temperature sensor.

English English

Input Supply Connection

WARNING

Only a qualified electrician can connect the welding

machine to the supply network. Installation had to be

made in accordance with the appropriate National

Electrical Code and local regulations.

Check the input voltage, phase and frequency supplied

to this machine before turning it on. Verify the

connection of ground wires from the machine to the input

source. The welding machine WELD PAK™ 2000 must

be connected to a correctly installed plug-in socket with

an earth pin.

Input voltage is 1x230V, 50/60Hz. For more information

about input supply refer to the technical specification

section of this manual and to the rating plate of the

machine.

Make sure that the amount of mains power available

from the input supply is adequate for normal operation of

the machine. The necessary delayed fuse (or circuit

breaker with "D" characteristic) and cable sizes are

indicated in the technical specification section of this

manual.

WARNING

The welding machine can be supplied from an engine

driven generator of output power at least 30% larger

than input power of the welding machine. Engine driven

generator must have voltage stabilization. Otherwise,

may cause a damage.

See "Technical Specifications" chapter.

WARNING

When powering welder from a generator be sure to turn

off welder first, before generator is shut down, in order to

prevent damage to welder!

Output Connections

Refer to points [8], [9] and [10] of the Figures below.

Controls and Operational Features

1. Power Switch ON/OFF (I/O): Controls the input

power to the machine. Be sure the power source is

connected to the mains supply before turning power

on ("I"). After input power is connected and the

power switch is turned on, the indicator will light up to

indicate the machine is ready to weld.

2. Process Welding’s Switch:

GMAW (MIG/MAG) process

Warning: Can be used to FCAW-

SS process.

SMAW (MMA) process

WARNING

When the machine is switched again on, last welding

process will be recalled.

WARNING

If the push-button is pushed in GMAW process in, the

output terminals will lived.

WARNING

During SMAW process, the output terminals are still

lived.

Figure 1

3. Welding Load Voltage / Current Control: Depending

on welding process, this knob controls:

GMAW

process

The welding load voltage and

set by this knob [6] (also during

welding).

SMAW

process

The welding current is set by

this knob [6] (also during

welding).

4. WFS/Hot Start Control: Depending on welding

process, this knob controls:

GMAW

process

Wire feed speed WFS: Value in

percentage of nominal value

wire feed speed.

SMAW

process

HOT START: Value in

percentage of nominal value

welding current during arc start

current. The control is used to

set the level of the increased

current and arc start current is

made easy.

5. Control: Depending on welding process, this knob

controls:

GMAW

process

Inductance: Arc control is

controlled by this knob. If the

value is higher, the arc will be

softer and during welding is less

spatters.

SMAW

process

ARC FORCE: The output

current is temporarily increased

to clear short circuit connections

between the electrode and the

workpiece.

English English

6. LED Indicator Power switch: This LED lights

up when the welding machine is ON and is

ready to work

7. Thermal Overload Indicator: It indicates that

the machine is overloaded or that the cooling

is not sufficient.

WARNING

If the welding current exceed 200 A, output power will be

turned off after 5 seconds. It will be indicated by Thermal

Overload Indicator. Output power will be turned on again

after 3 minutes.

8. EURO Socket: For connecting a welding gun (for

GMAW / FCAW-SS process).

9. Positive Output Socket for the Welding

Circuit: For connecting an electrode holder

with lead / work lead.

10. Negative Output Socket for the Welding

Circuit: For connecting an electrode holder

with lead / work lead.

11. Gas Connector: Connection for gas line.

12. Power Lead with Plug (3m): Power lead with plug is

a standard equipment. Connect the power lead with

plug to the main supply before turning power on.

Figure 2.

1415

Figure 3

13. Wire Drive (for GMAW, FCAW-SS process): 2-Roll

wire drive.

14. Welding Wire (for GMAW / FCAW-SS).

15. Spooled Wire (for GMAW / FCAW-SS): The machine

does not include a spooled wire.

16. Wire Spool Support: Maximum 15kg spools. Accepts

plastic, steel and fiber spools onto 51mm spindle.

Also accepts Readi-Reel®type spools onto included

spindle adapter.

17. Shield of Changing Polarity.

18. Terminal Block of Changing Polarity (for GMAW /

FCAW-SS process): This terminal block enables to

set the welding polarity (+ ; -), which will be given at

the welding holder.

WARNING

Positive (+) polarity is set at the factory.

WARNING

Before welding check the polarity for using electrodes

and wires.

If the welding polarity has to be changed, user should:

Switch off the machine.

Determine the wire polarity for the wire to be used.

Consult the electrode data for this information.

Take off the terminal block’s shield [17].

The tip of the wire on the terminal block [18] and

work lead fix as is shown in the Table 1 or

the Table 2.

Put on the terminal block’s shield.

WARNING

The machine must be used with the door completely

closed during welding.

WARNING

Not use handle to move the machine during work.

English English

Table 1.

Positive polarity

(factory setting)

Table 2.

Negative polarity

Dieses Handbuch passt für folgende Modelle

Inhaltsverzeichnis

Andere Lincoln Electric Schweißsystem Handbücher

Lincoln Electric

Lincoln Electric WELD-PAK 100 HD Bedienungsanleitung

Lincoln Electric

Lincoln Electric Invertec V205 Bedienungsanleitung

Lincoln Electric

Lincoln Electric 12719 Bedienungsanleitung

Lincoln Electric

Lincoln Electric IDEALARC CV-305 Bedienungsanleitung

Lincoln Electric

Lincoln Electric PERKINS 350-SA Bedienungsanleitung

Lincoln Electric

Lincoln Electric Vantage 500 DEUTZ Bedienungsanleitung

Lincoln Electric

Lincoln Electric POWER WAVE IM10040 Bedienungsanleitung

Lincoln Electric

Lincoln Electric POWER WAVE C300 CE Bedienungsanleitung

Lincoln Electric

Lincoln Electric INVERTEC IM732-B Bedienungsanleitung

Lincoln Electric

Lincoln Electric IDEALARC R3R 600-I Bedienungsanleitung

Lincoln Electric

Lincoln Electric PRO-CUTTM 25 IM665 Bedienungsanleitung

Lincoln Electric

Lincoln Electric IDEALARC SVM 122-A Bedienungsanleitung

Lincoln Electric

Lincoln Electric POWER WAVE IM845-A Bedienungsanleitung

Lincoln Electric

Lincoln Electric INVERTEC 275S Bedienungsanleitung

Lincoln Electric

Lincoln Electric POWER MIG 11521 Bedienungsanleitung

Lincoln Electric

Lincoln Electric OPTIMARC CV505P Bedienungsanleitung

Lincoln Electric

Lincoln Electric POWER FEED 10M Bedienungsanleitung

Lincoln Electric

Lincoln Electric Commander 500 Cummins Bedienungsanleitung

Lincoln Electric

Lincoln Electric INVERTEC 160 TPX Bedienungsanleitung

Lincoln Electric

Lincoln Electric INVERTEC V450-PRO Bedienungsanleitung

Lincoln Electric

Lincoln Electric RANGER 305 D CE Bedienungsanleitung

Lincoln Electric

Lincoln Electric Magnum PRO 175L Bedienungsanleitung

Lincoln Electric

Lincoln Electric PRO MIG 180 Bedienungsanleitung

Lincoln Electric

Lincoln Electric POWER FEED 15M IM761 Bedienungsanleitung

Beliebte Schweißsystem Handbücher anderer Marken

Berner

Berner PLASMACUT 54 Bedienungsanleitung

Pro Spot

Pro Spot PR-155 Bedienungsanleitung

Forney

Forney 210 Bedienungsanleitung

Thermal Arc

Thermal Arc 400S Bedienungsanleitung

GYS

GYS PROTIG 201 AC/DC Bedienungsanleitung

TAFA

TAFA 30*8B35 Bedienungsanleitung

ESAB

ESAB Buddy Arc 145 Bedienungsanleitung

CIGWELD

CIGWELD 636804 Kurzanleitung

Red-D-Arc

Red-D-Arc DC-400 Bedienungsanleitung

Hobart Welding Products

Hobart Welding Products Spool Gun DP 3035-10 Bedienungsanleitung

Elettro

Elettro HI-MIG 3000 SYNERGIC Bedienungsanleitung

WIA

WIA Weldmatic 270 CP132-2 Bedienungsanleitung

Sonics

Sonics H520T Bedienungsanleitung

Miller

Miller Big Blue 400D Bedienungsanleitung

NewArc

NewArc RT2000 Kurzanleitung

Hypertherm

Hypertherm powermax1000 Bedienungsanleitung

Everlast

Everlast POWER MTS 221STi Bedienungsanleitung

Kipor

Kipor KDE180XW Bedienungsanleitung
