Lindy 42449 Bedienungsanleitung

uick Installation Guide

1Before You Begin…

System Requirement:

●10 Base-T Ethernet or 100 Base-TX Fast Ethernet

●CD-ROM drive

●CPU: Intel Pentium II 266MHz or above

●Memory: 32MB (64MB recommended)

●VGA resolution: 800x600 or above

Package Contents:

●One SOHO Wireless Internet Camera

●This

Quick Installation Guide

●One External Antenna

●One Installation CD-ROM

●One Camera Stand

●One DC Power Adapter

●One RJ-45 Ethernet Cable

Note: If any item contained is damaged or missing, please contact

your local dealer immediately.

uick Installation Guide

2Hardware Installation

Attaching the Camera Stand

The Wireless Internet Camera comes with

a camera stand, which has a swivel ball

screw head that can be attached to the

camera’s screw hole on the top/bottom

panel. Attach the camera stand to the

camera and station it for your application.

Connecting the Power Supply

Connect the external power supply to the

DC power input connector located on the

camera’s rear panel, and then connect it

to your wall outlet. (

Tip: You can confirm

the power source is supplied from the

Power LED on the camera.

)

Installing the Antenna

Connect an Ethernet cable to the network

cable connector located on the camera’s

rear panel, and then connect it to the

network.

Connecting the Ethernet Cable

Connect an Ethernet cable to the network

cable connector located on the camera’s

rear panel, and then connect it to the

network.

uick Installation Guide

3Running the Setup Wizard

The Setup Wizard is a convenient tool that will guide you through the

installation of your camera easily and quickly. After connecting the

camera to your computer, you can install the Setup Wizard and

complete the configuration now.

1. Insert the Installation

CD-ROM into your CD-ROM

drive.

Click Install Wizard.

2. Click Next.

3. Click Yes.

uick Installation Guide

4. Click Next.

5. Click Finish.

To run the Setup Wizard,

click Start -> Programs

-> Setup Wizard.

uick Installation Guide

4Using the Setup Wizard

When you launch the Setup Wizard, the main window will appear as

shown, and the connected camera will be displayed in the list.

The components on the Setup Wizard:

Click Wizard to begin configuring the selected

camera.

Click Search allows you to search the connected

camera again.

Click Link to launch the web browser and view the

images.

Click About to show the general information of the

selected camera.

Click Exit to close the Setup Wizard.

Control buttons

The connected camera list

uick Installation Guide

Changing the Admin ID and Password

By default settings, the Admin ID and Password are blank. For

security purpose, you are recommended to change the Admin ID and

Password immediately.

Click Wizard. The dialog box as

shown appears, asking you to enter

the Admin ID and Password. Both

fields are “blank”.

Click

If required, select the Change

options and enter the new Admin ID

and Password.

Click

The settings of IP Address, Subnet

Mask and Default Gateway must

correspond with your camera and

networking settings. Please check

with your network administrator for

correct settings.

Click

The Connection Mode depends on

how your camera is connected to

your network. Click Infrastructure

for use with a router or Adhoc for

peer-to- peer. The Network

Name, Wireless Channel, and

Encryption Key MUST correspond

with your wireless network settings.

uick Installation Guide

This window displays the settings you

set up. For any change, click to

modify your settings. Otherwise,

click to save and apply the

settings.

The configuration is completed, and

you will return to the main window.

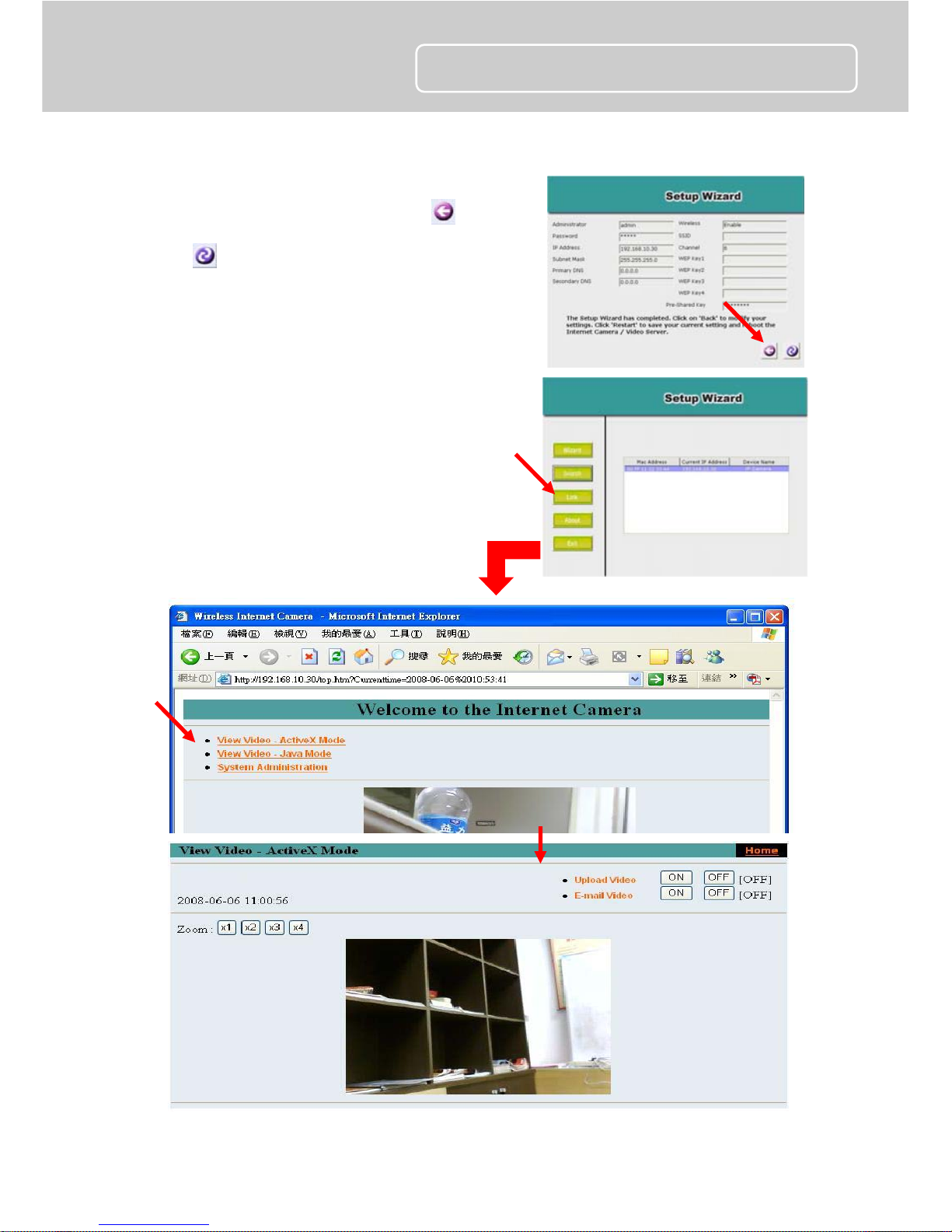

Click Link to launch the web browser

and view the images.

uick Installation Guide

5Tips

Software Information

Click About to show the

general information of the

selected camera.

Click V to return to the

main window.

Technical Support

For more information, please refer to the User’s Guide located on the

CD-ROM.
