MADE IN THE USA

LINK ELECTRONICS, INC.

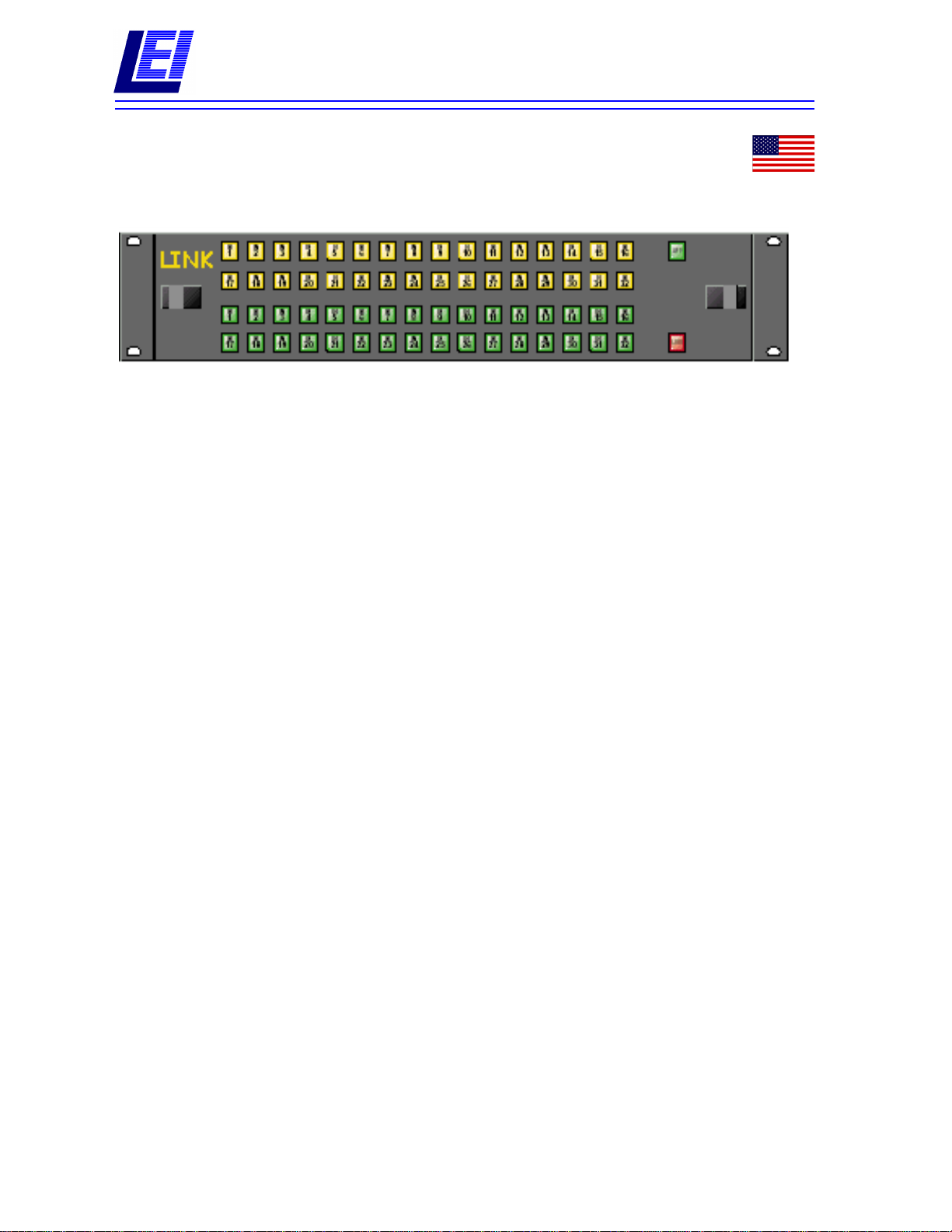

32x32 Multi Layer Video Only Router

Model 860-XL325V

FEATURES

32 X 32 Video,

Audio Follow, Option

RS-232 Control

VGA to QXGA Performance

300 MHz Bandwidth

Control Panel Included

Rear view of 2RU 32x32 multimedia frame

Link Electronics brings a breath of fresh air to the router industry! Our combined history of many years of

broadcast Industry experience and impeccable integrity has been applied to this family of high performance

component switchers. These component switchers are not repackaged single channel switchers. They are

specifically designed from ground-up, to handle the demands of component high-resolution signals.

The 2RU 860-XL325V, video only is presently a 'mid size' member of this family of products from Link

Electronics. Some of the features of the 860-XL325V include:

Compact design. Just 2RU (3 "). Competing 32x32 multimedia switchers are typically 5RU (8 3/4").

Modular design. All the electronics are on front removable 'hot swapable' plug-in modules.

The H and V sync channels are based on the same 300MHz analog switching crosspoint used for the Red,

Green, and Blue channels. This allows the 860-325V to handle ANY computer sync rate, polarity or amplitude

without risk of introducing distortions or jitter to these signals.

Inputs and outputs are via HD-15 computer multimedia standard connectors. By eliminating the BNC

connectors LINK has eliminated one of the primary causes of signal degradation: the signal discontinuities

caused by 'break-out' cables, BNC type connectors and path length variations.

Plug-in power-supply modules. Each frame has two front load slots for power supplies. One PS is standard.

The second supply is the redundant power supply option. True load power monitoring is included with remote

indicators for both power supplies. The video and audio power supplies are identical in all MAJESTIC series

switchers.

32X32 stereo analog or AES/EBU digital audio can be added by linking a 1RU MAJESTIC audio frame to the

860-XL325V.

XY' control panels is included with the 860-XL325V.

LINK ELECTRONICS, INC. g2137 Rust Avenue gCape Girardeau, MO 63703-7668

Phone 573 334 4433 gFAX 573 334 9255

800 SERIES

HD-15 Cable (Not Supplied)

SPECIFICATION

860-XL325V

VIDEO INPUTS

Inputs: ..................................................................... 32

Impedance: ...............................................75Ohms,0.1%termating

Coupling: .................................................................. DC

Connector Type: .......................................................... HD-15

RGBLevels:............................................. 0.5vp-pto2Vp-pMaximum

H&VLevel: ............................................. 0.5Vp-pto3Vp-pMaximum

VIDEO OUTPUTS

Number: .................................................................... 32

Connector Type: .......................................................... HD-15

Impedance: ........................................ 75Ohms,0.1%Sourcetermating

RGBLevel:.............................................. 0.5Vp-pto2Vp-pMaximum

H&VLevel: .............................................. 0.5Vp-pto3Vp-pMaximum

SIGNAL INTEGRITY

Gain ............................................................. :Unity±0.1dB.

Freq response: ............................. ±0.1dBto5mHz,-3dBbandwidth to 250mHz

Resolutions: ......................... Supports all graphics standards: from VGA to QXGA

Slewrate: ............................................................ 500V/usec.

Ringing amplitude: .......................................... 1%overshoot maximum.

Ringingduration: ........................................................... <2ns

Horizontaltilt: ........................................................... <0.25%.

Verticaltilt: ............................................................. <0.25%.

Crosstalkisolation:................................................. 60dB to 10mHz.

Propagation delay: .................................................... <5nstypical.

In/Indelayscatter: ........................................................ ±0.5ns.

In/Ingainscatter: .................................................. ±0.05%refunity

DCoffset: ............................................................... <25mV

SNR: ............................. -70dB, 5mHz bandwidth, 1.0Vp-p video to RMS noise.

LINK ELECTRONICS, INC. g2137 Rust Avenue gCape Girardeau, MO 63703-7668

Phone 573 334 4433 gFAX 573 334 9255
