LINK-MI LM-EX150HT Bedienungsanleitung

18Gbps HDMI over HDBaseT Extender

with Bi-directional IR (150M)

VER 1.0

Thank you for purchasing this product

For optimum performance and safety, please read these instructions carefully

before connecting, operating or adjusting this product. Please keep this manual

for future reference.

Surge protection device recommended

This product contains sensitive electrical components that may be damaged

by electrical spikes, surges, electric shock, lighting strikes, etc. Use of surge

protection systems is highly recommended in order to protect and extend the

life of your equipment.

Table of Contents

1. Introduction............................................................................................

2. Features..................................................................................................

3. Package Contents................................................................................

4. Specifications........................................................................................

5. Operation Controls and Functions......................................................

5.1 Transmitter Panel.............................................................................

5.2 Receiver Panel................................................................................

5.3 IR Pin Definition................................................................................

6. Application Example............................................................................

1. Introduction

2. Features

☆HDMI 2.0, HDCP 2.2 / HDCP 1.4 and DVI 1.0 compliant

☆Supports 18Gbps bandwidth

☆Input and output video resolution is up to 4k2k@60Hz 4:4:4, extends

distance up to 394ft / 120 meters via a single CAT5e/6 cable

(Using CAT6a/7 cable extends up to 492ft / 150M).

☆One HDMI loop output

☆De-embeded audio to analog L/R output

☆With bi-directional IR, RS-232 pass-through

☆HDR and Dolby Vision function supported

☆Supports PoC (Power over Cable) function, it means that either transmitter

or receiver is powered supply by 24V/1A power adapter, the other doesn’t

need power supply.)

☆Compact design for easy and flexible installation.

1 / 8

This 18Gbps HDMI Extender can extend high definition video / audio signal,

RS-232, bi-directional IR, and the distance is up to 394ft / 120 meters between

transmitter and receiver via a single CAT5e/6 cable (Using CAT6a/7 cable

extends up to 492ft / 150M). It supports resolution up to 4K2K@60Hz 4:4:4,

18Gbps and HDCP 2.2. One HDMI loop port is available for output. It also

supports de-embeded audio for L/R audio output and PoC function. In addition,

the extender is equipped with two-way IR pass-through which allows for

source and display control.

This HDMI extender includes two units: transmitter unit and receiver unit. The

transmitter unit is responsible for capturing HDMI input signal and carries

the signal via one cost effective Cat5e/6 cable, and transmitting / emitting IR

control signals. The receiver unit is responsible for receiving the HDMI signal

and transmitting / emitting IR control signal.

The extender offers the most convenient solution for HDMI extension via a

single Cat5e/6 with long distance capability, and is the perfect solution for

any application.

3. Package Contents

4. Specifications

Human body model — ±8kV (Air-gap discharge) &

±4kV (Contact discharge)

ESD Protection

Technical

HDCP Compliance HDCP 2.2 / HDCP 1.4

Video Bandwidth 18Gbps

Video Resolution

4K2K 50/60Hz 4:4:4

4K2K 50/60Hz 4:2:2

4K2K 50/60Hz 4:2:0

4K2K 30Hz 4:4:4

1080p, 1080i, 720p, 720i, 480p, 480i

All HDMI 3D TV formats

All PC resolutions including 1920 x 1200

Color Space RGB / YCbCr 4:4:4, YCbCr 4:2:2, YCbCr 4:2:0

Color Depth

8/10/12-bit (1080P60Hz, 4K30Hz, 4K60Hz YCbCr

4:2:2/4:2:0)

8-bit (4K60Hz 4:4:4 )

HDMI Audio Formats

LPCM 2.0/2.1/5.1/6.1/7.1, Dolby Digital, Dolby

TrueHD, Dolby Digital Plus(DD+), DTS-ES, DTS

HD Master, DTS HD-HRA, DTS-X

HDMI Compliance HDMI 2.0

Qty Item

1 18Gbps HDMI over HDBaseT Extender (Transmitter)

2 IR Blaster cable (1.5 meters)

2 20~60KHz IR Receiver cable (1.5 meters)

4 Mounting Ears

3-pin Phoenix connectors2

1 24V/1A Locking Power adapter

1 User Manual

L/R Audio Formats PCM 2.0

2 / 8

18Gbps HDMI over HDBaseT Extender (Receiver)

Resolution /

Cable Length

Power Supply Input: AC 100 - 240V 50/60Hz

Output: DC 24V/1A

Operating

Temperature

9.36 W

Storage Temperature

32 - 104°F / 0 - 40°C

Relative Humidity

-4 - 140°F / -20 - 60°C

Power Consumption

20 - 90% RH (no condensation)

Dimensions

BlackColor

Transmitter / Receiver:

140mm [W] x 65mm [D] x 18mm [H]

Metal EnclosureHousing

Weight Transmitter: 160g, Receiver: 155g

Resolution / Distance 4K60 - Feet / Meters

CAT5e/6

HDMI IN / OUT

492ft / 150M

10ft / 3M

Receiver

The use of “Premium High Speed HDMI” cable is highly recommended.

Inputs: 1x HDBT IN [RJ45, 8-pin female]

1x SERVICE [Mini-USB, Update port]

Outputs: 1x HDMI Type A [19-pin female]

1x AUDIO OUT [3.5mm Stereo Mini-jack]

Control: 1x IR IN [3.5mm Stereo Mini-jack]

1x IR OUT [3.5mm Stereo Mini-jack]

1x RS-232 [Phoenix jack]

Mechanical

4K60 -

Feet / Meters

4K30 -

Feet / Meters

1080P60 -

Feet / Meters

30ft / 10M 50ft / 15M

Connections

Transmitter

Inputs: 1x HDMI Type A [19-pin female]

1x SERVICE [Mini-USB, Update port]

Outputs: 1x HDMI Type A [19-pin female]

1x HDBT OUT [RJ45, 8-pin female]

Control: 1x IR IN [3.5mm Stereo Mini-jack]

1x IR OUT [3.5mm Stereo Mini-jack]

1x RS-232 [Phoenix jack]

394ft / 120M

CAT6a/7

3 / 8

5. Operation Controls and Functions

5.1 Transmitter Panel

DC 24V input for 24V 1A power adapter.

Note that the extender supports PoC function, it means that either

transmitter or receiver is powered supply by 24V/1A power adapter,

the other doesn’t need power supply.

HDMI loop output for display.

SERVICE

IR IN IR OUT

HDMI OUT HDMI IN

HDBT OUT

DC 24V

Name Function description

Power LED Red LED indicates when the transmitter is powered.

SERVICE port Firmware update port.

DC 24V

HDBT OUT

Connection Signal

Indicator lamp

(on the left side of the

HDBT OUT port)

▪ Illuminate: Transmitter and Receiver are in good connection

status.

▪ Flashing: Transmitter and Receiver are in poor connection

status.

▪ Dark: Transmitter and Receiver are not connected.

Data Signal

Indicator lamp

(on the right side of

the HDBT OUT port)

▪ Illuminate: HDMI signal with HDCP.

▪ Flashing: HDMI signal without HDCP.

▪ Dark: No HDMI signal.

HDMI OUT

HDMI IN HDMI source input.

IR IN IR port input for receiving the signal of IR remote.

IR OUT IR port output for control of source device. This IR output

signal is from IR IN port of receiver.

RJ45 connector for connecting the HDBT IN port of receiver

with CAT 5e/6 cable.

4 / 8

RS-232

3-pin pluggable connector for RS-232 command tranmission.

The RS-232 command will pass-through from transmitter to

receiver or receiver to transmitter.

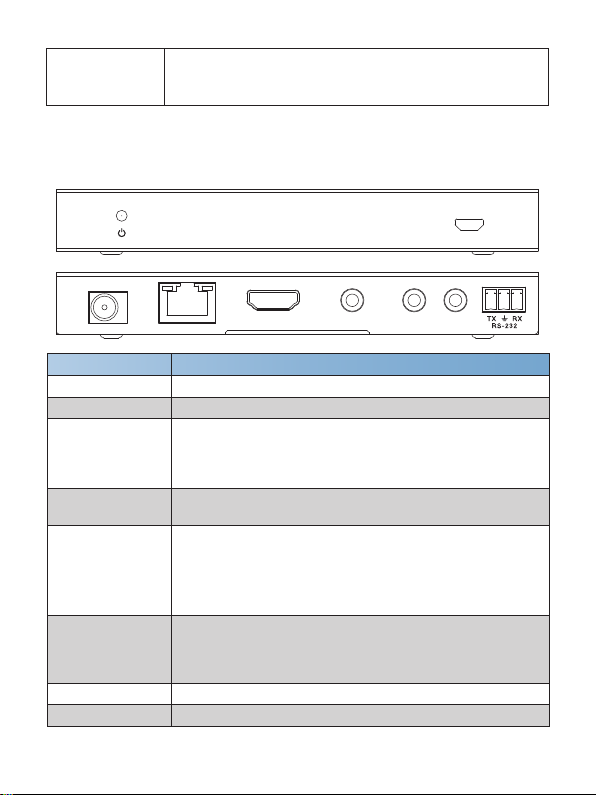

5.2 Receiver Panel

SERVICE

IR IN IR OUT

HDMI OUT

DC 24V

HDBT IN

AUDIO OUT

DC 24V input for 24V 1A power adapter.

Note that the extender supports PoC function, it means that either

transmitter or receiver is powered supply by 24V/1A power adapter,

the other doesn’t need power supply.

HDMI output for display.

Name Function description

Power LED Red LED indicates when the receiver is powered.

SERVICE port Firmware update port.

DC 24V

HDBT OUT

Connection Signal

Indicator lamp

(on the left side of the

HDBT OUT port)

▪ Illuminate: Transmitter and Receiver are in good connection

status.

▪ Flashing: Transmitter and Receiver are in poor connection

status.

▪ Dark: Transmitter and Receiver are not connected.

Data Signal

Indicator

(on the right side of

the HDBT OUT port)

▪ Illuminate: HDMI signal with HDCP.

▪ Flashing: HDMI signal without HDCP.

▪ Dark: No HDMI signal.

HDMI OUT

AUDIO OUT 3.5mm stereo connector for analog audio output.

RJ45 connector for connecting the HDBT OUT port of

transmitter with CAT 5e/6 cable.

5 / 8

5.3 IR Pin Definition

IR Receiver and Blaster pin’s definition as below:

IR RECEIVER IR BLASTER

IR Blaster

IR Receiver

IR Blaster Signal

Power

IR Signal

Power

Grounding

IR IN IR port input for receiving the signal of IR remote.

IR OUT IR port output for control of display device. This IR output

signal is from IR IN port of transmitter.

RS-232

3-pin pluggable connector for RS-232 command tranmission.

The RS-232 command will pass-through from transmitter to

receiver or receiver to transmitter.

6 / 8

The following is IR system diagram about IR cable use method.

Note that IR remote sends signal distance for 0~5 meters / 0~8 meters, and angle is

plus-minus 45 degrees / vertical direction .

IR IN IR OUT

HDMI OUT HDMI IN

HDBT OUT

DC 24V

IR IN IR OUT

HDMI OUT

DC 24V

HDBT IN

AUDIO OUT

LAN

DVD

DVD remoteTV remote

CAT 5e/6 cable

IR receiver cable

IR blaster cable

7 / 8

ReceiverTransmitter

6. Application Example

DVD or Blu-ray Player

IR Extender

Power Supply

UHDTV

IR Blaster

IR IN IR OUT

HDMI OUT HDMI IN

HDBT OUT

DC 24V

IR IN IR OUT

HDMI OUT

DC 24V

HDBT IN

AUDIO OUT

LAN

2.0 Speakers

UHDTV

IR Extender

IR Blaster

HDMI Matrix with RS-232 function

Receiver

Transmitter

CAT 5e/6 cable

8 / 8
