Linkskey LKA-CR15BW Bedienungsanleitung
USB2.0 ICSI Card reader Manual
1
I n d e x
1. Product Features 02
2. Manual for Windows
2.1. Installment under win 98SE 03
2.2. Annotation 06
2.3. Check if the installment of driver under win98 SE 07
2.4. Check if the installment of driver under win ME/2000/XP 09
2.5. Two Kinds of methods for Un-installment under win 98SE 10
3. Installment Under the MAC 9.X /10.2.8 above…
3.1. Installment under Mac 9.x 12
3.2. Un-installment under Mac 9.x 13
3.3. Check if the installment of driver under Mac 9.X 14
3.4. Installment under Mac 10.2.8 above 15
4. Installation Under Linux 18
5. FAQ 20
USB2.0 ICSI Card reader Manual
2
1. Product Features
U S B 2 . 0 I C S I C a r d r e a d e r
The fast and easy way to transfer images, music, and data to your computer!
With all of the different types of memory cards available today, the Multi-Card
Reader is the most versatile solution for transferring files to your computer. You are
able to transfer files from devices such as digital cameras, video camcorders, MP3
players and even personal digital assistants (PDAs). Its compact size and USB
connectivity make it convenient to take it with you wherever you go.
Feature
1. Compliance with USB2.0 and 1.1
2. The device can work without plug adapter support NAND flash memory/Compact Flash
Card/IBM Micro Drive/Smart Media Card/ Multi Media Card/Security Digital/Card/Memory
Stick Card/Memory Stick PRO Card .
3. Device driver-less advantage when used in Windows ME/2000/XP, Mac (10.2.x and above),
and Linux (2.4.x and above) everywhere even without driver disk/CD
4. Provide LED indicators for card reader power supply and the accessing of flash card
System Requirement:
1. Windows 98se ,ME ,2000 ,XP
2. Mac 10.2.8 , 10.3
3. Linux 2.4.x and above
USB2.0 ICSI Card reader Manual
3
2. Manual for Windows
2.1. Installment under win 98SE
1. After you plug the Card reader into the USB2.0 Port, there will be a screen named
“Add New Hardware Wizard”on the desktop. Please click “Cancel”to continue.
2. Please find the file named “Setup”in the folder of driver CD and then double click
this file to install the driver.
3. Choose Setup Language then the setup dialogue will appear and then click “Next
“to continue.
USB2.0 ICSI Card reader Manual
4

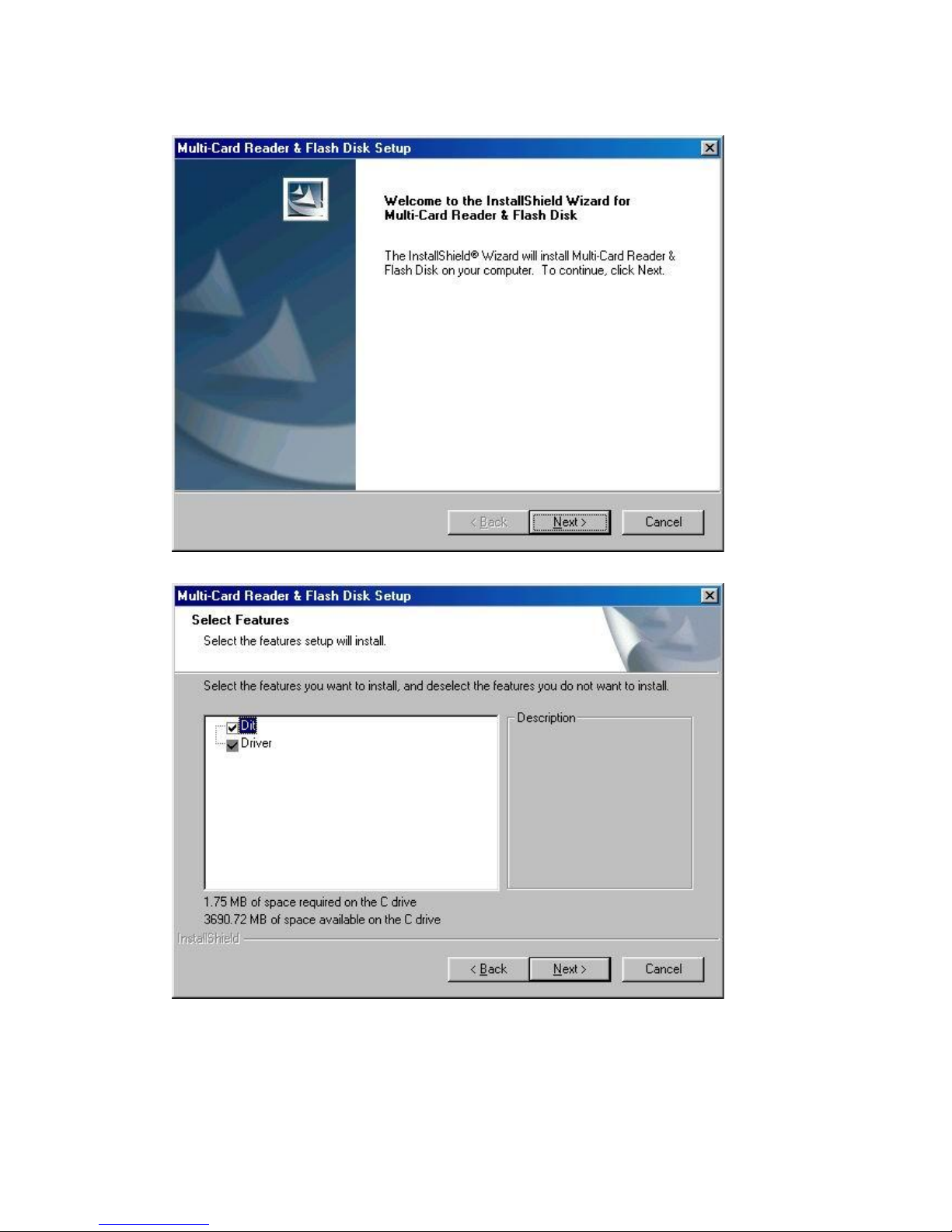

4 click “Next “ to continue.
5. Select installation Item , and then click “Next “
USB2.0 ICSI Card reader Manual
5

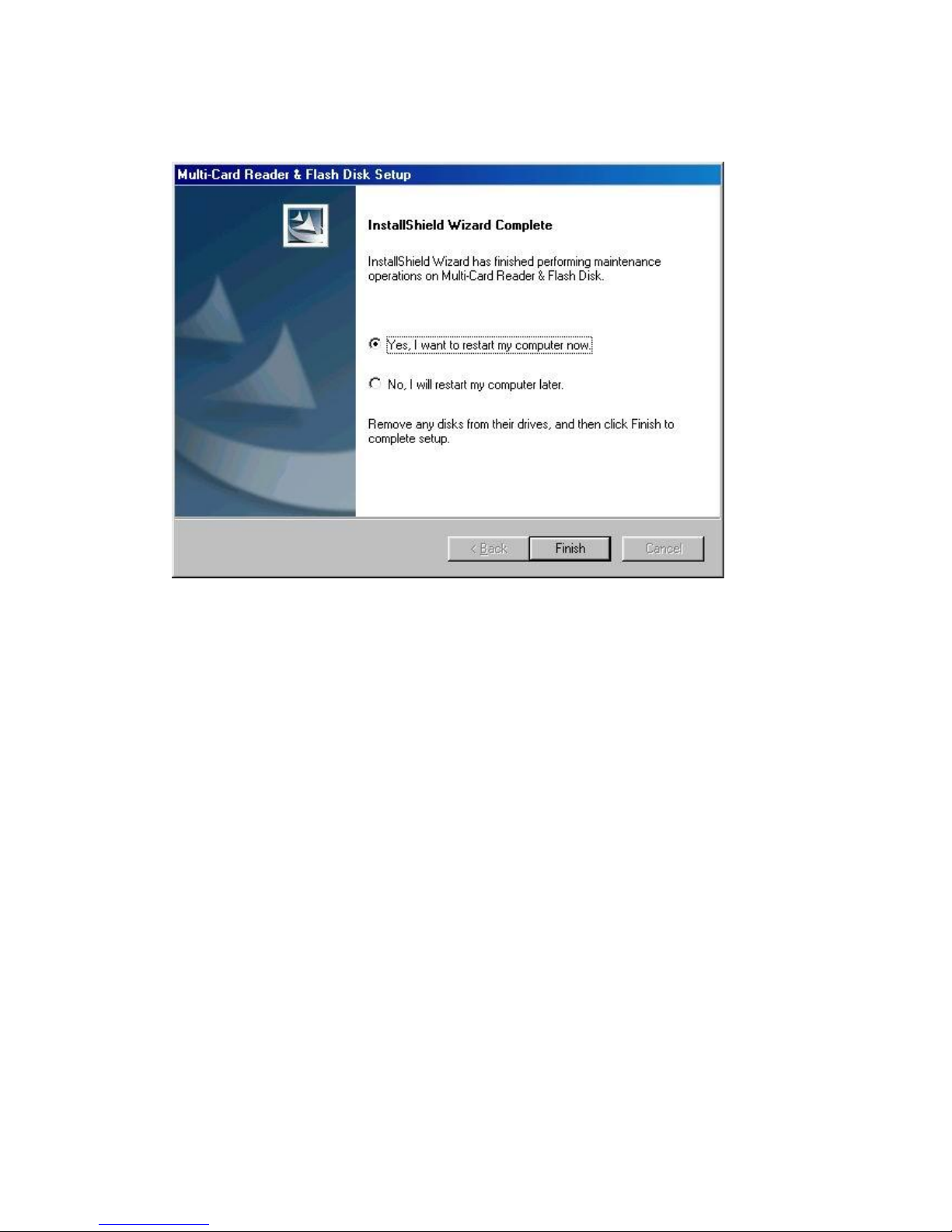

6. Finally, please Click “Finish”. Please restart your computer .
7.After you plug the Card reader into the USB2.0 Port
USB2.0 ICSI Card reader Manual
6
2.2. Annotation:
If you select the custom type for installment mentioned above, the following steps
will emerge

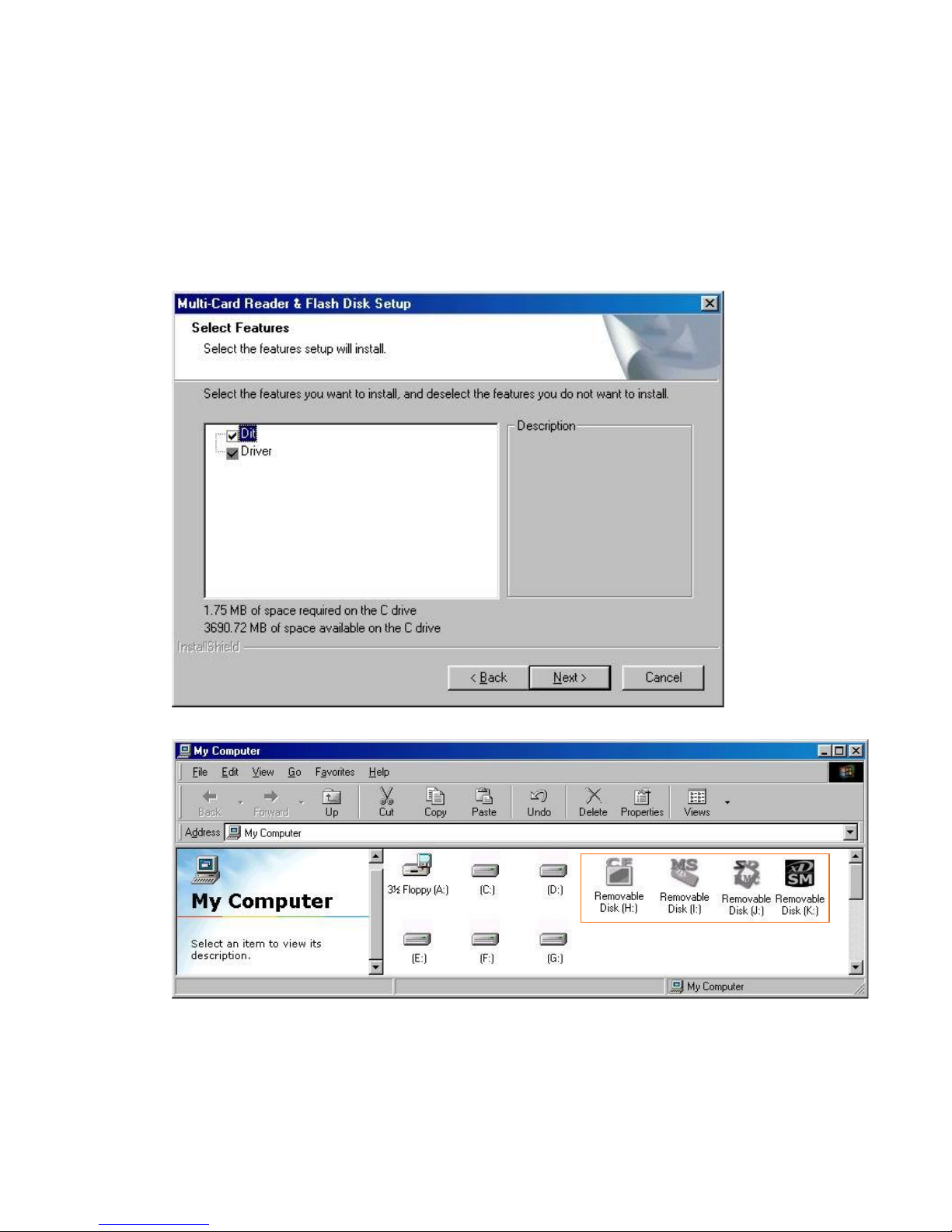

Step1. The following screen will appear. You have to choose the following both item
and then click “Next”to continue.
.
Step2 Then the special picture of four icons—disk H,I, J, K—will appear.
USB2.0 ICSI Card reader Manual
7
2.3. Check if the installment of driver under win98 SE
you can check if the driver actually completed with one of following method

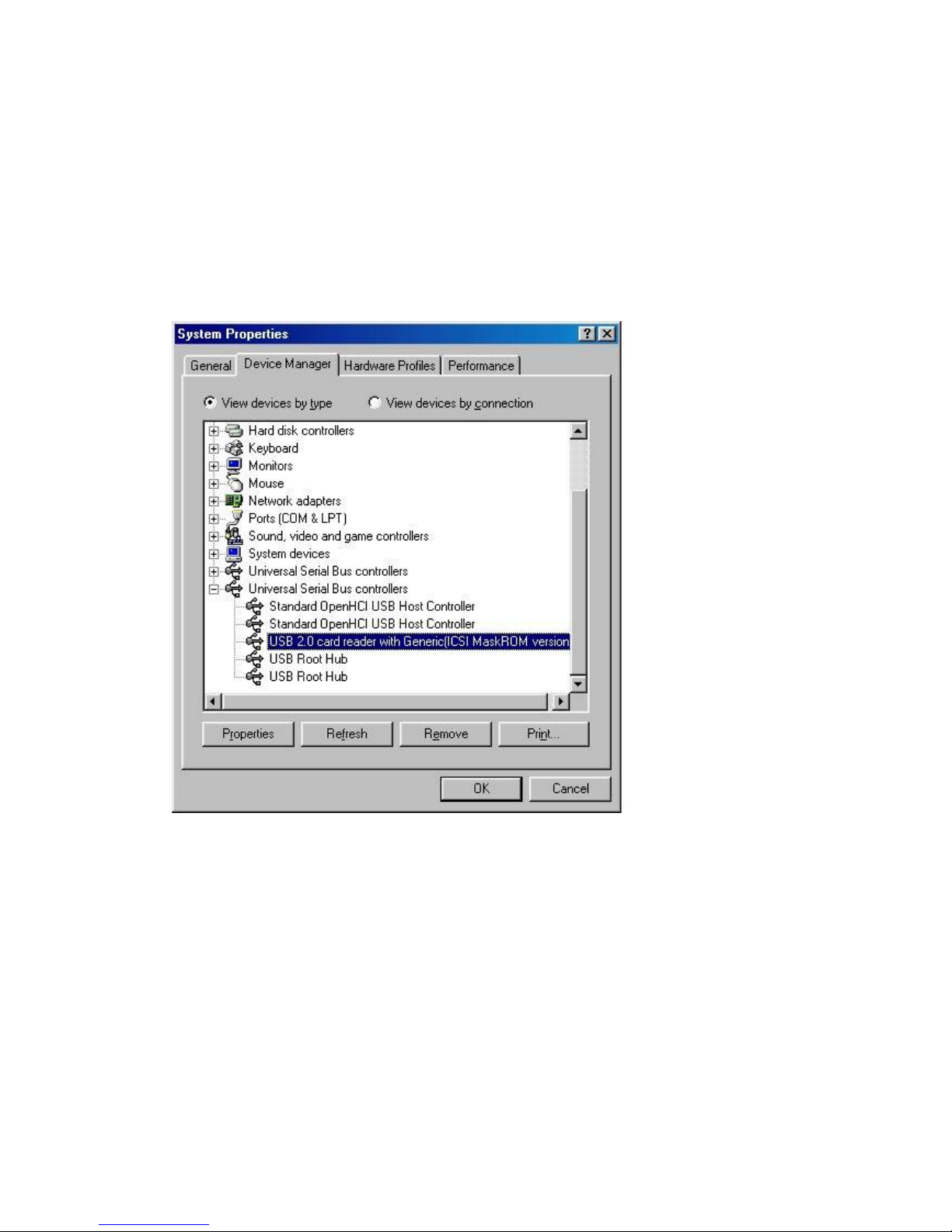

Method 1. Click My computer →System Properties →Device Manager→Universal
Serial Bus controllers to check if the “USB2.0 Card Reader with Generic (ICSI Mask
ROM Version)” is existed. The existence of this item implies that the driver has been
exactly installed.

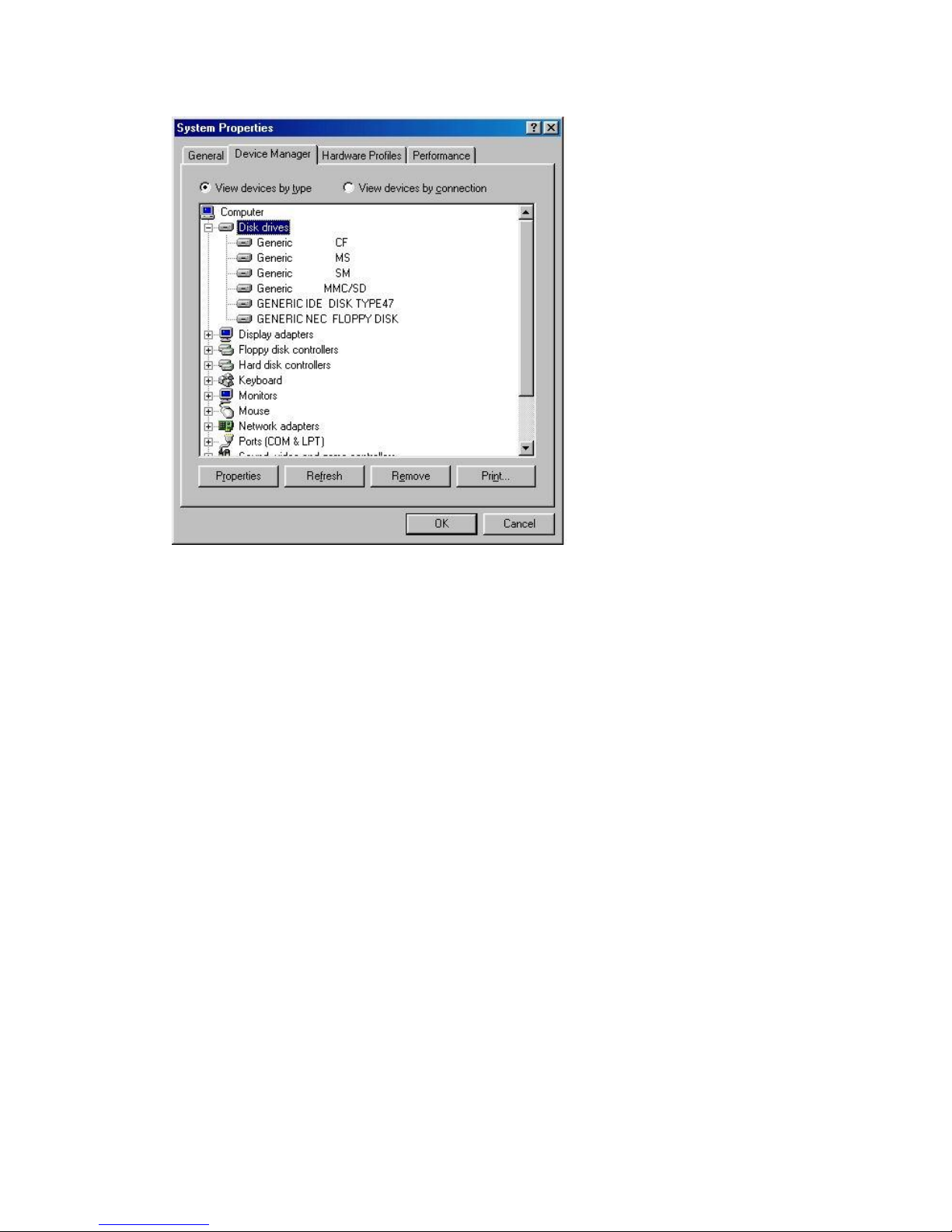

Method2. And then Click My computer →System Properties →Device Manager→
Disk drives to check if the four items of Generic USB Storage—CF, MS ,SM and
MMC/SD—is existed to check the if the driver are installed completely.
USB2.0 ICSI Card reader Manual
8
USB2.0 ICSI Card reader Manual
9

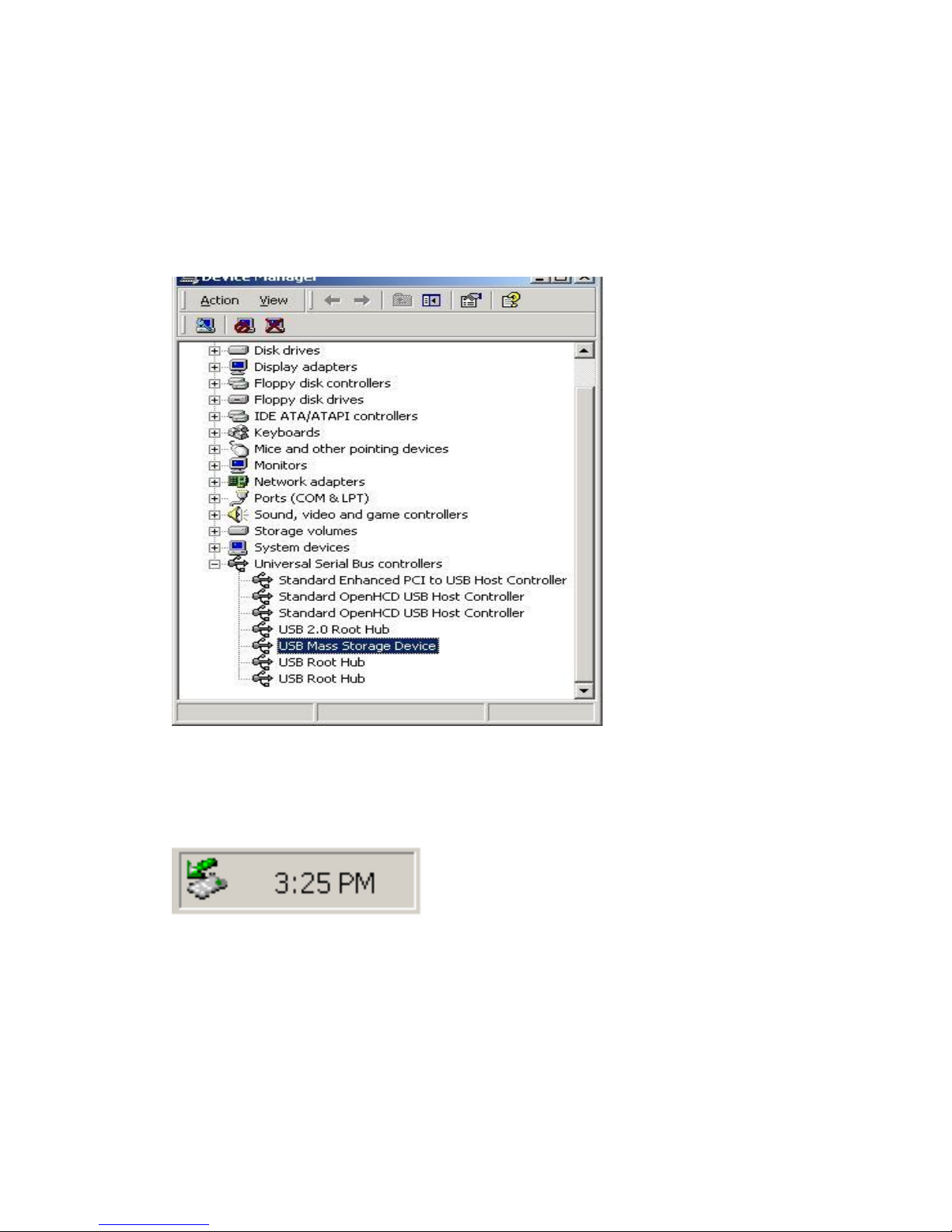

2.4. Check if the installment of driver under win ME/2000/XP
1 Click My computer →System Properties →Device Manager→Universal Serial
Bus controllers to check if the “USB Mass Storage Device ” is existed. The
existence of this item implies that the driver has been exactly installed.
2Once you plug the Cardreader to your computer, you should see something
similar to in the Start Bar.
USB2.0 ICSI Card reader Manual
10

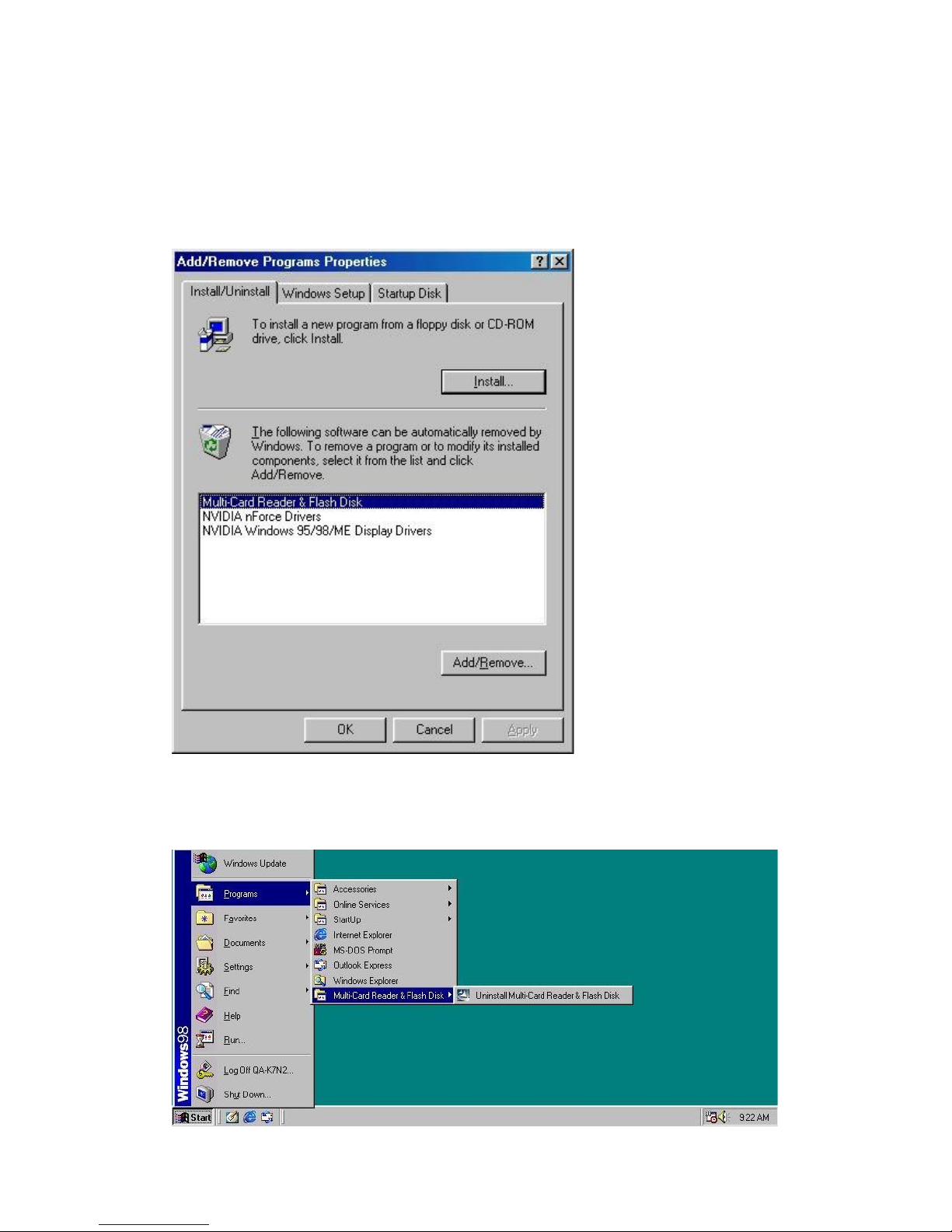

2.5. Two Kinds of methods for Un-installment under win 98SE
Method 1. Select “Multi-Carder &Flash Disk” and then click “Add/Remove to
uninstall.”
Method 2
1. Click start →programs→Multi-Carder &Flash Disk→→Uninstall Multi-Carder
&Flash Disk
