Linksys EG008W - Instant Gigabit Workgroup Switch Bedienungsanleitung

A Division of Cisco Systems, Inc.

Model No.

WIRED 8-Port Workgroup Switch

Gigabit

EG008W

User Guide

Gigabit 8-Port Workgroup Switch

Specifications are subject to change without notice. Linksys is a registered trademark or trademark of Cisco

rights reserved. Other brands and product names are trademarks or registered trademarks of their respective

holders.

How to Use this Guide

This User Guide has been designed to make understanding networking with the Gigabit 8-Port Workgroup Switch

easier than ever. Look for the following items when reading this User Guide:

In addition to these symbols, there are definitions for technical terms that are presented like this:

Also, each figure (diagram, screenshot, or other image) is provided with a figure number and description, like

this:

Figure numbers and descriptions can also be found in the “List of Figures” section.

This exclamation point means there is a caution or

warning and is something that could damage your

property or the Switch.

word: definition.

This checkmark means there is a note of interest and

is something you should pay special attention to while

using the Switch.

This question mark provides you with a reminder about

something you might need to do while using the Switch.

Figure 0-1: Sample Figure Description

EG0058W_V3-UG-51017NC JL

WARNING: This product contains chemicals, including lead, known

to the State of California to cause cancer, and birth defects or other

reproductive harm. Wash hands after handling.

Gigabit 8-Port Workgroup Switch

Table of Contents

Chapter 1: Introduction 1

Welcome 1

What’s in this User Guide? 1

Chapter 2: Getting to Know the Switch 3

The Front Panel 3

The Back Panel 4

Chapter 3: Connecting the Switch 5

Overview 5

Before You Install the Switch... 6

Placement Options 6

Connecting the Switch 7

Appendix A: About Gigabit Ethernet 8

Gigabit Ethernet 8

Appendix B: Windows Help 9

Appendix C: Glossary 10

Appendix D: Specifications 13

Appendix E: Warranty Information 14

Appendix F: Regulatory Information 15

Appendix G: Contact Information 21

Gigabit 8-Port Workgroup Switch

List of Figures

Figure 2-1: Front Panel 3

Figure 2-2: Back Panel 4

Figure 3-1: Typical Network Configuration 5

Figure 3-2: Measurement between Wall-Mount Slots 6

Figure 3-3: Connect the Ethernet Network Cable 7

Figure 3-4: Connect the Power 7

Chapter 1: Introduction

Welcome

Gigabit 8-Port Workgroup Switch

Chapter 1: Introduction

Welcome

Thank you for choosing the Linksys Gigabit 8-Port Workgroup Switch. The Switch delivers non-blocking, wire

speed switching for your 10, 100, and 1000Mbps network clients, so all workstations will perform at their

maximum speeds.

Gigabit speeds are perfect for graphics, multimedia, and other applications that have to quickly move large files

across the network. Connect your Gigabit-equipped workstations to the Switch’s 10/100/1000 ports, so they will

have full-duplex, dedicated bandwidth of up to 1000Mbps, while the other clients continue to run at their current

10/100Mbps speeds.

Use the instructions in this User Guide to help you install the Switch. These instructions should be all you need to

get the most out of the Gigabit 8-Port Workgroup Switch.

What’s in this User Guide?

This user guide covers the steps for setting up and using the Switch.

• Chapter 1: Introduction

This chapter describes the Switch’s applications and this User Guide.

• Chapter 2: Getting to Know the Gigabit 8-Port Workgroup Switch

This chapter describes the physical features of the Switch.

• Chapter 3: Connecting the Gigabit 8-Port Workgroup Switch

This chapter explains how to install and connect the Switch.

• Appendix A: About Gigabit Ethernet

This appendix gives a general description of Gigabit Ethernet.

• Appendix B: Windows Help

This appendix describes how you can use Windows Help for instructions about networking, such as installing

the TCP/IP protocol.

• Appendix C: Glossary

This appendix gives a brief glossary of terms frequently used in networking.

full duplex: the ability of a networking device to

receive and transmit data simultaneously.

Chapter 1: Introduction

What’s in this User Guide?

Gigabit 8-Port Workgroup Switch

• Appendix D: Specifications

This appendix provides the Switch’s technical specifications.

• Appendix E: Warranty Information

This appendix supplies the Switch’s warranty information.

• Appendix F: Regulatory Information

This appendix supplies the Switch’s regulatory information.

• Appendix G: Contact Information

This appendix provides contact information for a variety of Linksys resources, including Technical Support.

Chapter 2: Getting to Know the Switch

The Front Panel

Gigabit 8-Port Workgroup Switch

Chapter 2: Getting to Know the Switch

The Front Panel

The Switch's LEDs are located on the front panel.

LEDs

POWER Green. The POWER LED lights up to indicate that the Switch is powered on.

1-8 Green. A numbered LED lights up when there is a connection made through its

corresponding port. It flashes to indicate that the Switch is actively sending or receiving

data over that port.

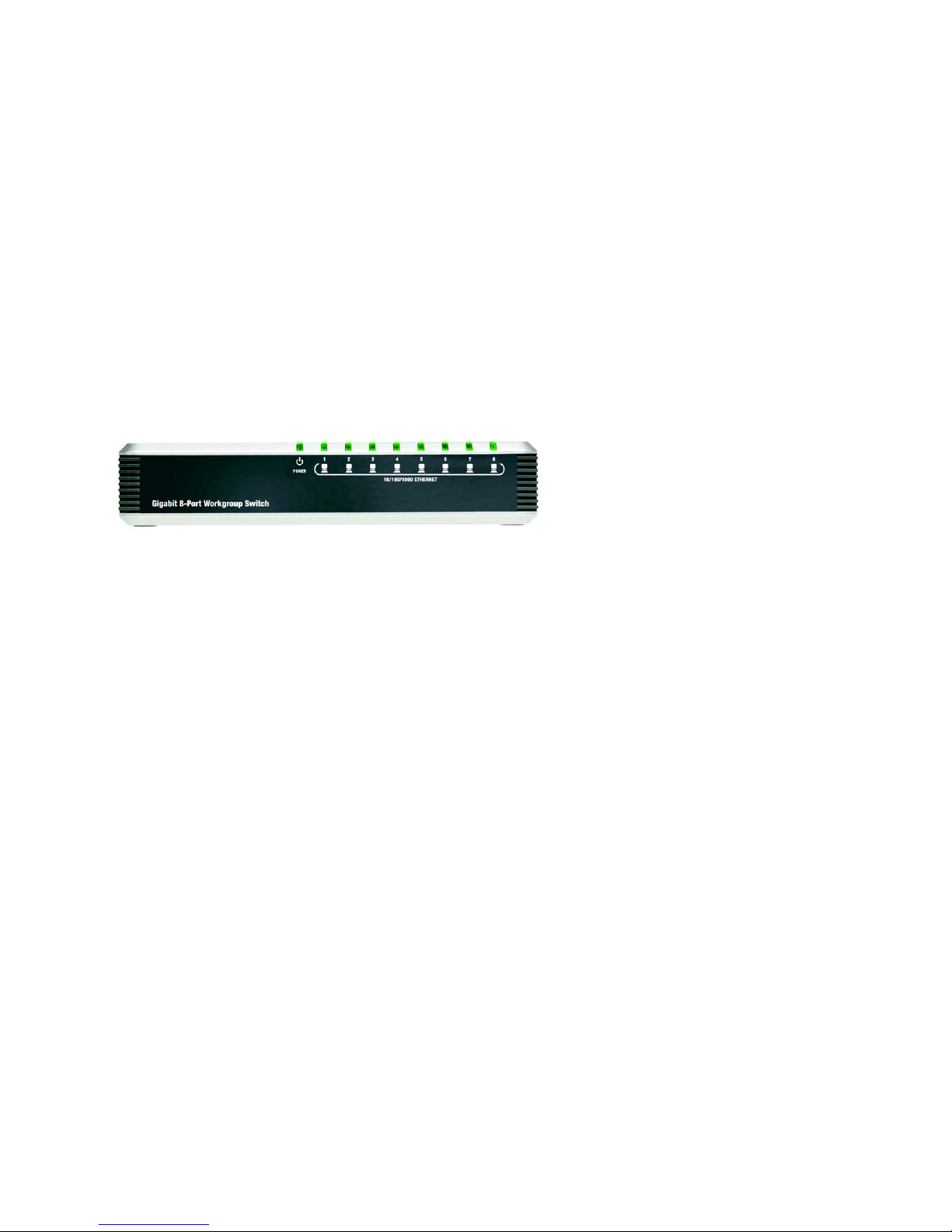

Figure 2-1: Front Panel

Chapter 2: Getting to Know the Switch

The Back Panel

Gigabit 8-Port Workgroup Switch

The Back Panel

The ports are located on the back panel of the Switch.

Ports

10/100/1000

ETHERNET 1-8 The Switch is equipped with eight auto-sensing, Ethernet network ports, which use RJ-45

connectors. These ports support auto MDI/MDIX cable detection and network speeds of

10Mbps, 100Mbps, and 1000Mbps. They can operate in half and full-duplex modes. Auto-

sensing technology enables each port to automatically detect the speed of the device

connected to it (10Mbps, 100Mbps, or 1000Mbps), and adjust its speed and duplex

accordingly.

Power The Power port is where you will connect the included power adapter.

NOTE: If you need to reset the Switch, unplug the power adapter from the

back of the Switch. Wait a few seconds and then reconnect it.

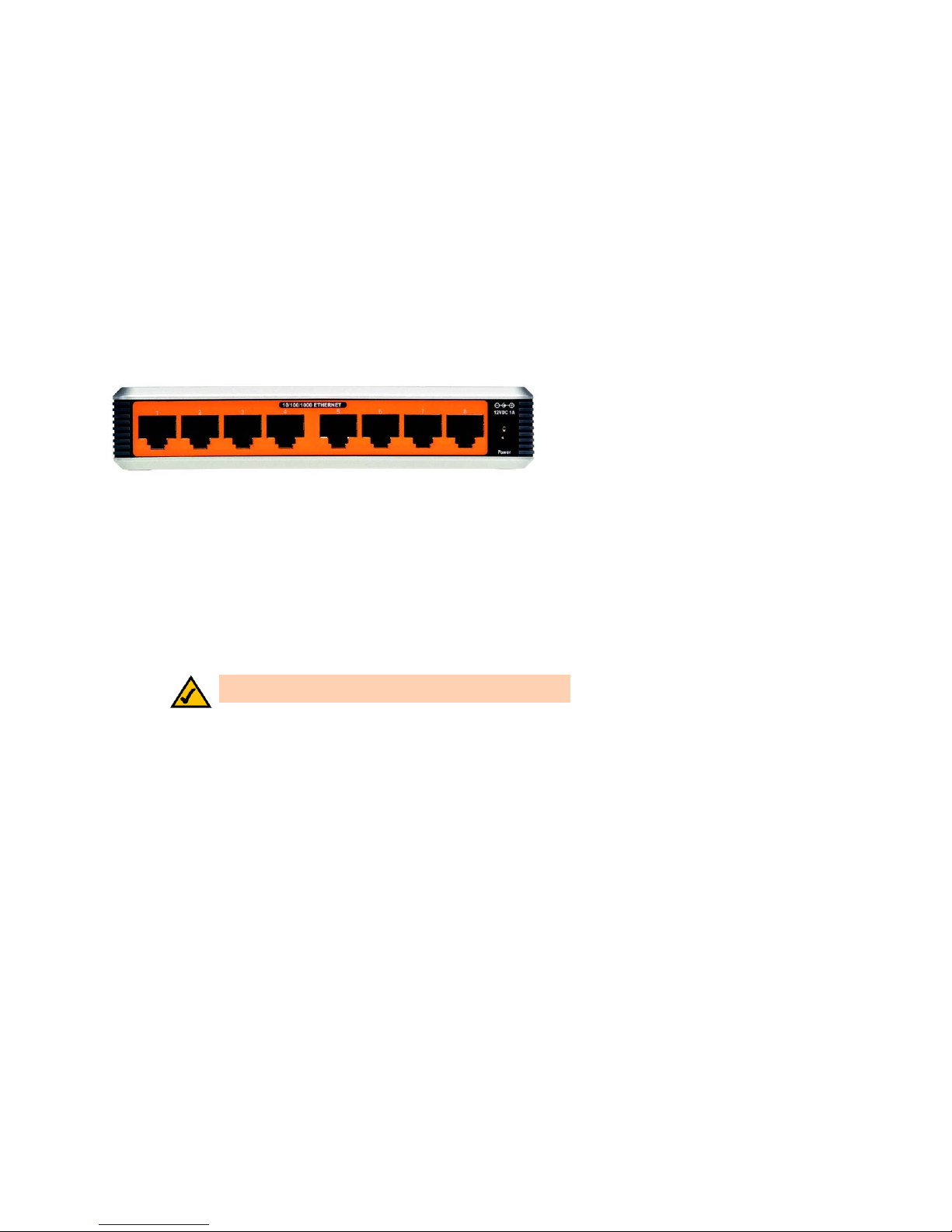

Figure 2-2: Back Panel

Chapter 3: Connecting the Switch

Overview

Gigabit 8-Port Workgroup Switch

Chapter 3: Connecting the Switch

Overview

This chapter will explain how to connect network devices to the Switch. For an example of a typical network

configuration, see the application diagram shown below.

When you connect your network devices, make sure you don’t exceed the maximum cabling distances, which are

listed in the following table:

*A hub refers to any type of 100Mbps hub, including regular hubs and stackable hubs. A 10Mbps hub connected

to another 10Mbps hub can span up to 100 meters (328 feet).

Table 1: Maximum Cabling Distances

From To Maximum Distance

Switch Switch or Hub* 100 meters (328 feet)

Hub Hub 5 meters (16.4 feet)

Switch or Hub Computer 100 meters (328 feet)

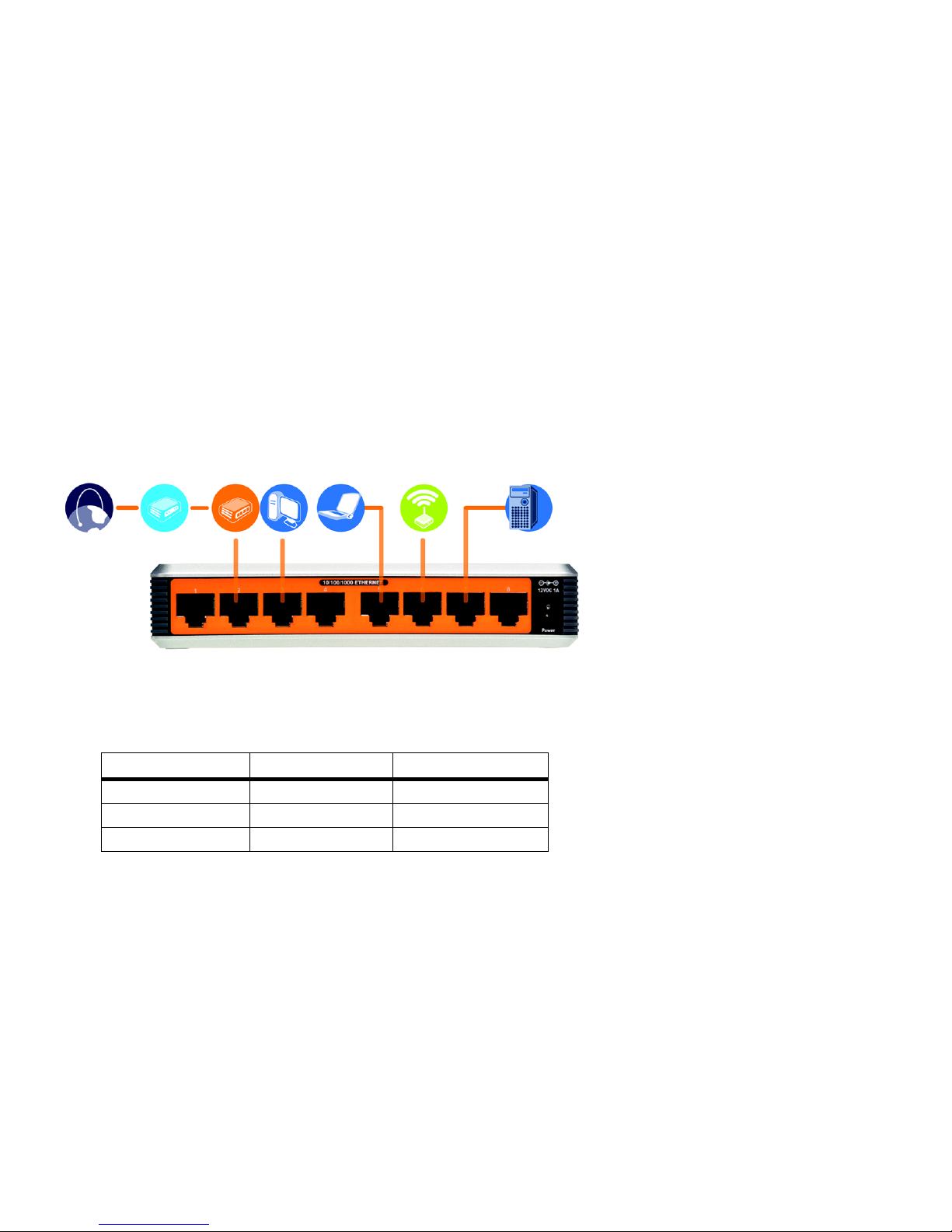

Figure 3-1: Typical Network Configuration

Cable/DSL

Modem

Internet Router

10/100/1000

Desktop Notebook

Wireless

Access Point

10/100/1000

Server

Chapter 3: Connecting the Switch

Before You Install the Switch...

Gigabit 8-Port Workgroup Switch

Before You Install the Switch...

When you choose a location for the Switch, observe the following guidelines:

• Make sure that the Switch will be accessible and that the cables can be easily connected.

• Keep cabling away from sources of electrical noise, power lines, and fluorescent lighting fixtures.

• Position the Switch away from sources of water and moisture.

Placement Options

Before connecting cables to the Switch, first you will physically install the Switch.

There are two ways to place the Switch. The first way is to place it horizontally on a surface, so it sits on its four

rubber feet. The second way is to mount it on a wall. The wall-mount option is described in further detail below.

Wall-Mount Option

The Switch has two wall-mount slots on its bottom panel. The distance between two adjacent slots is

2.36 inches (60 mm).

Before you begin, make sure you have two screws that are size #4—this indicates a diameter measurement of

0.112 inches (2.845 mm).

1. Determine where you want to mount the Switch.

2. Drill two holes into the wall. Make sure adjacent holes are 2.36 inches (60 mm) apart.

3. Insert a screw into each hole, and leave 0.2 inches (5 mm) of its head exposed.

4. Maneuver the Switch so the wall-mount slots line up with the two screws.

5. Place the wall-mount slots over the screws and slide the Switch down until the screws fit snugly into the

wall-mount slots.

Proceed to the section, Connecting the Switch.”

2.36 inches

(60 mm)

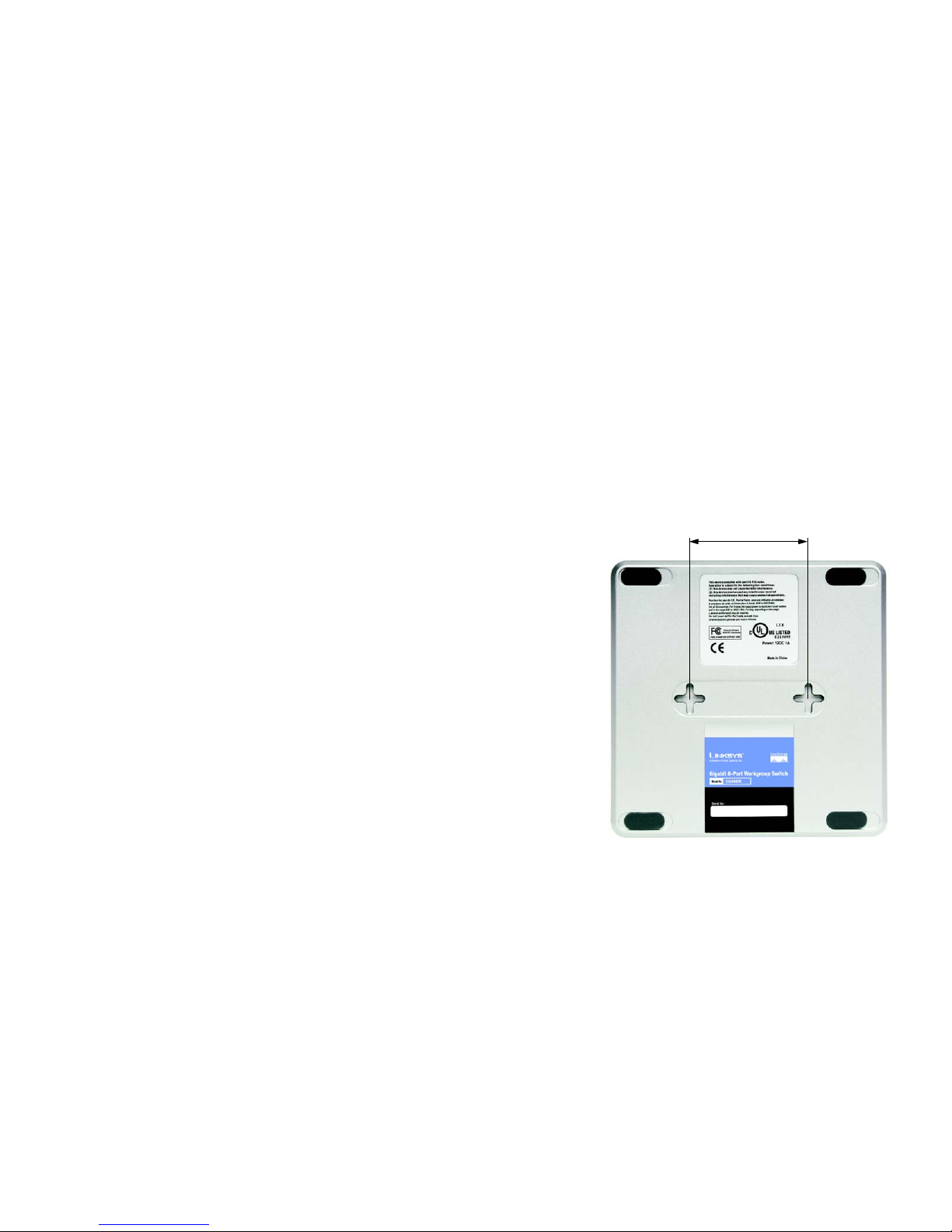

Figure 3-2: Measurement between Wall-Mount Slots
