Linksys E2000 Chapter 1: Product Overview

Advanced Wireless-N Router

Chapter 1: Product Overview

Thank you for choosing the Linksys E2000 Advanced

Wireless-N Router. The Router lets you access the Internet

via a wireless connection or through one of its four

switched ports. You can also use the Router to share

resources, such as computers, printers and files. A variety

of security features help to protect your data and your

privacy while you are online. Security features include Wi-

Fi Protected Access 2 (WPA2) security, a Stateful Packet

Inspection (SPI) firewall and Network Address Translation

(NAT) technology.

Setup and use of the Router is easy using Cisco Connect,

the software that is installed when you run the included

CD. Advanced configuration of the Router is available

through the provided browser-based utility.

Top

1, 2, 3, 4 (Green/Blue) These numbered LEDs,

corresponding with the numbered ports on

the Router’s back panel, serve two purposes.

The LED is continuously lit when the Router

is connected to a device through that port. It

flashes to indicates network activity over that

port. Green indicates Gigabit speeds, and blue

indicates 10/100 speeds.

Wi-Fi Protected Setup Button If you have

client devices, such as wireless adapters,

that support Wi-Fi Protected Setup, then you

can use the Wi-Fi Protected Setup button to

automatically configure wireless security for

your wireless network(s).

To use Wi-Fi Protected Setup, refer to

Wi-Fi Protected Setup, page 23.

Wireless (Blue) The Wireless LED lights up

when the wireless feature is enabled. If the LED

is flashing, the Router is actively sending or

receiving data over the network.

Internet (Blue) The Internet LED lights up

when there is a connection made through the

Internet port. A flashing LED indicates network

activity over the Internet port.

Power (Blue) The Power LED lights up when

the Router is powered on. When the Router goes

through its self-diagnostic mode during every

boot-up, the LED flashes. When the diagnostic

is complete, the LED is continuously lit.

Back

Internet Ethernet4 3 2 1 Reset Power

12VDC

Internet Using an Ethernet cable (also called

a network or Internet cable), this Gigabit

port connects the Router to your Internet

connection, which is typically a cable or Digital

Subscriber Line (DSL) modem.

4, 3, 2, 1 Using Ethernet cables, these Gigabit

Ethernet ports (4, 3, 2, 1) connect the Router to

computers and other Ethernet network devices

on your wired network.

Reset There are two ways to reset the Router

to its factory defaults. Either press and hold the

Reset button for approximately five seconds,

or restore the defaults from Administration >

Factory Defaults in the Router’s browser-based

utility.

Power The Power port connects to the

included power adapter.

Linksys E2000 Chapter 1: Product Overview

Advanced Wireless-N Router

Placement Positions

There are two ways to physically install the Router. The

first way is to place the Router horizontally on a surface.

The second way is to mount the Router on a wall.

Horizontal Placement

The Router has four rubber feet on its bottom panel. Place

the Router on a level surface near an electrical outlet.

Wall-Mounting Placement

The Router has two wall-mount slots on its bottom panel.

The distance between the slots is 152 mm (6 inches).

Two screws are needed to mount the Router.

Suggested Mounting Hardware

2.5-3.0 mm

4-5 mm 1-1.5 mm

†Note: Mounting hardware illustrations are not true

to scale.

NOTE: Cisco is not responsible for damages

incurred by insecure wall-mounting hardware.

Follow these instructions:

1. Determine where you want to mount the Router. Make

sure that the wall you use is smooth, flat, dry, and

sturdy. Also make sure the location is within reach of

an electrical outlet.

2. Drill two holes into the wall. Make sure the holes are

152 mm (6 inches) apart.

3. Insert a screw into each hole and leave 3 mm

(0.12 inches) of its head exposed.

4. Maneuver the Router so the wall-mount slots line up

with the two screws.

5. Place the wall-mount slots over the screws and slide

the Router down until the screws fit snugly into the

wall-mount slots.

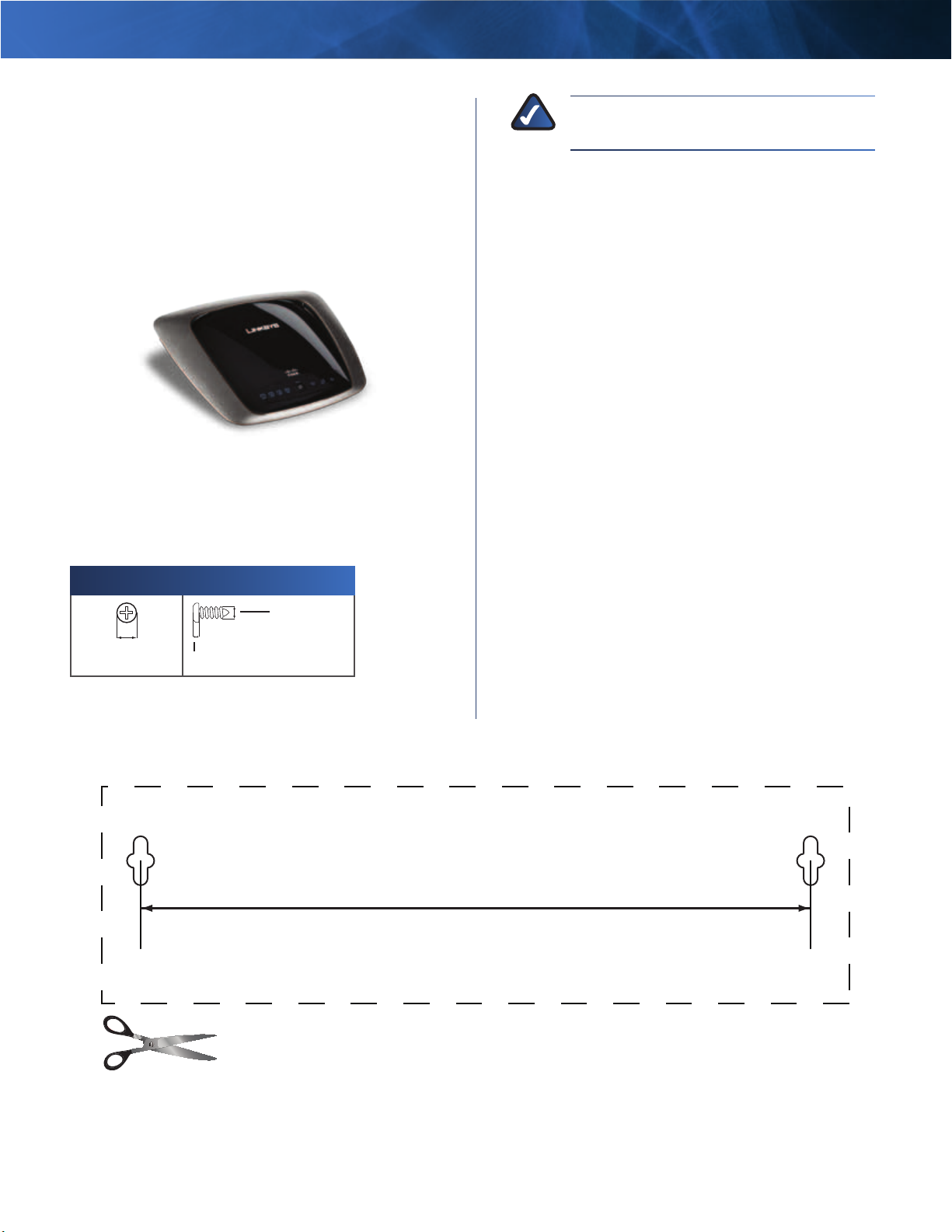

152 mm

Wall Mounting Template

Print this page at 100% size.

Cut along the dotted line, and place on the wall to drill precise spacing.

Linksys E2000 Chapter 2: Cisco Connect

Advanced Wireless-N Router

Chapter 2: Cisco Connect

During installation, the setup software installs Cisco

Connect on your computer. Cisco Connect offers options

to connect additional computers or devices to the Router

and allows you to change the Router’s settings.

Installation

To install the Router:

1. Insert the CD into your CD-ROM drive.

Insert CD

2. Click Set up your Linksys Router.

DVD/CD-RW Drive (E:) Linksys

Router Setup

AutoPlay

Always do this for software and games:

Install or run program

General options

Set up your Linksys Router

Published by Cisco Consumer Products LLC

Set AutoPlay defaults in Control Panel

Open folder to view files

using Windows Explorer

Speed up my system

using Windows ReadyBoost

DVD/CD-RW Drive (E:) Linksys

Router Setup

Always do this for software and games:

Install or run program

General options

Set up your Linksys Router

Published by Cisco Consumer Products LLC

Set AutoPlay defaults in Control Panel

Open folder to view files

using Windows Explorer

Speed up my system

using Windows ReadyBoost

Set Up Your Linksys Router

If you do not see this, access setup on the CD directly.

To do so, perform the following steps for your specific

operating system:

Windows 7

a. Go to Start > Computer.

b. Double-click your CD-ROM drive.

Windows Vista

c. Go to Start > Computer.

d. Double-click your CD-ROM drive.

Windows XP

a. Go to Start > My Computer and select your

CD-ROM drive.

b. Double-click Setup.exe.

Mac OS X

a. Double-click the CD on your desktop.

b. Double-click Setup.

3. Read the Software End User License Agreement.

To accept the agreement and continue with the

installation, click Next.

License Agreement

4. The connection steps are displayed.

Connection Overview

a. Plug the power cord into the Power port on the

back of the Router.

Internet Ethernet4 3 2 1 Reset Power

12VDC

Connect to Power Port

Linksys E2000 Chapter 2: Cisco Connect

Advanced Wireless-N Router

b. Plug the power adapter into an electrical outlet.

Connect to Electrical Outlet

c. Unplug the existing Ethernet cable from your

computer and plug it into the yellow port labeled

Internet on the back of the Router. Click Next.

Internet Ethernet4 3 2 1 Reset Power

12VDC

Connect Ethernet Cable

NOTE: You can view detailed connection steps

by clicking in the setup software.

NOTE: If the setup software detects multiple

routers, then select the serial number of your

Router. The serial number is located on the

left side of the product label, which is on the

bottom of the Router.

5. Please wait while the setup software is setting up the

Router.

Please Wait

6. The installation is complete. Click OK.

Installation is Complete

NOTE: If you have any problems during the

installation process, refer to the Frequently

Asked Questions in the setup software, or use a

computer with an active Internet connection to

visit www.linksys.com/support.

Main Menu

When Cisco Connect starts up, the main menu appears:

Main Menu

Status information is displayed in the upper right corner:

•online secure

Your local network is secure, and your Internet

connection is available.

•offline secure

Your local network is secure; however, your Internet

connection is not available. To repair your Internet

connection, follow the on-screen instructions.

NOTE: A group of computers or other devices

connected to a router is a local network.

The router allows the networked devices to

communicate with each other.

Linksys E2000 Chapter 2: Cisco Connect

Advanced Wireless-N Router

The main menu offers four options: Computers and

devices, Parental controls, Guest access, and Router

settings.

NOTE: To view the FAQs for more information,

click Need help?

Local Access versus Guest Access

You can connect computers or devices to your Router by

giving them local access (Computers and devices option)or

guest access (Guest access option).

Computers and devices with local access will have

access to the Internet and to other devices on your

local network, including shared computers and

printers that are connected to the Router. Local access

can be given to a wired or wireless device. Refer to

Computers and Other Devices, page 9 for more

information.

Guest access allows you to provide guests visiting your

home with Internet access. Your guests will not have access

to your other computers or personal data. Provide your

guest with the guest network name and password. Guest

computers must connect to your network using a wireless

network connection. Refer to Main Menu – Guest Access,

page 8 and Guest Access, page 13 for more information.

The following diagram shows a typical example of how

local access and guest access are used in the same home.

Guest Access versus Local Access Diagram

Internet

Guest Notebook

Family Notebook

Printer

Modem

Router

Guest Access (Internet Access Only)

Local Access

Main Menu – Computers and Devices

Use this option to connect another computer or device to

the Router.

There is x device(s) connected to your router The

number of devices connected to the Router is displayed.

Add device To connect another computer or

device to the Router, click Add device and go to

Computers and Other Devices, page 9.

Main Menu – Parental Controls

Parental controls restrict Internet access for up to five

computers. For the computers you select, you can block or

limit Internet access to specific times. You can also block

specific websites.

Parental controls restrictions are being applied to x

device(s) The number of devices with parental controls

restrictions is displayed.

Change To enable parental controls or change settings,

click Change and go to Parental Controls, page 11.

Main Menu – Guest Access

Guest access provides Internet access only; it does not

provide access to the local network and its resources. For

example, the guest computer cannot print to a printer on

the local network or copy files to a computer on the local

network.

Guest access helps minimize exposure of your local

network. To grant Internet access to friends or family,

provide the guest network name and password displayed

on this screen.

Guests can connect to x-guest using the password

xyz When a guest wants Internet access in your home,

have the guest do the following:

1. Connect to the wireless guest network, which is the

name of your wireless network followed by -guest.

2. Open a web browser.

3. On the login screen, enter the password of your guest

network. Then click Login.

Change To disable guest access or change settings, click

Change and go to Guest Access, page 13.

Main Menu – Router Settings

Use this option to personalize the Router’s settings.

Router name is x The name of the Router is displayed.

Change To change settings, click Change and go to

Router Settings, page 13.

Linksys E2000 Chapter 2: Cisco Connect

Advanced Wireless-N Router

Computers and Other Devices

The Computers and other devices screen appears.

Computers and Other Devices

Computer Click this option to connect another computer

in your home. Go to Computer, page 9.

Wireless printer Click this option to connect a wireless

printer. Go to Wireless Printer, page 10.

Other devices Click this option to connect a device that

is not a computer, such as a smartphone or game console.

Go to Connect Manually, page 10.

Computer

You can use a USB flash drive to create an Easy Setup Key,

which holds the wireless settings for the Router. Then

you can use the Easy Setup Key to connect additional

computers to the Router. Select the appropriate option:

Yes, I have an Easy Setup Key If you already have an

Easy Setup Key, select this option. Click Next and go to

Connect with the Easy Setup Key, page 9.

No, I don’t have an Easy Setup Key — create a new

one now If you want to create or update an Easy

Setup Key, select this option. Click Next and go to

Create or Update the Easy Setup Key, page 10.

I want to connect manually using my wireless

settings If you want to connect manually (without an

Easy Setup Key), select this option. Click Next and go to

Connect Manually, page 10.

Do You Have an Easy Setup Key?

Connect with the Easy Setup Key

1. Insert the Easy Setup Key into an available USB port on

the computer that you want to connect to the Router.

Connecting Another Computer

2. On that computer, click Connect to your Linksys

Router. (If you do not see this, access the Easy Setup

Key through Windows Explorer or the Finder, and

double-click Connect.)

Follow the on-screen instructions to connect that

computer to the Router.

3. Come back to this computer. On the Connecting

another computer screen, click Next.

4. Enter a name that will be used to identify the newly

added computer. Then click Finish.

Name Your Device

Linksys E2000 Chapter 2: Cisco Connect

Advanced Wireless-N Router

Create or Update the Easy Setup Key

If you do not have an Easy Setup Key, then you can create

one using a USB flash drive. If you already have an Easy

Setup Key, then you can update it with the Router’s

current settings.

1. Insert the Easy Setup Key or a USB flash drive into an

available USB port on your computer.

Update or Create an Easy Setup Key

2. Please wait while settings are copied to the Easy Setup

Key.

Copying Files to the Easy Setup Key

3. Remove the Easy Setup Key. You can now use it to

connect other computers to the Router (for more

information, refer to Connect with the Easy Setup Key,

page 9). Click Close.

Easy Setup Key Has Been Updated

Connect Manually

1. Enter the Network name (SSID), Security Key, and Security

Type settings on your wireless device (SSID stands for

Service Set Identifier). To print this information, click

Print these settings.

Connecting a Device

2. After your device connects, click Next.

3. Enter a name that will be used to identify this device.

Then click Finish.

Name Your Device

Wireless Printer

1. Refer to your printer’s documentation to learn how to

connect it to a wireless printer.

2. Enter the Network name (SSID), Security Key, and

Security Type settings on your wireless printer. To print

this information, click Print these settings.

Connecting a Wireless Printer

Andere Handbücher für E2000

Inhaltsverzeichnis

Andere Linksys WLAN-Router Handbücher

Linksys

Linksys Compact Wireless-G Bedienungsanleitung

Linksys

Linksys WRT54GX4 Bedienungsanleitung

Linksys

Linksys Linksys E1500 Bedienungsanleitung

Linksys

Linksys SVR200 - One Wireless-G ADSL/EN Services Router... Bedienungsanleitung

Linksys

Linksys WRT54GL - Wireless-G Broadband Router... Bedienungsanleitung

Linksys

Linksys WRT 1900AC Bedienungsanleitung

Linksys

Linksys WRT54G - Wireless-G Broadband Router... Bedienungsanleitung

Linksys

Linksys WRV200 Bedienungsanleitung

Linksys

Linksys RTP300 - Broadband Router With 2 Phone Ports Leitfaden

Linksys

Linksys WRTP54G-NA Bedienungsanleitung

Linksys

Linksys WRT400N - Simultaneous Wireless-N Router... Bedienungsanleitung

Linksys

Linksys WTR54GS Bedienungsanleitung

Linksys

Linksys SVR200 - One Wireless-G ADSL/EN Services Router... Bedienungsanleitung

Linksys

Linksys E8450 Bedienungsanleitung

Linksys

Linksys WRT54G - Wireless-G Broadband Router... Bedienungsanleitung

Linksys

Linksys WRT350N - Wireless-N Gigabit Router Bedienungsanleitung

Linksys

Linksys EA6350 V2 Bedienungsanleitung

Linksys

Linksys WRT150N - Wireless-N Home Router Wireless Original Betriebsanleitung

Linksys

Linksys WRT54GS Bedienungsanleitung

Linksys

Linksys WRV54G - Wireless-G VPN Broadband Router... Original Betriebsanleitung

Linksys

Linksys WRT160N - Wireless-N Broadband Router... Bedienungsanleitung

Linksys

Linksys StarHub MAX-STREAM EA8100 Bedienungsanleitung

Linksys

Linksys WRVS4400N - Small Business Wireless-N Gigabit Security... Bedienungsanleitung

Linksys

Linksys WRT54G - Wireless-G Broadband Router... Bedienungsanleitung

Beliebte WLAN-Router Handbücher anderer Marken

Milesight

Milesight UG67 Bedienungsanleitung

Airlogic

Airlogic AirSync Class 1 Betriebsanleitung

Samsung

Samsung WCH730B Bedienungsanleitung

TELEFONICA

TELEFONICA USB Adapter Bedienungsanleitung

NETGEAR

NETGEAR PowerLINE WiFi 1000 Series Bedienungsanleitung

Askey

Askey RAC2V1K Bedienungsanleitung

Alloy

Alloy WLF2454AP-S Bedienungsanleitung

TP-Link

TP-Link TL-WR542G Bedienungsanleitung

NETGEAR

NETGEAR WNR2000v4 Bedienungsanleitung

Hama

Hama 53120 Bedienungsanleitung

Intellinet

Intellinet 524582 Bedienungsanleitung

Asus

Asus RT-N10P Bedienungsanleitung

D-Link

D-Link DIR-506L Bedienungsanleitung

Sapido

Sapido GR297n Bedienungsanleitung

Asus

Asus DSL-N55U Bedienungsanleitung

AMTC

AMTC WR7502 Bedienungsanleitung

Compaq

Compaq CP-2W - iPAQ Connection Point Bedienungsanleitung

SMC Networks

SMC Networks WBR14-N2 FICHE Bedienungsanleitung
