LIONTRON LX48-50 Bedienungsanleitung
Product Manual
LIONTRON LiFePO4
LX48-50 - 50Ah / 2.56 kWh
Version 2.0
Technical changes reserved.
Liontron GmbH & Co. KG Industriestraße 1, D-41334 Nettetal 1
Table of contents
1. Product description.......................................................................................................2
1.1 General Information....................................................................................................2
1.2 Product features.........................................................................................................2
2. Safety instructions.........................................................................................................3
2.1 Symbols......................................................................................................................3
2.2 Further safety instructions..........................................................................................4
3. Specifications and features ..........................................................................................4
3.1 Dimensions.................................................................................................................4
3.2 Technical data............................................................................................................5
3.3 Interface overview ......................................................................................................5
4. Installation......................................................................................................................8
4.1 Device check..............................................................................................................8
4.2 Package content.........................................................................................................9
4.3 Example of connection.............................................................................................10
5. Safety guideline ...........................................................................................................11
5.1 Intended use.............................................................................................................11
5.2 Explosion and fire hazard.........................................................................................11
5.3 Wartung....................................................................................................................12
5.4 Maintenance.............................................................................................................12
5.5 Transport instructions...............................................................................................12
5.3 Disposal....................................................................................................................12
5.4 Important notes ........................................................................................................13
6. Technical support........................................................................................................13
7. Glossary........................................................................................................................14
Liontron GmbH & Co. KG Industriestraße 1, D-41334 Nettetal 2
1. Product description
1.1 General Information
The LIONTRON® LX48-50 is a modular LiFePO4 battery for highest demands. Due to its long
cycle life, the battery is ideally suited as a storage battery for photovoltaic systems, inverters or a
stand-alone power supply.
Highest safety and maximum service life are guaranteed because of high-quality LiFePO4 cells
and latest BMS-Technology, even with regular deep discharges. The battery enables fast efficient
charging and very high discharge current.
By simply hook-up of several battery modules, an increase of capacity can easily be done, even at
a later date.
1.2 Product features
▪High-End storage battery
especially for use of Photovoltaic systems.
▪Integrated (BMS) Batterie-Management-System
with adaptive cell balancing. Protection against short circuit, overcharge and deep discharge.
▪Secure Lithium-Technology (LiFePO4)
Lithium-Iron-Phosphat. No gas, explosion or fire hazard. Absolutely maintenance-free. No
„memory-effect“.
▪High cycle life
maximum cycle life with more than 6000 cycles even with regular deep discharges.
▪High discharge current and efficient charging
Continuous discharge power more than 3kW per battery module. Charging efficiency up to
99%.
▪Low self-discharge
only about 3% per month for storage / non-use.
▪Easy expandability
Through modular construction and possible mounting in 19“ racks.
▪Easy operation
Only DIP switches for addressing when using multiple battery modules.
Liontron GmbH & Co. KG Industriestraße 1, D-41334 Nettetal 3
2. Safety instructions
Please read these operating instructions carefully before using the device. Please observe all
notes and warnings. Non-compliance or incorrect operation can be dangerous for human and/or
damage the device.

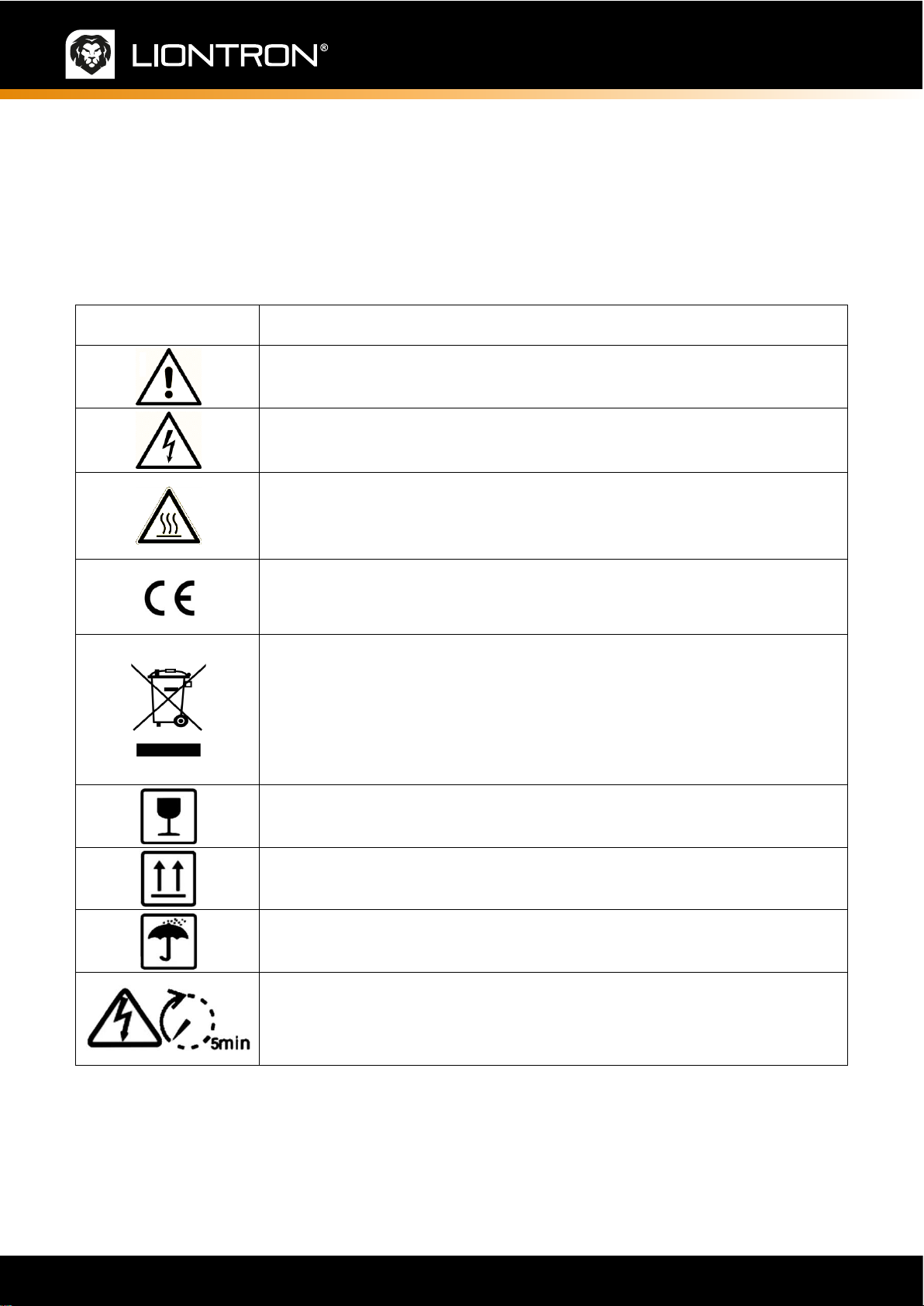

2.1 Symbols
Symbol
Description
Attention!
Non-compliance can lead to damage
DANGER!
Non-compliance can lead to personal injury. There is a risk of electric
shock.
Caution!
Hot surface –the components inside the device emit a lot of heat
during operation. DO NOT touch the aluminium housing during
operation.
CE marking.
The device complies with the directives of the european community.
Symbol for marking of electrical and electronic devices according to
directive 2002/96 / EG, which indicates the device, accessories and
packaging may not be disposed of as unsorted household waste and
must be collected separately at the end of use. Please follow local
ordinances or disposal regulations or contact an authorized
representative of the manufacturer for information on
decommissioning devices.
Packaging symbol:
Content must be transported with care.
Packaging symbol:
Marking of the top side of the packaging.
Packaging symbol:
The device must be protected from moisture.
Indicates the risk of electric shock and specifies the time (5 minutes)
required after inverter is switched off and disconnected to ensure
safety during all installation procedures.
Liontron GmbH & Co. KG Industriestraße 1, D-41334 Nettetal 4
2.2 Further safety instructions
▪Electrical installations must be done by qualified personnel only.
▪Explosive or flammable substances must be kept away from device.
▪In case of fire, never extinguish with water or other liquids.
▪Device has to be placed in a cool and well ventilated place. Some surfaces may heat up.
▪Keep children away.
▪Never open the device.
▪Prevent static charge.
▪Use all potential equalization connections.
▪Switch off the device for maintenance work.
▪Never short the batteries. Watch out for close conductive parts.
Batteries must be installed in well ventilated and temperature controlled areas, dry,
immovable and protected from damage / fire.
▪Cables should be installed as short as possible.
▪Replace damaged batteries immediately.
▪Batteries have to be replaced with batteries of same type.
▪Batteries only have to be used with inverters and/or chargers.
▪Never connect the batteries directly to an AC power supply.
3. Specifications and features

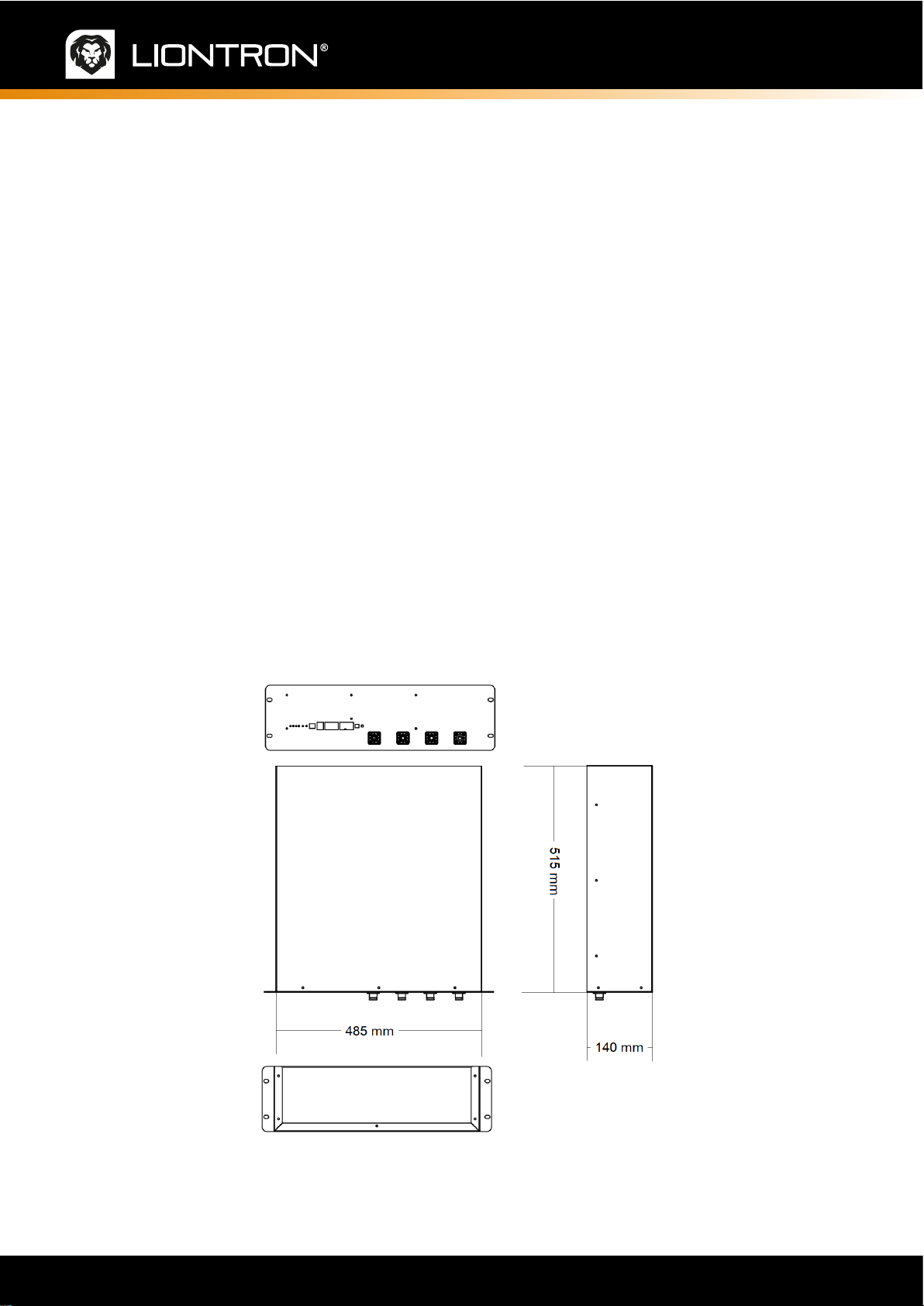

3.1 Dimensions
Liontron GmbH & Co. KG Industriestraße 1, D-41334 Nettetal 5
3.2 Technical data

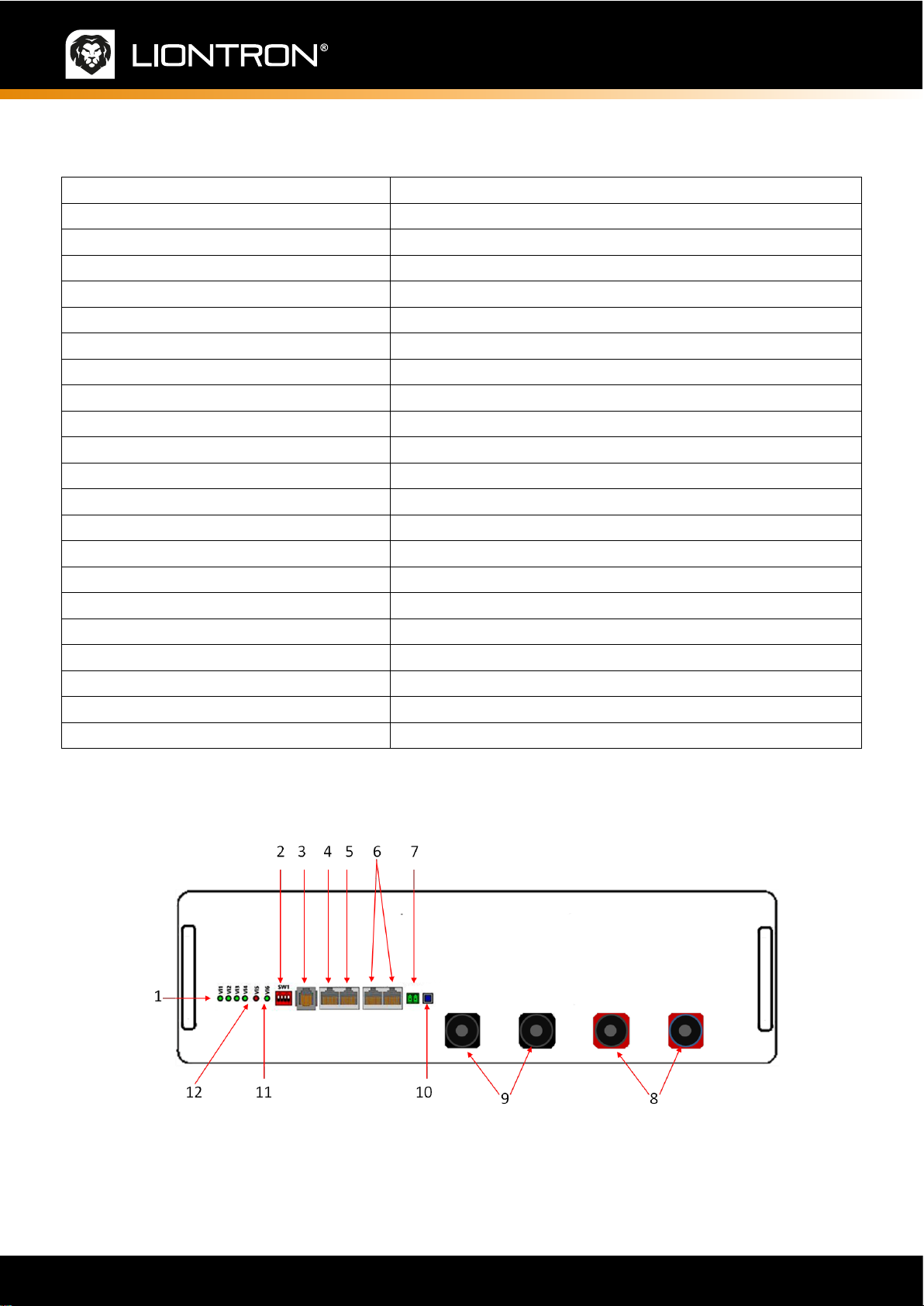

3.3 Interface overview
Illustration: overview of interfaces
1. LED (Battery capacity indicator)
2. DIP-Switches for adress assignment of battery moduls
Model
LIST4850
EAN / GTIN
4260586370881
Rated capacity
50Ah / 2560Wh
Voltage range
41.6 –57.6V
Rated voltage
51.2V
Cycle life
≥6000 @90% DoD
Charge characteristic
CCCV / IU
Bulk voltage
56.8 –58.4V
Float voltage
54.0 –55.2V
Max. charge current
50A
Max. discharge current
50A
BMS Battery Management System
integrated
Interfaces
RS485, RS232, CAN
Scalable
Parallel connection max. 8 pcs.
Protection class
IP65
Weight
36.5 kg
Warranty
10 years1
Dimensions (L x W x H) in mm
515 x 485 x 140
Temperature (discharge)
-20°C .. +60°C
Temperature (charge)
0°C .. +45°C
Temperature (storage)
-40°C .. +60°C
Certification and standards
CE, RoHS, UN 38.3, MSDS
Liontron GmbH & Co. KG Industriestraße 1, D-41334 Nettetal 6

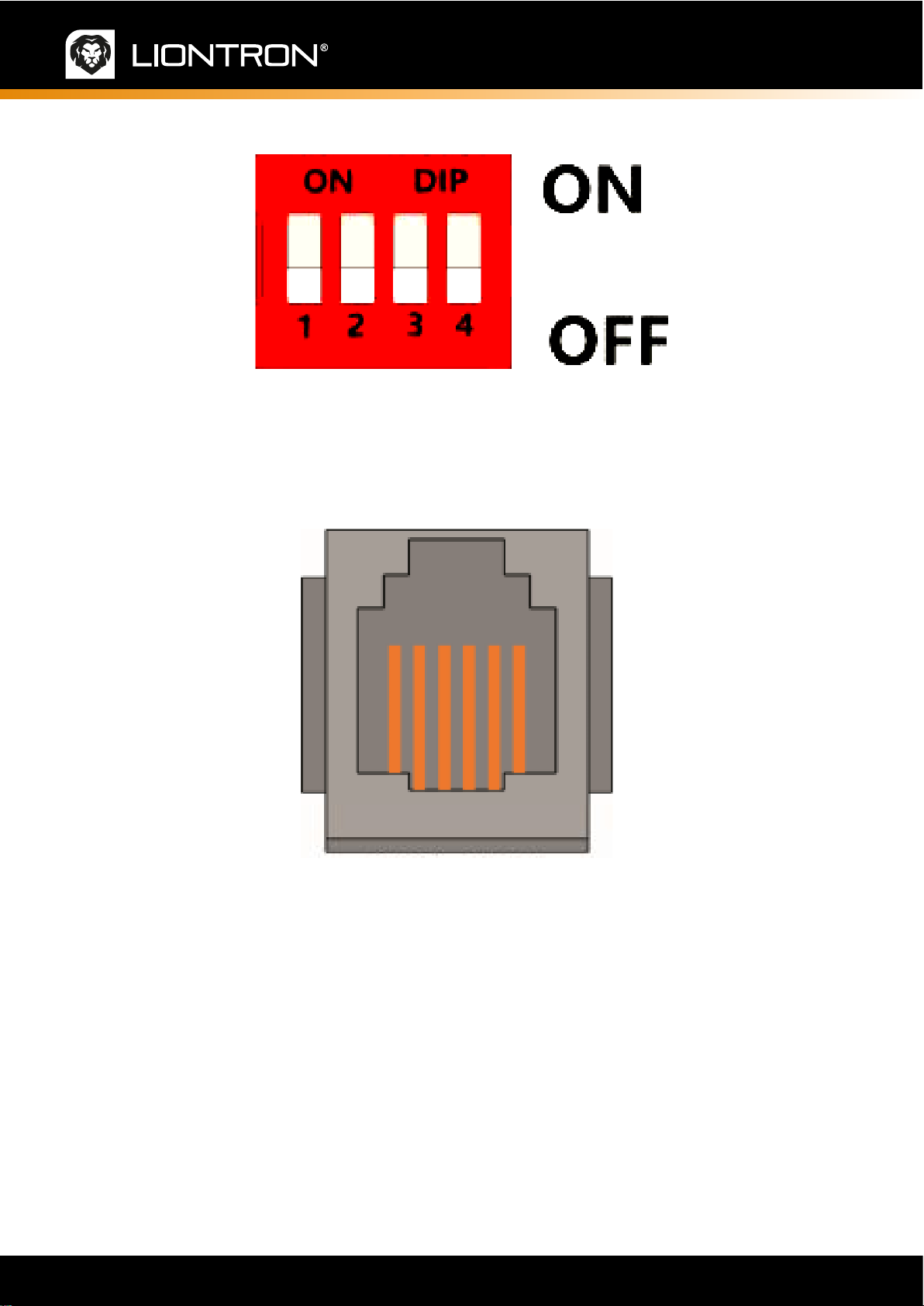

Illustration: DIP-Switches for adress assignment
3. Console (RS232) for service (Pin assignment: 1-NC (empty), 2-NC (empty), 3-TXD, 4-RXD,
5-GND, 6-NC (empty)
Illustration: RS232 interface
4. RS485-1 interface for output of battery data (Pin assignment: 1-RS485-B1 , 2-RS485-A1, 3-
RS485-GND1, 4-RS485-B1, 5-RS485-A1, 6-RS485-GND1, 7-NC (empty), 8-NC (empty))
6
5
4
3
2
1
Liontron GmbH & Co. KG Industriestraße 1, D-41334 Nettetal 7
5. CAN for output of battery data (Pin assigment: 1-CANL, 2-CGND, 3-NC (empty), 4-CANH, 5-
CANL, 6-NC (empty), 7-CGND, 8-CANH)

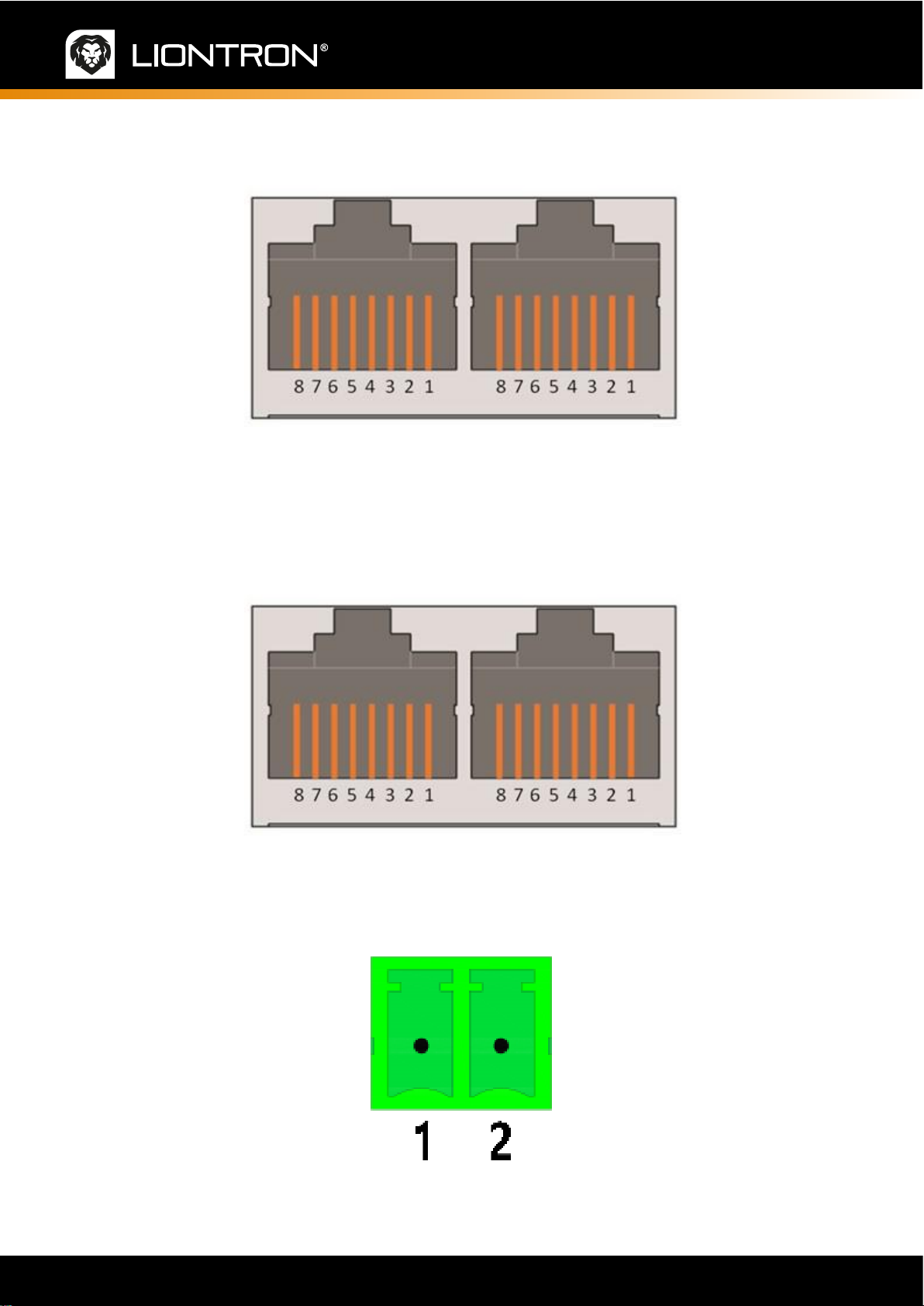

Illustration: RS485-1/CAN interface
6. RS485-2 interface for output of battery data (Pin assignment: 1-B, 2A, 3-GND, 4-x, 5-x,6-
GND, 7-A, 8-B / Baud rate setting)
Illustration: RS485-2 interface
7. Dry Contact
Illustration: Dry Contact
Liontron GmbH & Co. KG Industriestraße 1, D-41334 Nettetal 8
Dry Contact
BMS-Status
Status description
Remarks
BMS in normal
operation
Pin 1 and 2 are not closed
BMS in protected
state
Pin 1 and 2 are closed
Signal output in case of SOC alarm
or BMS protection status under
certain circumstances, such as
undervoltage protection,
overvoltage protection or short-
circuit protection
8. Battery connection (+, red)
9. Battery connection (-, black)
10.RESET Switch (ON/OFF –hold 3-5 sec.)
11.LED (Status -> ON/OFF)
12.LED (Alarm -> refers to an error like under- / overvoltage, short circuit, etc.)
4. Installation
Make sure that the LiFePO4 battery is not connected with reversed polarity. If the battery is
connected incorrectly, the BMS electronics may be damaged irreparably.
4.1 Device check
After receipt of the LiFePo4 battery, check if the device has been damaged in any way, e.g. by
transport. In this case, do not operate the device and contact the seller.
Liontron GmbH & Co. KG Industriestraße 1, D-41334 Nettetal 9

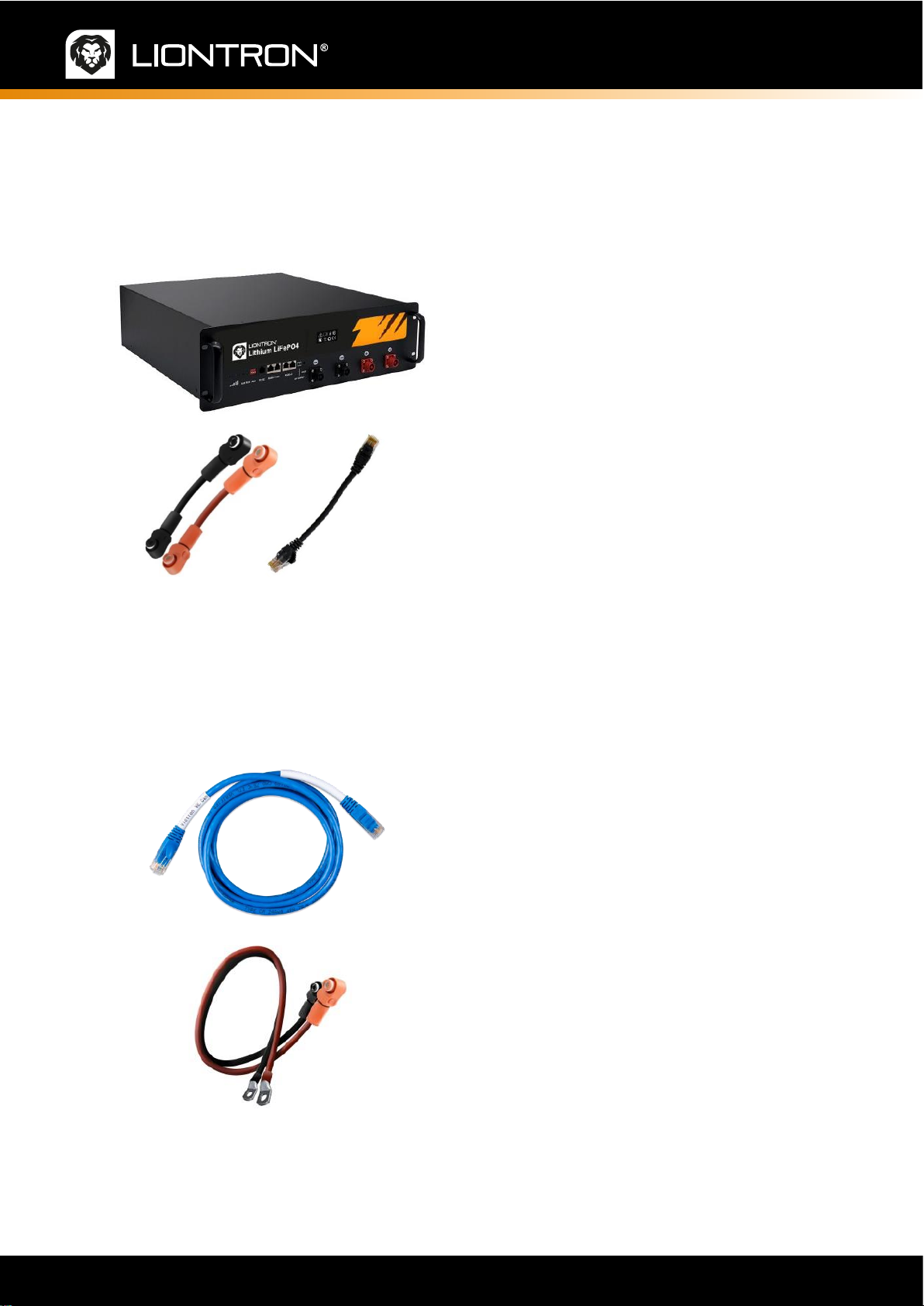

4.2 Package content
The delivery includes components as followed:
▪Battery-Modul
▪Bridge cable (voltage + / - and
communication) between
moduls
Optional accessories
▪CAN-bus BMS cable
for connection of CAN
interface to inverter
▪Battery cable set
for connection of battery to
inverter.
