Lippert Components OneControl X1 Bedienungsanleitung

OneControl®

X1 Control Board

OEM INSTALLATION MANUAL

Rev: 08.31.20 Page 2 CCD-0002697

TABLE OF CONTENTS

Introduction 2

Safety 3

Resources Required 3

Installation 4

Wiring 5

Conguring Inputs, Outputs 6

Latching Relays 7

Reverse Polarity Outputs 13

Saving Conguration 18

Loading Conguration 19

Introduction

The OneControl X1 Control Board will primarily be operated by a phone app utilizing a Bluetooth

connection. Users can access and adjust a system via a touchscreen icon. If the trailer already has

a OneControl Touch Panel, then the controller can be tied into the OCTP by CAN bus harness. The

configurator kit supplied to OEMs must be used to program the configurable inputs and the latching and

reversing outputs.

For information on the assembly or individual components of this product, please visit:

https://support.lci1.com/electronics-support-onecontrol-wireless-formerly-myrvreg .

NOTE: Images used in this document are for reference only when assembling, installing and/or operating

this product. Actual appearance of provided and/or purchased parts and assemblies may differ.

Rev: 08.31.20 Page 3 CCD-0002697

Safety

Read and understand all instructions before installing or operating this product. Adhere to all safety labels.

This manual provides general instructions. Many variables can change the circumstances of the instructions,

i.e., the degree of difficulty, operation and ability of the individual performing the instructions. This

manual cannot begin to plot out instructions for every possibility, but provides the general instructions,

as necessary, for effectively interfacing with the device, product or system. Failure to correctly follow the

provided instructions may result in death, serious personal injury, severe product and/or property damage,

including voiding of the LCI limited warranty.

The "WARNING" symbol above is a sign that a procedure has a safety risk involved and may cause

death, serious personal injury or severe product and/or property damage if not performed safely

and within the parameters set forth in this manual.

Failure to follow instructions provided in this manual may result in death, serious personal injury

and/or severe product and property damage, including voiding of the component warranty.

The “CAUTION” symbol above is a sign that a safety risk is involved and may cause personal injury

and/or product or property damage if not safely adhered to and within the parameters set forth

in this manual.

Moving parts can pinch, crush or cut. Keep clear and use caution.

Resources Required

• Cordless or electric drill or screw gun

• Appropriate drive bits

• Fastening hardware for controller

• Supplied X Series Configurator box containing

OneControl Touch Panel with power cord, CAN

harness and power and ground connections

• Terminating resistor

• Thumb drive (1-16 GB) for saving configuration

Rev: 08.31.20 Page 4 CCD-0002697

Installation

1. Install controller in watertight location.

2. Connect 12V power and ground to the board.

NOTE: Use a 30A circuit at the power converter or connect on the converter side of the battery disconnect

with a 30A mini breaker in line prior to the X1 controller. Make sure to follow RVIA guidelines for

wire gauge and fusing.

3. Using the provided harnesses, make connections for each input and output used. Each of these is

described below. Refer to figure 1.

A. CAN: Data cable connections that link each module in the OneControl system together. A

terminating resistor must be placed in the X1 board if no other modules are used.

B. Lockout: Provides in-transit lockout of moving features. Towable input from brake light/turn signal

wire.

C. Configurable Inputs (Fig. 2): The X1 has 16 configurable inputs. These inputs are configured to be

used with manual switches for both reversing and latching outputs. Any one of the inputs can also

be configured as a DSI fault input if needed for a gas water heater.

D. Low Current (LC) Latching Outputs (Fig. 3): Connections are available for four low current (5A

maximum) latching outputs. This is a +12V output. Using the wiring diagram or color-coded label

on the lid, make all connections for each output used. Each output used must be assigned and

named using the X Series Configurator (Fig. 4).

E. Low Current (LC) Reversing Outputs (Fig. 1, #1 and #2 ): Connections are available for two low

current reversing outputs. Each output uses a quick slide connector for Extend and Retract. Using

the wiring diagram or color-coded label on the lid, make all connections for each output used.

Power

Ground

CAN

Terminating Resistor

Fig. 1

Configurable Inputs

16 Pin Switch Harness

Lockout

5A Latching Outputs

Latching Output Harness

#1 LC REV Extend

Retract

Extend

Retract

#2 LC REV

#3 HC REV

#4 HC REV

#5 HC REV

Extend

Retract

Extend

Retract

Extend

Retract

Rev: 08.31.20 Page 5 CCD-0002697

Each output used must be assigned and named using the X Series Configurator (Fig. 4) during

the configuration procedure.

F. High Current (HC) Reversing Outputs (Fig. 1, #3, #4 and #5): Connections are available for three

high current reversing outputs. Each output uses a quick slide connector for Extend and Retract.

Each output used must be assigned and named using the X Series Configurator (Fig. 4) during

the configuration procedure.

Wiring

12345678

910 11 12 13 14 15 16

16 Pin Switch Input Harness

Pin Color Function Pin Color Function

1 Green/White Configurable 1 9 Blue/Black Configurable 9

2 Yellow/White Configurable 2 10 Orange/Black Configurable 10

3 Gray/White Configurable 3 11 Brown/Black Configurable 11

4 Violet/White Configurable 4 12 Green/Black Configurable 12

5 Blue/White Configurable 5 13 Yellow/Black Configurable 13

6 Black/White Configurable 6 14 Gray/Black Configurable 14

7 Brown/White Configurable 7 15 Violet/Black Configurable 15

8 Orange/White Configurable 8 16 Black Configurable 16

5A Latching Output Harness

Pin Color Function*

1 Green

2 Yellow

3 Gray

4 White

Fig. 2

Fig. 3

* Output function based on configuration.

See Installation section, step 3D.

Rev: 08.31.20 Page 6 CCD-0002697

Configuring Inputs, Outputs

The X Series Configurator with supplied OneControl Touch Panel must be used to program the configurable

inputs and the latching and reversing outputs. Once the inputs and outputs are configured, the

configuration can be saved onto a thumb drive and then loaded onto additional controllers.

1. Open supplied X Series Configurator box (Fig. 4) and remove the power cord, CAN harness and the

power and ground connections (Fig. 5).

2. Plug in the power cord to a power outlet and insert the CAN harness in one of two terminals at the top

right of the X1 controller (Fig. 6).

3. Place a terminating resistor in the other CAN terminal (Fig. 6).

4. Install the Power (Red) and Ground (Black) alligator clips on the corresponding controller terminals

(Fig. 7).

Fig. 4 Fig. 5

CAN Harness

Power, Ground

Connections

Power Cord

Fig. 6

CAN Harness

Terminating Resistor

Fig. 7

Power

Ground

Rev: 08.31.20 Page 7 CCD-0002697

5. The HOME screen will appear on the OneControl Touch Panel (Fig. 8).

6. Tap HOME (Fig. 8A) five times to reach the configurator screen.

7. A warning about entering an Advanced Feature will appear (Fig. 9). Press YES.

8. The configurator screen will appear (Fig. 10).

Latching Relays

1. Scroll down to the Latching Relay section and press UNKNOWN on Latching Relay #1 (Fig. 11A).

2. Press UNKNOWN under Type (Fig. 12A) and select one of the options (Fig. 13).

Fig. 8 Fig. 9

Fig. 10 Fig. 11

Fig. 12 Fig. 13

Rev: 08.31.20 Page 8 CCD-0002697

NOTE: If more than one device type of the same name is used, press INSTANCE (Fig. 15B) to select a

number, e.g. Ceiling Light 1, Ceiling Light 2, etc.

3. Press UNKNOWN under Name to select a specific name (Fig. 14A).

4. Press SET (Fig. 14B) and Saved! (Fig. 15A) will appear in the lower left corner, replacing Loaded!

5. Scroll down to the next field of FUSE TYPE, select a fuse and press SET to save the selection.

Saved! (Fig. 16A) will appear in the lower left corner, replacing Loaded!

NOTE: The next options are all pre-loaded but will not be active until SET is pressed and Saved! appears in

the lower left corner.

6. IGNITION OPERATION MODE (Fig 17): Scroll down to IGNITION OPERATION MODE.

7. Choose one of the options (Fig. 18): Always or Only with Ignition On.

Fig. 14 Fig. 15

Fig. 16 Fig. 17

Fig. 18 Fig. 19

Rev: 08.31.20 Page 9 CCD-0002697

8. Press SET (Fig. 18A). Saved! will replace Loaded! on the screen (Fig. 19A).

9. PARK BRAKE OPERATION MODE (Fig. 20): Scroll down to PARK BRAKE OPERATION MODE.

10. Choose one of the options (Fig. 21): Always or Only with Park Brake On.

11. Press SET (Fig. 21A). Saved! will replace Loaded! on the screen (Fig. 22A).

12. IN-MOTION LOCKOUT LEVEL (Fig. 23): Scroll down to In-Motion Lockout Level.

13. Choose one of the options: Operation allowed or Operation NOT allowed.

Fig. 20 Fig. 21

Fig. 22

Fig. 23

Fig. 24 Fig. 25

Rev: 08.31.20 Page 10 CCD-0002697

14. Press SET (Fig. 24A) Saved! will replaced Loaded! on the screen (Fig. 25A).

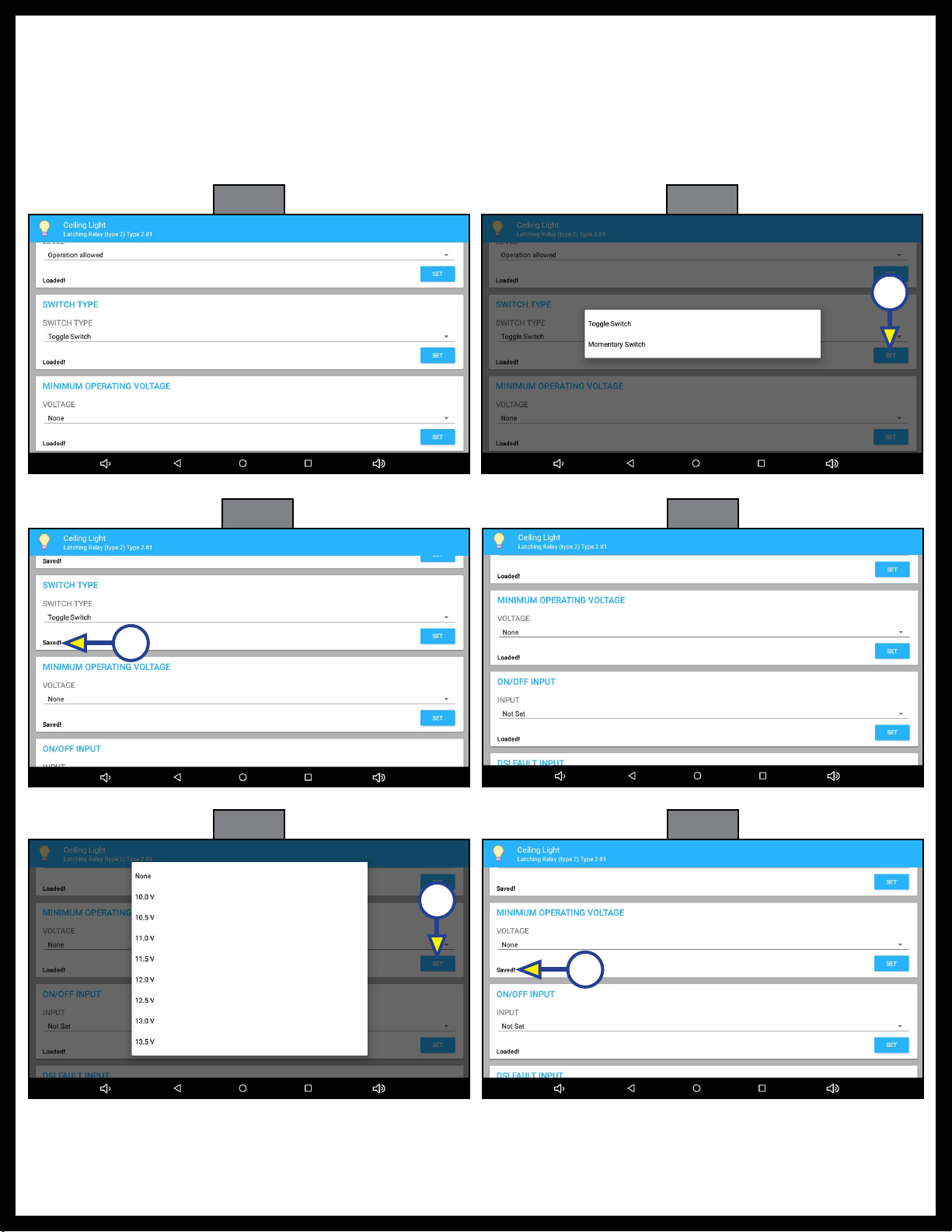

15. SWITCH TYPE (Fig. 26): Scroll down to SWITCH TYPE.

16. Choose one of the options (Fig. 27): Toggle Switch or Momentary Switch.

17. Press SET (Fig. 27A). Saved! will replace Loaded! on the screen (Fig. 28A).

18. MINIMUM OPERATING VOLTAGE (Fig. 29): Scroll down to MINIMUM OPERATING VOLTAGE.

19. Choose one of the options (Fig. 30): None, 10.0 V, 10.5 V, 11.0 V, 11.5 V, 12.0 V, 12.5 V, 13.0 V or 13.5 V.

Fig. 26 Fig. 27

Fig. 28 Fig. 29

Fig. 30 Fig. 31
