Lochinvar COPPER-FIN II G936199 Anwendungshandbuch

RPL 7007

CFII-22

20 31 28 412

1914

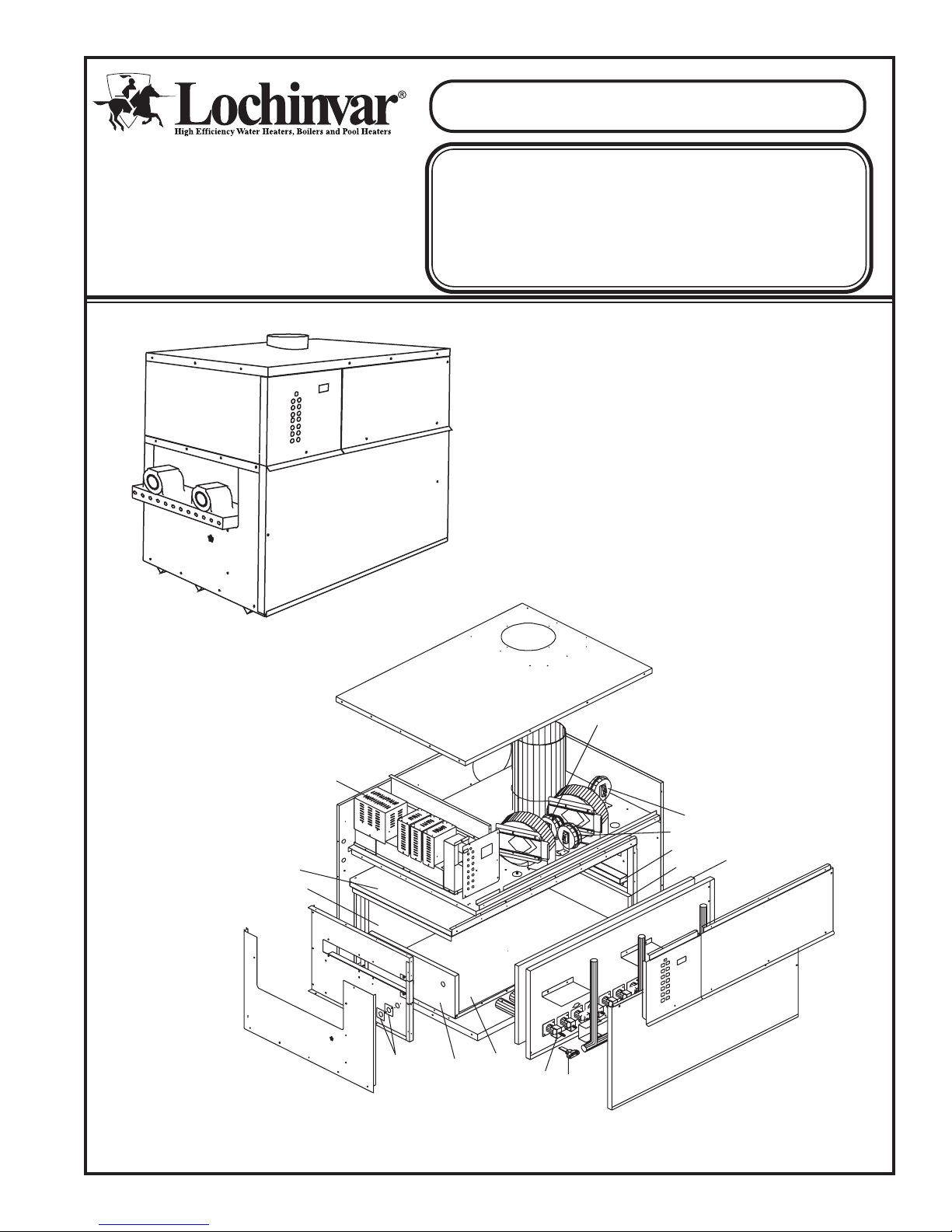

Copper-Fin II®

Boilers — Water Heaters & Pool Heaters

CH—CF—CP — 990-2070

Beginning Serial Number: G936199 to Present

Replacement Parts List

PARTS DEPOT

Nashville, Tennessee

615-889-8900 • Fax: 615-547-1000

www.Lochinvar.com

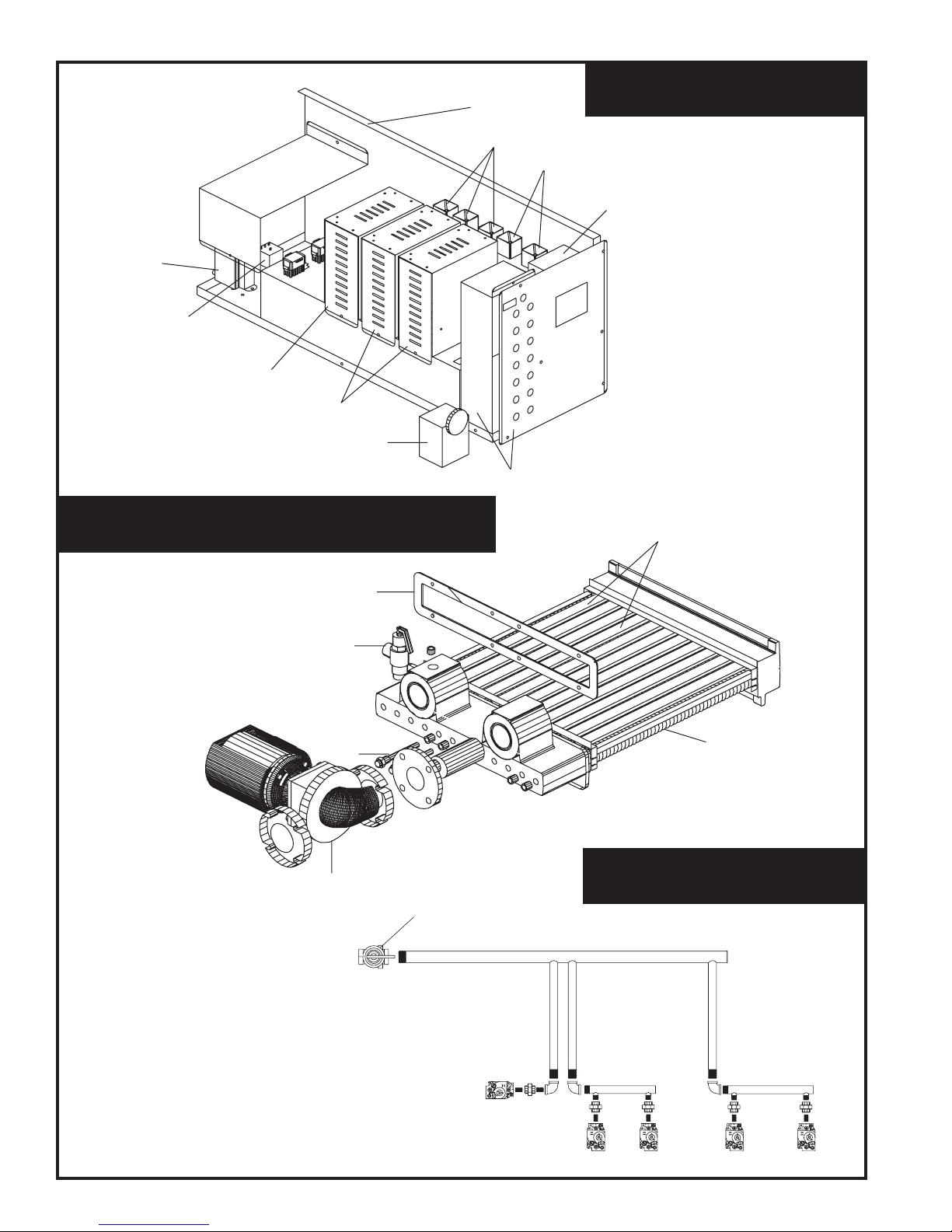

Heat Exchanger Assembly

Gas Train

Control Panel

ITEM PART DESCRIPTION MODEL

NO. NO. NO.

Gas Train Assemblies

1KIT # BNR2404: BNR3501: BNR3502: BNR2404 is Main Burner

BNR3410 990 9ea. 1ea. 1ea.

BNR3411 1260 12ea. 1ea. 1ea. BNR3501 is Main Burner Connected

BNR3412 1440 14ea. 1ea. 1ea. Thermocouple Compression Fitting

BNR3413 1800 17ea. 1ea. 2ea.

BNR3414 2070 20ea. 1ea. 2ea. BNR3502 is Main Burner w/ Pressure

Tap, Barbed Fitting

4 ORF2413 ORIFICE, NAT. ALL

4 ORF2405 ORIFICE, LPG. ALL

5 VAL3403 VALVE, GAS NAT. ALL

5 VAL3404 VALVE, GAS LPG. ALL

Controls & Gauges

6 HLC2701 HIGH LIMIT CF

6 HLC2702 HIGH LIMIT MANUAL RESET CH

-- MSC2420 TERMINAL STRIP 6 POLE ALL

-- MSC2447 CIRCUIT BREAKER 7 AMP. ALL

7 PAN3000 CONTROL PANEL COMPLETE ALL

8 PAN3001 LIGHT ASSEMBLY W/FRONT ESCUTCHEON ALL

-- MSC2448 LIGHT, INDICATOR 120V. ALL

-- MSC2449 LIGHT, INDICATOR 28V. ALL

9 RLY3002 IGNITION MODULE ALL

10 RLY3003 TIME DELAY MODULE ALL

11 TST3004 ELECTRONIC THERMOSTAT CONTROL ALL

11 TST3006 ELECT. THERMOSTAT CONTROL,

W/INDOOR/OUTDOOR SENSORS

OPTIONAL

-- WRE2416 SENSOR ALL

-- HLC2503 110º HI LIMIT (POOL PIPING) CP

-- HLC2501 200º HI LIMIT (OUTLET SIDE) BEGINNING SERIAL # A980000

12 PLT3400 HOT SURFACE IGNITOR ALL

13 PRS2416 PRESSURE SWITCH, DUAL ALL

14 PRS2417 PRESSURE SWITCH, LOW AIR ALL

-- PRS2406 PRESSURE SWITCH, POOL HEATER CP

15 TRF2701 TRANSFORMER 150V.A. ALL

-- WTR2041 SWITCH, FLOW OUTDOOR CF/CH

-- MSC2426 SWITCH, MAIN POWER ALL

-- MSC2706 TUBING, EDPM 1/4" (ORDER BY THE FOOT) ALL

-- MSC2461 TUBING, SILICONE (ORDER BY THE FOOT) ALL

-- MSC2406 TUBING, EDPM 1/8" (ORDER BY THE FOOT) ALL

Heat Exchangers

16 GKT2418 GASKET, HEAT SHIELD ALL

17 HEX3420 HEAT EXCHANGER H (CF & CP before serial F00 & All CH) 990

17 HEX3421 HEAT EXCHANGER H (CF & CP before serial F00 & All CH) 1260

17 HEX3422 HEAT EXCHANGER H (CF & CP before serial F00 & All CH) 1440

17 HEX3423 HEAT EXCHANGER H (CF & CP before serial F00 & All CH) 1800

17 HEX3424 HEAT EXCHANGER H (CF & CP before serial F00 & All CH) 2070

17 HEX3000 HEAT EXCHANGER HLW (After Serial # F00) CF/CP990

17 HEX3001 HEAT EXCHANGER HLW (After Serial # F00) CF/CP1260

17 HEX3002 HEAT EXCHANGER HLW (After Serial # F00) CF/CP1440

17 HEX3003 HEAT EXCHANGER HLW (After Serial # F00) CF/CP1800

17 HEX3004 HEAT EXCHANGER HLW (After Serial # F00) CF/CP2070

18 JKE6078 V-BAFFLE (9 PER UNIT) 990

18 JKE6079 V-BAFFLE (9 PER UNIT) 1260

18 JKE6080 V-BAFFLE (9 PER UNIT) 1440

18 JKE6081 V-BAFFLE (9 PER UNIT) 1800

18 JKE6082 V-BAFFLE (9 PER UNIT) 2070

35 JKE6159 V-BAFFLE FRAME RUNNER 990

35 JKE6160 V-BAFFLE FRAME RUNNER 1260

35 JKE6161 V-BAFFLE FRAME RUNNER 1440

35 JKE6162 V-BAFFLE FRAME RUNNER 1800

35 JKE6163 V-BAFFLE FRAME RUNNER 2070

36 JKD6187 V-BAFFLE FRAME END ALL

* "CONSULT FACTORY"

NOTE: CH = BOILER, CF = WATER HEATER & CP = POOL HEATER

PLEASE: Have model number and serial number when ordering parts

CP—5M—03/03—Pinted in U.S.A.

ITEM PART DESCRIPTION MODEL

NO. NO. NO.

Miscellaneous

19 FAN2714 FAN ASSEMBLY ALL

-- GTP2900 PRESSURE TEMPERATURE GAUGE CH

20 MSC3415 SIGHT GLASS & GASKET ALL

21 RLV2001 RELIEF VALVE, PRESSURE ONLY CH

21 RLV2007 RELIEF VALVE, TEMPERATURE & PRESSURE CF

22 RLY2425 RELAY 120 VOLT ALL

23 RLY2424 RELAY 24 VOLT ALL

24 RLY2706 RELAY, POWER ALL

25 ARM3024PBF PUMP (Before Serial # L01) CF

25 ARM3024PAB PUMP (After Serial # L01 Standard) CF

25 ARM3024PABTE PUMP CP

- RLY2041 PUMP DELAY RELAY CF

26 TST2301 WELL, THERMOSTAT ALL

Loch-Heat® Tile

27 FIB2441 LOCH-HEAT TILE, TOP RIGHT SIDE 990

27 FIB2442 LOCH-HEAT TILE, TOP LEFT SIDE 990

27 FIB2443 LOCH-HEAT TILE, TOP RIGHT SIDE 1260-1440

27 FIB2444 LOCH-HEAT TILE, TOP LEFT SIDE 1260

27 FIB2445 LOCH-HEAT TILE, TOP LEFT SIDE 1440

27 FIB2446 LOCH-HEAT TILE, TOP RIGHT SIDE 1800-2070

27 FIB2447 LOCH-HEAT TILE, TOP MIDDLE 1800-2070

27 FIB2448 LOCH-HEAT TILE, TOP LEFT SIDE 1800

27 FIB2449 LOCH-HEAT TILE, TOP LEFT SIDE 2070

28 FIB2471 LOCH-HEAT TILE, BOTTOM 990

28 FIB2450 LOCH-HEAT TILE, BOTTOM RIGHT 1440-2070

28 FIB2451 LOCH-HEAT TILE, BOTTOM 1260

28 FIB2452 LOCH-HEAT TILE, BOTTOM LEFT 1440

28 FIB2453 LOCH-HEAT TILE, BOTTOM LEFT 1800

28 FIB2454 LOCH-HEAT TILE, BOTTOM LEFT 2070

29 FIB2472 LOCH-HEAT TILE, BACK 990

29 FIB2455 LOCH-HEAT TILE, BACK RIGHT 1440-2070

29 FIB2456 LOCH-HEAT TILE, BACK 1260

29 FIB2457 LOCH-HEAT TILE, BACK LEFT 1440

29 FIB2458 LOCH-HEAT TILE, BACK LEFT 1800

29 FIB2459 LOCH-HEAT TILE, BACK LEFT 2070

30 FIB2460 LOCH-HEAT TILE, FRONT DOOR 990

30 FIB2461 LOCH-HEAT TILE, FRONT DOOR 1260

30 FIB2462 LOCH-HEAT TILE, FRONT DOOR RIGHT 1440

30 FIB2469 LOCH-HEAT TILE, FRONT DOOR LEFT 1440

30 FIB2463 LOCH-HEAT TILE, FRONT DOOR RIGHT 1800

30 FIB2470 LOCH-HEAT TILE, FRONT DOOR LEFT 1800

30 FIB2464 LOCH-HEAT TILE, FRONT DOOR RIGHT 2070

30 FIB2465 LOCH-HEAT TILE, FRONT DOOR LEFT 2070

31 FIB2466 LOCH-HEAT TILE, FRONT HEAD SIDE ALL

32 FIB2467 LOCH-HEAT TILE, REAR HEAD SIDE ALL

33 FIB2468 LOCH-HEAT TILE, REAR HEAD SPACER STRIP ALL

Optional

3 GAC2031 GAS COCK 990 & 1260

3 GAC2032 GAS COCK 1440-2070

34 PAN3401 OPTION BOX A: LOUVER RELAYw/PUMP DELAY (LVRw/P. DELAY) ALL

34 PAN3402 OPTION BOX B: MR-LWCO, LVRw/P. DELAY ALL

34 PAN3403 OPTION BOX C: MR-LWCO, LVRw/P. DELAY, ALM. ANY FAILURE ALL

- - FAN2013 PROVING SWITCH FOR HS5 ALL
