Lochinvar POWER-FIN PB/PF 502 Anwendungshandbuch

PB1-PF1-RP-04

Power-Fin®

Heating Boilers & Hot Water Supply Boilers

PB/PF 502 thru 1302

Replacement Parts List

PARTS & SERVICE DEPARTMENT

Nashville, Tennessee

615-889-8900 • Fax: 615-547-1000

www.Lochinvar.com

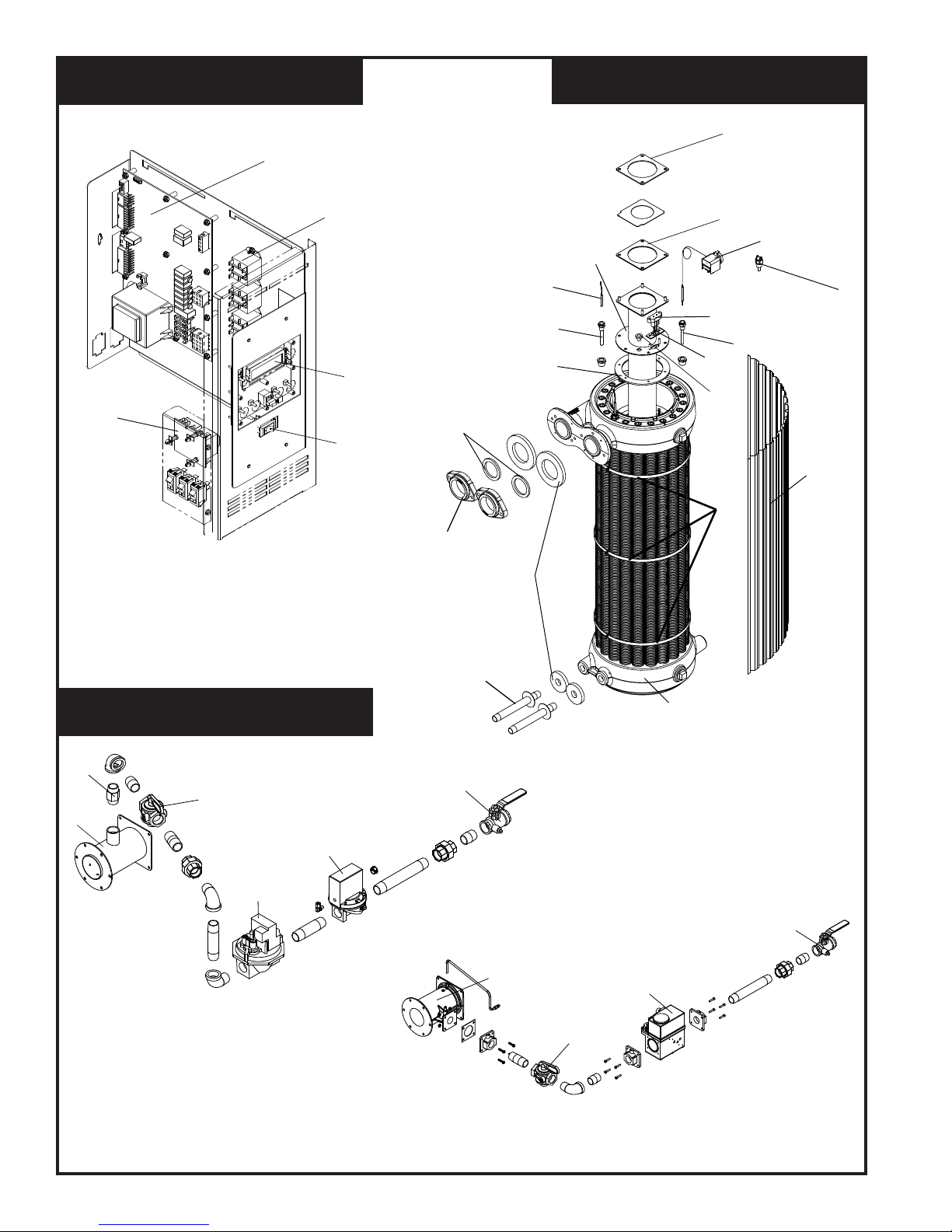

CONTROL PANEL ASSEMBLY

GAS TRAIN ASSEMBLIES

HEAT EXCHANGER ASSEMBLY

2 of 4

PB1-PF1-RP-04

3 of 4

PB1-PF1-RP-04

ITEM

NO.

PART

NO. DESCRIPTION MODEL NO.

CONTROLS & GAUGES

1 RLY2114 CONNECTION BOARD ALL

2 RLY2210 BOARD, CONTROL ,USER INTERFACE ALL

3 RLY2100 BOARD, CONTROL, MAIN ALL

4 RLY2706 PUMP RELAY ALL

5 FAN3727 FAN, COMBUSTION AIR ALL

6 SWT2006 ON / OFF SWITCH ALL

7 TST2032 THERMOSTAT SENSOR ALL

8 GTP2900 GAUGE, TEMP AND PRESSURE PB

9 HLC2510 THERMOSTAT, HI LIMIT 200 DEGREE PF

10 HLC2701 THERMOSTAT, HI LIMIT W/ AUTO RESET ALL

11 PLT3400 IGNITOR, HOT SURFACE ALL

12 RLV2001 RELIEF VALVE, PRESSURE ONLY PB 502-1002

12 RLV2003 RELIEF VALVE, PRESSURE ONLY PB 1302

12 RLV2007 RELIEF VALVE, TEMPERATURE & PRESSURE PF

13 WTR2040 FLOW SWITCH ALL

14 PRS2431 SWITCH, LOW AIR 502 - LP - F9

14 PRS2432 SWITCH, LOW AIR 502 - NAT - F9

14 PRS2433 SWITCH, LOW AIR 752 - LP - F9

14 PRS2434 SWITCH, LOW AIR 752 - NAT - F9

14 PRS2435 SWITCH, LOW AIR 1002 - LP - F9

14 PRS2436 SWITCH, LOW AIR 1002 - NAT - F9

14 PRS2437 SWITCH, LOW AIR 1302-F9

14 PRS30002 SWITCH, LOW AIR BEFORE D08 502 - LP - M9

14 PRS20008 SWITCH, LOW AIR AFTER D08 502 - LP - M9

14 PRS30001 SWITCH, LOW AIR BEFORE D08 502 NAT & 752-1302-M9 NAT/LP

14 PRS20006 SWITCH, LOW AIR AFTER D08 502 NAT & 752-1302-M9 NAT/LP

GAS TRAIN ASSEMBLIES

15 BNR3713 BURNER 502

15 BNR3714 BURNER 752

15 BNR3715 BURNER 1002

15 BNR3716 BURNER 1302

16 VAL3417 VALVE, GAS 502-M9

16 VAL3418 VALVE, GAS 752-M9

16 VAL3419 VALVE, GAS 1002-M9

16 VAL3420 VALVE, GAS 1302-M9

17 VAL2131 VALVE, GAS DIAPHRAM 1" 502-F9 NAT & LP

17 VAL2132 VALVE, GAS DIAPHRAM 1 1/4" 752-1002-1302 - NAT & LP - F9

18 VAL2133 VALVE, MAIN GAS 1" 502- NAT - F9

18 VAL2727 VALVE, MAIN GAS 1" 502 - LP - F9

18 VAL2134 VALVE, MAIN GAS 1 1/4" 752-1002-1302 - NAT - F9

18 VAL2726 VALVE, MAIN GAS 1 1/4" 752-1002-1302 - LP - F9

19 VAL2722 VALVE, VENTURI 502-M9

19 VAL2723 VALVE, VENTURI 752-1002-M9

19 VAL2724 VALVE, VENTURI 1302-M9

19 MAN2149 VALVE, VENTURI ALL F9

20 GAC2029 GAS COCK 502

20 GAC2030 GAS COCK 752-1002-1302

21 VAL2207 VALVE, BALL ALL 502

21 VAL2208 VALVE, BALL 752-1002-F9 & 752-1002-1302-M9

22 ORF2762 ORIFICE, BURNER 502 - NAT - F9

22 ORF2763 ORIFICE, BURNER 752 - NAT - F9

22 ORF2764 ORIFICE, BURNER 1002 - NAT - F9

22 ORF2765 ORIFICE, BURNER 1302 - NAT - F9

22 ORF2766 ORIFICE, BURNER 502 - LP- F9

22 ORF2767 ORIFICE, BURNER 752 - LP - F9

22 ORF2768 ORIFICE, BURNER 1002 - LP - F9

22 ORF2769 ORIFICE, BURNER 1302 - LP -F9

PLEASE HAVE MODEL NUMBER AND SERIAL NUMBER WHEN ORDERING PARTS

©-9/09-Printed in U.S.A.

4 of 4

PB1-PF1-RP-04

ITEM

NO.

PART

NO. DESCRIPTION MODEL NO.

HEAT EXCHANGER ASSEMBLIES

23 HEX3228 HEAT EXCHANGER (HLW) PF502

23 HEX3236 HEAT EXCHANGER (H) PB502

23 HEX3229 HEAT EXCHANGER (HLW) PF752

23 HEX3237 HEAT EXCHANGER (H) PB752

23 HEX3230 HEAT EXCHANGER (HLW) PF1002

23 HEX3238 HEAT EXCHANGER (H) PB1002

23 HEX3231 HEAT EXCHANGER (HLW) PF1302

23 HEX3239 HEAT EXCHANGER (H) PB1302

24 JKH2016 V BAFFLE (20 REQ.) 502

24 JKH2017 V BAFFLE (20 REQ.) 752

24 JKH2018 V BAFFLE (20 REQ.) 1002

24 JKH2019 V BAFFLE (20 REQ.) 1302

25 JKP6569 V BAFFLE STRAP (3 REQ.) ALL

26 TST2300 HIGH LIMIT BULBWELL ALL

27 TST2306 THERMOSTAT BULBWELL 3/8" ALL

28 DRV4003 DRAIN PIPE ASSEMBLY ALL

29 WTR3718 HEAT EXCHANGER FLANGE ALL

JACKET / DOOR ASSEMBLIES

30 FAN3027 JACKET TOP, WITH VENTILATION FAN ALL

31 JKH6742 JACKET, OUTER FRONT UPPER LEFT ALL

32 JKH6738 JACKET, OUTER FRONT LOWER 502

32 JKH6739 JACKET, OUTER FRONT LOWER 752

32 JKH6740 JACKET, OUTER FRONT LOWER 1002

32 JKH6741 JACKET, OUTER FRONT LOWER 1302

33 JKH5086 JACKET, OUTER RIGHT 502

33 JKH5087 JACKET, OUTER RIGHT 752

33 JKH5088 JACKET, OUTER RIGHT 1002

33 JKH5089 JACKET, OUTER RIGHT 1302

34 JKH6989 JACKET, OUTER LEFT 502

34 JKH6990 JACKET, OUTER LEFT 752

34 JKH6991 JACKET, OUTER LEFT 1002

34 JKH6992 JACKET, OUTER LEFT 1302

MISCELLANEOUS

35 FAN2027 FAN, VENTILATION ALL

36 MSC2731 BURNER SIGHT GLASS ALL

37 FIL2001 AIR FILTER ALL

38 GKT2012 IGNITOR GASKET ALL

39 GKT2033 FLANGE GASKET ALL

40 GKT2034 BURNER/BLOWER GASKET ALL

41 GKT2079 BURNER/ HEX GASKET ALL

42 GKT2705 HEX/DIVIDER PANEL GASKET ALL

43 MSC2975 CONDENSATE TRAP ALL

44 RLY2902 RELAY, LOUVER ALL

45 TST3012 FLUE SENSOR ALL

46 WTR2530 LOW WATER CUT-OFF, MANUAL RESET (OPTIONAL) PRIOR TO H08H00211095 ALL

46 WTR30000 LOW WATER CUT-OFF, MANUAL RESET (OPTIONAL) BEGINNING H08H00211095 ALL

46 WTR2528 LOW WATER CUT-OFF, AUTO RESET (OPTIONAL) PRIOR TO H08H00211095 ALL

46 WTR30001 LOW WATER CUT-OFF, AUTO RESET (OPTIONAL) BEGINNING H08H00211095 ALL

- WTR2222 LOW WATER CUT-OFF PROBE (OPTIONAL) ALL

- WTR20000 LOW WATER CUT-OFF BOOT (OPTIONAL) ALL

- FUS2001 FUSE, 3.15A 5 X 22MM ALL

- FUS2002 FUSE, 5A 5 X 22MM ALL

- FUS2003 FUSE, 1.6A 5 X 20MM ALL

- PUM3013 PUMP ALL PF

- GKT2053 JACKET GASKET ALL

- GKT30000 GASKET, PVC 1/4 X 5/8 X 25' ALL

- KIT3115 KIT, OUTDOOR AIR RESET ALL

- KIT3109 KIT, ALARM ON ANY FAILURE WITH BELL ALL

- KIT3110 KIT, MANUAL RESET LOW WATER CUTOFF PRIOR TO H08H00211095 ALL

- KIT30041 KIT, MANUAL RESET LOW WATER CUTOFF BEGINNING H08H00211095 ALL

- KIT40020 KIT, TANK SENSOR ALL PF

- KIT40021 KIT, SYSTEM SENSOR ALL PB

PLEASE HAVE MODEL NUMBER AND SERIAL NUMBER WHEN ORDERING PARTS
