Loewe Xelos 32 LED Bedienungsanleitung

233–32398.020

Xelos A 32

Xelos A 37

Operating instructions.

32398_020 Xelos A32_37_Buch.indb 132398_020 Xelos A32_37_Buch.indb 1 10.02.2005 11:09:39 Uhr10.02.2005 11:09:39 Uhr

Picture in picture (PIP) 16

PIP picture as freeze frame 16

Select the station of the PIP picture 16

Select the station of the TV picture 16

Preview stations in the PIP picture 17

Interchanging PIP picture/TV picture 17

Functions in the PIP menu 17

PIP type: Split Screen 17

PIP type: Small picture 17

Position of the PIP picture 17

Program guide – EPG 18

Using the EPG 18

Call EPG menu: 19

Selection of provider/station 19

Switch on TV when marked 19

Teletext mode 20

Page selection with the coloured buttons 20

Other page selection options: 20

Displaying teletext pages 20

Teletext menu 21

Radio mode 21

Operating additional equipment 22

Video playback 23

Timer recording with video or DVD recorder 23

Assignment of digital audio inputs and outputs 24

Connect Loewe DVD Preceiver Auro 8116 DT and Tremo loudspeaker

system 25

Connecting other audio ampliﬁers or active speakers 26

HDMI (DVI) connection 27

VGA/XGA connection 27

Component Video connection 28

Operating Loewe video recorders and Loewe DVD players directly 29

What to do, if ... 30

Technical data 32

Accessories 33

Service Addresses 34

Contents

Remote control RC4 – TV functions 3

Control unit 4

Connections to rear panel 5

Welcome 6

TV equipment 6

Scope of delivery 6

Transporting 6

Please note! 6

Installation possibilities 6

Cleaning 7

Disposal 7

For your safety 7

First installation 9

Remote control 9

Batteries 9

Set the remote control for operating the TV 9

Power mains 9

Antennae 9

Switching on 9

Automatic programming 10

Daily operation 10

Switch on/off 10

Changing channels 11

... with the P+/P– buttons on the remote control 11

... with the numeric keys of the remote control 11

... via the station table 11

Calling up audio/video stations - AV selection 11

Basics about the menu operation 12

Adjusting the sound 13

Setting the picture 13

Operation on the TV set 13

Modes of operation 14

TV mode 14

Functioning of the colour buttons in TV mode 14

Personal values and factory values 14

Show status display 14

Open index 14

Call timer overview 14

Select picture format 15

TV menu 15

Dolby and the double ‘D‘ symbol are

trademarks of Dolby Laboratories

32398_020 Xelos A32_37_Buch.indb 232398_020 Xelos A32_37_Buch.indb 2 10.02.2005 11:09:48 Uhr10.02.2005 11:09:48 Uhr

Remote control RC4 – TV functions

P+

P–

V– V+

Sound off/on Switch on/off – to standby

Yellow button: last program

Select program up

Freeze frame off

Freeze frame on

Blue button: program info on/off

V–/V+ volume quieter/louder

Index on/off

/in the menu: Info texts on/off

Status display on/off

/in the menu: back or hide menu

Call AV selection

PIP on/off (picture in picture)

/in the wizard: back

Picture menu on/off

Switching over to operate DVD players

Sound menu on/off

Radio mode on/off (back to TV mode)

Select program directly

/in the menu: enter numbers or letters

Freeze frame on/off

Select program down

Green button:

Menu "Other functions" on/off

Red button: freeze frame on/off

in menu: select/set

/in PIP: position of the PIP picture

Station table on

/in the menu: confirm/call

P+/P– select program up/down

Teletext mode on/off

Show/hide menu

EPG on/off

Set picture format

Personal/factory values for picture and sound

Timer overview on/off

Switching over to operate the TV

Switching over to operate VCRs

RADIO

TV DVD

VCR

DISC-MENU

T-C

SV SP/LP 000

TEXT

END

INFO

abc def

ghi jkl mno

pqrs tuv wxyz

EPG AV PIP

Direct recording

32398_020 Xelos A32_37_Buch.indb 332398_020 Xelos A32_37_Buch.indb 3 10.02.2005 11:09:49 Uhr10.02.2005 11:09:49 Uhr

Control unit

Display:

red: standby

green: operation

green and red:

timer recording,

EPG data entry

or radio mode

Headphones connection

S-VHS connection (AVS)

(i.e. for camcorder)

Video input (AVS)

Audio input right

Audio input left

–

Function key

Select program down,

in menu: select

Select program up,

in menu: select

X E L O S

32398_020 Xelos A32_37_Buch.indb 432398_020 Xelos A32_37_Buch.indb 4 10.02.2005 11:09:49 Uhr10.02.2005 11:09:49 Uhr

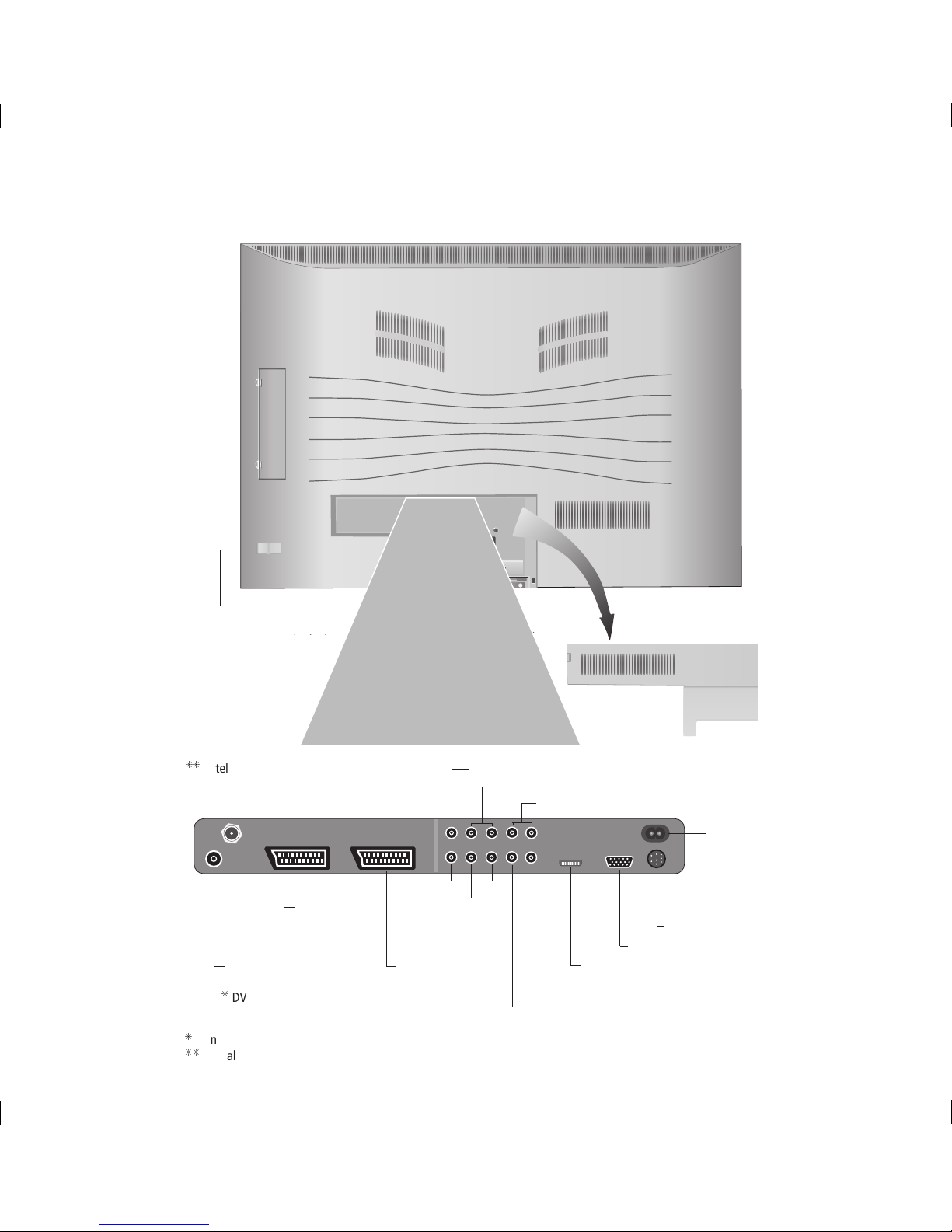

Connections to rear panel

Antenna socket

VHF/UHF/cable

(

DVB-T 5V=/80 mA)

Audio output left/right (analog)

Audio input left/right (analog)

Center audio input (analog)

Euro-AV-

socket 1

Euro-AV- socket 2

(RGB/YUV)

Socket for

power cable

Service socket

VGA-/XGA input

Satellite connection socket

(13/18V=/350 mA)

HDMI (DVI) input

Digital audio input

Digital audio output

Component

video inputs

(Cb/Pb–Cr/Pr–Y)

Main switch

(Power supply)

only for set with DVB-T

Digital satellite tuner retofittable in units with DVB-T

32398_020 Xelos A32_37_Buch.indb 532398_020 Xelos A32_37_Buch.indb 5 10.02.2005 11:09:49 Uhr10.02.2005 11:09:49 Uhr

Welcome

Thank you

for choosing a Loewe product.

We are happy to have you as a customer.

At Loewe we combine the highest standards of technology, design and user

friendliness. This applies equally for TV, video and accessories.

Neither technology nor design is an end in itself, but both are intended to

provide our customers with the best possible audio and visual experience.

We have designed the TV set in such a way that it is easy to operate with

menus. Information about settings in menus is shown automatically for fast

comprehension of the situation.

You will ﬁnd the answers to many of your technical queries in the index of

your TV. If it is a matter of operating the TV, you can access a function di-

rectly from the index. This saves you from having to read through detailed

operating instructions and is the reason, why this operating manual only

explains the most important operating steps.

With the remote control you can control three Loewe units, in addition to

this TV set also a Loewe video recorder and a Loewe DVD player.

TV equipment

The maximum equipment (without optional retroﬁt kits) is described in

these operating instructions. Functions marked by * are not available in all

TV sets.

For sets with terrestrial and satellite supported Digital-TV additional oper-

ating instructions are enclosed with the appropriate equipment.

Menu contents may differ from the ones shown depending on your TV

equipment.

You can view your TV equipment in the “Integrated features” index (press

the INFO button in TV mode, if no menu is displayed; is displayed sepa-

rately in the index before A.

Scope of delivery

TV LCD-TFT Xelos A 32 or Xelos A 37

RC4 remote control with 2 batteries

Table-Stand TS52

fabric hose

3 cable loops

this operating manual

•

Transporting

Only transport the unit in an upright position. Hold the set by the top and

bottom edges of the housing. The LCD screen is made of glass and may

break if not handled carefully.

Please note!

The LCD screen you have purchased meets the highest quality requirements

and has been tested for pixel errors. Despite the utmost caution in produc-

tion of the sets, it cannot be totally ruled out that some of the pixels might

be defective for technological reasons. Please understand that such effects

cannot be considered as a unit defect in the sense of the warranty as long

as they are within the limits speciﬁed by the standard.

Use your screen in a full screen format.

Always switch off the screen when not in use.

Reduce contrast and brightness as far as possible.

•

32398_020 Xelos A32_37_Buch.indb 632398_020 Xelos A32_37_Buch.indb 6 10.02.2005 11:09:49 Uhr10.02.2005 11:09:49 Uhr

Installation possibilities

as a desktop unit

Use the base included in delivery. Installation instructions are enclosed with

the base.

as a wall-mounted unit

Use the wall holder WM53, Loewe order no. 63493 A10.

mounted on a rack

Use the Xelos Rack, Loewe order no. 64496 A00.

For your safety

For your safety and to avoid unnecessary damage to your TV set,

please read and observe the following safety instructions:

• This TV set is designed exclusively for reception and reproduction of

video and audio signals.

• This equipment is designed for domestic and ofﬁce environments and

must not be used in rooms with high humidity (e.g. bathroom, sauna) or

high concentrations of dust (e.g. workshops). If the equipment is used in

the open air, ensure that it is protected against moisture (rain, dripping,

splashing, sprayed water or

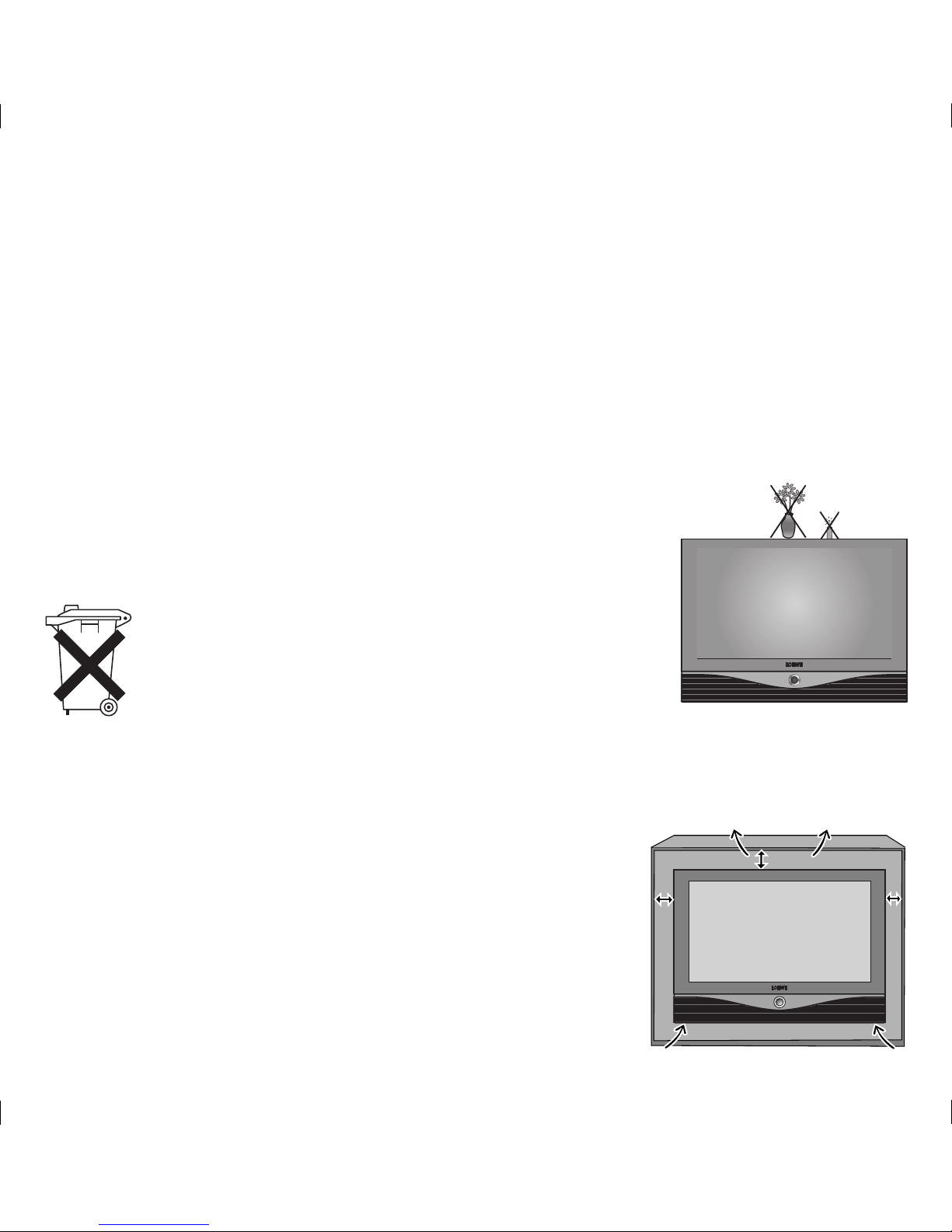

dew). Do not place any contain-

ers ﬁlled with liquids or lit

candles on top of the TV.

High levels of moisture

and concentrations of dust

cause leakage currents in

the equipment, which can

lead to danger of electric

shock or ﬁre.

The manufacturer‘s war-

ranty is only valid for use

in the speciﬁed permissible

environment.

• If you have moved the TV set out of the cold into a warm environment,

leave it standing for about an hour because of the possible forming of

condensation.

• This equipment must only be connected to a mains power supply which

has the same voltage and frequency as that speciﬁed on the rating

plate with the power cable provided. Incorrect voltages can damage the

equipment.

• Like all electronic

equipment, your TV

needs air for cooling.

Obstruction of the air

circulation can cause

ﬁres. Therefore the air

vents on the back must

always be kept free.

Please do not place

newspapers or cloths

on/over the TV. If the

Welcome

10 cm

10 cm 10 c

m10 cm

Cleaning

Use only a soft, clean, damp cloth to clean the TV, Plasma screen and re-

mote control (don’t use any caustic or abrasive cleaning agents).

Disposal

Packing and box

You have chosen a long lasting technical product of very

high quality. We have paid a fee to authorized recy-

clers who will collect the packing from your dealer for

disposal. Nevertheless we recommend you to keep the

original box and packing material for optimum protection

if you have to transport the set.

The set

For environmentally friendly disposal of the TV set, please contact your

dealer.

Remote control batteries

The batteries provided contain no harmful materials such as cadmium, lead

or mercury. Regulations concerning used batteries mean that batteries may

no longer be thrown out with the household rubbish.

32398_020 Xelos A32_37_Buch.indb 732398_020 Xelos A32_37_Buch.indb 7 10.02.2005 11:09:50 Uhr10.02.2005 11:09:50 Uhr

TV is placed in a cabinet or on a shelf, leave at least 10 cm at the sides

and back and 10 cm at the top to ensure sufﬁcient air circulation.

Position the set so that it is not exposed to direct sunlight and addi-

tional heating from radiators.

• Avoid metal parts, needles, paper clips, liquids, wax or similar getting

into the TV set through the air venting slits in the rear panel. This can

lead to short-circuits and possibly to ﬁre. If something should get into

the inside of the TV set, pull out the plug immediately and notify cus-

tomer service.

• Never remove the back of the TV set yourself. Repair and servicing of

your TV set should only be carried out by authorized TV technicians.

• Place the TV set on a level, ﬁrm base.The set should not protrude at the

front when installing in cabinets or shelves.

Only use original accessories if possible, e.g. Loewe wall holders and

stands.

Never let children handle the TV unattended.

Do not allow children to play in the immediate vicinity of the TV, they

could knock, shift or pull it over and injure someone.

Never leave the TV on unsupervised.

• Do not install the TV where there may be vibrations. Vibrations can lead

to material stress.

• Pull out the power and antenna cables during thunderstorms. Surge

voltages caused by lightning strikes can damage the TV through the an-

tenna system and the mains. Also remove the antenna and mains plugs

in long periods of absence.

• The mains plug of the TV set must be easily accessible so that the set

can be disconnected at any time.

• Lay the cable in such a way that it will not be damaged.The power

cable may not be kinked or laid over sharp edges, not stood on and not

exposed to chemicals, the latter also applies to the device as a whole.A

mains cable with damaged insulation can lead to electric shocks and is

a ﬁre risk.

• When removing the power plug, pull the plug housing and not the cable.

The wires in the plug could be damaged and cause a short circuit the

next time it is plugged in.

The rating plate of the TV is on the rear of the set.

Welcome

32398_020 Xelos A32_37_Buch.indb 832398_020 Xelos A32_37_Buch.indb 8 10.02.2005 11:09:50 Uhr10.02.2005 11:09:50 Uhr

Connection

Power mains

Connect the TV set to a 220-240V/50–60 Hertz to a power outlet.

Antennae

Plug the antenna plug of your antenna/cable system or the room antenna

for DVB-T into the ANT-TV socket.

If a digital satellite tuner has been retroﬁtted, connect your satellite an-

tenna system for the ANT-SAT socket.

Use the enclosed cable loops for laying the cables.

ANT-TV ANT-SAT

220-240V~

50/60Hz?

Switching on

Switch on the set with the ON/OFF button on the rear of

the screen.

The green lamp on the TV set now lights up.

From standby it is best to switch back on with the blue

On/Off button or with a numeric key of the remote control.

After switching on it takes about 2 minutes for the screen

to reach full brightness due to the LCD technology.

Remote control

Batteries

To insert or change the batteries press on the arrow. Slide the battery

compartment cover downwards and remove it. Insert Alkali Mangan LR 03

(AAA) batteries and ensure that the + and – ends are connected correctly .

Then push the cover back on from the bottom until it snaps in.

Set the remote control for operating the TV

Push TV-key

How to operate other Loewe equipment is described on page 29.

First installation

32398_020 Xelos A32_37_Buch.indb 932398_020 Xelos A32_37_Buch.indb 9 10.02.2005 11:09:50 Uhr10.02.2005 11:09:50 Uhr

Automatic programming

Automatic programming of the TV set is started the ﬁrst time you switch it

on. Follow the menus.

First you have to select the menu language. Then you enter which anten-

nae you have connected to your TV set and in what country you are using

it. Then start the station search. The TV set searches for, saves and sorts all

programs which are receivable on your antenna system.

Then log in your video equipment, decoder and Loewe audio system with

the co.nnection wizard and connect these to the TV according to the dis-

played connection diagram. If you want to connect other equipment later,

you will ﬁnd information from page 22 onwards.

By pressing the OK button in the direction of the arrow you

select the setting ...

... and conﬁrm your settings with OK. You then go to the

next menu.

Back

You can repeat initial installation at any time, e.g. after moving house. Call

the index with the INFO button. Select the index item “Repeat initial opera-

tion“ (you will ﬁnd this listed separately before the letter A). Then start ﬁrst

time operation with OK.

Daily operation

Switch on/off

Your TV is equipped with an eco-standby power supply unit. On standby the

power consumption drops to low power (see page 32). If you want to save

even more electricity, switch the set off with the ON/Off button. However,

please bear in mind that EPG data will be lost and programmed timer

recordings will not be performed by the TV.

Switching off

If the TV set is switched on, you can switch it to

standby using the blue ON/OFF button of the

remote control.

The red lamp on the TV set lights up. If it lights green and

red, a timed recording is made, EPG data is entered or

radio operation without screen display is active.

Switching on the TV set

From standby it is best to switch back on with the blue

On/Off button or with a numeric key (station 0 – 9) of the

remote control.

Or switch on the TV set with OK, you can see the station

table and select a station.

Switching the radio function on

With the RADIO button on the remote control.

Radio mode is only possible if the TV set is equipped for

satellite reception

or an external radio receiver is connected to the

AV connections AV1, AV2 ...

If you switch off the TV set with the ON/OFF button on the right of the set,

the display no longer light up.

First installation

RADIO

PIP

32398_020 Xelos A32_37_Buch.indb 1032398_020 Xelos A32_37_Buch.indb 10 10.02.2005 11:09:51 Uhr10.02.2005 11:09:51 Uhr

Andere Handbücher für Xelos 32 LED

Dieses Handbuch passt für folgende Modelle

Inhaltsverzeichnis

Andere Loewe Fernseher Handbücher

Loewe

Loewe Individual 55 Bedienungsanleitung

Loewe

Loewe Xelos 40 Media Bedienungsanleitung

Loewe

Loewe CAL 2323 MB Bedienungsanleitung

Loewe

Loewe Modus L 37 Bedienungsanleitung

Loewe

Loewe bild 9 Bedienungsanleitung

Loewe

Loewe Xelos 40 Media Bedienungsanleitung

Loewe

Loewe Reference 85 Bedienungsanleitung

Loewe

Loewe Individual 55 Compose 3D, Individual 46 Compose 3D, Individual 40 Compose 3D, Individual 32 Compose... Bedienungsanleitung

Loewe

Loewe Spheros R 32 HD+ Bedienungsanleitung

Loewe

Loewe Xelos 40 Media Bedienungsanleitung

Loewe

Loewe 37 100, 37 100 Bedienungsanleitung

Loewe

Loewe Spheros R 26 Bedienungsanleitung

Loewe

Loewe Connect ID 40 DR+ Bedienungsanleitung

Loewe

Loewe Connect ID 55 Bedienungsanleitung

Loewe

Loewe Art 55 Bedienungsanleitung

Loewe

Loewe Articos 55 HD Bedienungsanleitung

Loewe

Loewe Reference lD 55 Bedienungsanleitung

Loewe

Loewe Xelos A 42 65419 Bedienungsanleitung

Loewe

Loewe Profil Plus 3272Z Bedienungsanleitung

Loewe

Loewe Aconda 9581 ZW Bedienungsanleitung

Loewe

Loewe LOEWE Bedienungsanleitung

Loewe

Loewe bild series Bedienungsanleitung

Loewe

Loewe TV Aventos 3772 Z Bedienungsanleitung

Loewe

Loewe bild s Series Bedienungsanleitung

Beliebte Fernseher Handbücher anderer Marken

Philips

Philips Colour Television Bedienungsanleitung

Toshiba

Toshiba 27A10 Bedienungsanleitung

Philips

Philips 42PF9630A/37 Bedienungsanleitung

Hitachi

Hitachi 32FX48B Bedienungsanleitung

DAEWOO ELECTRONICS

DAEWOO ELECTRONICS DTQ-14V1FC Bedienungsanleitung

Changhong Electric

Changhong Electric uhd55b6000is Bedienungsanleitung

Philips

Philips Matchline 21CE7551 Bedienungsanleitung

Panasonic

Panasonic Genus TX-G10 Bedienungsanleitung

Toshiba

Toshiba 19A20 Bedienungsanleitung

Philips

Philips 25PT4523-16 Bedienungsanleitung

Sony

Sony XBR-100Z9D Bedienungsanleitung

Philips

Philips PR0930X3 Bedienungsanleitung

Philips

Philips Brilliance 231P4QPY Bedienungsanleitung

Samsung

Samsung 55S9 B Series Bedienungsanleitung

Philips

Philips 32HF9385D Fehlerbehebungshandbuch

Sharp

Sharp LC-40FI5012E Bedienungsanleitung

Philips

Philips 32PFH5300 Bedienungsanleitung

Sylvania

Sylvania 6427FB Bedienungsanleitung
