INSTRUCTION MANUAL
MODEL 545
DELUXE MAT CUTTING KIT
L2125 6/12
Purchase Date
ID Number (on bottom of board)
Date (on bottom of board)
LoganGraphic.com
For best results use only
authentic Logan blades
Uses Logan Replacement
Blade #270
INSTRUCTIONS & OPERATION MANUAL
23 in (51 cm) capacity cutting board,
bevel cutter, straight cutting knife,
mat boards, blades, DVD, mat cutting book.
Mat border calculator
Mobile app
Instruction Manual Model 545
pg 2
Logan Graphic Products Inc., 1100 Brown Street, Wauconda, IL 60084 847-526-5515
LoganGraphic.com
DELUXE MAT CUTTING KIT

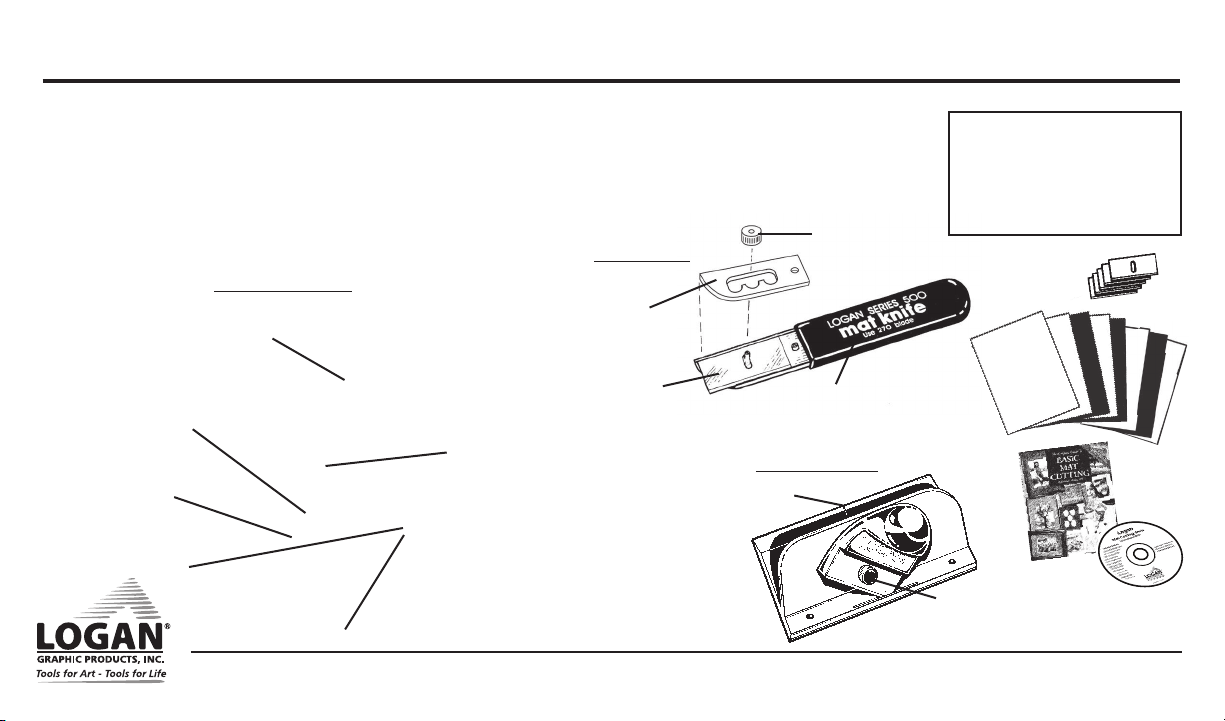

Identification of Machine Components
Squaring Bars
Mounted 90 degree bars used
to hold mats square when
cutting and to set border sizes
(attach to base, as shown)
Cutting Board
Congratulations on your purchase of the Deluxe Mat Cutting Kit.
This well designed economical Mat Cutter will provide professional results at a fraction of the cost of professional equipment. The Deluxe Mat Cutting Kit includes all
the basic components needed including a base board, bevel cutter and mat knife to accurately size and then bevel cut matboard for framing. Please take some time
to familiarize yourself with this instruction manual before cutting. You will find that the time taken will be worth it, and you will be cutting quality mats in no time.
Bevel Cutter
Mat Knife
Cutting Board
Vinyl covered base
board of machine
Bar Knob
Used to lift and position
the guide bar
Guide Bar
Used to guide cutting
heads while cutting
Slip Sheet
Scrap matboard used
under the mat being cut
to improve quality
of bevel cut
Blade Cover
Holds blade safely in position
Blade Blade Handle
Blade Nut
Holds cover and blade in place
Start and Stop Indicator
Line which shows where to
begin and end cut
Blade Holding Knob
Holds blade securely
onto blade holder
Carton Contents
Cutting Board
Bevel Cutter
Mat Knife
Extra Blades
Practice Mat Board
Basic Mat Cutting Book
DVD
Instruction Manual Model 545
pg 3
Logan Graphic Products Inc., 1100 Brown Street, Wauconda, IL 60084 847-526-5515
LoganGraphic.com
DELUXE MAT CUTTING KIT

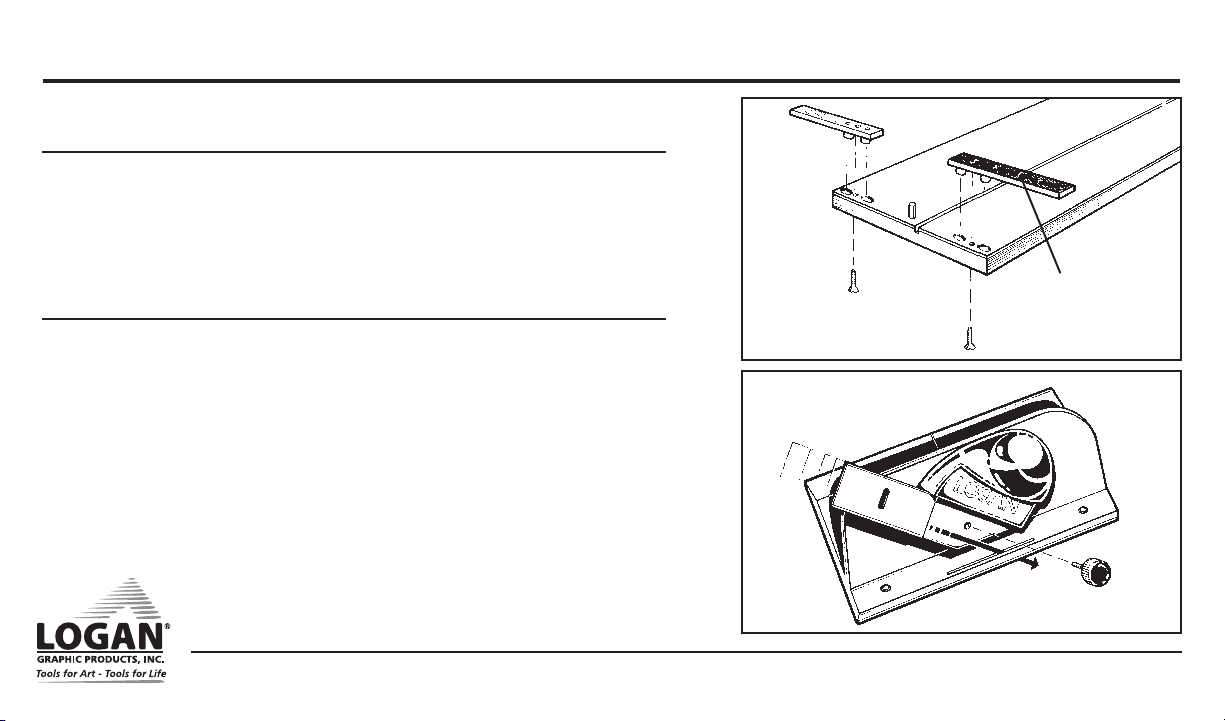

Board Assembly
1. Press squaring bars into holes in cutting board. (Fig. 1)
Helpful Hint - Be sure scale is located on proper side.
2. Thread screws from the bottom of the board and into the squaring bars.
3. Tighten screws snug.
Blade Installation
A. Model 2000 Bevel Cutter
1. Remove one blade from package.
Helpful Hint - Beware, blades sometimes stick together.
2. Remove blade knob.
3. Slide blade down front of blade holder and into slot. (Fig. 2)
4. Align hole in blade with hole in blade holder.
5. Replace knob.
Fig. 1
Scale Bar
Fig. 2
Instruction Manual Model 545
pg 4
Logan Graphic Products Inc., 1100 Brown Street, Wauconda, IL 60084 847-526-5515
LoganGraphic.com
DELUXE MAT CUTTING KIT

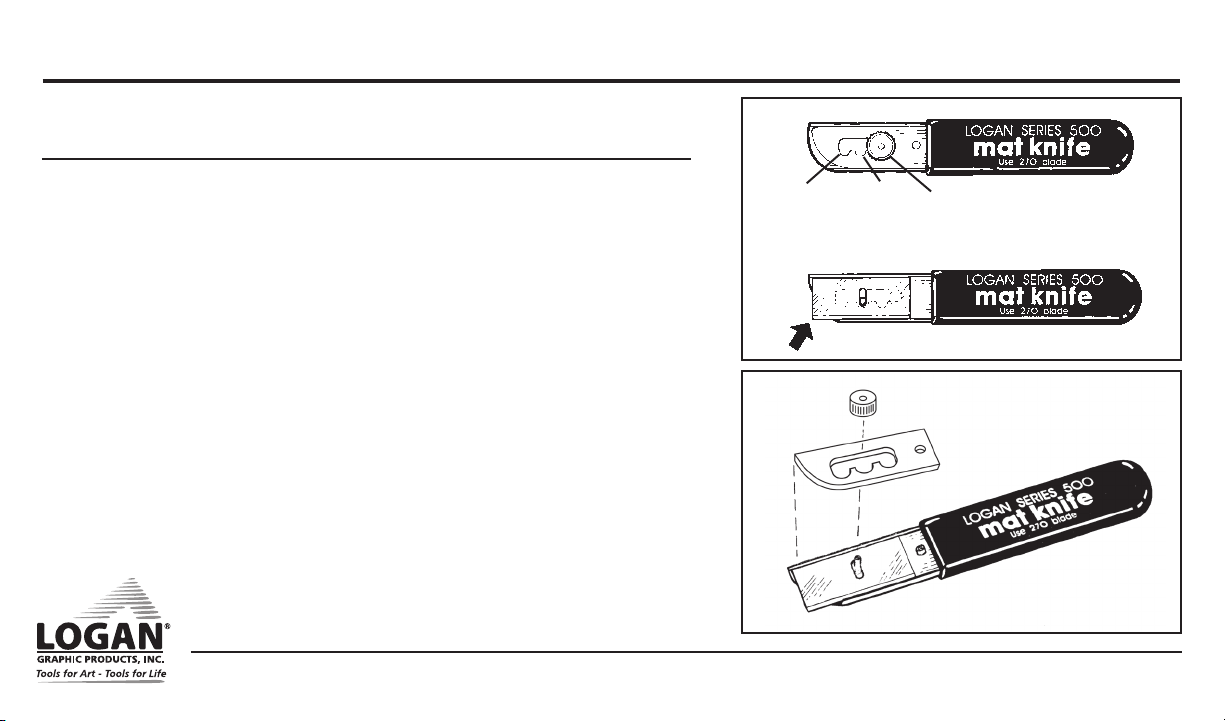

Model 500 Mat Knife
1. Remove one blade from package.
2. Remove blade nut and cover plate.
3. Place blade onto knife handle lining hole in blade over screw thread. Be sure sharp
edge is overhanging curved edge of handle. (Fig. 3)
4. Replace blade cover and blade nut. (Fig. 4)
5. Adjust setting by sliding blade nut to desired location and tighten.
Helpful Hint - Second setting on knife is for 3/16 foamboard or double thick matboard
Fig. 4
Fig. 3
Double
Thickness
Matboard
Single
Thickness
Matboard
Safety
Instruction Manual Model 545
pg 5
Logan Graphic Products Inc., 1100 Brown Street, Wauconda, IL 60084 847-526-5515
LoganGraphic.com
DELUXE MAT CUTTING KIT

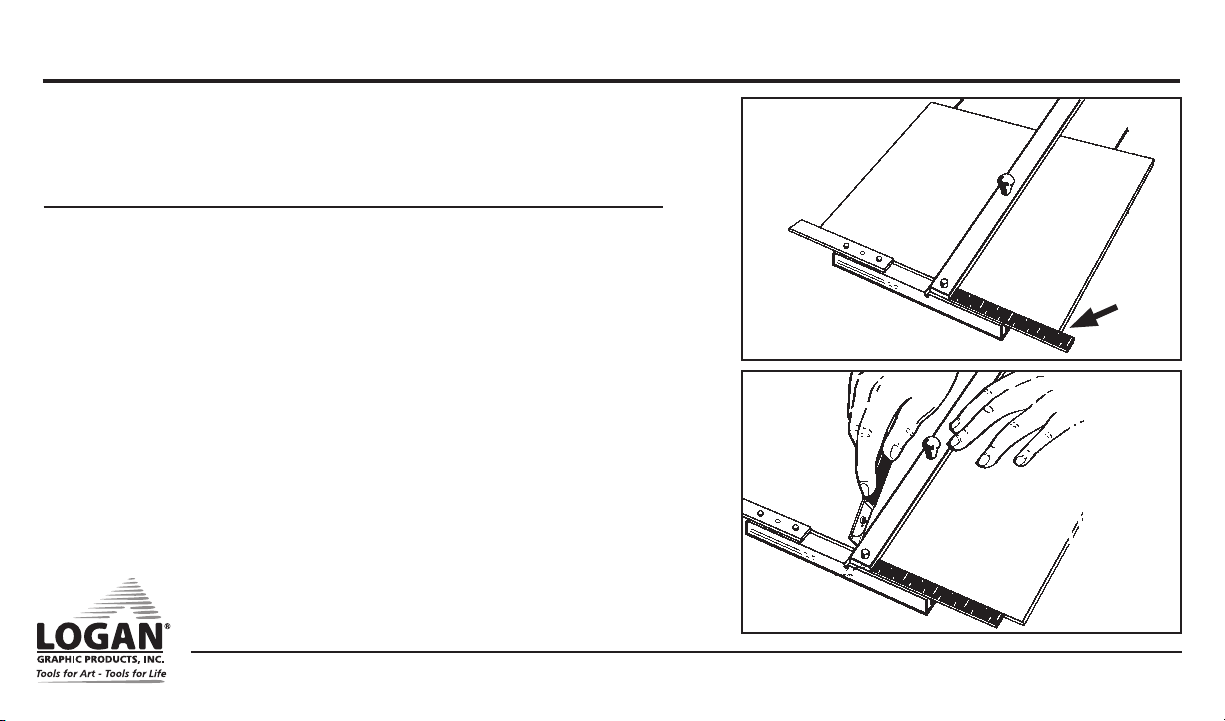

OPERATION
Cutting a Board to Size
Helpful Hint - Matboard is sold in 32” x 40” sizes. Sometimes stores will sell smaller
sizes or cut a sheet down at no charge. Simply ask.
1. Using a measuring device, measure dimension of board to be cut.
2. Slide matboard under guidebar and against squaring bars. Align mark with guide-
bar edge. (Fig. 5 )
Helpful Hint - Mat cutter only cuts up to 23”. Anything larger will have to be cut using
any longer straight edge. If cutting without board, be sure to use a backing sheet to
protect cutting surface.
3. Stand with squaring bars furthest from you, hold knife vertically along edge of
guidebar at 45 degree angle. Place blade tip beyond edge of matboard. Draw
knife across matboard towards yourself. (Fig. 6)
Fig. 6
Fig. 5
Align
Here
Instruction Manual Model 545
pg 6
Logan Graphic Products Inc., 1100 Brown Street, Wauconda, IL 60084 847-526-5515
LoganGraphic.com
DELUXE MAT CUTTING KIT

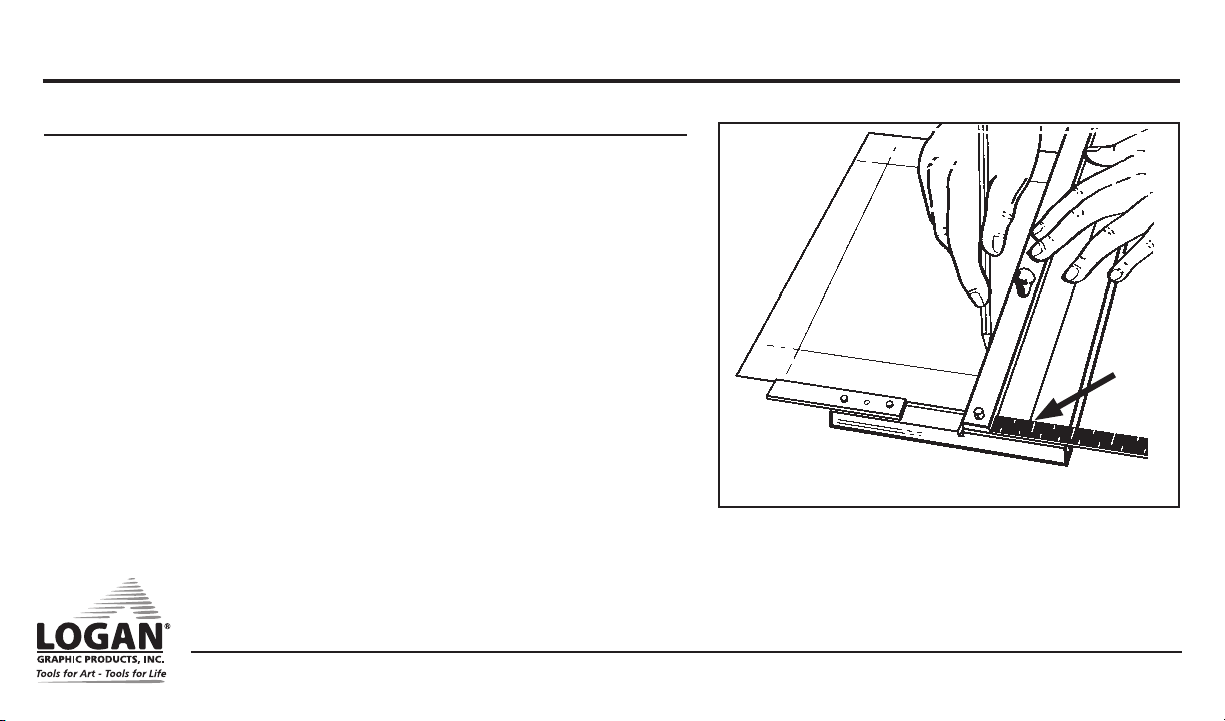

Cutting a Beveled Opening
1. Determine opening by measuring artwork and subtracting 1/2 inch from
each dimension.
Helpful Hint - If artwork measures 5” x 7” then opening should
be 4-1/2” x 6-1/2” so mat covers artwork.
2. Determine border by subtracting opening dimension from matboard dimension and
taking half of that.
Helpful Hint - If matboard dimension is 8” x 10” and opening is 4-1/2” x
6-1/2” then subtract 8 - 4-1/2” = 3-1/2” and 10 - 6 1/2” = 3 1/2”.
Half of 3-1/2” is 1-3/4” so border is 1-3/4”.
3. Put a slip sheet under the mat to be cut.
4. Mark borders on back of mat. Slide mat board under guide bar and against squaring
bars. Align edge of matboard to desired dimension. (Fig.7 )
5. Using a pencil, draw lines full length of back of matboard. Repeat this for remaining
three sides.
Fig. 7
Measure
Here
Instruction Manual Model 545
pg 7
Logan Graphic Products Inc., 1100 Brown Street, Wauconda, IL 60084 847-526-5515
LoganGraphic.com
DELUXE MAT CUTTING KIT
1
2
3
4
1 0 9876543

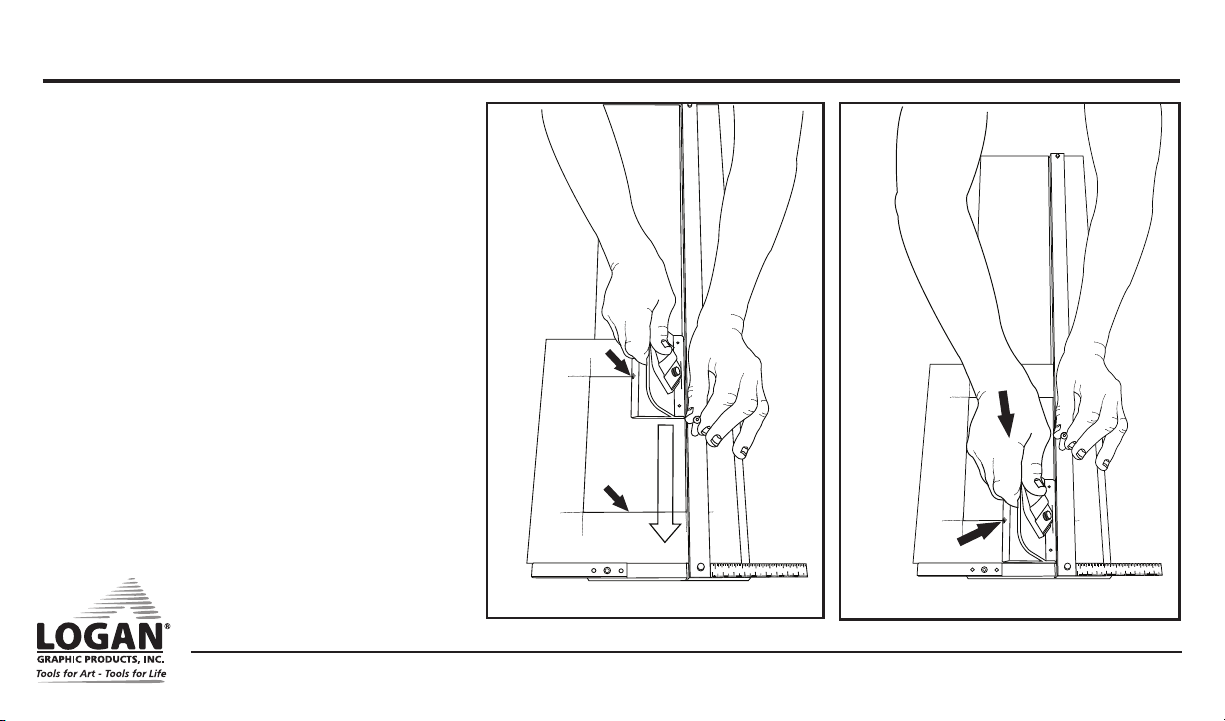

6. Standing with the squaring bars away from you,
position model 2000 bevel cutter so the silver line
lines up with bottom intersecting pencil line. (Fig. 8)
7. Hold down guidebar with your left hand. Place thumb of
right hand on thumb divot on blade holder. (Fig. 8)
8. Plunge the blade down into the mat. Keep down-
ward pressure, slide cutter against guidebar until
silver line intersects with top pencil line. (Fig. 9)
Helpful Hint - Lower heel of right hand behind cutter
to get better leverage. For best results do not go beyond
intersecting lines.
9. Remove blade from mat by pulling up on blade
holder using your thumb.
10. Rotate the mat to 1/4 turn and repeat steps 6-9 to
complete cutting.
1
2
3
4
1 0 9876543
Fig. 8 Fig. 9
Instruction Manual Model 545
pg 8
Logan Graphic Products Inc., 1100 Brown Street, Wauconda, IL 60084 847-526-5515
LoganGraphic.com
DELUXE MAT CUTTING KIT

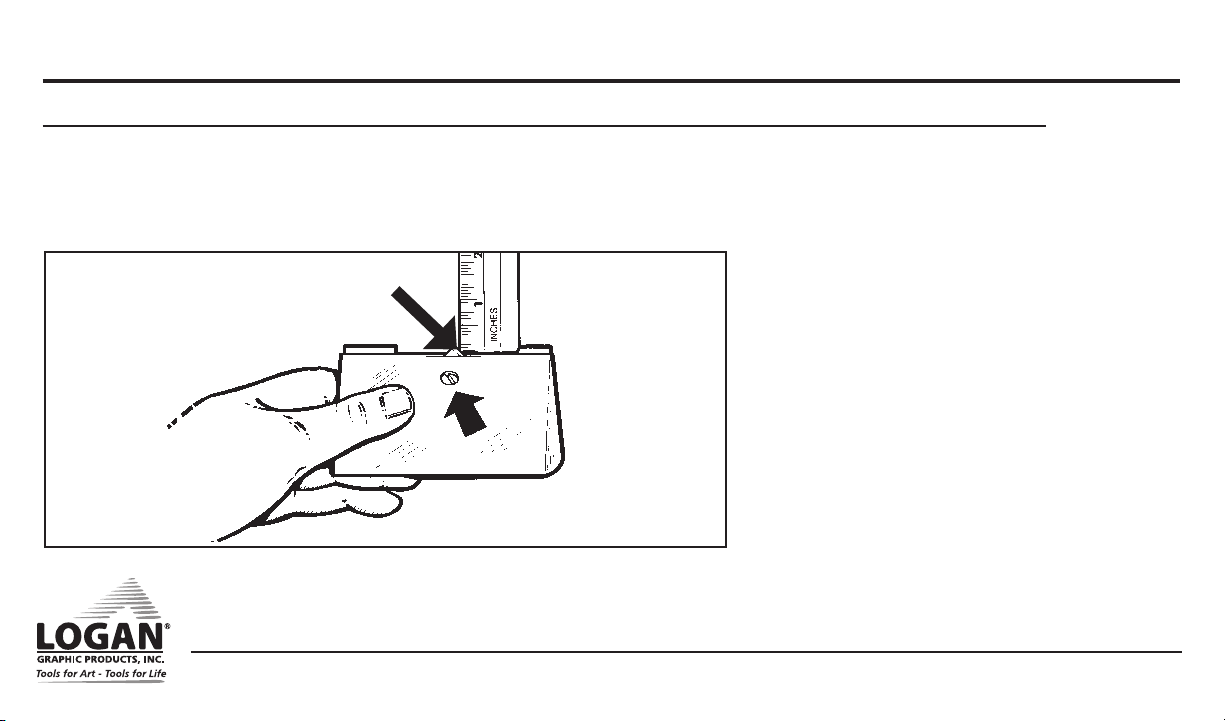

Helpful Hints
1. Bevel blade adjustment - Turning depth adjustment screw in (clockwise) will decrease depth and turning screw out (counter-clockwise) will increase depth.
(Fig. 10) Note that proper blade depth will result in the blade just clearing the matboard and lightly scoring the slip sheet underneath.
2. Always use a slip sheet when bevel cutting. A piece of scrap matboard used under mat being cut provides the highest quality cut.
3. Change blades -When edge of cut looks ragged. Blade sharpness varies so blade life varies.
Fig. 10 Blade Depth
Blade Depth Screw
Instruction Manual Model 545
pg 9
Logan Graphic Products Inc., 1100 Brown Street, Wauconda, IL 60084 847-526-5515
LoganGraphic.com
DELUXE MAT CUTTING KIT
Trouble Shooting
Bevel Cut has a Rough Edge
1. You may need to change your blade more often. Dull blades drag through the mat instead of cut.
2. Change your Slip Sheet. Cutting over the same area on the Slip Sheet repeatedly can cause rough cuts.
Not Cutting Through the Mat
1. Keep even downward pressure on the Chrome Blade Holder throughout the cut. Letting pressure off will allow the blade to come out of the mat.
2. Check your blade depth. Insufficient blade depth can result in undercut mats.To adjust the blade depth on the Bevel Cutter, turn the screw on the under-
side of the cutting head clockwise to decrease or counter-clockwise to increase the amount of the exposed blade.
Overcuts In Corners
1. Check your blade depth. Extra blade depth can cause the blade tip to cut past the marked lines producing an overcut. Using the recessed screw on the
bottom of the Bevel Cutter, adjust the blade tip to allow for 1/8” exposure. The blade should just score into the surface of the Slip Sheet.
To adjust the blade depth on the Bevel Cutter, turn the screw on the underside of the cutting head clockwise to decrease or counter-clockwise to increase
the amount of the exposed blade.
Hooks or Curves in Cut
1. Check your blade depth. Extra blade depth can cause the blade tip to flare out producing a hook or curve. Using the recessed screw on the bottom of the
Bevel Cutter, adjust the blade tip to allow for 1/8” exposure. The blade should just score into the surface of the Slip Sheet.
To adjust the blade depth on the Bevel Cutter, turn the screw on the underside of the cutting head clockwise to decrease or counter-clockwise to increase
the amount of the exposed blade.
2. Change the blade. A dull blade will flare out causing a hook or curve.
A NOTE ON BLADES: No two blades will have the same lifespan. Always start with a new blade before each project to ensure best results.
Instruction Manual Model 545
pg 10
Logan Graphic Products Inc., 1100 Brown Street, Wauconda, IL 60084 847-526-5515
LoganGraphic.com
DELUXE MAT CUTTING KIT
Warranty
Logan Graphic Products, Inc. (“Logan”) warrants the Deluxe Mat Cutting Kit Model 545 to be free from defects in parts and
workmanship for a period of two years from the date of original purchase. Logan warrants that it will either repair or replace,
in its sole discretion, any necessary replacement parts found to be defective. Should the product need to be returned to
Logan for repair or replacement parts, authorization for any return must come from Logan in writing. Costs of returning
the product to Logan, including insurances, shall be borne by the purchaser. Logan shall not be liable for any damages or
losses, incidental or consequential, direct or indirect, arising from the use of this product. This warranty extends only to the
original purchaser and is not assignable or transferable. This warranty is in lieu of all other warranties, expressed or implied.
Be advised that any Logan products purchased as “new” from an unauthorized dealer, such as an online auction site or
similar, may be void of their warranty.
