LogiCO2 0475 Bedienungsanleitung

Installation Instruction

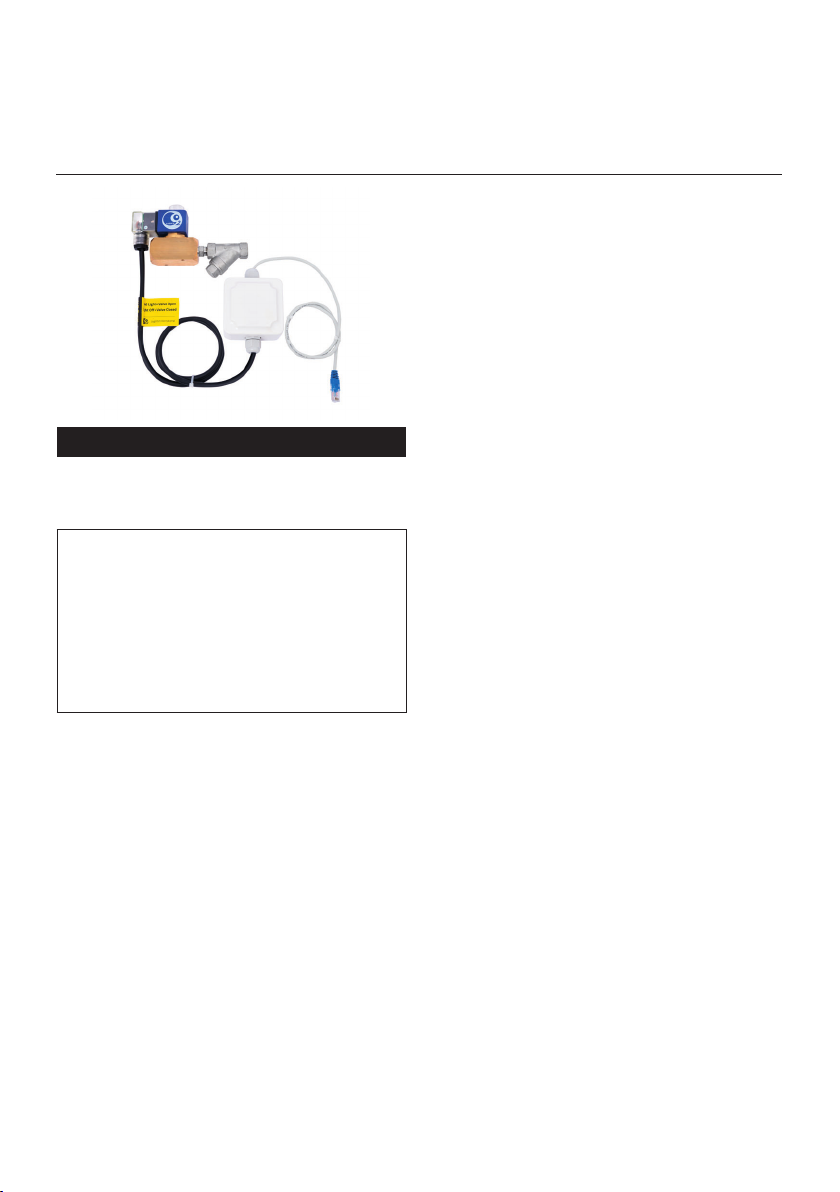

0475 Enrichment Valve 10W

ENGLISH

Enrichment Valve with filter for Grow CO2

Enrichment Controller.

Important!

Retain this instruction manual for future

reference: Please read these instructions

carefully prior to start-up and use. Failure to

follow any of these instructions could void

product warranties. LogiCO2 assumes no

responsibility for claims arising out of improper

or careless use or handling of their products.

Technical specifications

Power supply: Via Grow CO2 Enrichment

Controller

Power consumption: 420 mA (10 Watt)

Relays: 1A/24V AC/DC

Material: PC/ABS

Operating pressure: 0,15 to 30 bar / 2,2 to 435 Psi

Bursting pressure: >150 bar / 2 175 Psi

Treaded connection: 1/4” -18NPT

Dimensions (WxHxD)

Connection box: 78x78x37 mm / 3”x3”x1.5”

Ingress protection: IP55

Function

Enrichment Valve is an accessory for LogiCO2 Grow

CO2 Enrichment Controller. The Grow CO2 Enrichment

Controller is a device that measures the concentration

of CO2 in the ambient environment of the room being

controlled and opens/closes the dispenser valve, to

achieve a perfect CO2 environment in the grow room.

Enrichment Valve consists of a magnetic valve with

filter, electronics box and cabling. The Enrichment

Valve is designed for usage of CO2 with a pressure of

0,15 to 30 bar or 2,2 to 435 Psi.

Enrichment Valve has a 1 meter Cat5 cable from

the electronics box, with a blue RJ45 connector that

is plugged in to the blue cable side of the Grow CO2

Enrichment Controller.

Install the electronics box in a suitable place where it is

mechanically protected. Remove the cover by turning

it counterclockwise 1/8 turn to access the mounting

screw holes.

Connection diagram

This connection diagram shows an example of how the different systems can be installed.

Certifiedby UL

Ratings:24Vdc, 32mA

Madein Sweden !

LogiCO2

Mk9

Gas Monitor Central Unit

CO2Sensor

CO2

CertifiedbyUL

Ratings:24Vdc,117mA

MadeinSweden

LogiCO2

Mk90

DINReg.

No:6L002

CO2Sensor

CO2

CertifiedbyUL

Ratings:24Vdc,117mA

MadeinSweden

LogiCO2

Mk90

DINReg.

No:6L002

CO2Sensor

CO2

CertifiedbyUL

Ratings:24Vdc,68mA

MadeinSweden

DINReg.

No:6L002

LogiCO2

Mk9

CO2Sensor

CO2

CertifiedbyUL

Ratings:24Vdc,68mA

MadeinSweden

DINReg.

No:6L002

LogiCO2

Mk9

Grow

LogiCO2International

Certifiedby UL

Ratings:24Vdc, 68mA

Madein Sweden

Grow

CO2

LogiCO2International

CertifiedbyUL

CO2

Ratings:24Vdc,68mA

MadeinSweden

Grow

CO2

LogiCO2International

CertifiedbyUL

CO2

Ratings:24Vdc,68mA

MadeinSweden

Possibility to expand with

up to twelve Grow CO2

Enrichment Controllers/

Mk9/mk90 CO2 Sensors

INDICATION CAUSE ACTION

CentralUnit:

• The red diode is ON

• Constant sound si gnal

Display:

• Sensor number, alterna ting

ALARM and CO2 %

HIGH-ALARM

TAKE PR ECAUTI ONS

High concentration of CO2

DONOT ENTER

therisk zone.

Evacuate the area.

Callt he ﬁre department.

CentralUnit:

• The red diode is blink ing

• Beeping sound sign al

Display:

• Sensor number, alterna ting

ALARM and CO2 %

LOW-ALARM

High concentration of CO2

Aservice technician should

onlyent er the room under th e

supervisionof another person.

Openthe do ors and the windows

asmuch as possible.

CentralUnit:

• The red diode is blink ing

• Beeping sound sign al

Display:

• Sensor number, alterna ting

ALARM and CO2 ppm value

TWA-ALARM

There is a small CO2 leak

thathas lasted for over

8hou rs

Openthe do ors and the windows

asmuch as possible.

Findand stop t he leakage, if not

found,call service.

Phone:…………………………… .

CO2-Sensor:

• Beeping sound sign al every

5seconds

Display:

• High and CO2 %

CO2 AWARENESS

INDICATION

Beaware that the CO2

concentration is over 5000 ppm .

Thereis no da nger.

CentralUnit:

• The yellow diode is bli nking

• Beeping sound sign al

Display:

• Sensor number, (Fault

information)

SYSTEM FAULT Checkthe manual, communication

cablesand CO2-Sensor.

Ifno fault is f ound, call service.

Phone:… .…………………………

Afteran alarm, always reset

thesystem. ALARM RESET Press reset butto n until ”Alarm

cleared!”is shown in th e display.

Toinsure that communication,

warninglamps and sounders

function.

ALARM TEST Pressres et button until ”Tes tin g

system…”is show n in the display.

Sensor Place

CO2 Safety System - Mk9

What to do in case of an ALARM?

1. KeepCalm !

2. Turn of f the sounding ala rm on the Central Un it by pressing the RE SET button onthe fro nt.

3. Ch eck the type of ala rm and which Sensor i s giving the alarm b y following the inst ructions belo w.

SIGNC-UM K9EN

SIGNGROW EN R1.0

For complete instructions and settings, please see

the user manual for Grow CO2 Controller.

Pat.Pend.

The display is alternately reading:

• The current CO2 concentration

• The CO2 target setpoint value

• The altitude setting (height over the ocean)

LED indications on the Grow CO2 Controller:

• Red:Alarm - CO2 concentration over 5000 ppm

• Green:Adding CO2 gas

• Green: Power on

Press the button to adjust the CO2 target

setpoint.

The setpoint for the target CO2 concentration is adjustable

from 700 to 2000 ppm in steps of 50 ppm. The default setpoint

is 1200 ppm. Setpoint “OFF” stops the CO2 regulation.

Changing CO2 target setpoint

on Grow CO2 Controller

Grow CO2

Enrichment

Controller

0328

Mk9 Central Unit

0475

Enrichment Valve

0471

RCB

for fan control

0021

Power Supply

0482

Power Barrier

RJ45 Splitter (red)

1-1/1-2/1-4

RJ45 Splitter (blue)

1-1/1-2/1-4

Annual function control of the Enrichment Valve with filter

Instruction on how to clean the filter on the Enrichment Valve

Please observe that the flow of CO2 must be turned off manually, by closing the emergency safety valve – and

verify that there is no gas pressure in the system. This is very important since you are about to open the system

to clean the filter.

Any debris should be caught inside the filter. By using a socket wrench, carefully remove the filter from the valve

and clean it.

After cleaning, make sure that the filtergasket is in place and mount the filter again firmly.

Carefully open the emergency safety valve to allow the flow of CO2 again.

Annual function and installation check of the Enrichment Valve with filter

Checklist Enrichment Valve with filter YES NO

Is the Enrichment Valve installed on the downside from the emergency safety valve?

Does the red diode on the Enrichment Valve turn on and off when the valve is dispensing/

not dispensing CO2 gas?

Has the filter on the Enrichment Valve been cleaned?

Enrichment Valve installed with filter

Manufactured by:

LogiCO2 International AB

Box 9097

400 92 Gothenburg, Sweden

E-mail: info@logico2.com

Web: www.logico2.com
