Logitech TP100 Bedienungsanleitung
TP100

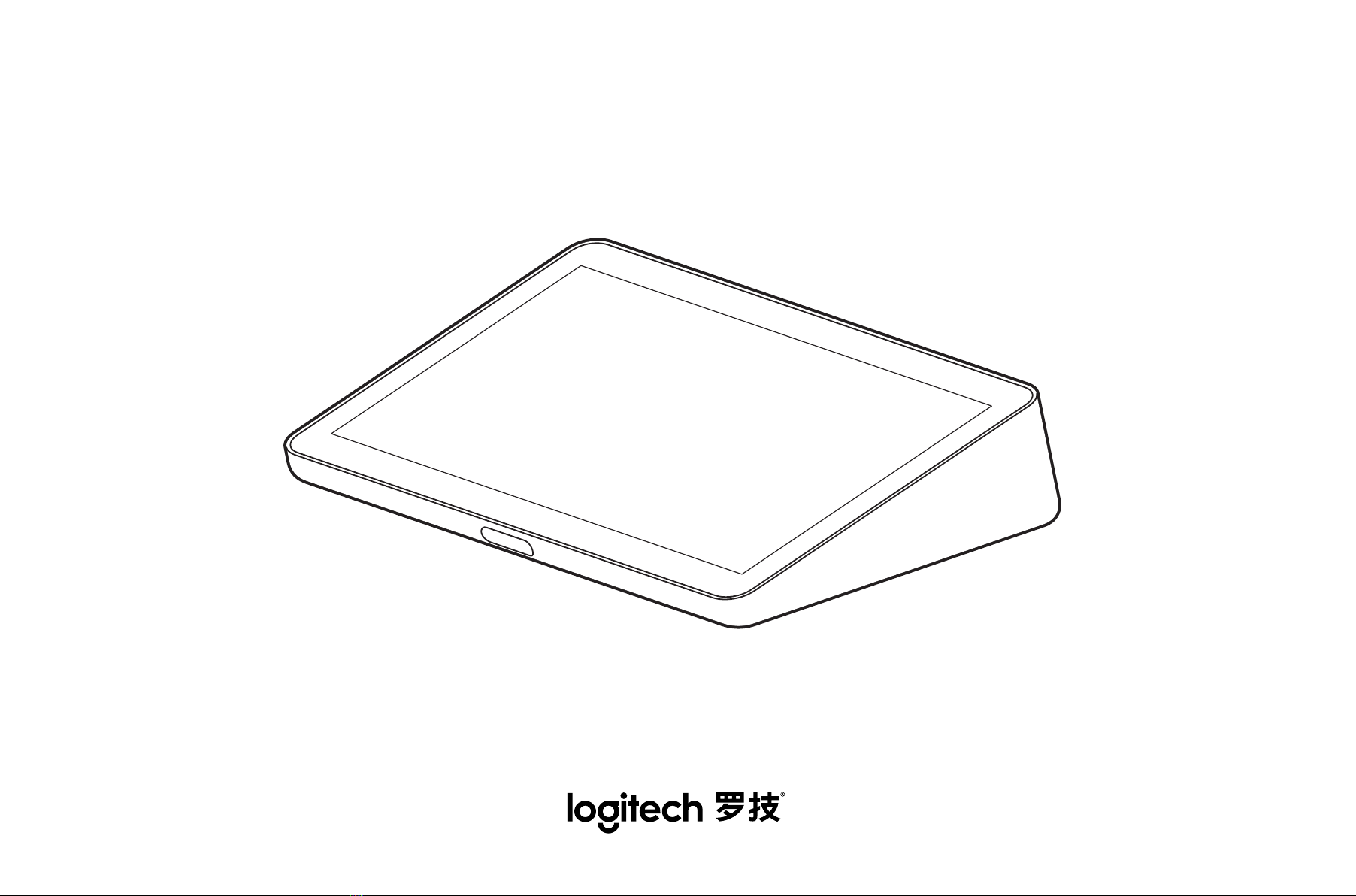

Touch Controller with Cat5e Kit
触摸控制器搭配 Cat5e 套件
Setup Guide | 设置指南
2
WHAT’S IN THE BOX
包装内容
3
CAT5e AWG26 x 2
4
CONNECTIONS OVERVIEW
连接概览
HDMI 1
HDMI
TV
USB-C/HDMI
IN OUT
PC
IN OUT
TP100
5
Mini XLR
TP100
TV
USB-C
USB
Mic Pod
Display Hub
Table Hub
Speaker
IN OUT
PC
IN OUT
USB-C/HDMI
HDMI
CONNECTIONS OVERVIEW
连接概览
6
HDMI 1
HDMI
TP100
TV
HDMI 2
IN OUT
IN OUT
CONNECTIONS OVERVIEW
连接概览
7
3 1 1 2 1 1 3
FEATURES
特性
1 - VESA FDMI Pattern
1 - VESA FDMI 面板
2 - Optional Cable Exit
2- 可选线缆布线出口
3 - Bottom Cover Thumbscrews
3- 底盖指旋螺丝
8
POWER USB-C
TO PC
HDMI
IN
USB-A
TO ACCESSORIES
1 2 3 4 5 6
1 - TAP receiver
1 - TP100 接收端
2 – Retention block
2 – 固定块
3 - Kensington lock slot
2 - Kensington 防盗锁插孔
4 - HDMI Ingest
4 - HDMI 输入端
5 - USB-A (optional)
5 - USB-A (可选）
6 - VESA Screws
6 - VESA 螺丝
FEATURES
特性
9
1 2 3 4 5
1 - Device Reset
1 - 设备重置
2 - Kensington lock slot
2 - Kensington 防盗锁插孔
3 - Touch Screen
3 - 触摸屏
4 - Motion Sensor
4 - 运动传感器
5 - Headset Jack
5 - 耳机麦克风插孔
FEATURES
特性
10
POWER USB-C
TO PC
HDMI
IN
USB-A
TO ACCESSORIES
POWER USB-C
TO PC
HDMI
IN
USB-A
TO ACCESSORIES
SETUP 1A
设置 1A
