Logitech Zone Wired Bedienungsanleitung
UNIFIED
COMMUNICATIONS
UC VERSION
VERSION
COMMUNICATIONS
UNIFIÉES UC
MICROSOFT
TEAMS VERSION
VERSION
MICROSOFT
TEAMS
LOGITECH ZONE WIRED
Setup Guide
Guide d’installation
CONTENTS
English ............................3
Français ..........................10
Español .......................... 17
Português.........................24
KNOW YOUR PRODUCT
Adjustable
headband
Media controls
UC VERSION TEAMS VERSION
Call controls &
Voice assistant
Padded leatherette
ear cups
Microphone mute
Adjustable
noise-canceling
microphone boom
Volume up
Volume down
Call controls &
Microso Teams
INLINE CONTROLLER
USB-C input
USB-A adapter
3 English
USB-A
USB-C
WHAT’S IN THE BOX
1. Headset with In-line controller and USB-C connector
2. USB-A adapter
3. Travel bag
4. User documentation
CONNECTING THE HEADSET
Connect via USB-C
1. Plug the USB-C connector into your computer
USB-C port.
Connect via USB-A
1. Plug the USB-C connector into the USB-A adapter.
2. Plug the USB-A connector into your computer
USB-A port.
Note: Only use the USB-A adapter with the provided
headset.
HEADSET FIT
Adjust headset by sliding headband open or closed on
both sides.
ADJUSTING THE MICROPHONE BOOM
1. Microphone boom rotates 270 degrees. Wear it on
either le or right side. For the best music experience,
we recommend wearing the headset with the
microphone on the le. Le/Right indicators can be
found on the side of the headset.
2. Adjust exible microphone boom location to capture
voice better.
1 2
4 English
TEAMS version
Button Usage Indicator Light Action
Mute
Mute on Solid RED
Short press to Mute / Unmute
Mute o No light
Call Controls Incoming calls Flashing WHITE Short press to Answer calls
2 second press to Reject calls
Ongoing calls Solid WHITE Short press to End calls
Teams Activities
Connecting to Teams Pulsing PURPLE
Short press to check connection to Teams
Failed connection to
Teams
Flashing PURPLE for 10
secs then o
Not connected to Teams Flashing PURPLE 3 times
then o
Connected to Teams Solid PURPLE Short / 2 second press for Teams activities
Teams Missed call / Voice
mail / Join meeting
notications
Pulsing PURPLE Short press to Respond to Teams
notications
Media Controls No light
Short press to Play / Pause
Double press to Track forward
Triple press to Track backward
+Volume No light Short press to Volume up
-Short press to Volume down
Note: Teams activities are only functional when Teams is running on unlocked PC or Mac.
HEADSET INLINE CONTROLS AND INDICATOR LIGHT
5 English
1x
1x
2x
3x
2 sec.
1x
1x / 2 sec.
10
10 sec.
3x
1x
1x
MUTE
+ /
MEDIA
CONTROLS
ANSWER CALLS
REJECT CALLS
END CALLS
CONNECTING TO TEAMS
/ TEAMS MISSED CALL /
VOICE MAIL / JOIN MEETING
NOTIFICATIONS
FAILED CONNECTION TO
TEAMS
NOT CONNECTED TO TEAMS
CONNECTED TO TEAMS
6 English

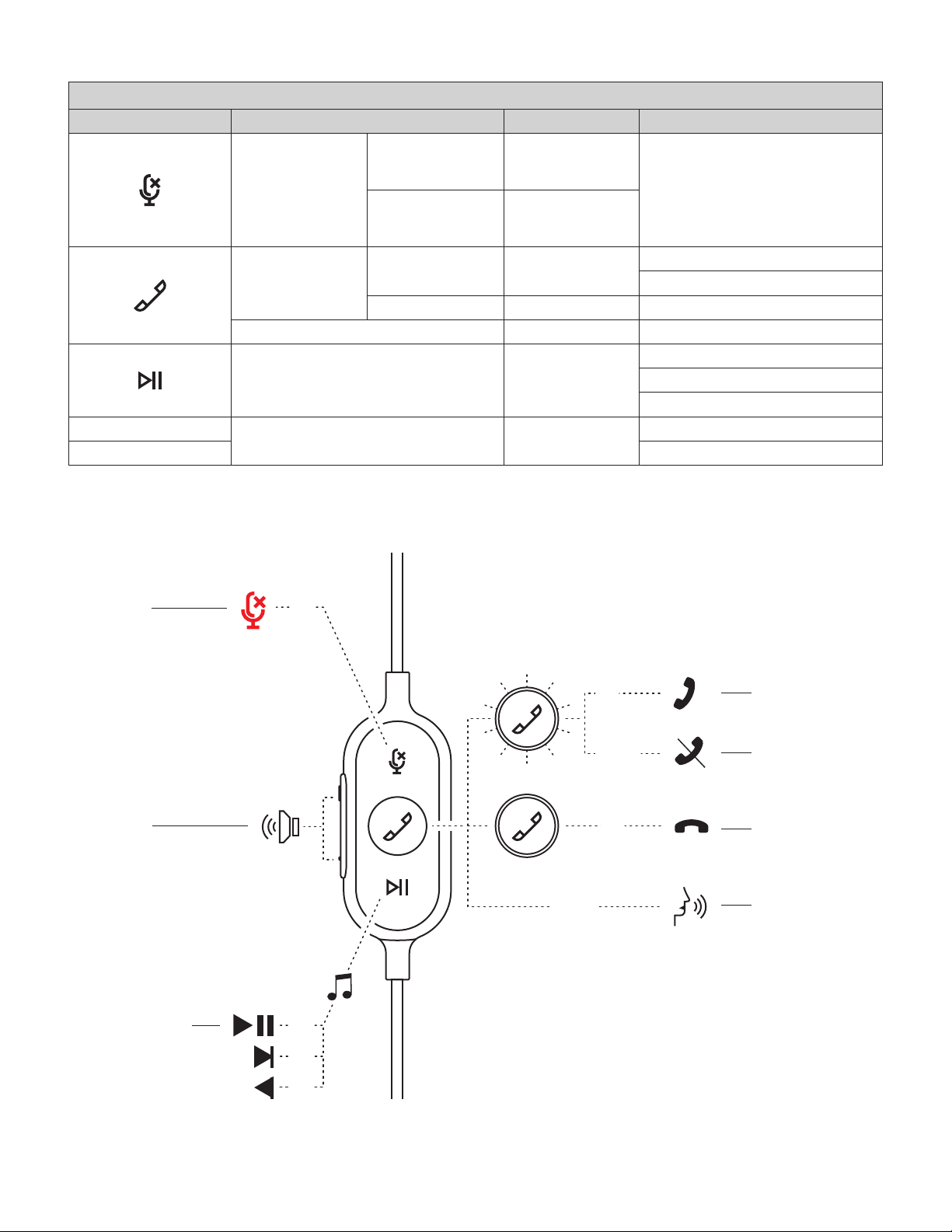

ANSWER CALLS
TRIGGER VOICE
ASSISTANT
REJECT CALLS
END CALLS
MUTE
+ /
MEDIA
CONTROLS
1x
1x
1x
2x
3x
1x
2 sec.
2 sec.
* Voice assistant functionality may depend on device models.
UC version
Button Usage Indicator Light Action
Mute
Mute on Solid RED
Short press to Mute / Unmute
Mute o No light
Call Controls Incoming calls Flashing WHITE Short press to Answer calls
2 second press to Reject calls
Ongoing calls Solid WHITE Short press to End calls
Voice Assistant No light 2 second press to Trigger voice assistant*
Media Controls No light
Short press to Play / Pause
Double press to Track forward
Triple press to Track backward
+Volume No light Short press to Volume up
-Short press to Volume down
7 English
LOGI TUNE DESKTOP PC COMPANION APP
Logi Tune Desktop helps boost your headset performance with periodic
soware and rmware updates, helps you adjust what you hear with 5 band
EQ customization, and helps you control how you are heard with mic gain,
sidetone controls, and more. The distraction-free mini-app allows you to
make audio adjustments while in an active video call.
Learn more & download Logi Tune Desktop at:
www.logitech.com/tune
ADJUSTING SIDETONE
Sidetone lets you hear your own voice during conversations so you are aware
of how loud you are talking. In Logi Tune, select the sidetone feature, and
adjust the dial accordingly.
— A higher number means you hear more external sound.
— A lower number means you hear less external sound.
UPDATE YOUR HEADSET
It is recommended to update your headset. To do so, download Logi Tune
from www.logitech.com/tune
8 English
© 2023 Logitech. Logitech, Logi, Zone, and the Logitech Logo are trademarks or registered trademarks of Logitech
Europe S.A. and/or its aliates in the U.S. and other countries. Chrome, Mac, Microso Teams, USB-C, Windows and
all other 3rd party trademarks are the properties of their respective owners. Logitech assumes no responsibility for any
errors that may appear in this publication. Information contained herein is subject to change without notice.
DIMENSION
Headset:
Height x Width x Depth: 165.93mm x 179.73mm x 66.77mm
Weight: 0.211 Kg
Ear pad dimensions:
Height x Width x Depth: 65.84mm x 65.84mm x 18.75mm
Adapter:
Height x Width x Depth: 21.5mm x 15.4mm x 7.9mm
SYSTEM REQUIREMENTS
Windows, Mac or Chrome based computer with available USB-C or USB-A port. USB-C compatibility with mobile
devices depends on device models.
TECHNICAL SPECIFICATIONS
Input Impedance: 32 Ohms
Sensitivity (headphone): 99dB±3dB at 1000Hz @30mW,1cm
Sensitivity (microphone): Main mic: -48 dBV/Pa, Secondary mic: - 40 dBV/Pa
Frequency response (Headset): 20~16 kHz
Frequency response (Microphone): 100~16 kHz
Cable length: 1.9 m
