USER MANUAL of 11n Wireless Broadband Router
11N Wireless Broadband Router
（LHN300R）
User Manual
1
L
LH
HN
N3
30
00
0R
R
USER MANUAL of 11n Wireless Broadband Router
Contents
Chapter 1 Product Introduction...................................................................... 3
1.1 Overview of the product .............................................................................................. 3
1.2 Main Feature............................................................................................................... 3
2.1 Panel dispose ............................................................................................................. 4
2.1.1 Front panel ....................................................................................................... 4
2.2 System requirements .................................................................................................. 5
2.3 Install environment...................................................................................................... 5
Chapter 3 Collocate Guide ................................................................................... 6
3.1 Hardware link.............................................................................................................. 6
3.2 Computer Setting........................................................................................................ 6
3.3 Wireless Broadband Router Login ............................................................................ 10
3.4 Status .........................................................................................................................11
3.5 System...................................................................................................................... 12
3.5.1 Management .................................................................................................. 12
3.5.2 Upload Firmware............................................................................................ 13
3.5.3 Settings Management .................................................................................... 14
3.5.4 System Log .................................................................................................... 14
3.6 WAN .........................................................................................................15
3.6.1 WAN..................................................................................................15
3.6.2 DNS ..................................................................................................20
3.7 LAN ..........................................................................................................20
3.7.1 LAN...................................................................................................20
3.7.2 DHCP Clients ....................................................................................21
3.8 NAT ..........................................................................................................22
3.8.1 DMZ ..................................................................................................22
3.8.2 Port Forwarding ................................................................................22
3.9 Firewall ....................................................................................................23
3.9.1 Basic Settings .................................................................................23
3.9.2 MAC/IP/Port Filtering.......................................................................24
3.9.3 Content Filter...................................................................................25
3.10 Routing ....................................................................................................26
3.10.1 Static Route.....................................................................................26
3.10.2 Dynamic Route................................................................................27
3.11 UPNP .......................................................................................................28
3.12 DDNS .......................................................................................................28
3.13 Wireless Settings....................................................................................29
3.13.1 Basic ...............................................................................................29
3.13.2 Security ...........................................................................................32
3.13.3 WPS................................................................................................33
3.13.4 Station List.......................................................................................35
2
L
LH
HN
N3
30
00
0R
R
USER MANUAL of 11n Wireless Broadband Router
Chapter 1 Product Introduction
1.1 Overview of the product
At first, Thank you for choosing LHN300R.
LHN300R 11n Wireless Router integrates 4- port Switch Firewall ,NAT-router and
Wireless AP, the Wireless N Router delivers exceptional range and speed, which is fully meet
the need of Small Office/ Home Office(SOHO) networks and the users demanding higher
networking performance.
LHN300R complies with IEEE 802.11n(Draft 2.0),expand the wireless covering range, the
transmission speeds of up to 300M,supports 802.11b/g.The transmission adaptability is
improved that it’s easy to be mutually managed with the other network devices. Large-scale
wireless covering space offer a free and comfortable network. Steady data transmission and
the broadband support your surfing, downloading MP3, IP telephone, file sharing, network
games...
LHN300R 11n Wireless Broadband Router offer mulriple security setting, that protects
users in the wireless network. It supports SSID broadcast stealth mode to effectively prevent
the SSID telling; supports WEP wireless data encryption to make sure the data transfers
safely; installs special firewall to prevent the Anti-attack.
LHN300R11n Wireless Broadband Router offers extensive managing feature, supports
DHCP Server, DMZ host computer, dummy server; It is enable to establish interior LAN,
allows many computers share the single broadband line and ISP account access internet;
Supports accessing control to manage the user purview in the LAN.
LHN300R 11n Wireless Broadband Router is easy to be installed and collocated. For full
using its functions, please read the user manual carefully.
1.2 Main Feature
¾Integrates 4-port switch, supports four 10/100 Ethernet (LAN) Ports.
¾Supports wireless transmission speeds up to 300Mbps,possesses the transmission
adaptability.
¾Supports encryption and security WEP/WPA2,WPA-PSK/WPA2-PSK.
¾Supports SSID broadcasting control
¾Supports WPS quick installation security to encrypt quickly.
¾Supports DHCP server, and supports static IP Address Change
¾Integrates firewall feature, supports MAC/IP address Filtering.
¾Supports dynamic DNS, offer Domain name service for the dynamic IP address.
¾Integrates static routing and RIP routing to construct the special network topology.
¾Supports WEB software upgrade to renew the router’s software expediently.
¾Supports WEB management to setup the interface easily.
3
L
LH
HN
N3
30
00
0R
R
USER MANUAL of 11n Wireless Broadband Router
Chapter 2 Hardware description
This chapter will introduce how to install the wireless broadband router, for example
installing it under Windows XP.
2.1 Panel dispose
2.1.1 Front panel

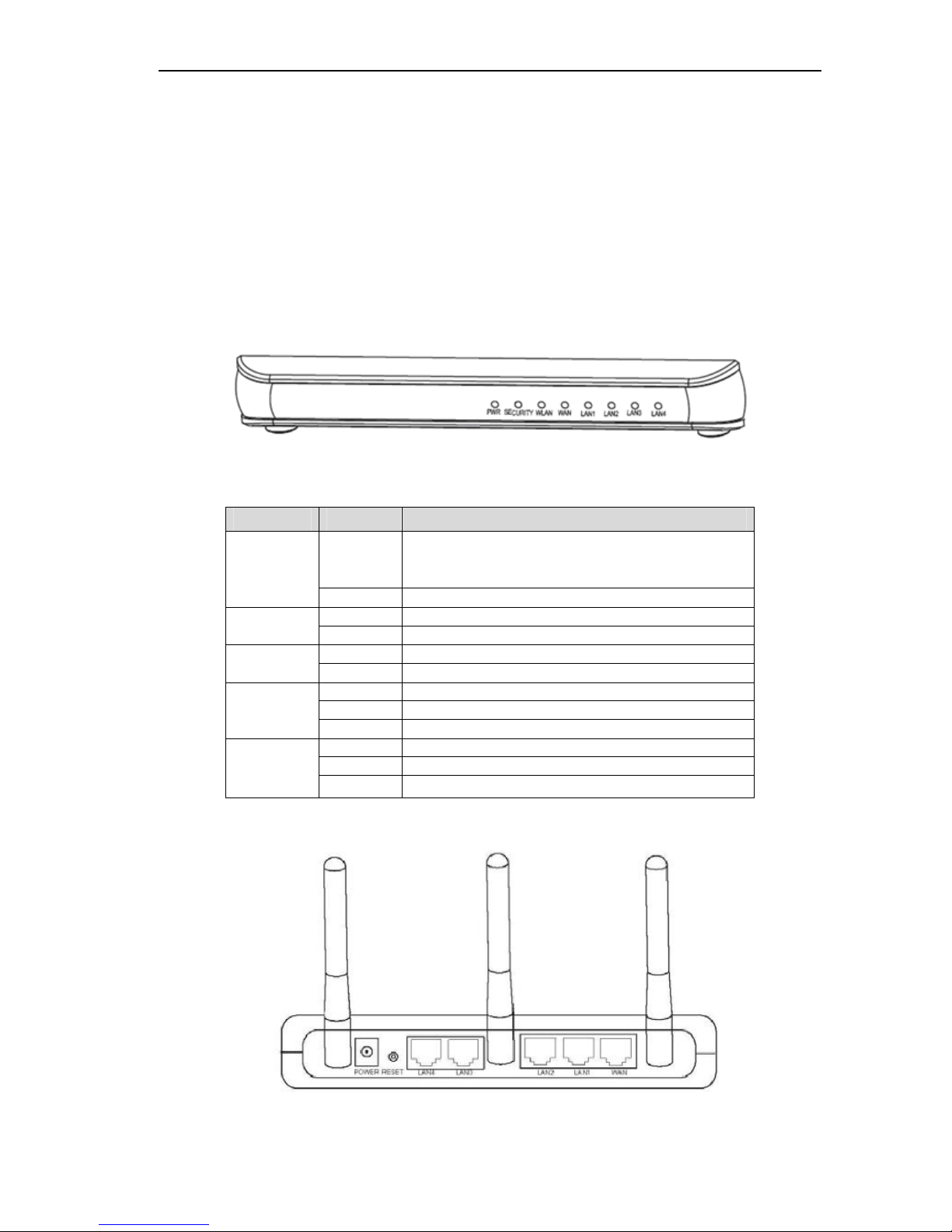

There are eight state indicator lights, show the states below:
Sketch Map of LHN300R front panel
LED Mode Indication
Off
The router is not powered. Check if the router
is plugged in and if the power switch is turned
on.
Power
On The router is powered on.
Blinking The router is working property
System Off The router has a system error
Off The Wireless function is disabled
WLAN Blinking The Wireless function is enabled
On connecting
Off Not connected
WAN
Blinking Transfers the data
On connecting
Off Not connecting
LAN(1-4)
Blinking Transfers the data
Back panel
Sketch Map of LHN300R back panel
4
L
LH
HN
N3
30
00
0R
R
USER MANUAL of 11n Wireless Broadband Router
¾POWER: Port for power
)Note: Power Supply Unit: Input: Localized to Country of Sale, Output: 12VDC / 1A
Switching PSU. Using the in-coordinate power maybe shatter the router
¾RESET: Button for replacing, uses for coming back to the default setting
¾LAN(1-4): Port for LAN, the port connects with LAN hub, switch and computers with
adapter.
¾WAN: Port for WAN, uses for connecting with WAN cable or the Ethernet port of ADSL
modem.
¾Antenna: uses for dispatching and receiving the wireless data.
¾Reset:
Pressing the reset button for 5 seconds, the router will start again and resume
to factory default setting.
2.2 System requirements
¾Broadband Internet Service (Connect ways : with Ethernet broadband, or with ADSL).
¾The modem with Ethernet ports( needn’t it when connecting with Ethernet broadband.)
¾Every device need Ethernet connecting devices(wireless adapter, wired adapter or
cable.)
¾Internet Explorer 6.0 or higher edition (through WEB page to set up the router)
2.3 Install environment
The Router should be installed levelly, keeps dryness dustless, ventilation, far away from
the heaters/ dirty places /moist.
Working temperature: 0℃～40℃
Working humidity: 10%～90% non-condensing;
Power: AC power adapter: 5V~2A
5
L
LH
HN
N3
30
00
0R
R
USER MANUAL of 11n Wireless Broadband Router
Chapter 3 Collocate Guide
Introduce how to install the router in this chapter, make installing under windows XP as
example.
3.1 Hardware link

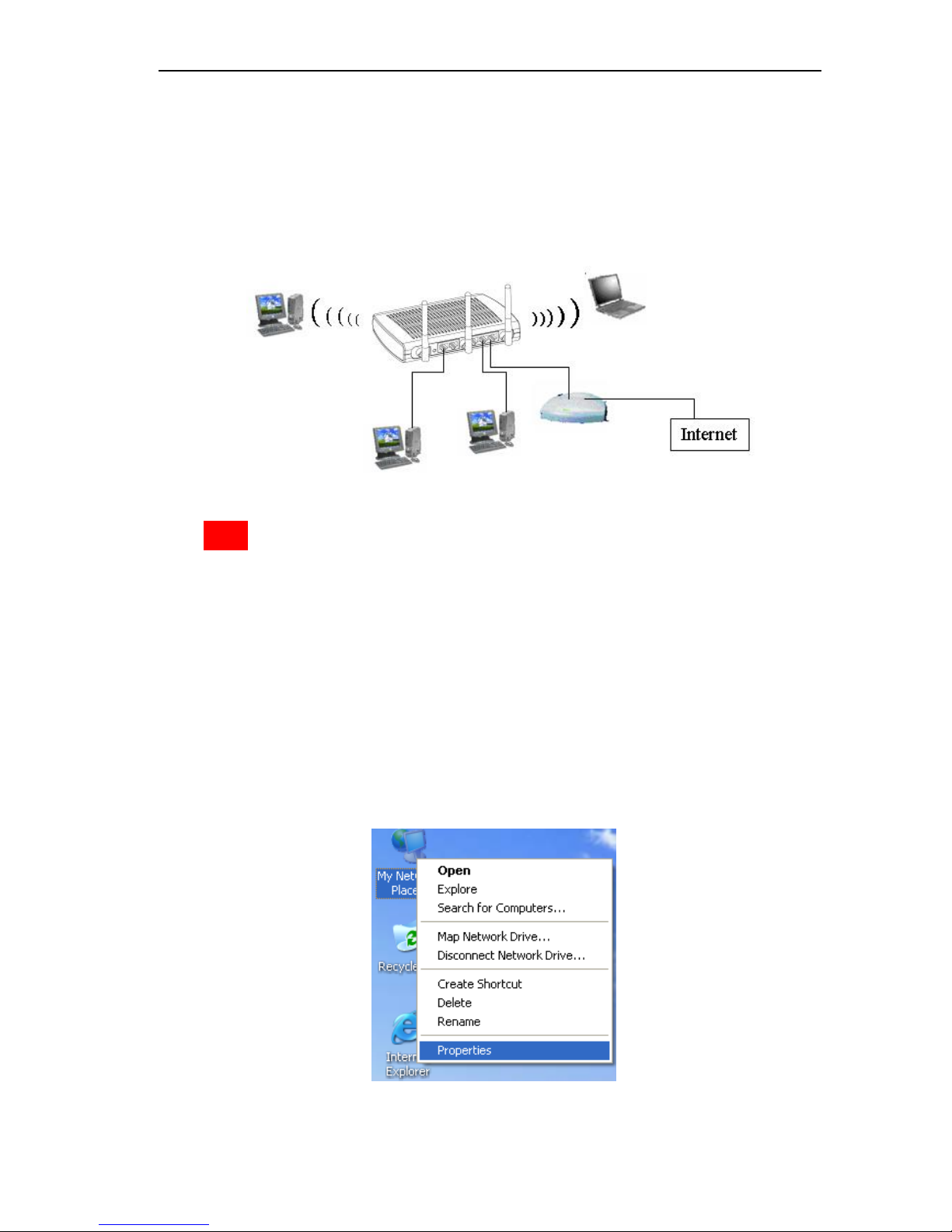

Sketch map of the hardware link
)Note:::LHN300R 11N Wireless Broadband Router allows to be connected by wireless
and wired ways, we recommend to connect it by wired way for the first time.
3.2 Computer Setting
1) Find out the icon network Places on your desktop, click it by right key , choose attributes.
Figure 1-1
6
L
LH
HN
N3
30
00
0R
R
USER MANUAL of 11n Wireless Broadband Router

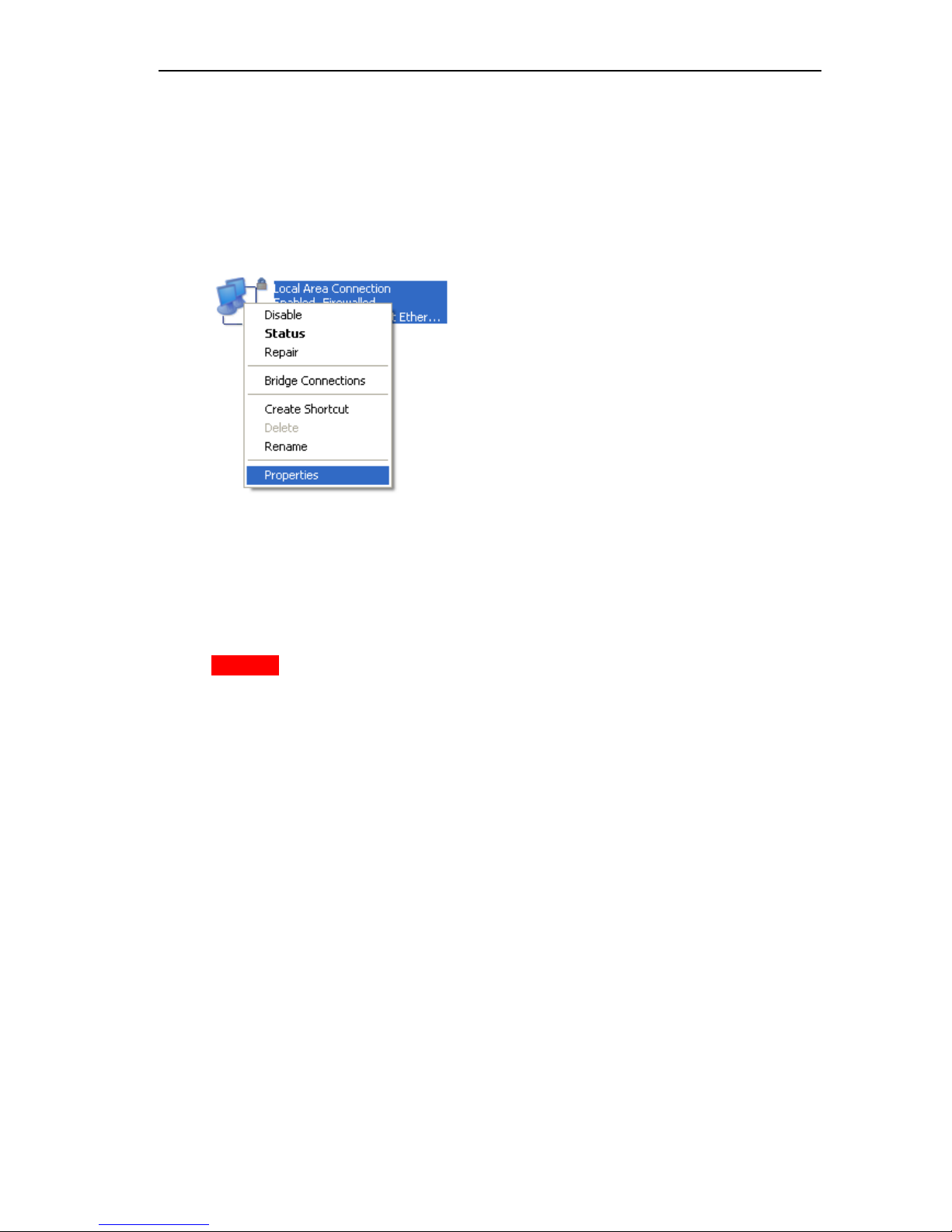

2) Click properties option, pop-up a new page. In the new page, click the right key of the
mouse and joins Local chaining, click “properties” button.
)Prompt: “control panel→network and internet connect→network
connection” to find local connection.

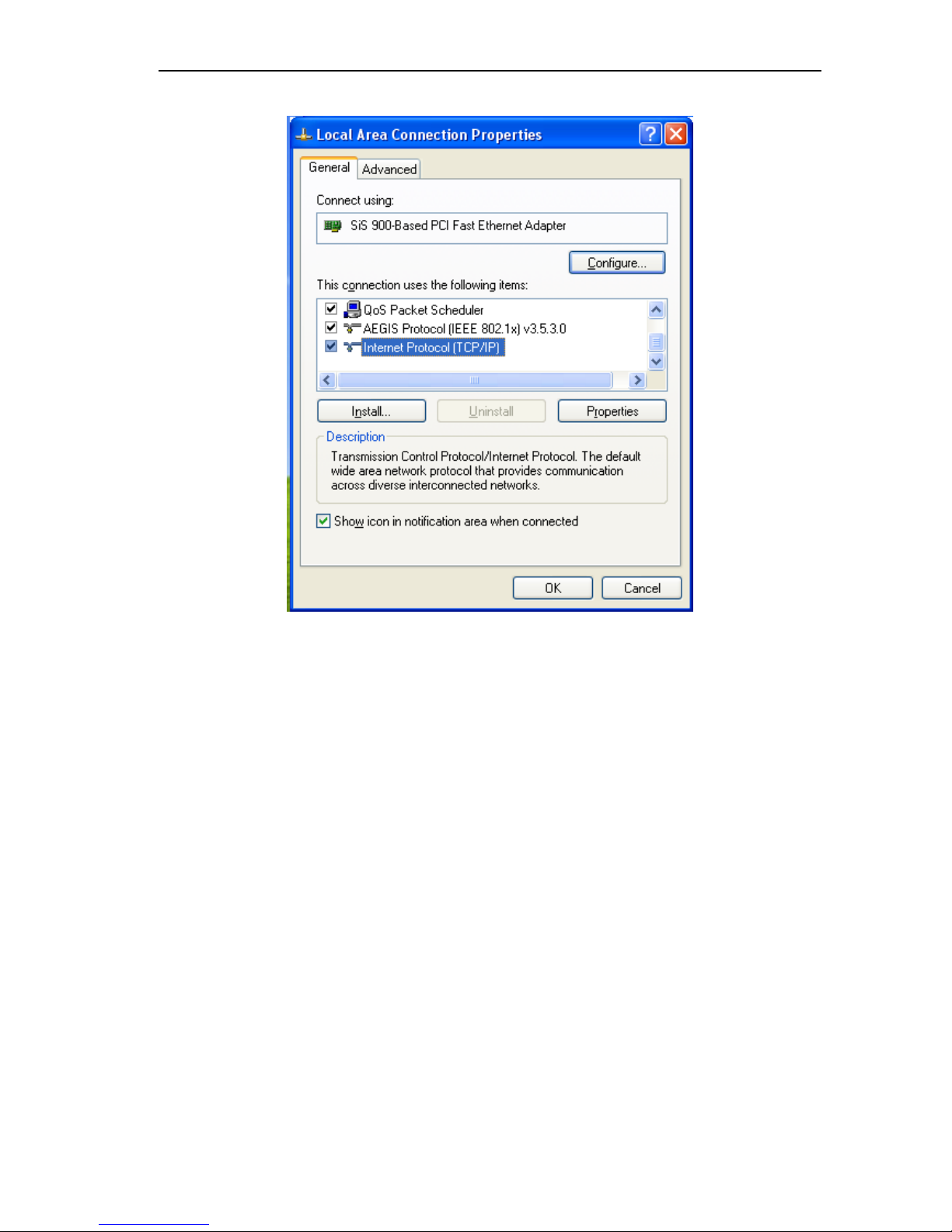

3) Choose and double click the left key internet agreement (TCP/IP) in the
following dialog box.
7
L
LH
HN
N3
30
00
0R
R
USER MANUAL of 11n Wireless Broadband Router

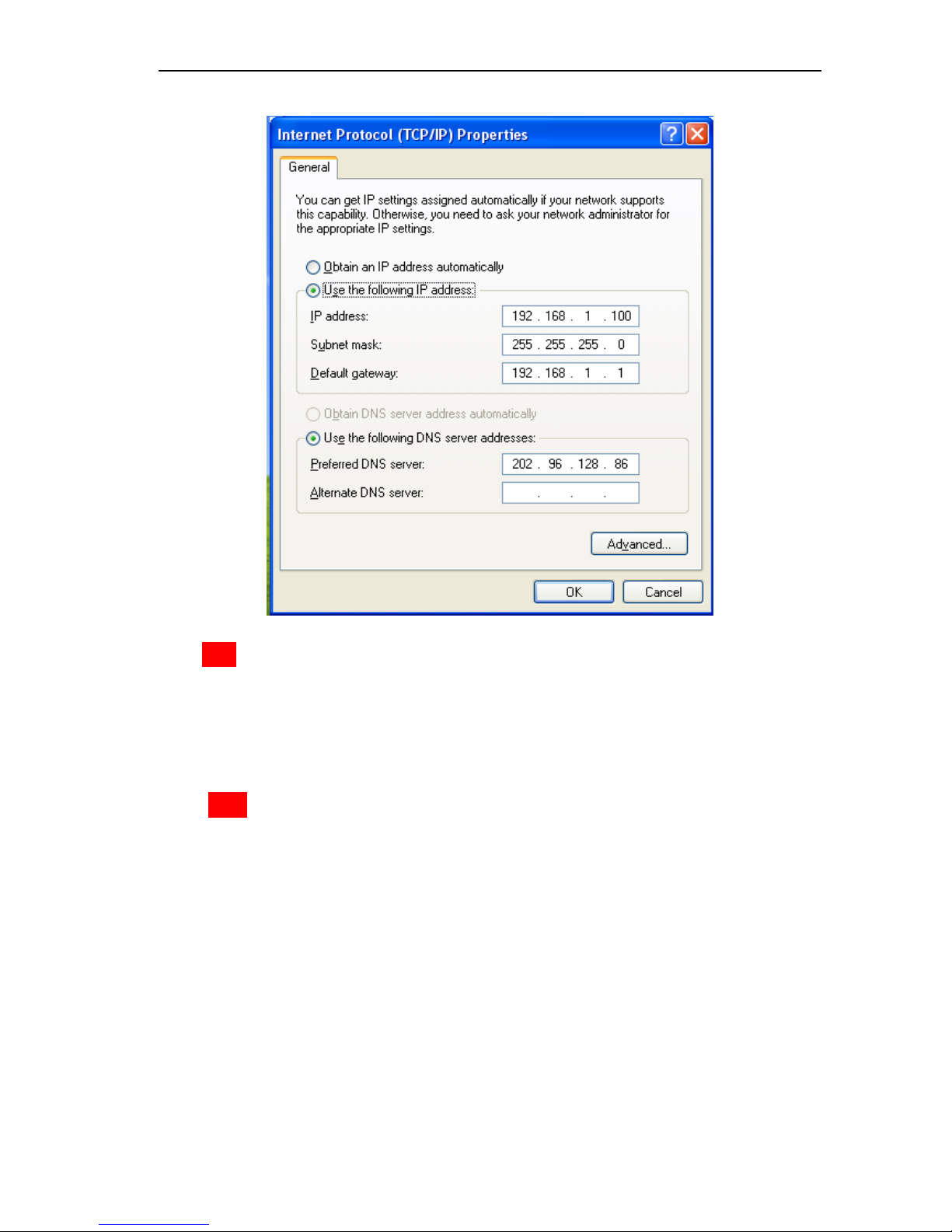

4) Choose and use the following IP address in the new dialogue box.
8
L
LH
HN
N3
30
00
0R
R
USER MANUAL of 11n Wireless Broadband Router
)Note: IIP address:192.168.1.X( 2 ≤X ≤254) Subnet Mask：255.255.255.0
Default Gateway: 192.168.1.1
DNS server address, please inquire the ISP.
)Note Be able to choose “Obtain an IP address automatically”,however
we recommend you input the IP address by hand.
5) Click ”confirm”, then come back to last dialogue box. Click “confirm” by left
key.
9
L
LH
HN
N3
30
00
0R
R
USER MANUAL of 11n Wireless Broadband Router
3.3 Wireless Broadband Router Login

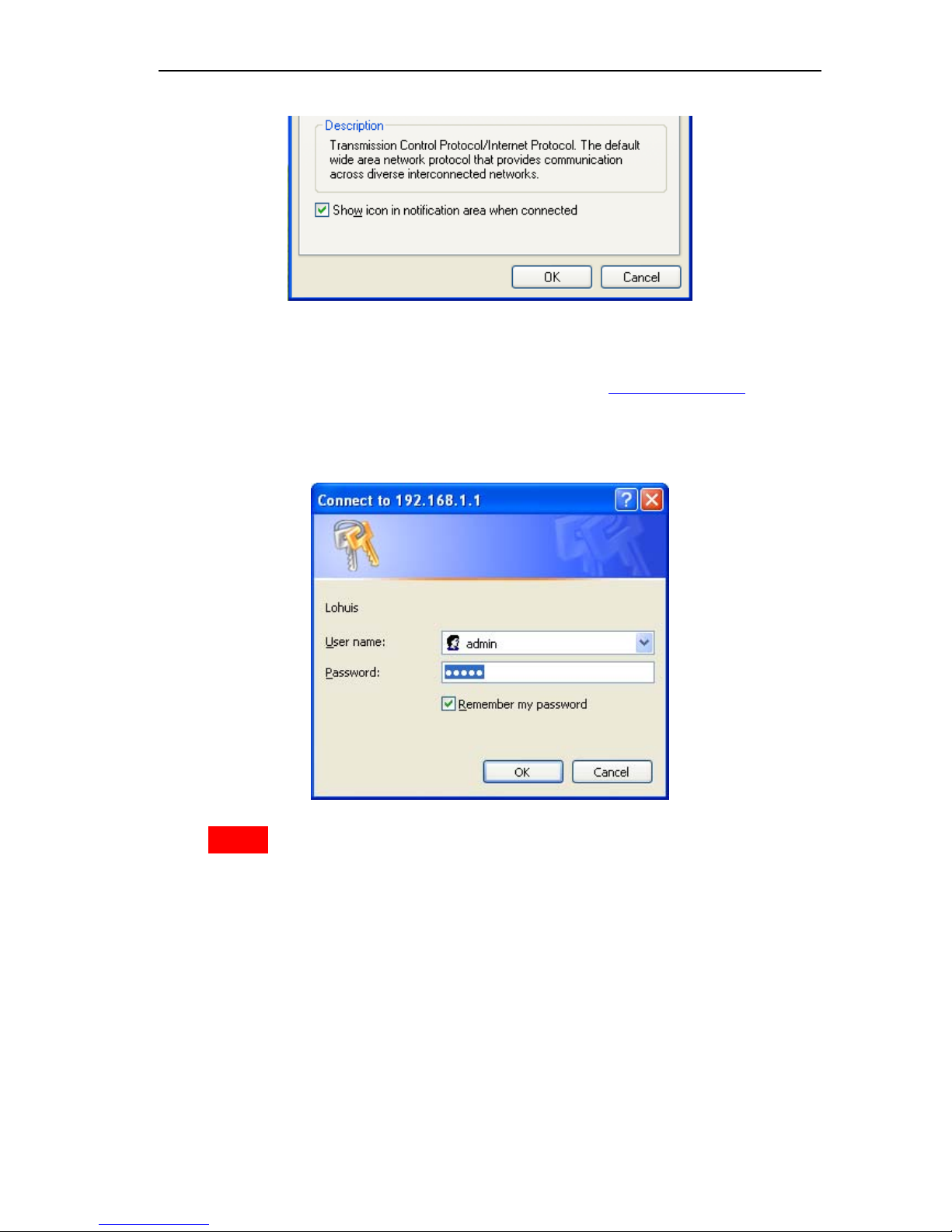

1) Login WEB manage interface, and open IE browser, input http://192.168.1.1 on the
address blank. Click “OK”, pop-up a new dialogue box, input user name and
password, click “OK” by left key.
)Note:
System default username: admin, password: admin.
After successfully login into the router’s management interface, the browser will
show you the administrator’s mode ,as the following picture. In left of menu bar:
Status﹑System﹑WAN﹑LAN﹑NAT﹑Firewall﹑Route﹑UPnP﹑DDN﹑Wireless Settings.
Click one of the buttons to setup the feature. Later the picture shows the details of how to use
each button.
