Lombardini LDW 194 JMtI Technisches Datenblatt

LDW 194 JMTI

LDW 245 JMTI/A

Installation - Use-maintenance

This manual has been specially designed to provide

you with all the necessary information to keep your

engine perfectly efficient for many years.

Please read it carefully and follow precisely any

described installation and maintenance operations.

Lombardini Marine service network shall, in any

case, be at your complete disposal for any clarifica-

tions or advice.

LOMBARDINI MARINE

Coolant replenishing Prescribed coolant:

50% Total antifreeze

50% Water

Reduction-reversing gear oil ﬁlling Prescribed lube:

Total SAE 15W40

(API CG4/ACEA E2)

Total Rubia 4400 15W40

Oil level check Prescribed lube:

Total quartz SAE 10W40

Quartz Diesel 7000 10W40

Activa Disel 7000 10W40

Index

Pag. 7

Pag. 9

Pag. 16

Pag. 33

Pag. 35

Pag. 54

Pag. 88

Pag. 91

Pag. 94

Pag. 6

OVERALL DIMENSION

IIDENTIFICATION

USE

MAINTENANCE

STORAGE

MAIN CIRCUITS

INSTALLATION

SERVICE

WARRANTY CLAUSES

CHARACTERISTICS

Prior to starting read and follow instructions. Failure to do so will make warranty void.

Accessory set supplied with the engine Request if not to supply

Characteristics

* With TM 485 A reversing gear box

194 245

Extreme power kw/cv

132.3/180 176.4/240

R.P.M. 3900 4200

Bore mm 82.0 82.0

Cylinders N. 4 5

Max. Running inclination

β20° 20°

Max. Installation inclination α10° 10°

Cooling system capacity

l 7.5 8.5

Dry weight with reversing gear Kg 284* 315*

Reduction/reversing gear oil quantity l 2.6* 2.6*

Engine oil quantity l 5.5 7.0

Displacement cm31910 2387

Stroke mm 90.4 90.4

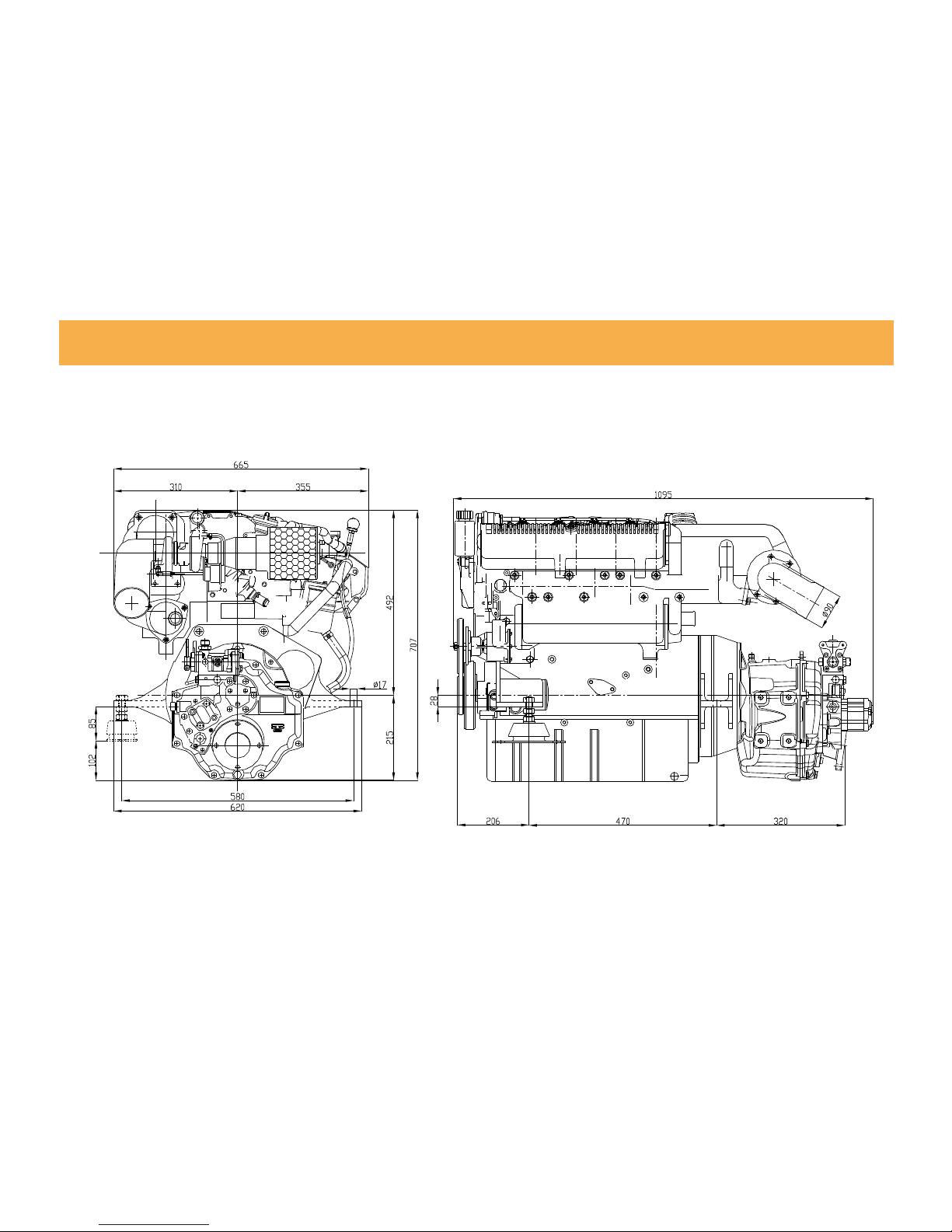

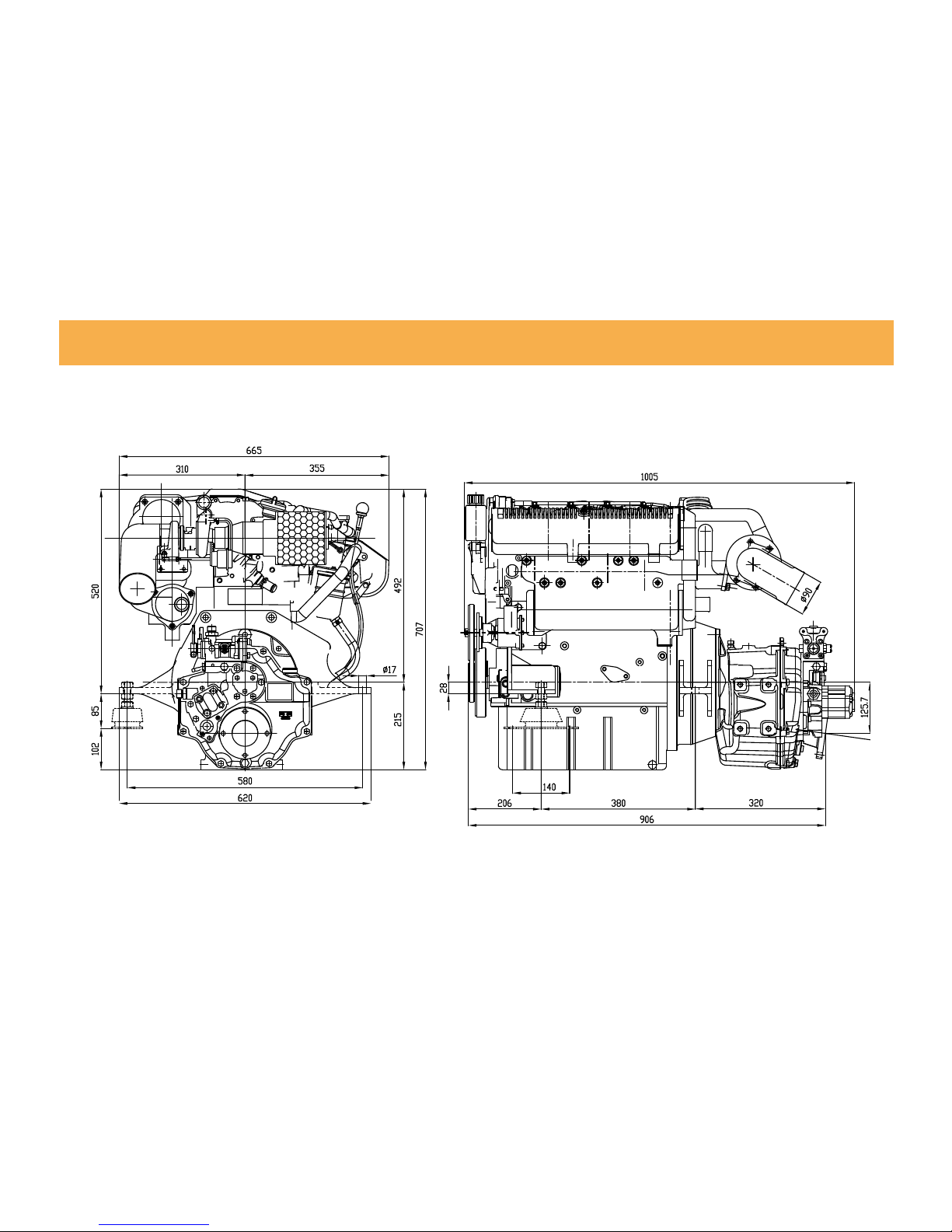

Overall dimensions

With TM 485 A reversing gear box

LDW 194 JMTI

With TM 485 A reversing gear box

LDW 245 JMTI/A

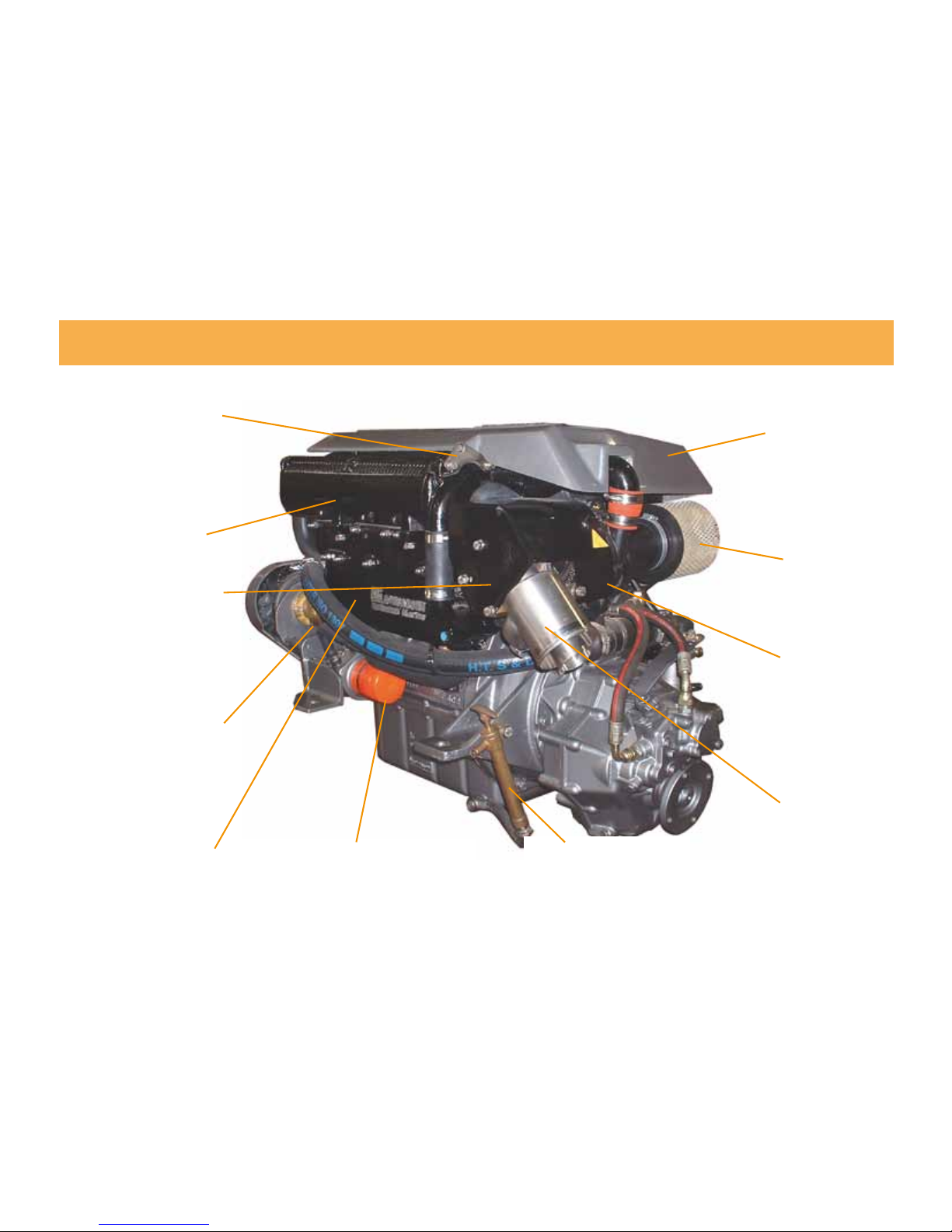

Overall dimensions

Heat exchanger

Sea water pump

Exhaust line outlet

Turbocharger protection

Upper cover

Intercooler

Identiﬁcation

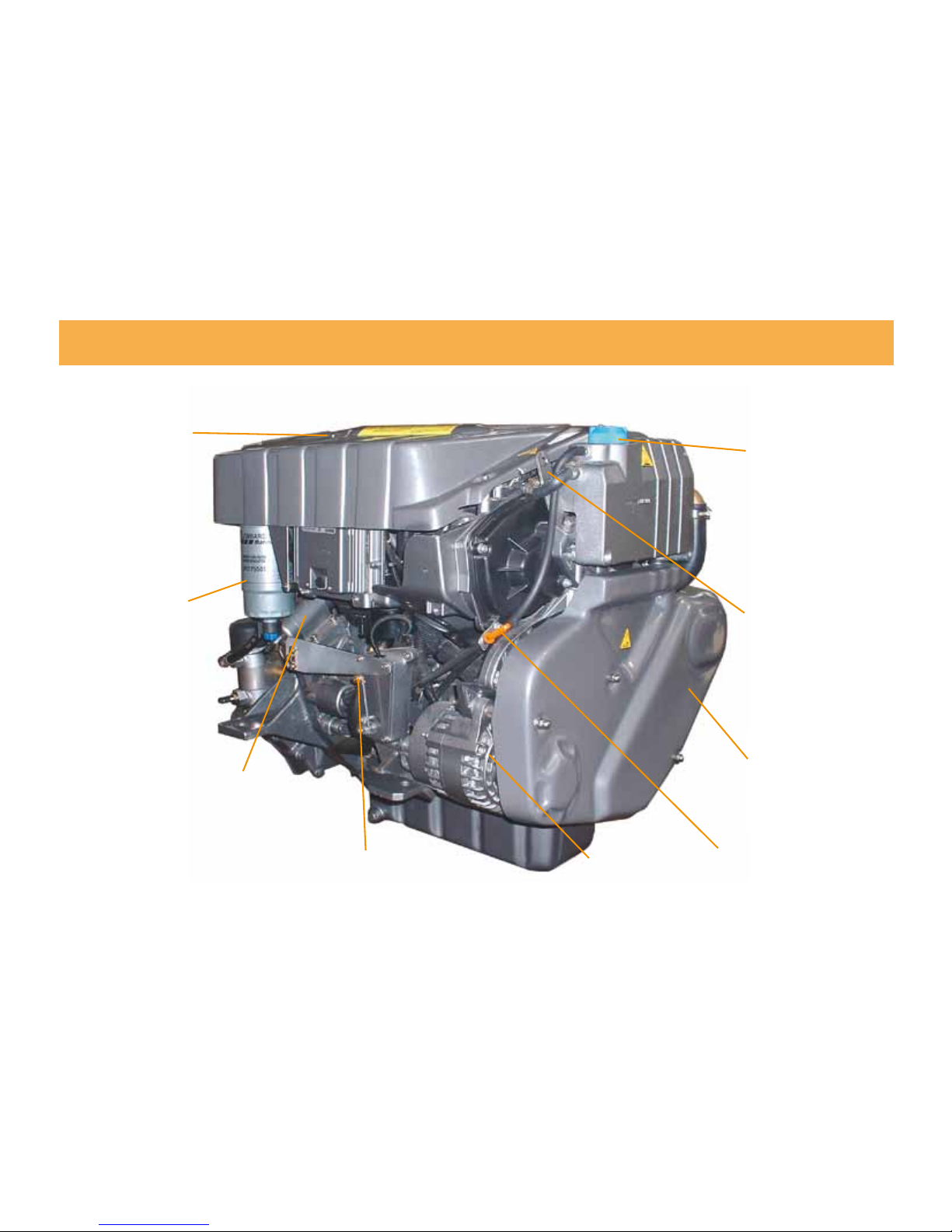

Oil suction pump

Turbocharger

Air filter

Oil filter and cooler

Eyebolt

Belts protection

Cooling fluid filling cap

Oil dipstick

Oil filling cap

Alternator

Accelerator lever

Fuel filter

Low pressure diesel oil pump

Eyebolt

Identiﬁcation
