LosTnFound OPACUS Handbuch
OPACUS
Technical specification
Version 1.0
July 1st 2013
support@lostnfound.com
Copyright © 2013 LOSTnFOUND® –All rights reserved.
All specifications are subject to change without prior notice.
LOSTnFOUND® OPACUS
OPACUS –Specification –1.0
Copyright © 2013 LOSTnFOUND® / All rights reserved. Page 2/4

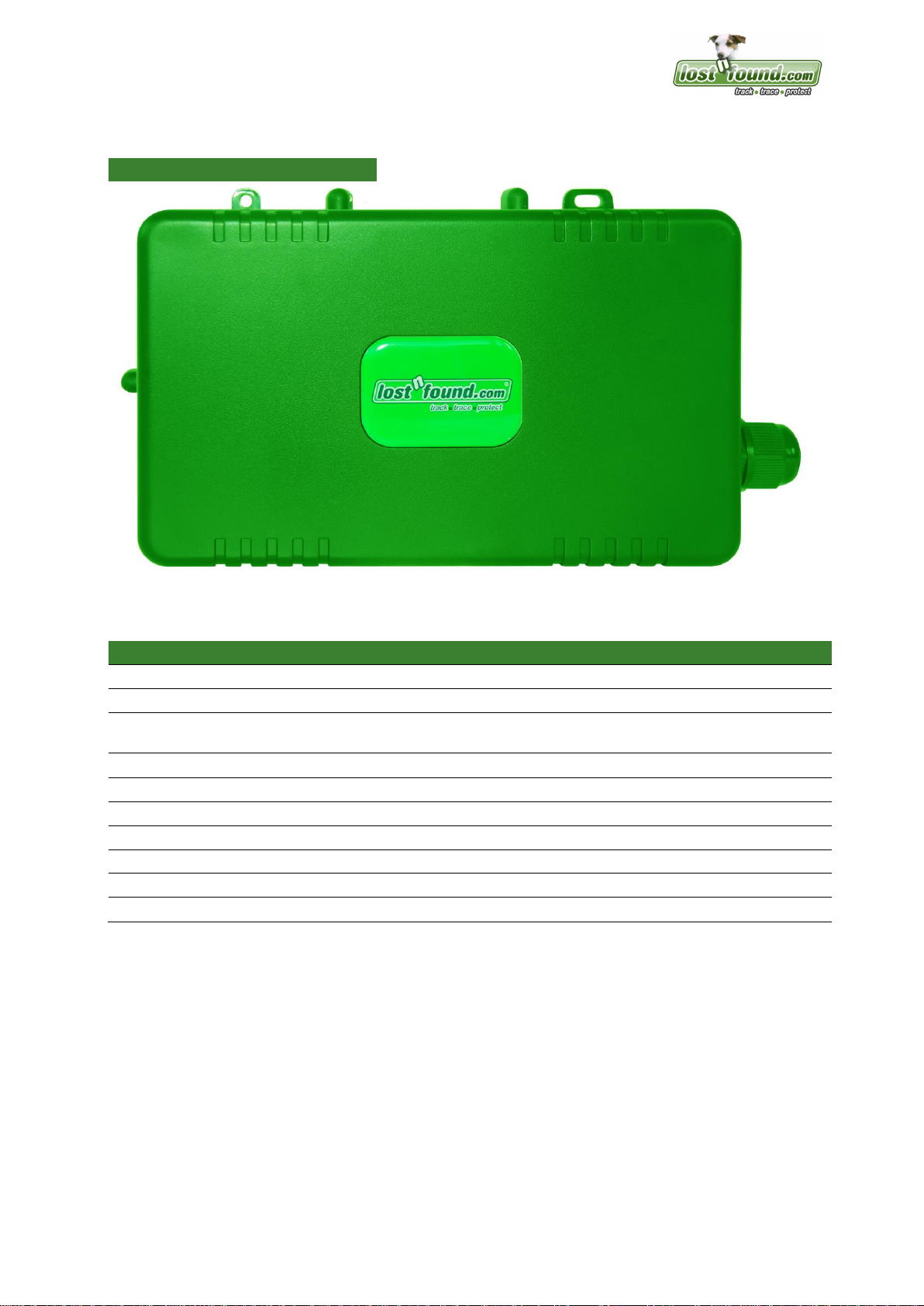

Device Connectors & Pin Assignment
Top View
Connecting OPACUS
Pin#
Signal Name
Color
Description
1
Power
■
red
DC 8 ~ 30 V
2
GND
■
black
Ground
3
Input 1 / Ignition
□
white
Positive triggered (above 5V as trigger condition)
Used to detect sleep mode (Connect to ignition)
4
Input 2
■
gray
Positive triggered (above 5V as trigger condition)
5
Input 3
■
green
Negative triggered (below 0.8V)
6
Input 4
■
violet
Negative triggered (below 0.8V)
7
Output 1
■
yellow
Negative triggered ( Io=160mA, Ipeak: 320mA)
8
Output 2
■
orange
Negative triggered ( Io=160mA, Ipeak: 320mA)
9
Output 3
■
brown
Negative triggered ( Io=160mA, Ipeak: 320mA)
10
Output 4
■
blue
Negative triggered ( Io=160mA, Ipeak: 320mA)
OPACUS –Specification –1.0
Copyright © 2013 LOSTnFOUND® / All rights reserved. Page 3/4
Technical Specification
Characteristics
Dimensions (L x W x H)
190mm x 155mm x 50mm
Weight
820g (incl. Battery/Cables)
Radio Performance
Frequency
Quad-band 850/900/1800/1900MHz
GSM Functionality / GPRS
GPRS Mode
Multi-slot Class 10
GPRS Coding Scheme
CS1,CS2,CS3 and CS4
GSM Antenna
Internal
SIM Interface
SIM Card 1.8V, 2.9V Supported
GPS Functionality
Receiver
66 Channels
Sensitivity (Tracking)
-165dBm
Antenna Type
External GPS Active Antenna
GPS Protocol
NMEA 0183 Ver3.0
Onboard Components
MCU
32-bit Microcontroller
Data Memory
4MB Flash
Motion Sensor
3-axes Acceleration Sensor
Interface I/O
I/O Connector
Cable / 10 Wires
Input Ports
Positive Triggers: 2
Negative Trigger: 2
Output Ports
Negative Triggers: 4
Electrical
Power Source
DC 8V to 30V
Power Consumption
60mA @ 12V (Operating Mode)
20mA @ 12V (Standby Mode)
1mA @ 12V (Deep Sleep Mode)
Environment
Operating Temperature
-20 °C to +55 °C
Battery
Rechargeable Backup Battery
10.4 Ah / 3.7V support up to 60 days (based on data
transmission every 6 hours)
OPACUS –Specification –1.0
Copyright © 2013 LOSTnFOUND® / All rights reserved. Page 4/4
Disclaimer Notes
General
This LOSTnFOUND® OPACUS device works solely based on the GSM (Global System for
Mobile Communication) & GPS (Global Positioning Satellites) Coverage. Thus, its
functionalities solely rely on the availability of the network coverage. The manufacturer,
its subsidiaries, authorized dealers, distributors and installers do not warrant the
operation of this device will be not interrupted or error-free.
In no event will the manufacturer, its subsidiaries, authorized dealers, distributors,
dealer and installers shall be liable for any general, special, incidental, or consequential
damages and losses due to any cause of operation of the device or any failure of the
device to perform, including any lost, expenses, cost incurred or suffered whether caused
directly or indirectly or arising from the function or malfunction of the device.
Liability exemptions statement
All the information included in this manual was produced with great caution, but there
may still be some errors and mistakes. The supplier or retailer will not be held
responsible for any errors and mistakes.
As we cannot control users understanding of this manual, therefore the supplier or
retailer will not be held responsible for any accident or other loss caused by
misunderstanding of this manual. We shall not be held responsible for any loss caused by
using this product.
The supplier reserves the right to modify software, hardware and user manual of this
device without prior notice.
All other products and brand names are the property of their respective owners. This
document is for information use only and is subject to change without prior notice.
LOSTnFOUND® assumes no responsibility for any errors that may appear in this
document.
To make copies, publish, transfer, store in a traceable system, or translate to any other
language without written authorization from the supplier is strictly prohibited.
