INTRODUCTION

The AP-12TB and AP-16TB are twelve and sixteen zone audio monitoring base stations. As a system utilizing Louroe

speaker/microphones, the units provide an audio monitoring system with two-way talk/listen between the AP-12TB/AP-16TB

and the remote speaker/microphone.

Features for the AP-12TB and AP-16TB include:

"Built in 3” speaker for listening and a built-in microphone for talkback

"Individual RCA outputs for recording into a DVR with multiple audio inputs

"A single selectable RCA output for recording into a VCR or a DVR with only one audio input

"Single RCA audio input for audio playback from a DVR or VCR.

"Switch closure for each zone for activating a camera, etc. when zone switch button is pressed

"Special filtering for enhancing audio playback from a 24hr. time lapse recorder

"Auxiliary microphone jack on rear panel for optional hand-held microphone (hand-held microphone not included

"24 Vdc, 1A power supply included

For two-way talk/listen, AP-12TB and AP-16TB are compatible with Louroe speaker/microphone Models TLI, TLO, TLSP,

TLSP-CM and TLM Series.

For one-way listen (no talkback) all Louroe Microphone Models A, B, C, D, D-V, E, K and L-DT are compatible.

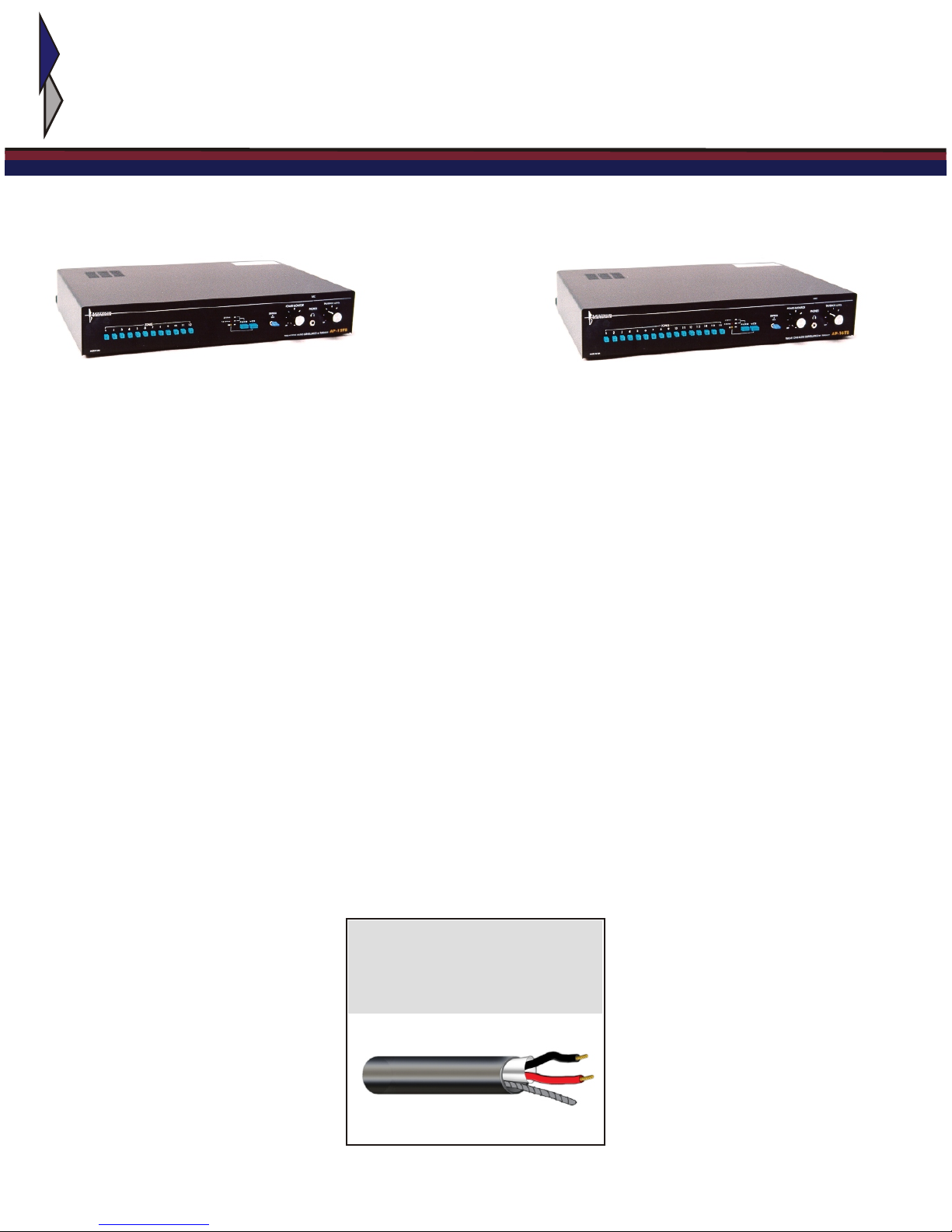

MODEL AP-12TB

AUDIO MONITORING

BASE STATION

MODEL AP-16TB

AUDIO MONITORING

BASE STATION

AP12/16TB 1/08

2 Conductor shielded cable, 22

gauge with a 24 gauge drain wire

NOTE: Unshielded cable is not

satisfactory for audio systems

WIRING REQUIREMENTS

West Penn 452 or equivalent

LLOUROEOUROE

LECTRONICSLECTRONICS

6955 VALJEAN AVE, VAN NUYS, CA 91406

PH: (818)994-6498 / FAX: (818)994-6458

[email protected] / www.louroe.com

AP-12TB / AP-16TB

AUDIO BASE STATIONS

INSTALLATION AND OPERATING INSTRUCTIONS

[1] - Zone Selector Switches Selects zone for monitoring. Press switch of desired zone to listen to

live monitored audio. Pressing any switch also provides a switch

closure for activating a camera, etc. (100mA max)

[2] - Filter-OUT Indicator Lights (green) when audio filter is not in use. Indicates power is “ON”.

[3] - Filter-IN Indicator Lights (amber) when Filter Switch[6] is pressed to “ON” position.

[4] - VCR-IN Indicator Lights (yellow) when VCR Switch[7] is pressed to “ON” position.

[5] - Overload Indicator Current overload indicator. Lights (red) when power short circuit

occurs.

[6] - Filter Switch Used only when audio playback is from a 12 or 24 hr. time lapse

recorder. Press Filter Switch[6] to illuminate red LED for 12/24 hour

mode. This enhances the quality of recorded audio playback. If

playback is from a DVR, filter switch is not used and should be in the

“OUT” position. If no recording device is used, then filter switch must

be in the “OUT” position. Otherwise live audio will be muted. The

green LED illuminates when filter switch is in the “OUT” position.

[7] - VCR Switch Press switch to “ON” (or “IN”) position after connecting DVR/VCR to

unit. (When switch is “OUT”, audio bypasses the and is not

recorded. When switch is “IN”, audio is sent in for recording and

playback. Switch must always be “IN” whenever a recorder is

connected.

[8] - Talkback switch Press to talk to remote speakers. Select a zone by pressing any Zone

Selector Switch[1] to talk to desired zone. A built-in Talk back

Microphone[10] is located above the Headphone Jack[11].

[9] - Power-Volume Control Knob Rotating knob clockwise turns on power to the unit as indicated by the

filter-OUT indicator[2]. Green LED will illuminate. Rotating clockwise

also increases loudness of monitored audio from the Monitor

Speaker[13].

[10] - Talkback Microphone Built-in microphone for talkback.

[11] - Headphone Jack Used for private listening. Any 3.5mm stereo headphone with 8 to

600W impedance may be used. Speaker is muted when headphone is

used.

[12] - Talkback Control Knob Rotate knob clockwise to increase the loudness of talkback output;

counterclockwise to decrease.

DVR/VCR

[13] - Monitor Speaker Delivers audio through speaker. Muted when a headphone is plugged

into the Headphone Jack[11].

(not used with DVR’s)

(includes DVR’s)

PRESS

TALK

[1] [2]

[3]

[4]

[5]

[6] [7]

[8]

[9]

[10]

[11]

[12]

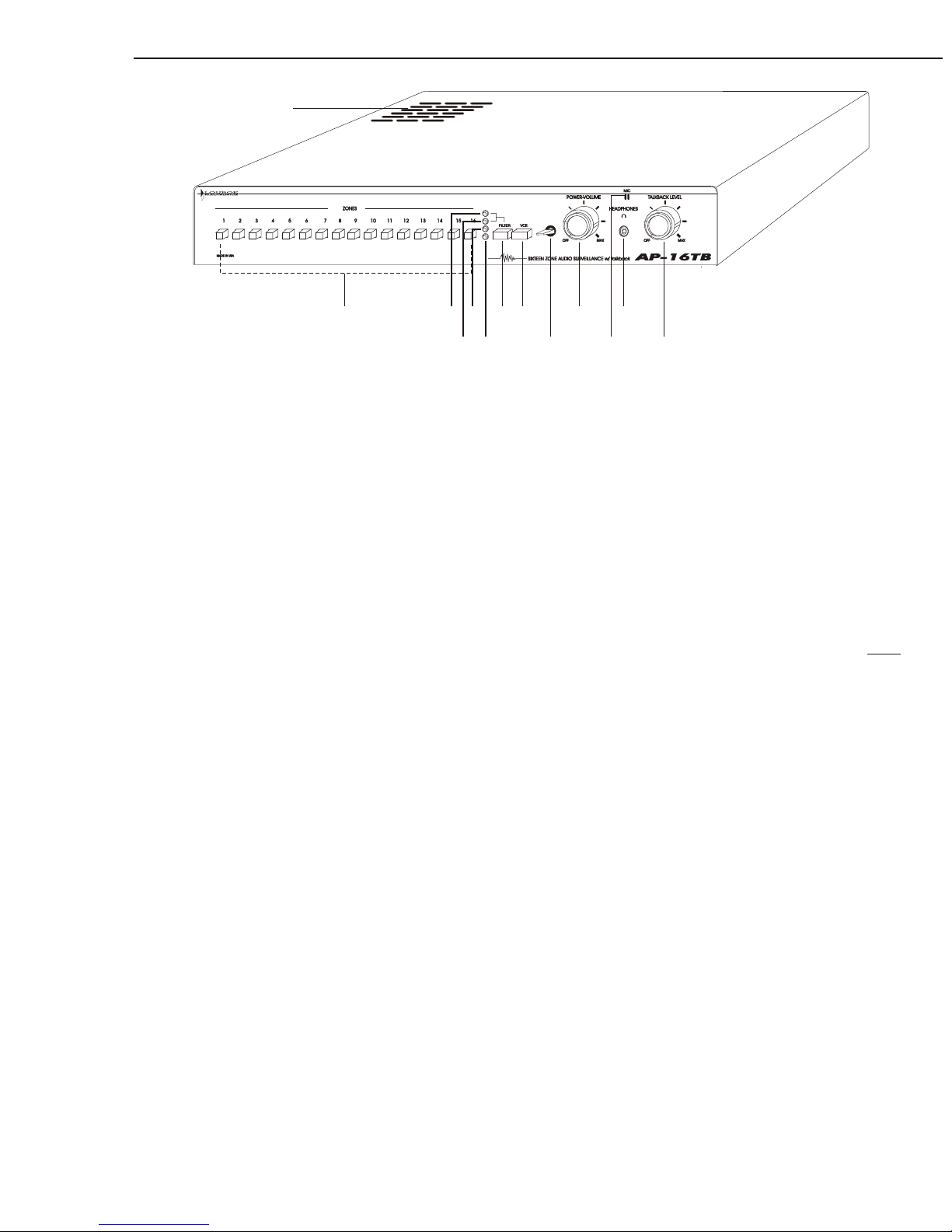

Fig. 1 AP-16TB

Front Panel

[13]

AP12/16TB 1/08

LOUROE ELECTRONICS 6955 VALJEAN AVENUE, VAN NUYS, CA 91406 TEL (818) 994-6498 FAX (818) 994-6458

Website: www.louroe.com Email: [email protected]

INSTALLATION AND OPERATING INSTRUCTIONS

page 1 of 4

[14] - Mic 5-Pin Terminal Block Connects to speaker/microphone unit at remote station.

[15] - Audio OUT Jack (RCA) Provides audio to external , remote amplifiers, etc.

[16] - Aux. Microphone Accepts handheld talkback microphone ( with 1/4” plug.

Works the same as Talkback Microphone[10] and is used as an

option.

[17] - Audio-IN Jack (RCA) Receives audio playback from external

[18] - Switch Closure Terminal Block Provides a switch closure when a zone is selected by the Zone

Selector Switch[1]. Maximum current capacity of switch is 100mA.

Do not connect load that will exceed this current rating.

[19] - Zone Aux. Mic Output Used for connection to a DVR with multiple audio inputs or for

(each zone) connecting to another AP-12TB or AP-16TB (paralleling two units).

[20] - DC-IN Jack (power) Accepts 24 Vdc from external power supply (AC adapter included).

DVR/VCR

8 to 600W)

DVR/VCR, etc.

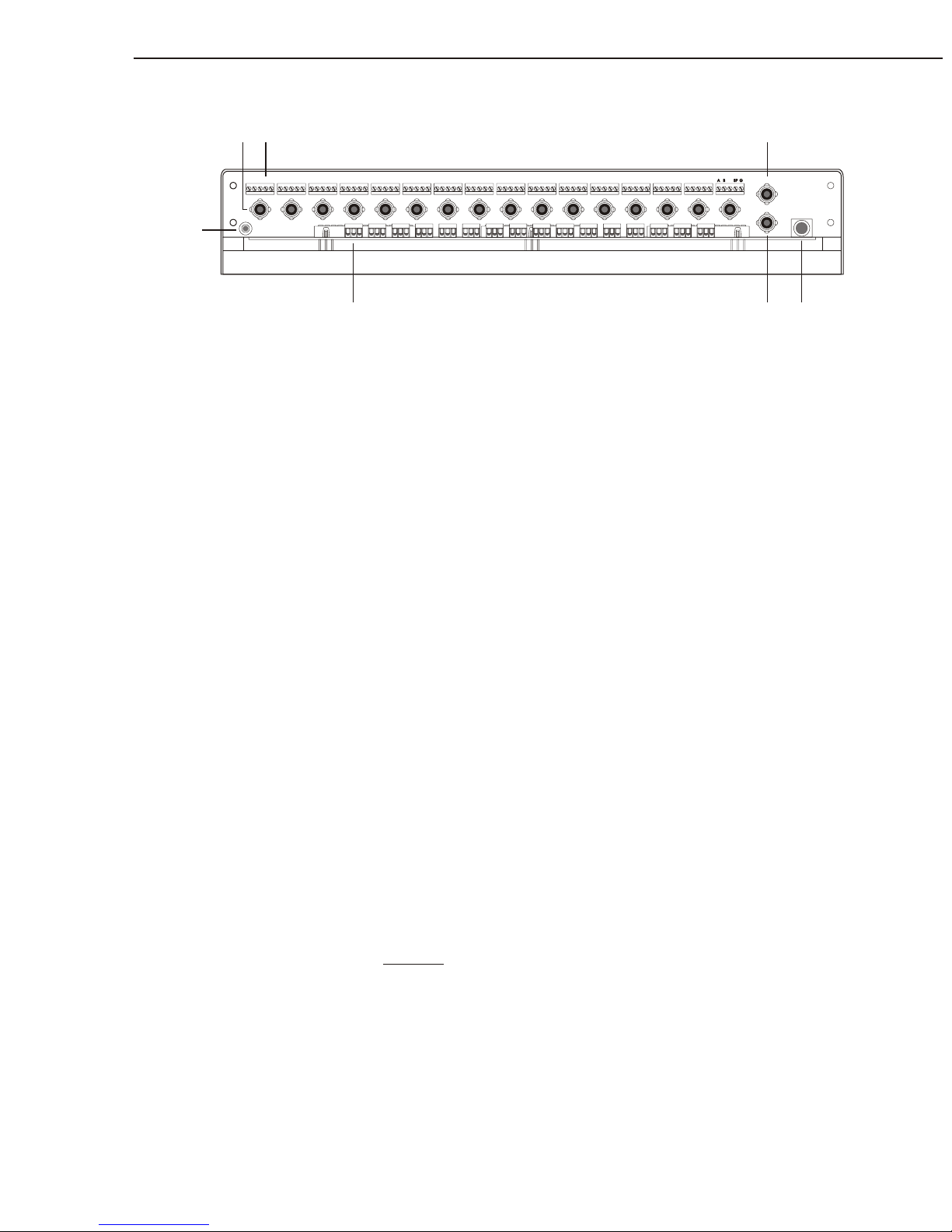

Fig. 2 Rear of AP-16TB

[14][19] [15]

[17] [16]

[20]

[18]

A B C

1ZONES 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16

24Vdc

2A 3A 4A 5A 6A 7A 8A 9A 10A 11A 12A 13A 14A 15A 16A

G A B C SP G A B C SP G A B C SP G A B C SP G A B C SP G A B C SP G A B C SP G A B C SP G A B C SP G A B C SP G A B C SP G A B C SP G A B C SP G A B C SP G C AUDIO OUT

AUDIO IN

NOTE REGARDING CONNECTION TO DVR’s:

Models AP-12TB and AP-16TB are compatible with most all DVR’s.

If DVR has only one audio input, connect the “Audio Out” jack on

back panel of AP-12TB/AP-16TB to “Audio In” of DVR using an RCA

cable.

If DVR has multiple audio inputs, connect the “Mic Out” jacks on

back panel of AP-12TB/AP-16TB to the audio inputs of DVR using RCA

cables.

If DVR contains 3.5mm audio inputs instead of RCA types, a 3.5mm

stereo adapter must be connected to one end of RCA cable.

[17]

[19]

AP12/16TB 1/08

LOUROE ELECTRONICS 6955 VALJEAN AVENUE, VAN NUYS, CA 91406 TEL (818) 994-6498 FAX (818) 994-6458

Website: www.louroe.com Email: [email protected]

INSTALLATION AND OPERATING INSTRUCTIONS

page 2 of 4

WIRING CONNECTIONS

1). Connect one end of cable to remote speaker/microphone as shown in Fig. 3. Use 4 conductor

shielded audio cable such as West Penn 356. Connect wires wrapped with overall shield to

terminals “A”, “B”, and “C” of microphone’s terminal block. When using West Penn 356, connect red

wire to terminal “A”; black wire to terminal “B” and bare wire to terminal”C”.

2). Connect the two speaker wires (white and green) to speaker’s 70 volt transformer terminals.

Connect cable’s white wire to white wire connected to the 70 volt transformer using a wire nut.

Connect cable’s green wire to green wire of transformer with a wire nut.

3). Connect the other end of the cable to AP-12TB or AP-16TB Mic 5-Pin Terminal Block[14] for the

zone which the remote microphone is assigned. Make sure that wire connected to terminal “A” of

remote microphone connects to terminal “A” of unit’s Mic 5-Pin Terminal Block[14]; wire connected

to terminal “B’ of microphone connects to terminal “B” of unit’; “C” to “C”. If using wire from other

manufacturers, color code may vary.

4). Connect white speaker wire to Mic 5-Pin Terminal Block[14] terminal “G”. Connect green wire to

terminal marked “SP”.

5). Repeat steps 1 thru 3 for zones 2, 3, 4 .....16.

6). When a recorder is used (DVR, VCR etc.), connect Audio-OUT Jack[15] to recorder’s Audio-IN

Jack with an RCA cable (not supplied).

7). Connect Audio-IN Jack[17] to recorder’s Audio-Out Jack.

8). Plug AC Adapter (supplied) to DC-IN Jack[20].

NOTE: If AP-12TB or AP-16TB is to be used as a one-way listen only system (no talkback), any Louroe

Verifact Microphone can be used. Make microphone connections as described above (see step 1).

Disregard speaker connections. Use 2 conductor shielded cable, 22 gauge with a 24 gauge drain.

West Penn 452 or equivalent. Same color code as in West Penn 356 (red, black and bare).

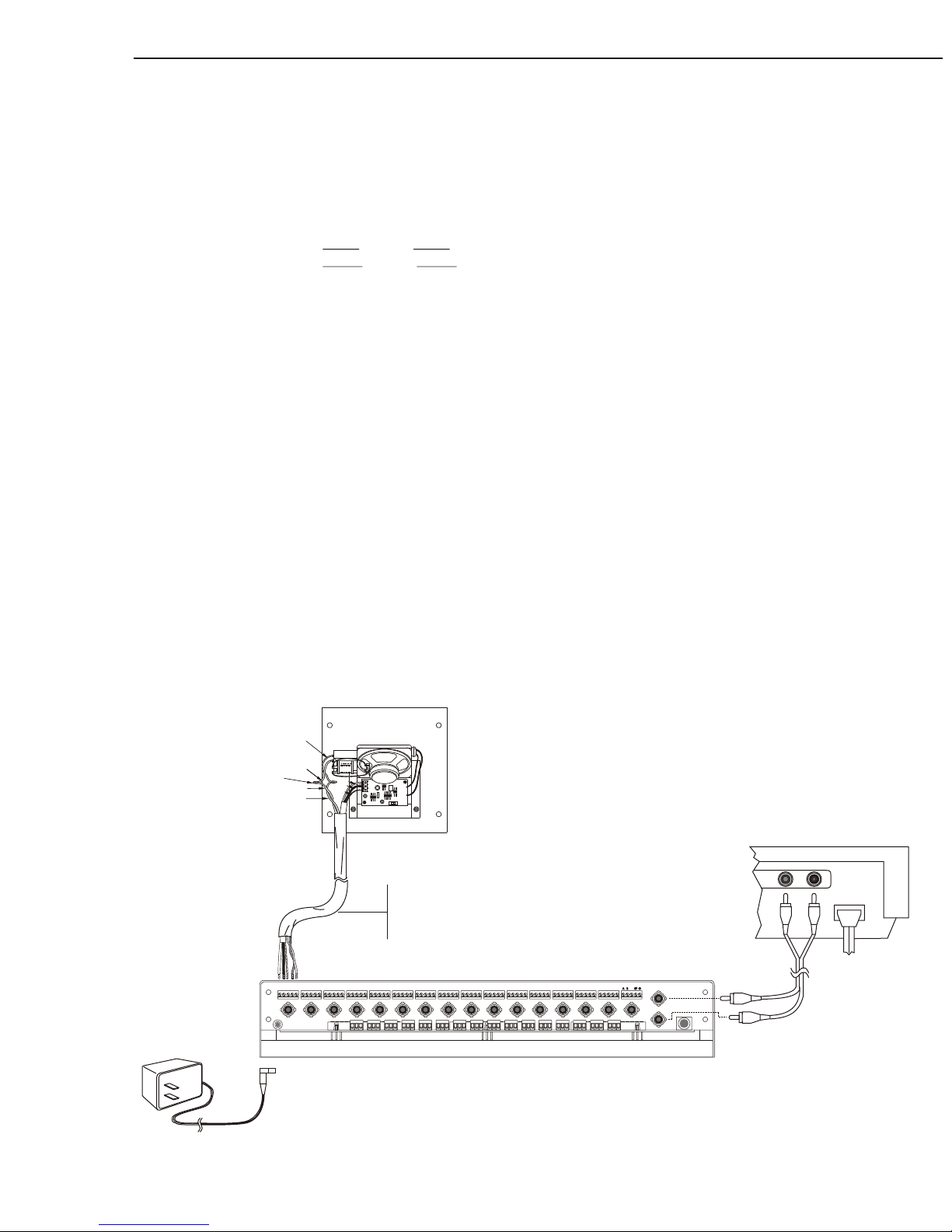

Fig. 3 Interconnection Diagram

A B C

1ZONES 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16

24Vdc

2A 3A 4A 5A 6A 7A 8A 9A 10A 11A 12A 13A 14A 15A 16A

G A B C SP G A B C SP G A B C SP G A B C SP G A B C SP G A B C SP G A B C SP G A B C SP G A B C SP G A B C SP G A B C SP G A B C SP G A B C SP G A B C SP G C AUDIO OUT

AUDIO IN

OUTOUT ININ

EXAMPLE CABLE: EXAMPLE CABLE:

WEST PENN 356WEST PENN 356

2 CONDUCTOR SHIELDED #20 AWG2 CONDUCTOR SHIELDED #20 AWG

2 CONDUCTOR UNSHIELDED #18 AWG2 CONDUCTOR UNSHIELDED #18 AWG

1 DRAIN WIRE (BARE) #22 AWG1 DRAIN WIRE (BARE) #22 AWG

REAR OF AP-16TB

REAR OF DVR/VCR

Louroe Model TLSP Speaker/Microphone

AUDIO

AC ADAPTER

REDRED

BLACKBLACK

BAREBARE

WHITE

GREEN

WHITE

WIRE NUT

AP12/16TB 1/08

LOUROE ELECTRONICS 6955 VALJEAN AVENUE, VAN NUYS, CA 91406 TEL (818) 994-6498 FAX (818) 994-6458

Website: www.louroe.com Email: [email protected]

INSTALLATION AND OPERATING INSTRUCTIONS

page 3 of 4

A B

VERIFA A

RED(A)

BLACK(B) BARE(C)

ABCSPGAL

BARE

GREEN

IMPORTANT NOTICE

When this equipment is used as part of an audio

monitoring system, the law requires that the public

be given notice of AUDIO MONITORING ON THE

PREMISES. A decal notice is included with each

microphone shipped.

Federal Law References:

Federal Regulations, US Code, Title 18. Crime and

Criminal Procedure, Sec 2510.

AUDIO

MONITORING

LLOU ROEOUROE

LECTRONIC SLECTRONICS

These Premises

RED

BLACK

OPERATION AND TEST

1). To apply power, first connect small end of 24 Vdc power supply to the 24 Vdc power jack located

on rear panel , then plug power block into a standard 120 Vac wall outlet or power strip.

2). Turn on power to the unit by rotating the Power-Volume Control Knob[9] clockwise to “ON”

position. Filter-OUT Indicator[2] should light green, indicating power is present at the unit. Rotate

Power-Volume Knob[9] further clockwise to increase the level of loudness of monitored audio.

3). Press Zone Selector Switches[1] marked zone 1. Audio from zone 1 should be present at the

Monitor Speaker[13]. If there is no audio, temporarily remove wires connected to Mic 5-Pin

Terminal Block[14] for zone 1 located at the rear of the unit. With a voltmeter, check that 12 Vdc is

present at terminals “A” and “C”. Place positive lead of voltmeter to terminal “A” and negative to

“C”. If voltage is not present, unit has defective voltage regulator. If voltage is present, check to

see if the wires are connected properly to the right terminals. Otherwise microphone is defective.

Call factory for assistance.

4). Press Talkback Switch[8] and speak into the Talkback Microphone[10]. Rotate Talkback Volume

Control[12] clockwise to increase the level of talkback audio. Another person is needed at the

remote location to listen to the volume and clarity of talkback audio.

5). Repeat steps 3 and 4 for the other zones.

6). When a 24 hour VCR is connected to the unit, press VCR Switch[7]. VCR-IN Indicator[4] will light

yellow. Start recording live audio. It is not necessary to use VCR switch if recording into a DVR.

The VCR Switch[7] must be in the “OUT” position when a recorder is not connected to the unit.

Otherwise live audio will be muted.

7). Recorded audio can be played back through the AP-12TB/AP-16TB’s built-in amplifier and

speaker. If audio playback is from a 24 hour time lapse recorder, press Filter Switch[6] to 12/24

hour mode. Filter In indicator[3] will illuminate red. If playback is from a DVR, filter switch is not

used and should be in the “OUT” position. If no recording device is used, then filter switch must be

in the “OUT” position. Otherwise live audio will be muted. The green LED will illuminate when filter

switch is in the “OUT” position.

[20]

SPECIFICATIONS

Input sensitivity

(from remote microphone)

0.78Vrms

Monitor power output

Talkback power output

1.5W @ 8W

1.5W into 70V line

Audio input impedance 10kW

Audio frequency response 100 Hz to 10kHz

Audio frequency

response (enhanced)

-20 dB @ 200 Hz to

+5dB @ 3kHz

Headphone impedance 8 to 600W

Power input 24 Vdc, 1A

Dimensions 15”W x 12 1/2”D x 2 3/4”H

Net Weight (incl power supply) 10 lbs (4.5 kg)

Input sensitivity -55 dB

(Talkback microphone)

Audio line output impedance 600W or higher

Switch Closure Rating 100mA

AP12/16TB 1/08

LOUROE ELECTRONICS 6955 VALJEAN AVENUE, VAN NUYS, CA 91406 TEL (818) 994-6498 FAX (818) 994-6458

Website: www.louroe.com Email: [email protected]

INSTALLATION AND OPERATING INSTRUCTIONS

page 4 of 4

NOTES

AP12/16TB 1/08

LOUROE ELECTRONICS 6955 VALJEAN AVENUE, VAN NUYS, CA 91406 TEL (818) 994-6498 FAX (818) 994-6458

Website: www.louroe.com Email: [email protected]

INSTALLATION AND OPERATING INSTRUCTIONS

page 1 of 4

IMPORTANT NOTICE

When this equipment is used as part of an

audio monitoring system, the law requires

that the public be given notice of AUDIO

MONITORING ON THE PREMISES. A

decal notice is included with each

microphone shipped.

Federal Law References:

Federal Regulations, US Code, Title 18.

Crime and Criminal Procedure, Sec 2510.

AUDIO

MONITORING

LOUROE

LECTRONICS

These Premises

WARRANTY

LOUROE ELECTRONICS warrants that at the time of shipment products manufactured by LOUROE ELECTRONICS to be free of defects in material and workmanship.

Should a defect appear within one year (12 months) from date of shipment, LOUROE ELECTRONICS will, at its sole discretion, repair or replace the defective equipment.

This equipment shall not be accepted for repair or return without prior notification by LOUROE ELECTRONICS.

This warranty does not extend to any Louroe product that has been subjected to improper or incorrect installation, misuse, accident, or in violation of installation

instructions provided by LOUROE ELECTRONICS.

Returned shipments to LOUROE ELECTRONICS shall be at customer’s expense. LOUROE ELECTRONICS will return the equipment prepaid via best way.

AP12/16TB 1/08

LOUROE ELECTRONICS 6955 VALJEAN AVENUE, VAN NUYS, CA 91406 TEL (818) 994-6498 FAX (818) 994-6458

Website: www.louroe.com Email: [email protected]

INSTALLATION AND OPERATING INSTRUCTIONS

page 1 of 4
