Lowrance EP-80R Temp Kurzanleitung

Pub. 988-0154-472

EP-80R Temp

Electronic Temperature Sensor

Installation and Configuration Instructions

This document shows how to install an EP-80R temp sensor and how to

connect it to a NMEA 2000®network. It also provides instructions on

how to configure your temp sensor with Lowrance digital gauges (LMF-

200 & LMF-400) and display units.

NMEA 2000 is the communication bus standard developed by the

National Marine Electronics Association (NMEA) for use in boats.

Lowrance has introduced a line of products that can communicate over

a NMEA 2000 network (LowranceNet).

All Lowrance NMEA 2000 capable devices are either NMEA 2000

certified or certification is pending.

CAUTION:

Installing LowranceNET NMEA 2000 devices is significantly

different from installing earlier Lowrance components without

NMEA 2000 features. You should read all of the installation

instructions before proceeding. Decide where you want to install

all components before drilling any holes in your vessel.

Some sonar or GPS display units may require a software upgrade to

display NMEA 2000 data correctly. For free software upgrades or

additional information on the LowranceNet NMEA 2000®network

system, visit our web site, www.lowrance.com.

The EP-80R temperature sensor.

Temp

module

Smart module

NMEA 2000 red

cable connector

The EP-80R consists of the temp sensor module, a red cable connector

and the smart module, which converts analog temperature data to

NMEA 2000 data format. The cable length measures 18 inches (46 cm)

from the connector to the smart module and 10 feet (3 meters) from the

smart module to the temp module. The EP-80R Temp, like the other

LowranceNet Electronic Probe (EP) sensors, is designed for use with a

NMEA 2000 network. Your sensor, however, is also compatible with

LowranceNet blue connector networks. It can be added to a blue

connector network by using a red female to blue female adapter cable.

One way or another, your sensor MUST be connected to a NMEA 2000

network or it WILL NOT function.

The NMEA 2000 red female to blue female adapter cable allows users

to add red connector devices to a blue connector network.

Tools and Supplies

Your EP sensor packs with a T connector needed to attach it to a

NMEA 2000 LowranceNet network. If you are connecting to an existing

LowranceNET network, those are all the electronic components you

need. If this is the first sensor you are connecting, you will need to

purchase a LowranceNET Node Kit.

For complete instructions on setting up a new NMEA 2000 network or

expanding an existing one, see the NMEA 2000 document packed with

your EP-80R Temp, "Setup and Installation of NMEA 2000 Networks,

General Information," part number 988-0154-173. If that document is

missing, it can be downloaded free from the Lowrance web site.

Other supplies are not included, unless otherwise indicated. A transom

mount requires one #8 stainless steel screw (3/4" long) and a high

quality, marine-grade above- or below-waterline sealant/adhesive

compound. If you need a pilot hole for the screw, use a drill and a 1/8"

drill bit. If you want to feed the temp module through a transom or

bulkhead, use a 3/4" bit. A screwdriver is needed for mounting the temp

sensor.

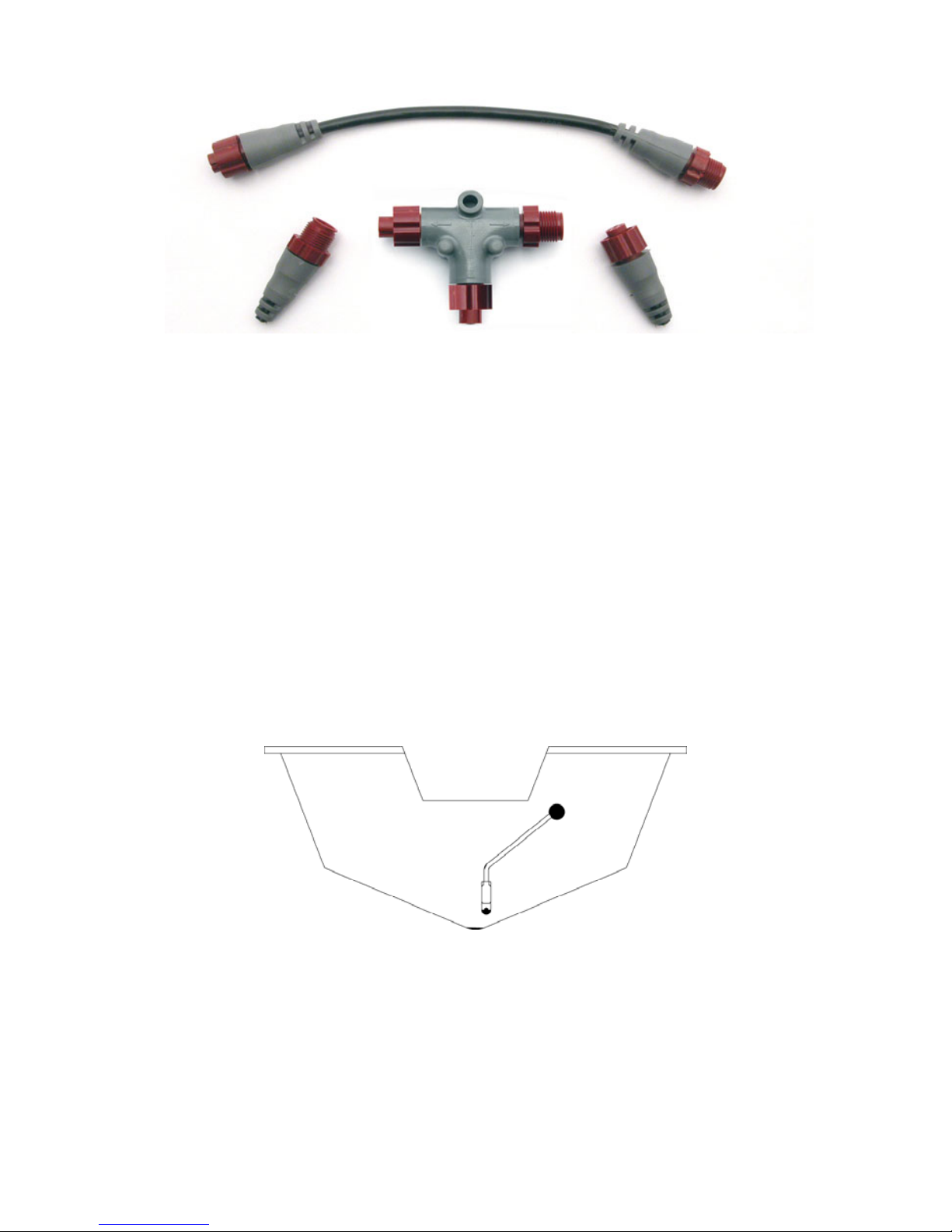

LowranceNET Node Kit for a NMEA 2000 network. Includes a 2-foot

extension cable, T connector and two 120-ohm terminators.

Installation

The EP-80R temperature sensor can be mounted in any location where

you want temperature to be monitored. The most common applications

are transom mounts — to measure surface water temperature — or in

a livewell. Wherever you install it, make sure the temp module will be

in contact with the water at all times. If the sensor is mounted on the

transom, make sure it is mounted in a manner that prevents it from

coming into contact with the boat trailer.

Caution:

If you drill a hole in the transom for the cable, make sure it is

located above the waterline. After installation, be sure to seal the

cable hole with the same marine grade above-or below-waterline

sealant used for the screw.

Temp module on transom with cable routed through the transom.

Notice that the sensor was routed so the smart module is inboard.

After determining the location, use the temp module as a template and

mark the hull for the screw's pilot hole. Route the temp module and

cable over or through the transom to the mounting location. If routing

through the transom, drill a 3/4" hole to accommodate the temp

module. Make sure the smart module is inboard and not left exposed on

the open transom. Attach the temp module to the hull with one #8

stainless steel screw and seal the screw with the below-waterline

sealant compound.

Route the sensor's cable connector to the T on the network backbone

where you intend to attach it, and plug it in.

Connecting to a NMEA 2000 Network

A NMEA 2000 network is a communications link between two or more

devices that transfer NMEA 2000 information. LowranceNET is the

NMEA 2000 networking system developed by Lowrance Electronics. A

NMEA 2000 network functions like the phone wiring in a house. If, for

example, you pick up a phone in the living room you will be able to

hear the conversation someone is having on a phone in the bedroom.

In similar fashion, a NMEA 2000 network allows multiple display units

to receive data from a GPS antenna or multiple sonar units to receive

messages sent by a temperature sensor. A NMEA 2000 network gives

you the flexibility to view information like engine diagnostics and fuel

level data on digital gauges or display units located anywhere on your

boat.

There are two types of LowranceNet red connectors: the single T

connector (left) and the double T connector (right).

Network Backbone and Network Nodes

A network bus backbone consists of network cabling, terminators and T

connectors. Network nodes are made by fitting T-shaped connectors into

the backbone (using the sockets on the sides) and attaching any network

device to the bottom of the T.

Staying with the previous phone wiring example, T connectors on the

backbone are the equivalent of phone jacks spread throughout a house.

To pick up a phone and be able to hear a conversation from another

phone in the house, both phones have to be connected to the main phone

line. In similar fashion, only sensors and display units plugged into the

NMEA network can share information. The network backbone is like the

phone wiring that runs throughout a home.

It connects the network nodes, allowing them to communicate across the

network. Connections found in the middle of the bus could have T

connectors or backbone network cable plugged into one or both sides.

Connections at the end of a network will have the backbone cable plugged

into one side and a terminator plugged into the other, as shown in the

following figure.

NMEA 2000 network node located at the end of a NMEA 2000 backbone.

NOTE:

If you have a double T Connector on your network that is not

attached to a device, you must cap the unused connector with a

NMEA 2000 cap. This will protect the pin connectors from

corrosion. The NMEA 2000 cap looks like a terminator, but has

"Cap" stamped into the connector housing.

All T connectors on your network probably will be connected to a device.

If you want to add another node to a working network, add another T

connector. T connectors may be purchased from LEI (ordering

information appears on the back page of this booklet). If you are adding a

Lowrance or LEI NMEA 2000 sensor, it will come with a T connector.

Adding a Network Node

You can add a node to any existing connection, anywhere along the

network backbone. This connection could be between a T connector and a

terminator, between two T connectors, between a T connector and a

backbone extension cable or between two extension cables. Wherever you

want to add the new node, separate the sockets of the existing connection

and install the T connector between them.

Backbone cable

(to rest of bus)

Cable from

sensor or

display unit

Terminator at

the end of the

backbone (bus)

Double T

connector

Cap for unused

connector

If you want to add a node at the end of the backbone (network bus)

remove the terminator from the last connector, like the figure above.

Install the new T connector and attach the terminator to the side of the

connector.

In this example, a new device is added to the NMEA 2000 bus by

installing a T connector between a T connector and a terminator at the

end of the backbone (network bus).

Additional Network Information

For more information on creating or expanding a network refer to the

NMEA 2000 network setup booklet, part number 988-0154-173, which

came packed with this document.

Existing network

node

Attach

terminator at

end of bus

Use T-connector or double T connector to add

device to bus (maintaining linear architecture)

Backbone cable

to rest of bus

Devices connect to

double T connector

LMF-200: EP-80R

Temp Configuration

This section covers how to use EP-80R Temperature Sensor with the

LMF-200 Multi-function gauge.

NOTE:

You will notice the LMF-200 does not have an Exit key. Menus will

time out after a preset amount of time (3, 5, 10 or 15 seconds). The

default setting is 5 seconds. Refer to your LMF-200 instruction

manual for more information on the Timeout feature.

LMF-200 Multi-function Digital Gauge.

Boat Setup

If this is the first time you have turned on your LMF-200, you will have

to complete Boat Setup before you will be able to configure your temp

sensor. If you have already completed Boat Setup skip ahead to the

segment covering EP-80R Temp Configuration.

To execute Boat Setup:

1. With Boat Setup highlighted on the screen, press MENU. The Boat

Setup menu will appear, allowing you to select an engine-tank

configuration to match the number of engines and fuel tanks on your

vessel. Boat Setup options include: 1 En/1 Tk, 1 En/2 Tk, 2 En/1 Tk, 2

En/2 Tk, 3 En/1 Tk and 3 En/3 Tk.

2. Use the UP and DOWN keys to select the correct configuration and

press MENU.

3. If you selected a configuration with more than one tank you will have

to select the tank you want to set up and press MENU, which will open

the Tank Size window. (If you choose a single-tank configuration, you

will not have to choose the tank. You will be directed to the Tank Size

window covered in Step 4.)

4. Use the UP and DOWN keys to input the number of gallons the tank

will hold and press MENU. Repeat steps 3 and 4 for each additional

tank. After all tanks have been set up, you will be directed to the main

display.

Boat Setup Reset

If you want to access the Setup screen (Boat Setup) after an engine-

tank configuration has been chosen you will have to reset the

configuration to default settings.

To reset engine tank configuration:

1. Press MENU, highlight SYSTEM SETUP and press MENU.

2. Choose ENG/TANK and press MENU twice. The following message will

appear: Hit menu to reset Eng/Tnk.

3. Press MENU. The Setup screen will appear with Boat Setup

highlighted.

EP-80R Temp Configuration

The EP-80R Temperature sensor has three configuration options:

Inside, Outside and Water. An unconfigured temperature sensor will

appear on the Bus Devices list as UnCfg Temp.

To configure a temp sensor:

1. Press MENU, use the UP and DOWN keys to select SYSTEM SETUP and

press MENU.

2. Highlight B. DEVICES and press MENU. After a few moments the Bus

Devices list will appear.

3. Highlight UNCFG TEMP and press MENU. The following message will

appear: Hit Menu to Cfg Temp Sns.

4. Press MENU to be taken to the Selecting Temp menu, which will have

three options: Inside, Outside and Water.

5. Highlight the desired temp option and press MENU. The temp sensor

has now has been configured. You will be directed to the Bus Devices

list.

NOTE:

If your temp sensor is not updated on the Bus Devices list, refresh

the list by letting it time out and then access it again.

To unconfigure a temp sensor:

1. Press MENU, use the UP and DOWN keys to select SYSTEM SETUP and

press MENU.

2. Highlight B. DEVICES and press MENU, which will open the Bus Devices

list.

3. Select a temp sensor from the Bus Devices list and press MENU. The

Configuration Options menu will appear with two choices: Unconfig

(Unconfigure) and Reconfig (Reconfigure).

4. Select UNCONFIG and press MENU. The following message will appear:

Hit Menu to Unset Device Name.

5. Press MENU to unconfigure the sensor. You will be directed to the

Bus Devices list, where the temp you unconfigured will be listed as

Uncfg Temp.

NOTE:

If your temp sensor is not updated on the Bus Devices list, refresh

the list by letting it time out and then access it again.

To reconfigure a temp sensor:

To reconfigure a sensor, there must be a configuration name available

(Water, Outside or Inside). If you try to reconfigure a sensor when the

desired configuration name (Water, Outside and Inside) is in use, a

Name Already Selected message will appear.

If all three temps are configured — meaning there is no name

configuration available — follow the first set of instructions. If the

desired configuration name is available, follow the second set of

instructions.

The first set of instructions below will show you how to switch the

configuration of a water temp to an outside temp.

If all temps configured (Configuration name unavailable):

1. Press MENU, use the UP and DOWN keys to select SYSTEM SETUP and

press MENU.

2. Highlight B. DEVICES and press MENU, which will open the Bus Devices

list.

3. Highlight WTR TEMP and press MENU, which will launch the

Configuration Options menu.

4. Select UNCONFIG and press MENU. The following message will appear:

Hit Menu to Unset Device Name.

5. Press MENU to unconfigure the sensor and return to the Bus Devices

list, where the temp you unconfigured (Water Temp) will be listed as

Uncfg Temp.

6. Highlight OUT T(Outside Temp) and press MENU. The configuration

options menu will appear.

7. Select RECONFIG and press MENU to open the Selecting Temp menu.

Highlight WATER and press MENU. You will be directed to the Bus

Devices list.

8. Highlight UNCFG TEMP and press MENU. The following message will

appear: Hit Menu to Cfg Temp Sns.

9. Press MENU to be taken to the Selecting Temp menu. Choose OUTSIDE

and press MENU. You will be directed to the Bus Devices list, where the

two sensors will be listed with their new configuration names.

If desired configuration name available:

1. Press MENU, use the UP and DOWN keys to select SYSTEM SETUP and

press MENU.

2. Highlight B. DEVICES and press MENU, which will open the Bus Devices

list.

3. Highlight WTR TEMP on the Bus Devices list and press MENU, which

will launch the Configuration Options menu.

4. Select RECONFIG and press MENU to open the Selecting Temp menu.

Highlight OUTSIDE and press MENU. You will be directed to the Bus

Devices list, where the temp will now be shown as Out T. (Outside

Temp).

NOTE:

If your temp sensor is not updated on the Bus Devices list, refresh

the list by letting it time out and then access it again.

Displaying EP-80R Temp Sensor Data

You can display your temperature sensor data on the Gauge, Single

Digital and Dual Digital pages.

Page Screen Rotation

The Page Screen Rotation consists of multiple pages that have been set

for display. Once pages have been added to the rotation, they can be set

to scroll across the screen automatically or manually. Press the UP and

DOWN keys to manually scroll pages across the screen. Pressing the UP

key moves the scroll in one direction. Pushing the DOWN key moves the

scroll in the other direction. You can use Autoscroll if you want the

Inhaltsverzeichnis

Andere Lowrance Temperaturregler Handbücher

Lowrance

Lowrance EP-80R TH Kurzanleitung

Beliebte Temperaturregler Handbücher anderer Marken

Swegon

Swegon LUNAd MB Bedienungsanleitung

Lucky Reptile

Lucky Reptile Thermo Control II Bedienungsanleitung

SENSORMETRIX

SENSORMETRIX Argon 100 Bedienungsanleitung

Fuji Electric

Fuji Electric PXE4 Bedienungsanleitung

Yuyao gongyi

Yuyao gongyi XMT-808 series Bedienungsanleitung

Selec

Selec TC544C Bedienungsanleitung

P.W. KEY

P.W. KEY rt-208gt Bedienungsanleitung

Future Design

Future Design FDC-9200 Bedienungsanleitung

BH Thermal

BH Thermal BriskONE Bedienungsanleitung

Omron

Omron E5EX-H Bedienungsanleitung

West Control Solutions

West Control Solutions KS 45 Kurzanleitung

MCS

MCS RITC-15B Bedienungsanleitung

SMC Networks

SMC Networks Thermo-con INR-244-639 Bedienungsanleitung

eltherm

eltherm Ex-TC It Series Bedienungsanleitung

Omron

Omron C200H-TV Series Bedienungsanleitung

industrie technik

industrie technik CA1 Bedienungsanleitung

KRAL

KRAL EET 32 Bedienungsanleitung

dixell

dixell XR420C Verdrahtungsschema
