2 | LP Morgan user manual
LP Morgan Galleria Eclipse Installation/Operation Instructions
Information in this document is subject to change without notice.
© Herma Technologies. All rights reserved.
This document is protected against unauthorised copying electronic or otherwise.
Trademarks used in this text: Herma, the Herma Logo, Galleria, LP Morgan and LP
Morgan logo are registered trademarks of Herma Technologies.
Other trademarks and trade names used in this document remain the property
of the relevant owners.
Nov 2010 Version 1
Table of contents
To the owner 3
Unpacking 4
Assembly instructions 8
Mounting the screen 12
Screen Care 18
Warranty Information 19
LP Morgan user manual | 3
LP Morgan Galleria Eclipse Installation/Operation Instructions
To the owner
Congratulations on purchasing an Australian made LP Morgan Galleria
Eclipse Projection Screen. This cinema quality screen uses the finest optical
and mechanical components to give you a truly cinematic experience.
Please take a moment to review this manual, as it will ensure you many years
of service from your new LP Morgan Galleria Eclipse Projection Screen.
Required tools and parts
6 or more Screws to
suit Wall type.
(Screw heads must be
no higher than 4mm)
Spirit Level and pencil
for marking
Electric drill with drill
and driver bits
Safety first
• Ensure you have the correct voltages for your screen
• Wiring for Standard Motorised Screens (Wall Switch Version) must be done
by a qualified electrician
• Should foriegn matter fall into the unit, unplug it and have it checked by a
qualified technician before use
• Disconnect from the mains power using the plug . Don’t pull the cord!
• Work safely when installing the screen, use a ladder, be careful and wear
appropriate safety gear
• Please keep this book for future reference
4 | LP Morgan user manual
LP Morgan Galleria Eclipse Installation/Operation Instructions
Unpacking the Galleria
Supplied parts
3 x Wall Bracket
Bracing Bar
Frame Top
2 x Corner Brackets 3 x Frame Sections
1 x Plastic Drop Sheet
V-Grip Lengths
1 x Fabric Roll 1 x Goody Bag
LP Morgan user manual | 5
LP Morgan Galleria Eclipse Installation/Operation Instructions

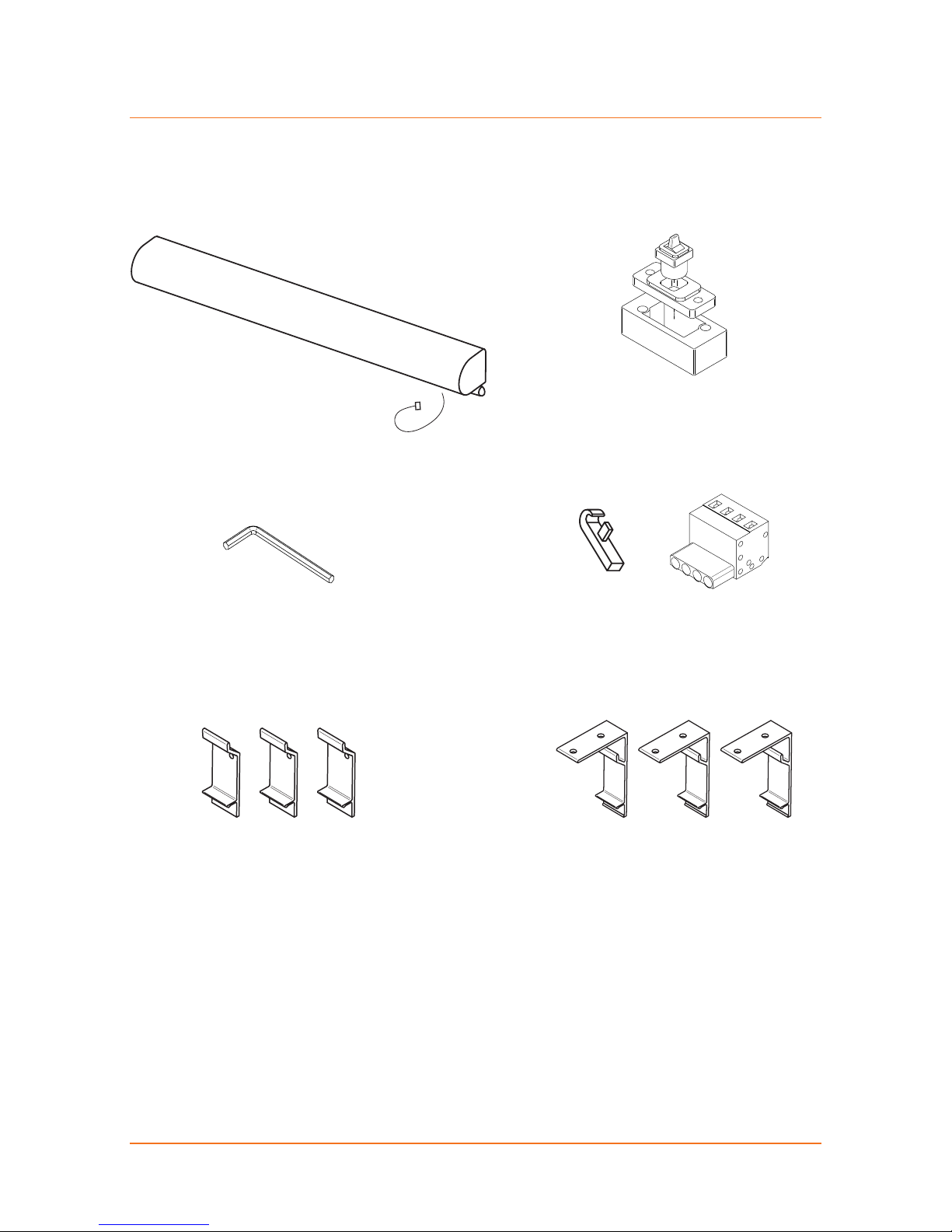

Rondo Standard Motorised parts supplied
4mm Allen Key Zwag connector with tool
Wall Switch & Surround
3 x Wall Brackets
3 x Ceiling Brackets
Screen unit with Zwag
connector
The Dropper Bar is secured for transit.
Remove all adhesive tape before installing your screen.
All mains wiring must be done by a licensed electrician.
Professional installation is recommended for this product.
6 | LP Morgan user manual
LP Morgan Galleria Eclipse Installation/Operation Instructions
Rondo CC EasyFit parts supplied
Screw Terminal connector
Limit Setting Tool
Screen unit with mains plug
and RJ9 data cable
3 x Wall Brackets 3 x Ceiling Brackets
The Dropper Bar is secured for transit.
Remove all adhesive tape before installing your screen.
All mains wiring must be done by a licensed electrician.
Professional installation is recommended for this product.
LP Morgan user manual | 7
LP Morgan Galleria Eclipse Installation/Operation Instructions

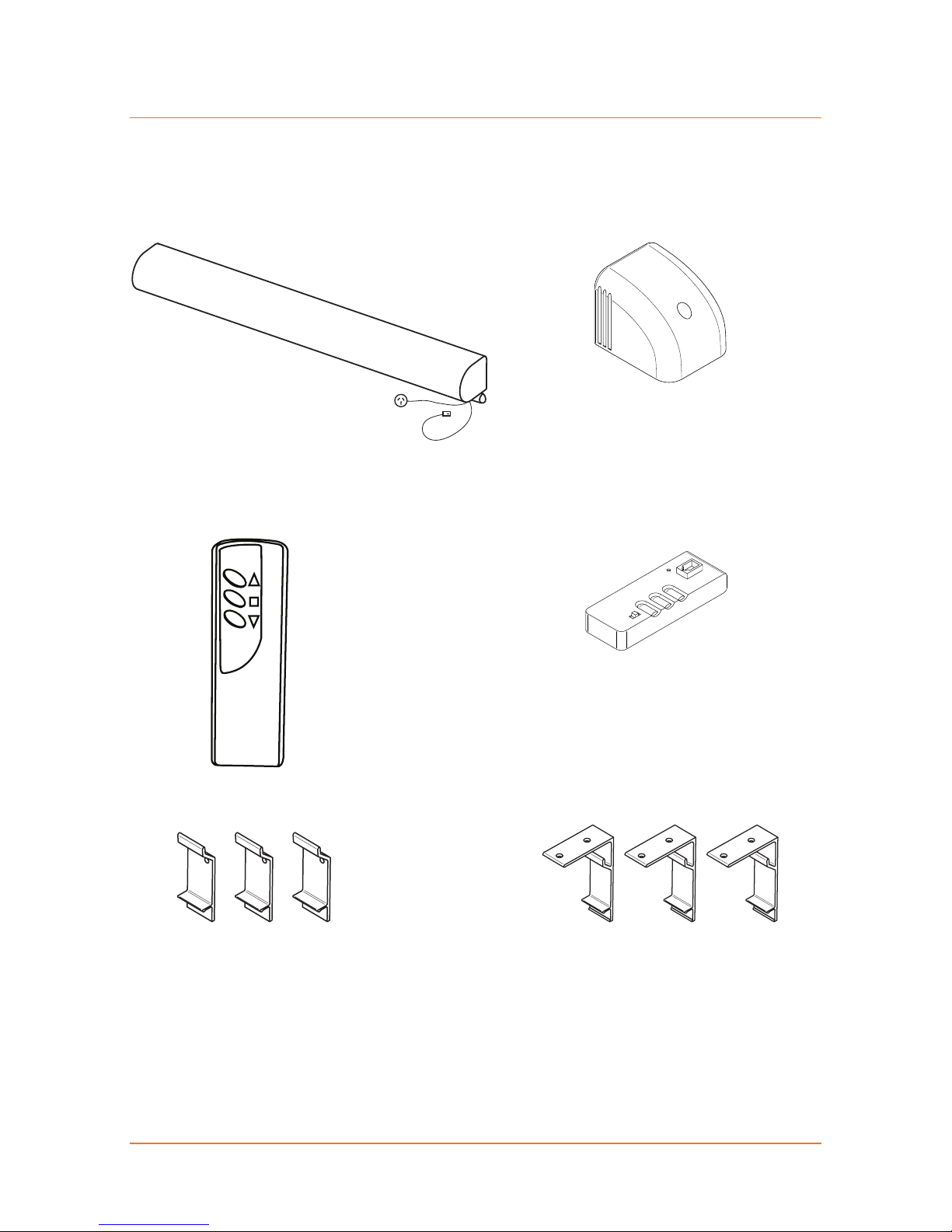

Rondo IR (Infra Red) EasyFit parts supplied
Limit Setting Tool
IR Sensor unit
IR Remote control
Screen unit with mains plug
and RJ9 connector
3 x Wall Brackets 3 x Ceiling Brackets
SOMFY
The Dropper Bar is secured for transit.
Remove all adhesive tape before installing your screen.
All mains wiring must be done by a licensed electrician.
Professional installation is recommended for this product.
8 | LP Morgan user manual
LP Morgan Galleria Eclipse Installation/Operation Instructions
Assembling the screen
Assemble the frame face down on a flat non abrasive surface use plastic drop
sheet if necessary. Please read the instructions carefully to avoid mistakes.
Insert corner brackets into the lower channel at each end of the longer
base frame.
Slide the bevelled short side frames into the each corner bracket - ensuring
the mitre joints are closed to a clean gap-free finish . Tighten each grub screw
of the corner brackets.
Complete the frame section by attaching the top channel to each end of
the side frames. Ensure the V-Grip channel is facing the outside of the
screen frame.
Measure the diagonals to ensure the frame is square and tighten all screws.
The screen frame is complete.
LP Morgan user manual | 9
LP Morgan Galleria Eclipse Installation/Operation Instructions
Correct insertion of V-Grip
Ensure the fabric is facing the right direction before
securing with the V-Grips.
The material is held in the frame with V-Grip. The V-Grip sits in its
special channel to hold the tension in the screen.
Novares screen fabrics have a white surface - FRONT, and a grey
surface - BACK. The white surface is the VIEWING surface!
Ensure the grey surface is facing up on top of the back, (channel-side)
of the frame.
Both the front of the frame and the front of the fabric should be
facing down!
Roll the screen material on to the back of the assembled frame. A sticker
usually indicates the viewing side, (usually white is the viewing surface and
grey is the back).
V-Grip in the wrong channel
Attaching the screen material (Novares Fabric)
10 | LP Morgan user manual
LP Morgan Galleria Eclipse Installation/Operation Instructions
12 3
4 5
6
7 8
Insert the V-Grips in the order shown
Trimming the screen material
Fabric Cutter
• Hold the fabric with one hand,
while sliding the cutter along the
inside edge of the frame.
• Avoid lifting up the fabric, as the
V-Grip may pop out.
Insert the V-Grips in the order shown below, commencing in the
middle of the bottom frame (1) and working to the left corner (2) and
then finishing the right corner (3). Trim the V-Grips to length if required.
Complete the left side (4) and then the right side (5).
The base and sides (1 – 5) should all be fastened
before proceeding.
Trim the TOP left and right corners of the fabric to enable the fabric to slide
underneath the bottom of the Frame Top bar and complete inserting the
remaining V-Grips, (6 – 7 – 8).
Be sure the screen is tensioned correctly before trim.
Trim the excess material to approximately 30mm - 40mm of the waste side of
the V-Grips.
