LSC MANTRA LITE Bedienungsanleitung

Lighting Control

for LEDs, Moving Lights & Dimmers

Quick Start Guide

Version V 1.1 June 2016

Mantra Lite Quick Start Guide

Document number: MAN-T01U-A2

Disclaimer

LSC Lighting Systems (Aust) Pty. Ltd. has a corporate policy of

continuous improvement, covering areas such as product design and

documentation. In light of this policy, some detail contained in this

manual may not match the exact operation of your product.

Information contained in this manual is subject to change without

notice.

In any event, LSC Lighting Systems (Aust) Pty. Ltd. cannot be held

liable for any direct, indirect, special, incidental, or consequential

damages or loss whatsoever (including, without limitation, damages

for loss of profits, business interruption, or other pecuniary loss)

arising out the use or the inability to use this product for its intended

purpose as expressed by the manufacturer and in conjunction with

this operating manual.

Servicing of this product is recommended to be carried out by LSC

Lighting Systems (Aust) Pty. Ltd. or its authorized service agents.

No liability will be accepted whatsoever for any loss or damage

caused by service, maintenance or repair by unauthorized

personnel.

In addition, servicing by unauthorized personnel may void your

warranty.

LSC Lighting Systems’ products must only be used for the purpose

for which they were intended

LSC Lighting Systems (Aust) Pty. Ltd.

ABN 21 090 801 675

65-67 Discovery Road

Dandenong South, Victoria 3175 Australia

Tel: +61 3 9702 8000 Fax: +61 3 9768 2631

email: [email protected]

web: www.lsclighting.com

Contents

1Overview ..................................................... 4

2Help............................................................ 4

3Undo........................................................... 4

4Getting Connected ........................................ 5

5Front Panel .................................................. 6

6Touch Screen ............................................... 7

7Controlling Fixture Intensity........................... 8

8Controlling Fixture Parameters ....................... 9

9Selecting Fixtures ......................................... 9

10 Controlling Colour........................................10

11 Controlling Pan/Tilt ......................................12

12 Automatic Fixture De-select ..........................13

13 Animate Apps..............................................13

14 Clearing Fixtures .........................................15

15 Recording Your Work ...................................16

16 Playback.....................................................17

17 Latest Takes Precedence ..............................20

18 Editing Cues................................................21

19 Save/Load ..................................................21

20 Patching Fixtures .........................................22

21 Fixture Editor ..............................................24

22 Rig View .....................................................24

Page 4

1Overview

This “Quick Start Guide” provides basic information on

patching, controlling intensity, colour & position,

creating a simple animation plus recording and

playback. Training videos plus the “Mantra Operation

Manual” containing full descriptions of all functions are

available at: mantralite.lsclighting.com

Mantra comes with a “Demo” show pre-loaded so that

you can familiarise yourself with the controls before

patching your own fixtures. If you don’t need the

demo show and want to patch your own fixtures now

go straight to section 20.

Mantra can control up to 24 lighting fixtures. The

fixtures that you control might be……

A conventional lighting dimmer.

A multi-colour LED fixture.

A multi-colour fixture with additional controls for

pan and tilt and/or beam shapes.

Each fixture is patched to a Yellow fader and button.

2Help

Context sensitive help is available on the touch screen

for many functions of the Mantra. Tap the button

to open the help screen. Tap to close.

3Undo

To quickly undo the last action double tap .

To undo more than one action tap once to see the

list of your actions.

Touch Undo to undo an action and step down the list.

Touch Redo to redo an action and step up the list.

Tap the [Back] button to finish.

Note: The undo list is automatically cleared whenever

you save your show, start a new show or load an

existing show.

Page 5

4Getting Connected

4.1 Power Input

Two models of MantraLite are available:

The MANTRA/LT has an IEC mains input (90

volts to 260 volts).

The MANTRA/LT/E has 12 volt DC power input.

An external mains power pack is supplied.

4.2 DMX 512 Output

Connect a DMX data cable from the DMX512 output

(one universe of 512 channels) to the DMX512 input of

your first fixture (dimmer, LED or Mover) and loop to

the next fixture/s. Only use specific DMX cable (never

use audio cable) and always terminate the end of the

DMX line. Set the required DMX addresses on your

equipment. Patch each fixture to a yellow fixture

fader. See section 20 for more details on patching.

4.3 Ethernet Network Connector

The RJ45 Ethernet connector can be used to output

Streaming ACN (sACN) and ArtNet. These are lighting

control protocols that send DMX lighting data over a

network or to a lighting visualiser program running on

a computer. It can also be used to connect the

MantraLite to the internet to upload custom fixture

templates. See the “Mantra Operator Manual” at

mantralite.lsclighting.com for details.

4.4 USB Connectors

The two USB connectors can be used to connect:

A USB keyboard.

A memory stick for show backup and software

upgrades.

A USB LED desk lamp (up to 250mA).

Page 6

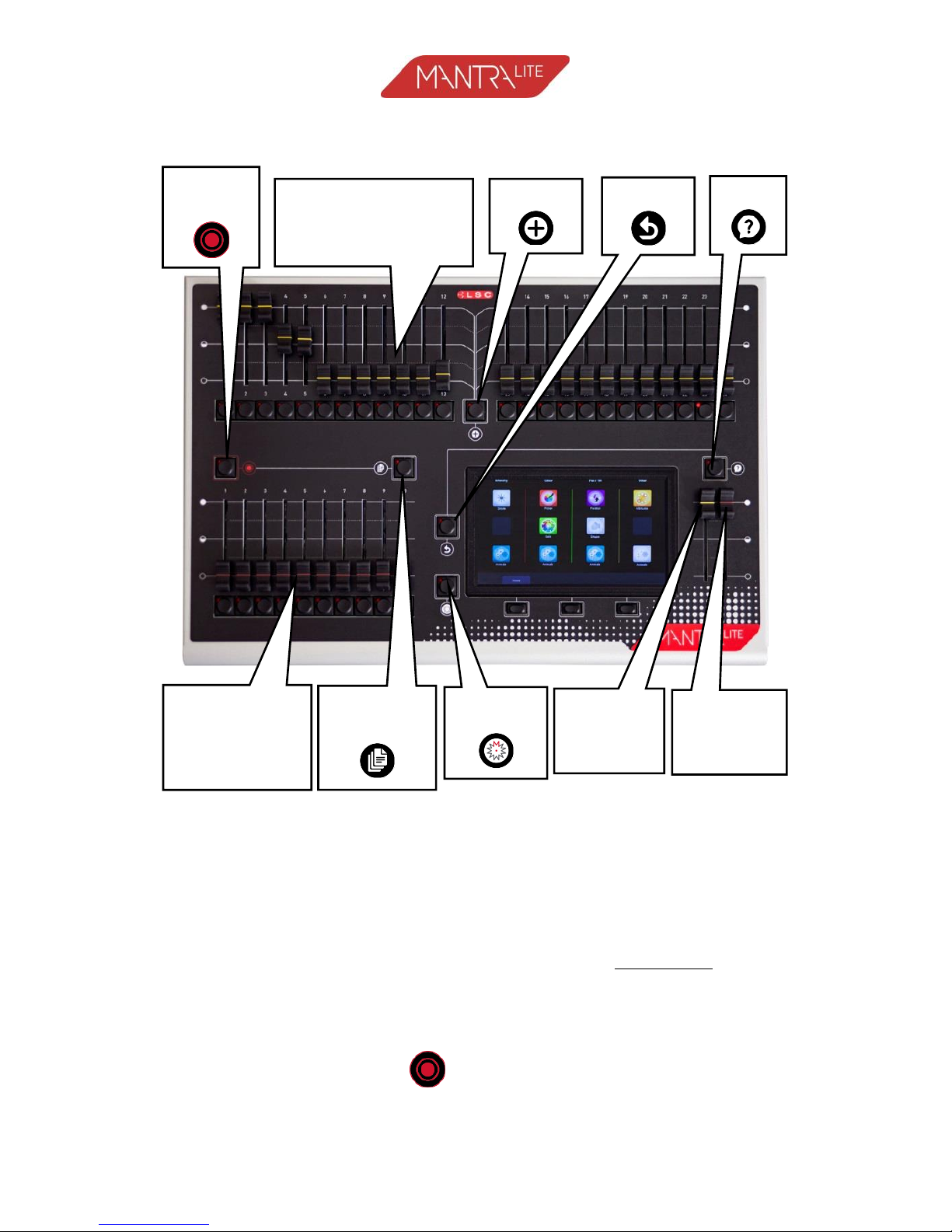

5Front Panel

The 24 Yellow fixture faders control fixture intensity.

Moving a fixture fader automatically selects that

fixture allowing its other parameters such as colour or

position to be controlled by Apps on the touch screen.

Moving a fader to zero deselects the fixture.

The Yellow “Fixture Master” has overall intensity

control of the yellow fixture faders.

The current output can be recorded into any of the Red

playbacks by tapping [Record] then tapping a Red

playback button of your choice [1-10].

24 Fixture Faders

and Buttons

(Yellow)

10 Playback

Faders and

Buttons

(Red)

Playback

Pages

Playback

Master

(Red)

Fixture

Master

(Yellow)

Record

Output

Help

Undo

Touchscreen

Back

Select

Page 7

Different looks can be recorded on different Red

Playback faders so that you can easily change the entire

look on stage by using the Red Playbacks.

See section 15 for more details.

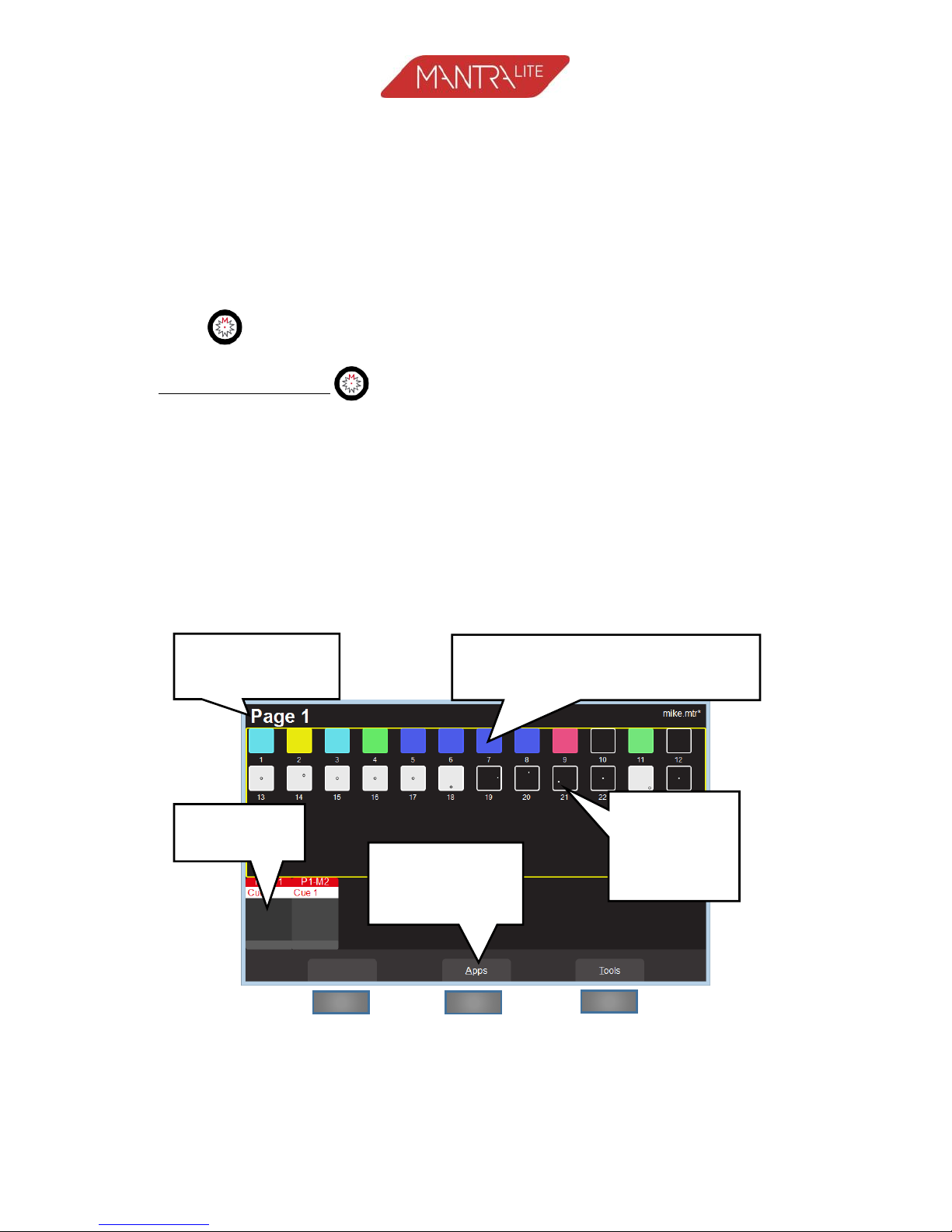

6Touch Screen

If the touch screen is not on the “Home” screen, tapping

the [Back] button steps back through the screens

to the “Home” screen.

Double tapping [Back] quickly returns to the “Home”

screen from any screen.

The “Home” screen is divided into two sections:

The top section (yellow border) has fixture icons

that show the intensity, colour and position (if

applicable) of the patched fixtures.

The bottom section shows the contents of the

red Playbacks.

The 3 buttons below the touch screen have different

functions for different screens. Their current function

Fixture Icons show intensity,

colour and position

Playback

Contents

Dot shows

position of

moving

fixtures

Red Playback

Page Number

Current

function of

button below

Page 8

is shown on the screen above each button. You can

tap the button or touch the screen to operate them.

Touching anywhere in the top “fixtures section” of the

“Home” screen or touching Apps opens the “Apps”

screen. Apps are used to control the parameters of

selected fixtures. Move a yellow fader to automatically

select that fixture. Use an App to adjust the

parameter. Other methods of selecting fixtures are

described in section 9.

The bottom section of the “Home” screen has Playback

icons showing the contents of each Playback (if any).

Touching any playback icon to modify it. See 16.2

7Controlling Fixture Intensity

The 24 (yellow) fixture faders (under the overall control

of the yellow fixture master) control the intensity of the

fixtures that are patched to them. To see the output of

a fixture:

Fade up the Yellow Master.

Fade up a fixture fader to set its Intensity.

7.1 Flash

When the touch screen is on the “Home” screen, the

buttons below the yellow faders act as intensity

[FLASH] buttons. You can set the flash intensity level

in the Tools/Setup screen.

If a red fader contains a single cue then its button acts

as intensity [FLASH] button.

If a red fader contains a cue-list then its button “steps”

the cue-list. See section 16.

Page 9

8Controlling Fixture Parameters

Mantra uses “Apps” on the touch screen to control the

parameters of selected fixtures. From the “Home”

screen, open the “Apps” page by touching anywhere in

the top half of the touch screen or touching Apps.

Apps Screen

There are 4 columns that have Apps for their type of

parameter:

Intensity, Colour, Pan/Tilt, Other.

Touch the App for the parameter that you want to

control.

9Selecting Fixtures

When you use an App, you need to select the fixtures

that you want to control with that App. Fixtures that

have attributes that can be controlled by the selected

App will flash their buttons indicating that they are

available for selection. When a fixture is selected its

button is lit. Multiple fixtures can be selected at the

same time. Fixtures can be selected using several

methods:

Move a yellow fader to automatically select that

fixture. Move the fader to zero to de-select it.

Tap the button below a yellow fader to select

that fixture. Tap again to deselect it.

“Clear”

See section 14

Page 10

To select a range of fixtures, hold the first

button and tap the last button in the range. This

work low to high number and high to low

number.

Tap [Select] to use previous selections or

to select None.

10 Controlling Colour

10.1 Picker

From the “Home” screen, open the “Apps” page

(described above) then touch the colour Picker app

icon. Fixtures that have colour attributes will flash

their buttons. Select the fixtures (described above)

then drag your finger to change the colour. The colour

is selected when you lift your finger from the screen.

The side of the colour picker app shows the recently

selected colours. Touch any of the recent colours to

re-use them.

10.2 Fan

When multiple fixtures are selected you can fan their

colours to create rainbow effects.

Recently

selected

colours

Fine Control

Fan

Red Green Blue sliders

for individual control

Andere Handbücher für MANTRA LITE

Inhaltsverzeichnis

Andere LSC Beleuchtungsausrüstung Handbücher

LSC

LSC Smart Connect 3008407 Bedienungsanleitung

LSC

LSC MANTRA LITE Bedienungsanleitung

LSC

LSC Minim Bedienungsanleitung

LSC

LSC maXim Bedienungsanleitung

LSC

LSC SC-816 Bedienungsanleitung

LSC

LSC Light Station Bedienungsanleitung

LSC

LSC REDBACK REDPLATE Bedienungsanleitung

LSC

LSC Gen VI Betriebsanleitung

LSC

LSC Atom 12/24 Bedienungsanleitung

LSC

LSC CIP-39900AT Bedienungsanleitung

LSC

LSC 970800 Bedienungsanleitung

LSC

LSC Smart Connect 6125000200 Bedienungsanleitung

LSC

LSC Mantra Wing Bedienungsanleitung

LSC

LSC 6125000100 Bedienungsanleitung

Beliebte Beleuchtungsausrüstung Handbücher anderer Marken

Brizo

Brizo 8SP-MU-4 Bedienungsanleitung

LUCE&LIGHT

LUCE&LIGHT BROM 1.0 Bedienungsanleitung

IKEA

IKEA BJÖRKSPIREA Bedienungsanleitung

Laserworld

Laserworld Evolution Series ES-400RGB Bedienungsanleitung

Alien

Alien RG STAR Bedienungsanleitung

EuroLite

EuroLite LED B-40 Bedienungsanleitung

Qazqa

Qazqa Suplux SL 3 Black 103062 Bedienungsanleitung

Commercial Electric

Commercial Electric 54568141 Bedienungsanleitung

CREE LIGHTING

CREE LIGHTING 304 Series Bedienungsanleitung

Goobay

Goobay 49867 Bedienungsanleitung

ECOMAN ITALIA

ECOMAN ITALIA LED T8 Bedienungsanleitung

Alkalite

Alkalite Krypton KT-81 Bedienungsanleitung

Clas Ohlson

Clas Ohlson GU10 Bedienungsanleitung

DTS

DTS DELTA 10 F Bedienungsanleitung

ring

ring Solar Steplight Bedienungsanleitung

One Stop Gardens

One Stop Gardens 57696 Montageanleitung

Chauvet DJ

Chauvet DJ COREpar UV120 ILS Bedienungsanleitung

SIREM

SIREM Swimeo A2 Bedienungsanleitung
