THE BOX
QR code
Part number
Product name
UNBOXING
• The Expander has removable top and bottom front plastics to cover screw housings.
• The Expander is housed in an IP65 rated box with knockouts for IP rated glands.
• 4 plastic screws are provided to secure the lid.
For more information, please refer to the complete product manual.
IMPORTANT TO CONSIDER
When mounting a wireless device a comprehensive radio survey
should have been carried out to establish the location that provides
the best coverage and optimum reach. Taking into consideration the building
structure and materials, the survey identifies the wireless infrastructure
required and product locations for optimum performance, identifying
any factor that could prevent radio integrity.
Avoid fixing or mounting the unit close to the following:
• Equipment that utilises large electrical currents
• Large metal objects or structures
• Fluorescent lighting fittings
• Metal ceiling structures
• IT cabling.
Keep 2 meters minimum spacing between other wireless equipment
in the area to avoid signal interference.
EN54 approved environmental temperature range is -10°C to +55°C

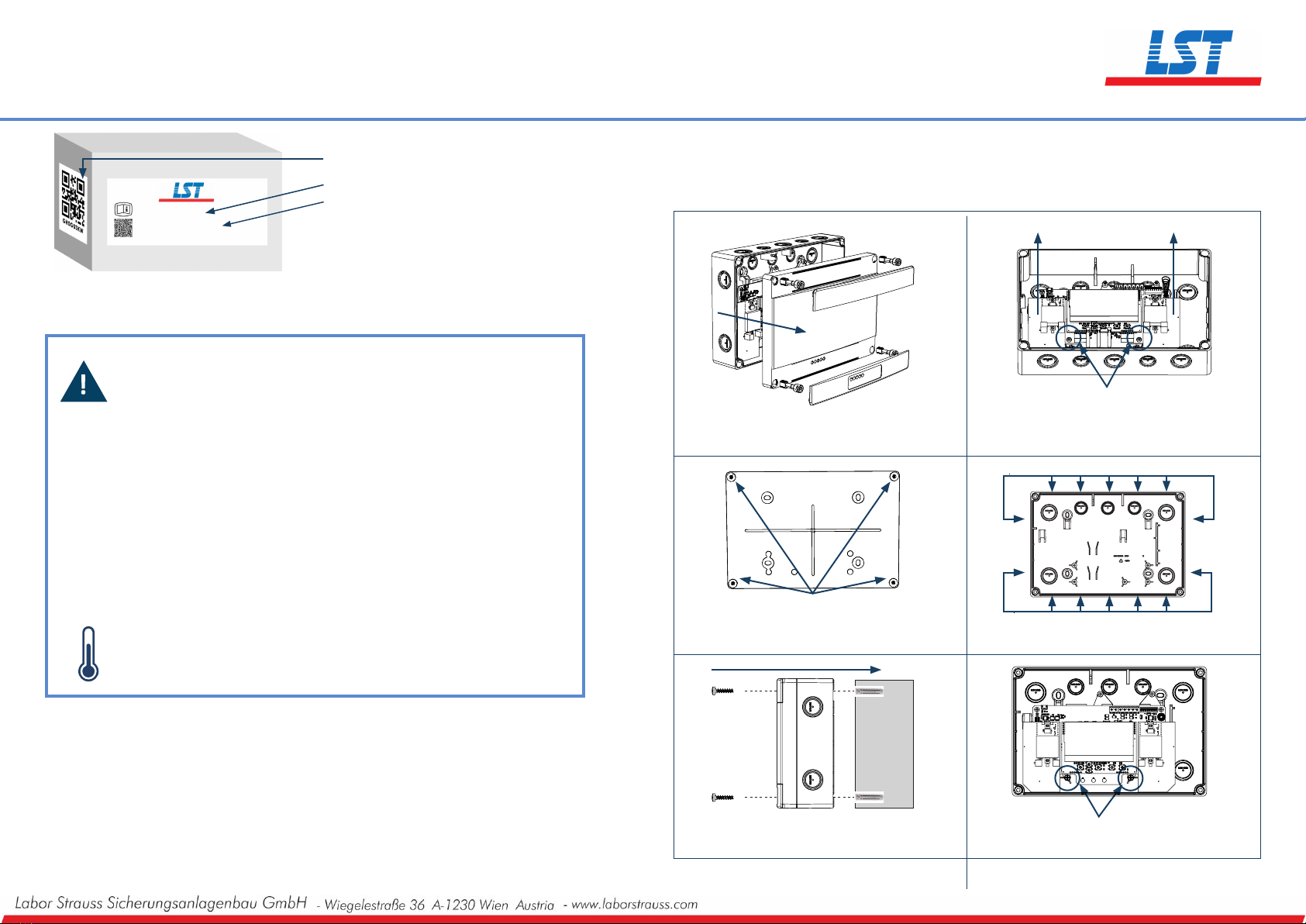

MOUNTING STEPS
The Expander Module is IP65 rated, suitable for external mounting. The back box must be installed on the wall as flat as possible
to retain IP rating, to prevent distortion of the housing and the ingress of contamination and/or moisture.
Proceed as follows to complete the device installation.
Remove top and bottom front plastics that cover screws,
unscrew all four screws and remove the lid from the back box.
.
1
3
2
4
5
Using a suitable-sized drill bit (4mm) drill the pre-defined
screw mounting points in the 4 corners of the backbox.
6
SCREWS
Remove the electronic PCB assembly from the enclosure.
The PCB is held by two Philips screws below the display,
it then slides up and out.
Prepare apertures (20mm knockouts) required for cable
access and fit appropriate rated glands.
Screw the back box to the wall using all fixing holes
and appropriate-sized roundhead screws (do not use
countersunk screws). Insert cable, tighten glands and refit PCB and securing screws.
MOUTING HOLES
SCREWS HOLES
NO
YES
INSIDE THE BOX
• 1 x Expander Module
• 4 x Screws
• 1 x Product Manual
• 1 x Quick start guide
• 1 x QR code
QUICK START GUIDE
FI750/RF/WE
WIRELESS EXPANDER
FI750/RF/WE
Wireless Expander
FI750-RF-WE_IA_EN--2020--Installationsanleitung.pdf
• Connect a wired EN54-4 compliant PSU to the appropriate
two terminals.
• There are also terminals for Fault Monitoring using a feed.
• You can now apply power to the EN54-4 compliant PSU.
7
9
8
10
Ensure the LED indicates that the discovery mode
is enabled, alternating green and yellow colors.
To benefit from the remote commissioning mode, ensure
you leave the Expander in “discovery” mode. Using the keypad
and the display system:
• Press “select” button.
• Insert level 1 password (default 0001), using the arrow buttons
and confirming with “select” button.
• Select “Expander Config” using the arrow buttons
and press “select” button.
• Select “Set Discovery Mode” using the arrow buttons
and press “select” button.
• Insert level 2 password (default 0002) using the arrow buttons
and confirm with “select” button.
• Select discovery channel A (or B or C depending on survey
results) using the arrow buttons and confirm with “select” button.
• Press “select” button to start “discovery” mode as shown on the screen.
• Press “select” button again to confirm.
• Screw the lid to the back box using the supplied plastic
screws and refit top and bottom front plastics that cover
screw housings.
• Put the QR code available in the box either on the system
map or on the dedicated pages at the end of expander
manual.
GREEN LED YELLOW LED
DISPLAY
LEFT
DOWN
RIGHT EXIT SELECT
UP
MAINS FAULT
PULL-UP TO 3V3 BATTERY FAULT
BATTERY
CHARGER FAULT
BATTERY O/C
ext. power (-)ext. power (+)
QUICK START GUIDE
FI750/RF/WE
WIRELESS EXPANDER
FI750-RF-WE_IA_EN--2020--Installationsanleitung.pdf
