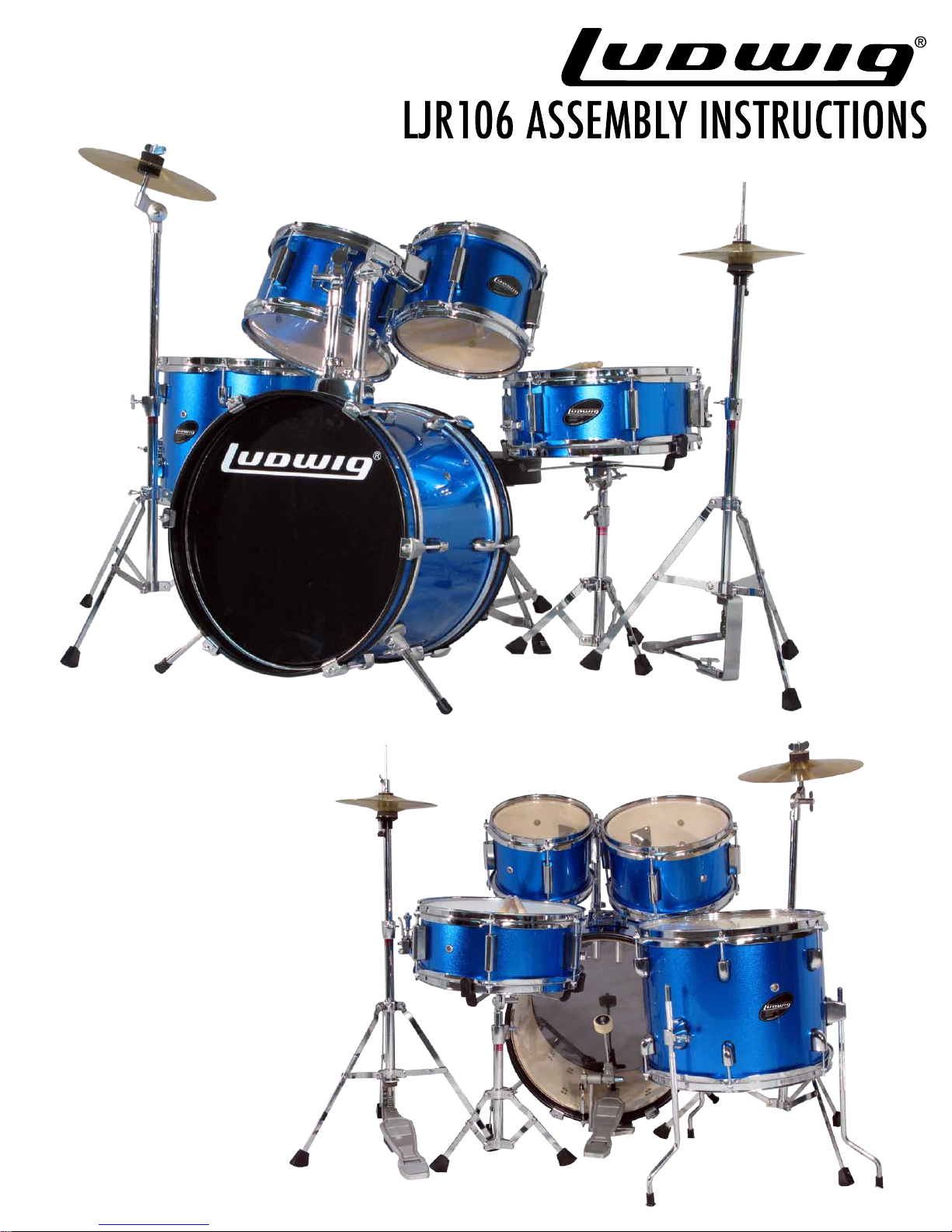

LJR106 AssembLy InstRuctIons
bAss DRum AssembLy InstRuctIons

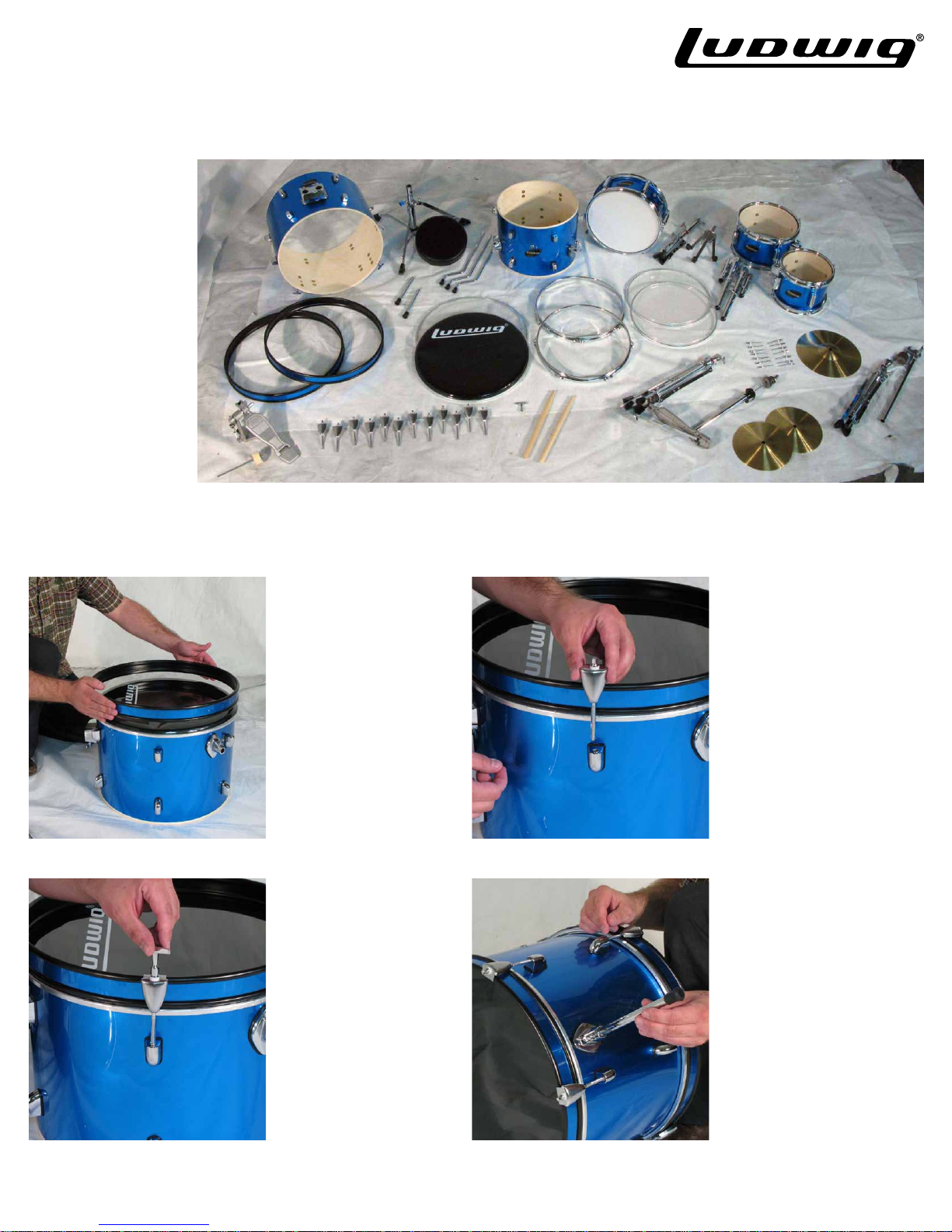

PARts
1) Place the Bass Drum (1)
at on the oor to attach
the heads (3a-b) and hoops
(2). You will want to seat the
Ludwig logo head (3a) on
the front of the bass drum,
closest to where the spurs
will be on the shell. Place the
hoop (2) on top of the head
and make sure it sits evenly.
3) After you have hand
tightened all of the tension
rods, use the drum key (26)
to apply more tension to the
head. Repeat steps 1,2 & 3
for the batter side head (3b)
(opposite side, closest to
player).
2) Bass tension rods (4) are
longer in length than the oor
tom rods and should have a
white washer on them. Place
them thru the claw hooks,
then place the claw hooks on
the hoop (2) straight in line
with the bass drum lug. Hand
tighten the tension rod into
the lug; repeat all the way
around the drum.
4) Insert one bass drum
spur (5) (leg) on each side
and hand tighten them with
the T-handle located on the
bracket.
1) Bass Drum
2) Bass Drum Hoops
3) Bass Drum Heads
a. Front
b. Back
4) Bass Drum Tension Rods
& Claw Hooks
5) Bass Drum Spur
6) Bass Drum Pedal
7) Bass Drum Beater
8) Floor Tom
9) Floor Tom Key Rods
10) Floor Tom Hoops
11) Floor Tom Drum Heads
12) Floor Tom Legs
13) Tom 8”
14) Tom 10”
15) Tom Arms/Holders
16) Snare Drum
17) Snare Drum Basket
18) Snare Drum Base
19) Hi-Hat Stand Base
20) Hi-Hat Stand - Top
21) Hi-Hat 8” Cymbals
22) Cymbal Stand - Top
23) Cymbal Stand Base
24) 10” Cymbal
25) Drumsticks
26) Drum Key
1.
2.
3a.
3b.
4.
5.
6.
7.
9.
10.
8.
11.
14.
13.
15.
16.
18.
20.
21.
22.
23.
24.
25.
26.
19.
17.
12.
1.
LJR106 AssembLy InstRuctIons

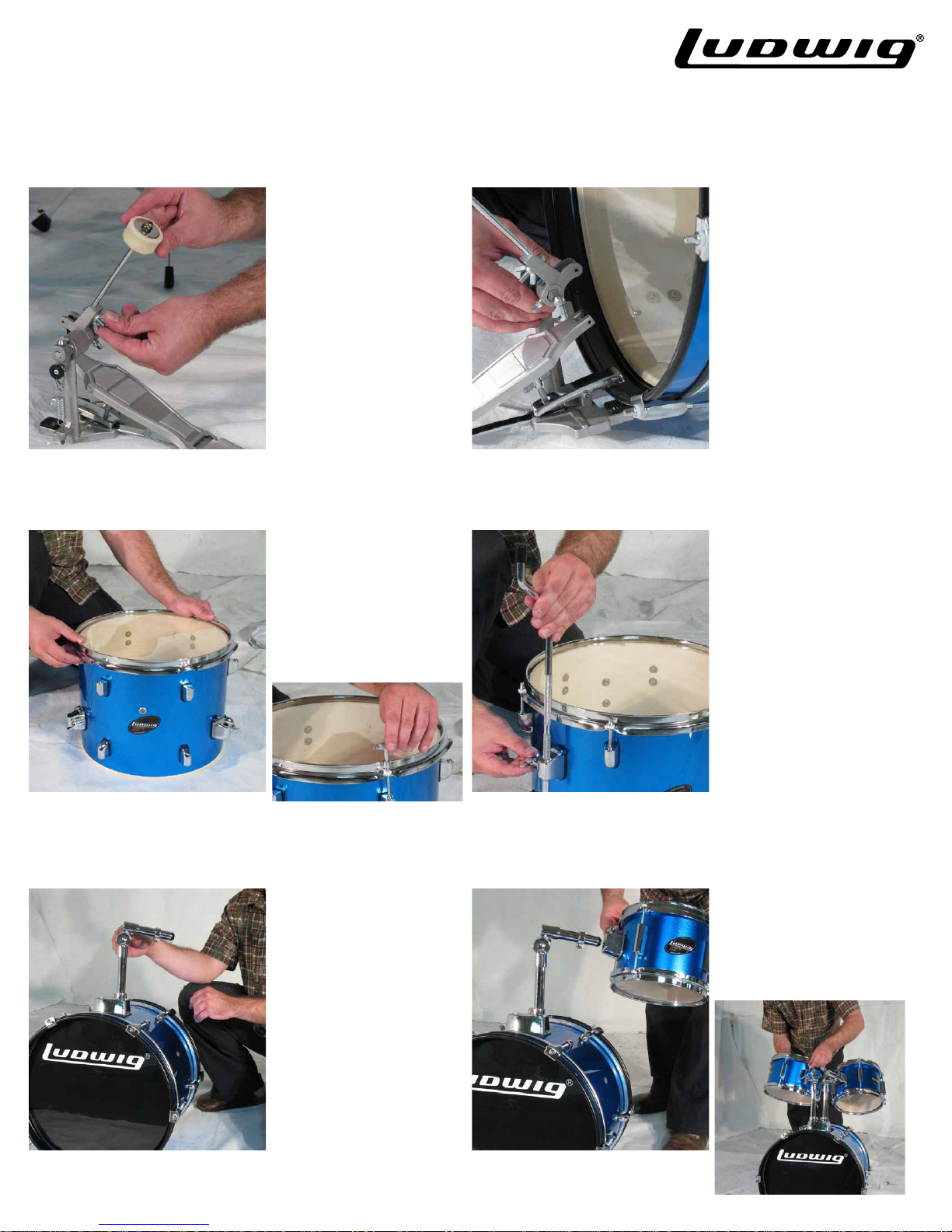

bAss DRum PeDAL AssembLy InstRuctIons
FLooR tom AssembLy InstRuctIons
RAck tom AssembLy InstRuctIons
5) Insert the bass drum
beater (7) into the top of the
pedal (6) and tighten the
wing screw.
7) For the oor tom (12), take
the two clear drum heads (11)
and use the same principals
as indicated in steps 1, 2 & 3
noted above. You will place
the chrome rim (10) on the
head of the drum, then insert
the key rods (9) thru the holes
of the rim and into the lugs on
the drum.
9) Insert the tom arm/holders
(15) into the bass casting
and tighten them down.
6) Insert the pedal onto the
bottom of the bass drum rim.
The base of the pedal will go
beneath the bass drum and
the clamp will go over the top
of the rim. Use the T-handle to
fasten the pedal onto the rim.
Make sure it is aligned evenly
between the two bottom
tension rods.
8) With the oor tom sitting
upside down, insert the three
oor tom legs (12) thru the
brackets and tighten them in
using the T-handle.
10) Insert the toms (14 & 15) into
the tom arms and tighten them
down using the T-handles on the
tom brackets. Once everything is
setup you will want to adjust the
height of the toms according to the
size of the player.
2.
LJR106 AssembLy InstRuctIons

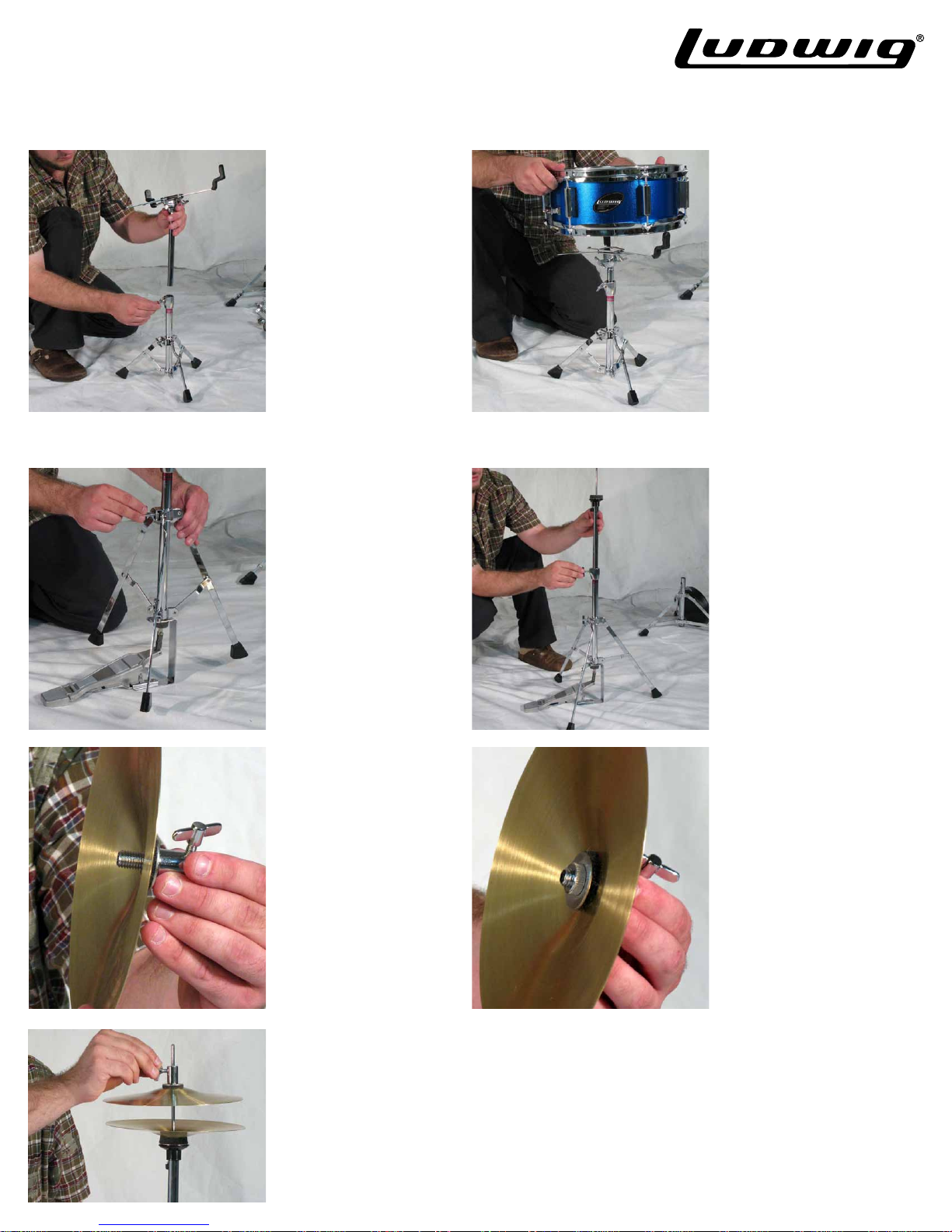

snARe stAnD AssembLy InstRuctIons
HI-HAt AssembLy InstRuctIons
11) Take the top basket
section (17) of the snare
stand and insert it into the
bottom half base of the
stand (18). Adjust the height
by tightening the T-handle
located at the top portion of
the base of the snare stand.
13) For putting together
the Hi Hat stand, begin by
folding out the three legs
located on the bottom half of
the stand (19). Once the legs
are touching the oor use
the T-handle to tighten them
down for stability.
15) Now you’re ready to
place the Hi Hat cymbals
(21) onto the Hi Hat stand.
Remove the bottom stop nut,
metal washer and felt washer
from the Hi Hat clutch and
insert the clutch thru the top
Hi Hat cymbal.
17) Place the bottom Hi Hat
cymbal onto the stand/upper
pull rod. Then place the top
cymbal on top of that and
you are nished with the Hi
Hat stand.
12) Place the snare (16)
evenly on top of the snare
basket.
14) There is a thin metal
upper pull rod that you
tighten into the base of the Hi
Hat stand (20). After you’ve
done this, place the upper
tube over the top of this pull
rod and down into the base
of the stand. Simply tighten
down the T-rod located at the
top of the base of the stand to
hold the upper tube in place.
16) Place the other felt thru the
bottom of the clutch and make it so
it is in contact with the bottom of the
cymbal. Following that, place the
metal washer provided onto the felt
and tighten the stop nut onto the
clutch and against washer.
3.
LJR106 AssembLy InstRuctIons

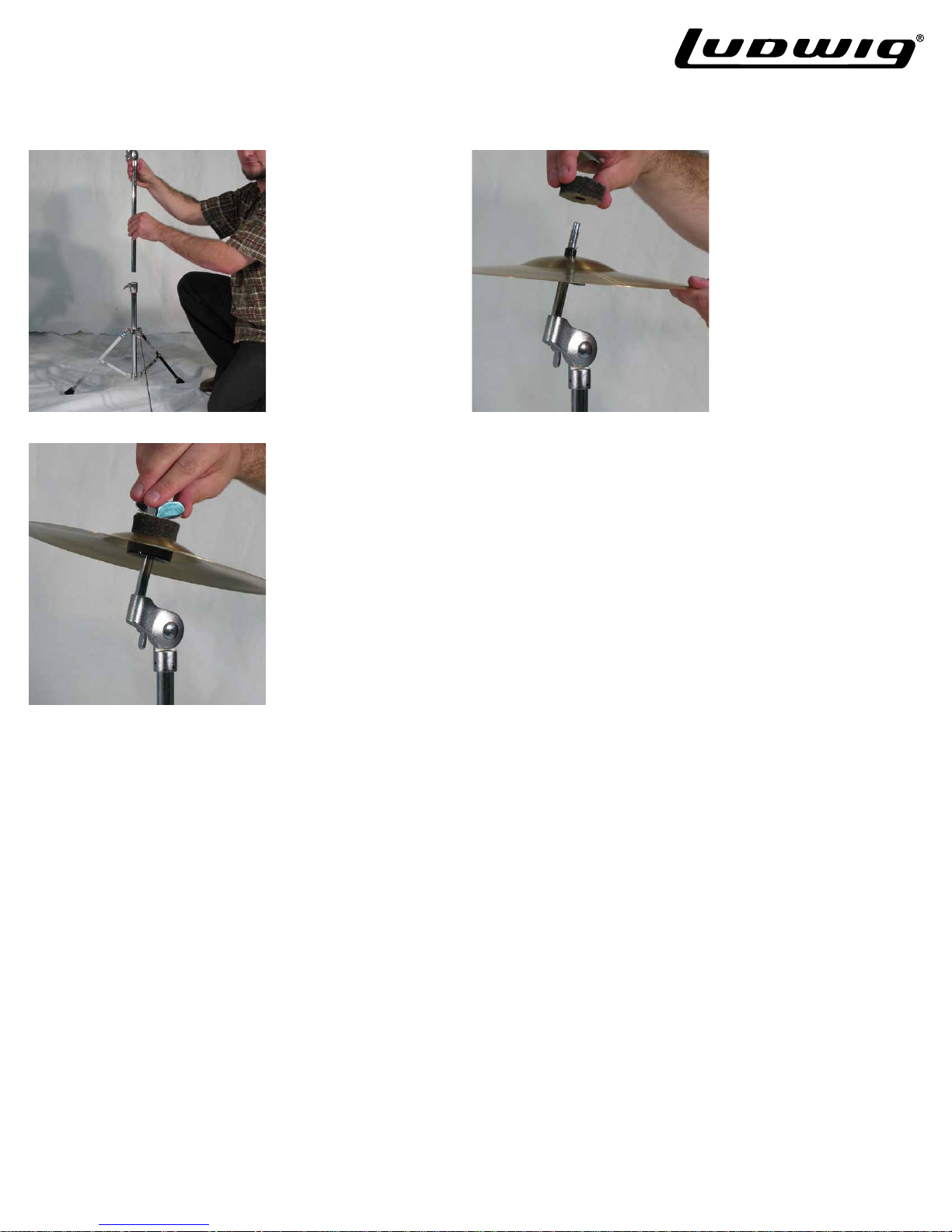

cymbAL stAnD AssembLy InstRuctIons
18) All that’s left now is
the cymbal stand, you are
almost there! Simply place
the upper tube (22) thru the
bottom base (23) and tighten
the T-handle to hold the
upper tube in place.
20) Tighten down the wing
screw at the top of the stand
and you are ready to play!
19) Place the 10” cymbal
(24) on top of one of the
cymbal felts at the top of the
stand, then place the second
felt on top of the cymbal.
4.
