LulzBot TAZ Pro S Bedienungsanleitung
START HERE
®
LulzBot TAZ Pro S | 1
Welcome to the LulzBot Community
Thank you for choosing the LulzBot
®TAZ Pro S Printer. This Quick Start Guide will familiarize you with
the proper use and operation of your LulzBot TAZ Pro S. By the time you nish, you will have completed a
calibration test on your new printer.
Complete documentation is available online at LulzBot.com/downloads. If you have questions while
setting up your LulzBot TAZ Pro S, please contact our technical support team by emailing [email protected] or by
calling 1 (970) 377-1111 ext. 2. Learn more at LulzBot.com/Support.
Read the included User Safety Sheet completely before beginning the Quick Start Guide.
i
!
LULZBOT®
2 | LulzBot TAZ Pro S
1LulzBot TAZ Pro S Key Components
USB Flash Drive Port
Color Touch Screen
Power Switch
USB Port (back)
AC Power Port (back)
Tool Head
Aluminum Frame
LulzBot TAZ Pro S | 3
1Printer Anatomy
Cartesian Coordinate System
The LulzBot TAZ Pro S can move on three linear axes: X, Y, and Z.
i
ZX
Y
* Optional Pro Dual Extruder available at LulzBot.com
Extruder 1 Filament Guide Tube
Filament Run Out Sensor
Extruder 2 Filament Holder*
Automatic Calibration Cube
Extruder 1 Filament Holder
Modular Print Bed
4 | LulzBot TAZ Pro S

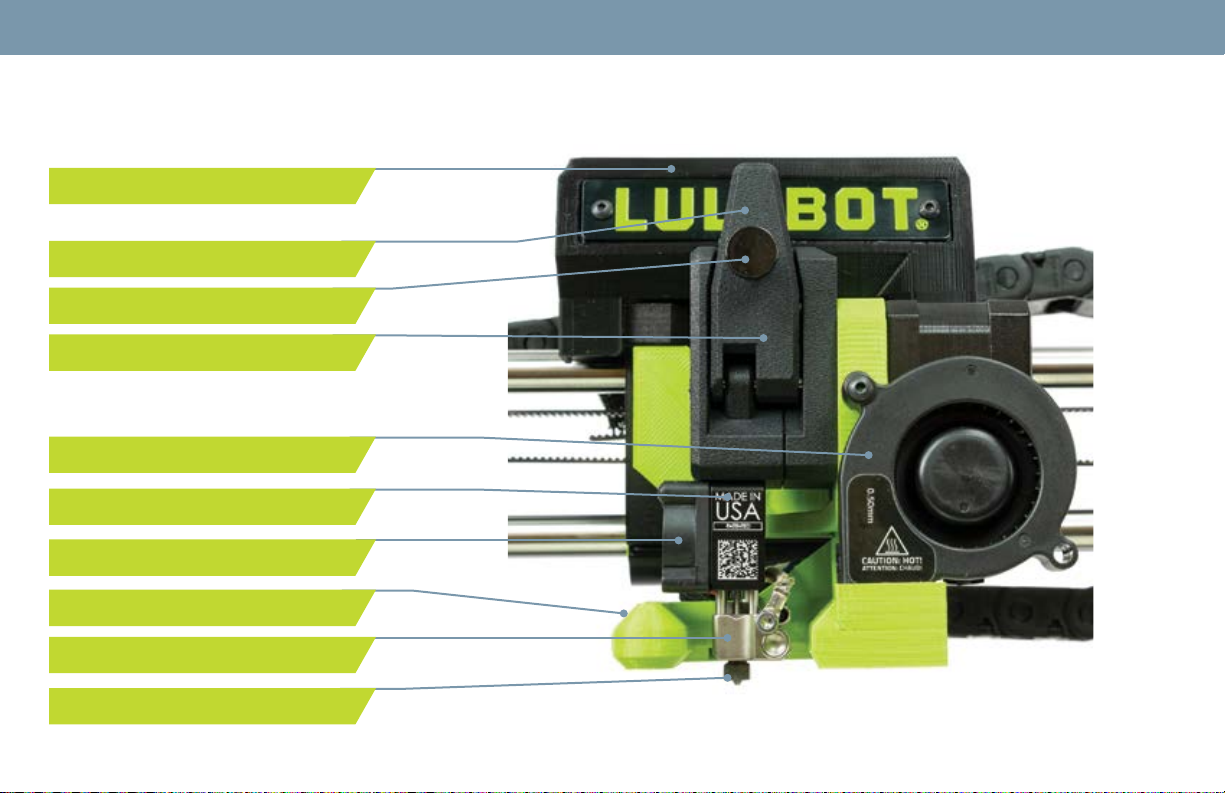

Tool Head Key Components
Filament Gear Door
Quick Release Lever
Filament Tension Knob
Part Cooling Fan
Extruder Heat Sink Fan
Part Cooling Fan Shroud
Extruder Heater Block
Extruder Nozzle
Tool Head Cover
Extruder Heat Sink
LulzBot TAZ Pro S | 5
1Printer Anatomy
Your LulzBot TAZ Pro S M175
Extruder automatically
calibrates in three ways: using
the washers at each corner of
the modular print bed system,
the automatic calibration
cube, and by leveling the X-axis
gantry before each print. These
features ensure the highest
quality printing possible without
the need for manual calibration.
i
Do not use metal to clean the
nozzle on your tool head. Metal
will short the self-leveling
function and can blow an
internal fuse or damage your
printer.
!
Quick Release Lever
Filament Tension Knob
Extruder Heat Sink Fan
Filament Path
Extruder Heater Block
Extruder Heater Cartridge
Extruder Nozzle
6 | LulzBot TAZ Pro S
2Unpack your LulzBot TAZ Pro S Desktop 3D Printer
2.1 Place printer box on its side and carefully open the top of the box. Use the two black straps wrapped
around the printer to remove it from the box. Once it has been removed, open the straps by pulling on the
tabs.
2.2 After removing the protective
cardboard from the printer,
remove all additional contents.
Tool Kit
1.75mm PLA Filament Sample
USB Flash Drive
USB Cable
Power Cord
1.75mm Guide Tube
2.85mm Guide Tubes
LulzBot TAZ Pro S | 7
2.3 Stand the printer up and carefully remove the packaging foam from the top of the printer A. Remove
the central foam B by peeling it away starting at the side closest to the tool head. Conrm all items on the
included Packing List have been removed from the box.
2Unpack Your Printer
Save all of the provided
packaging materials and box! In
the case that warranty service is
needed, the 3D printer must be
shipped in its original packaging.
!
A
B
8 | LulzBot TAZ Pro S

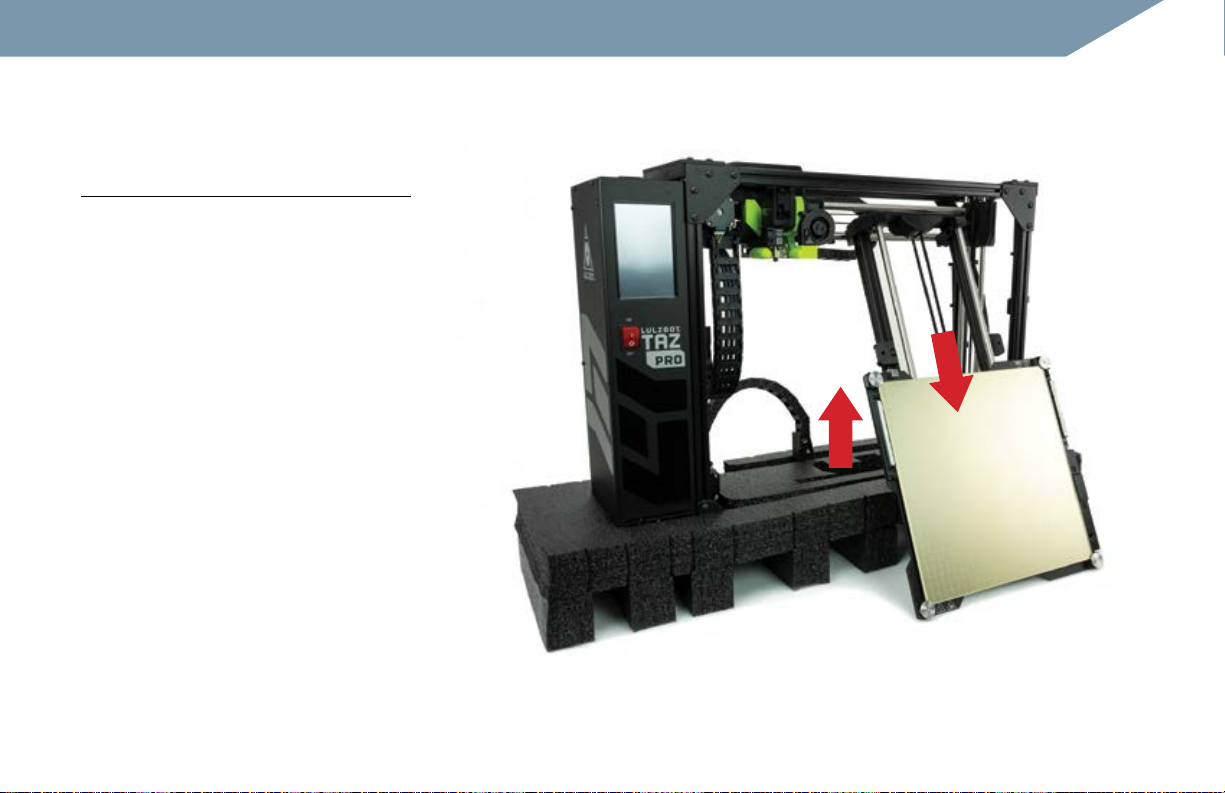

2.4 Slide the modular print bed
up out of the lower foam as you tilt
the Y-axis assembly away from the
tool head. Lift the Y-axis assembly
out of the lower foam, then lower
the bed and remove it from the
printer frame. Once the modular
print bed is clear, lift the printer
from the nal piece of packaging
foam.
