DK-114N series - Development Kit Manual

Development Kit Manual

DK-114N-1 and DK-114N-3

Overview

Big Chip LEDs from Luminus Devices have been designed

from the ground up to enable a new class of illumination and

projection systems. Beneting from a suite of innovations in

chip technology, packaging, and thermal management, Big

Chip LEDs allow designers to achieve ecient light engine

designs and deliver high brightness solutions.

The DK-114N series development kit is a comprehensive so-

lution designed specically to support the development of

single and three channel PT and CBT series Big Chip LEDs.

Each channel of the kit, comprising of a high current driver, an

ecient thermal management solution and cables is capa-

ble of sourcing a drive current of 14 A and ensures that CBT

and PT series LEDs are operated at up to 70 W for maximum

brightness. This plug and play solution can easily be connect-

ed to common laboratory equipment through standard con-

nectors and allows system designers to save weeks in their

development cycles.

Table of Contents

1. Key Features ..............................2

2. Development Kit Contents ................2

2.1 Heat Sink and Driver Board .............2

2.2 Cable Assembly ........................3

2.3 TIM and Mounting Hardware ...........4

3. User Instructions .........................4

3.1 Device Mounting Instructions ..........5

3.2 Electrical Connections ..................6

3.3 Operation .............................6

4. Appendix .................................9

1. Key Features

• Drive any CBT or PT series Big Chip LED up to 14 A

• Pulse frequencies of greater than 40 kHz possible

• Analog current control via on-board potentiometer or external voltage

• Simple current and voltage measurements

• Fast rise and fall times - less than 1 microsecond

• Fast current level switching - less than 5 microseconds

2. Development Kit Contents

The DK-114N-1 and DK114N-3 are similar in all aspects; while the DK-114N-1 supports one channel, the DK-114N-3 supports three channels.

All instructions in this manual are based on the DK-114N-1 and can easily be replicated in the DK-114N-3. As shown in Figure 1, the DK-

114N-1 consists of :

• Heat sink and driver board

• Cable assemblies

• Thermal interface materials and mounting hardware

• User Manual

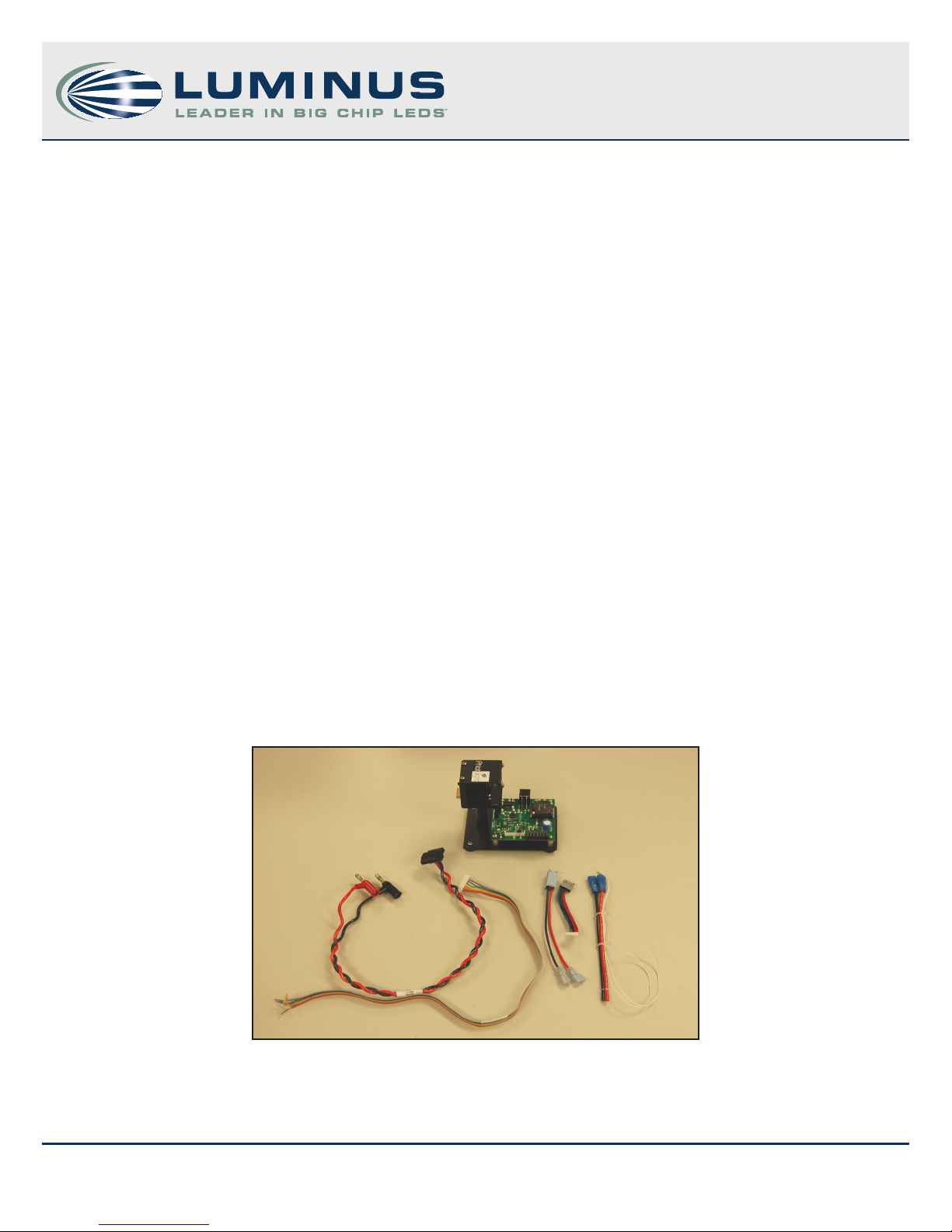

Figure 1: Contents of DK-114N-1

A list of contents of the development kit is given in Appendix A. This development kit is designed with exible features to allow easy

evaluation of the Big Chip LEDs but is not optimized for size or for direct integration into end products. However, the underlying circuit

Luminus Devices, Inc. • T 978.528.8000 • www.luminus.com

1100 Technology Park Drive • Billerica, MA 01821

DK-114N series - Development Kit Manual

and thermal design can be used as a reference by system designers; to this eect, design les including schematics, mechanical drawings,

and bill of materials are available upon request. PT, CBT, and CST series LEDs are built in the common anode conguration. To enable driving

these LEDs, the driver circuit, based on National Semiconductor’s LM3433 IC, is congured in the grounded common anode topology (refer

Appendix B), which enables anodes of multiple LEDs to be in electrical contact with each other without necessitating electrical isolation.

Further design support for the driver can be obtained at http://www.national.com.

2.1 Heat-Sink and Driver Board

The heat sink, measuring only 40 mm x 40 mm x 40 mm is a high performance, low cost, compact air cooled aluminum extrusion, and

enables signicant power dissipation to the ambient by virtue of its low thermal resistance (0.6 º C/W ). The bolt pattern on the front allows

for easy mounting of all CBT and PT series modules.

Figure 2: Heat sink Figure 3: Driver board

The driver board, designed with National Semiconductor’s LM3433 IC (Figure 3), is mounted close to the heat-sink allowing for minimal

cable lengths (<3”) which help prevent current ringing when pulsing LEDs. The driver board, because of its grounded common anode

topology, requires a -12 V DC input with respect to ground and can provide up to 14 A to LEDs in either CW or pulsed mode. PWM dimming

is achieved with a 0-5 V signal from a function generator and frequencies up to 40 kHz are supported. Figure 3 depicts the layout of the

driver board along with the commonly used pins and readouts. The signal pins are used to achieve external current control and provide

PWM dimming; the orientation of these pins is also shown, starting with pin 1(GND) on the left. Appendix C lists the pin-out for the signal

pins.

Note: The heat sink conducts power even though it is grounded.

2.2 Cable Assembly

Each development kit includes the following cables:

• Power supply to driver board cable

• Driver board to LED cables

• Signal cable

• Thermistor cable

Luminus Devices, Inc. • T 978.528.8000 • www.luminus.com

1100 Technology Park Drive • Billerica, MA 01821

DK-114N series - Development Kit Manual

The gures below illustrate the cables included in the DK-114N-1.

Figures 4-7: From left to right: Power supply to driver board cable, Signal cable, Driver board to LED cable, Thermistor cable

Figure 6 depicts two types of driver board to LED cables: the shorter cable (with either 8 - or 10- pins on the LED connector) on the left,

used with LEDs such as PT39, PT40, CBT-40 and PT54, and the longer cable with the two spade connectors on the right, used with LEDs

such as the CBT-90, PT-120 and CBT-120. There are ve dierent variants of the shorter driver board to LED cable : 960011 to be used with

PT39, PT54 and CBT-40; 960043 to be used with PT40-RA; 960044 to be used with PT40-G/B; 960045 to be used with PT54-TE-RA and 960046

to be used with PT54-TE-G/B. These ve cables have labels that contain the cable number and the LEDs to which they connect--users must

match the LED they use to the appropriate cable since connecting an incorrect cable can damage the LED. For optimum performance, and

to avoid ringing when pulsing the LEDs, increasing the length of the driver board to LED cable is not recommended.

2.3 Thermal Interface Material (TIM) and Mounting Hardware

The development kit includes precut sheets of eGraf HiTherm 1205, a high performance thermal interface material, and M2x5, M2.5x6

screws required for mounting the LEDs.

Figure 7: TIM sheets

3. User Instructions

The following sections explain the set-up and operation of the DK-114N-1 Development Kit. Additional lab equipment such as a 12 V

laboratory power supply, an oscilloscope, a waveform generator, a multimeter and a photodetector are required to power and use the

DK-114N-1. Table 1 lists a recommended model for the equipment and Appendix D provides an additional list of compatible power

supplies. The use of a table equipped with ESD protection is recommended.

Luminus Devices, Inc. • T 978.528.8000 • www.luminus.com

1100 Technology Park Drive • Billerica, MA 01821

DK-114N series - Development Kit Manual

3.1 Device Mounting Instructions

Ineective heat sinking may lead to premature LED degradation or failure. The following steps explain how a device is mounted on the

heat sink while ensuring good thermal contact between the copper core-board and the heat sink:

1. Use a thermal interface sheet that is slightly larger than the core-board (Figure 7).

Figure 8: PT-39 LED and an appropriate TIM sheet

2. The heat sink surface must be free of dust particles. Place the thermal interface sheet on the heat sink with its pre-drilled holes matching

the holes on the heat sink .

3. Place the device on the thermal interface sheet.

4. Insert screws in the holes of the coreboard and tighten. To ensure equal pressure is exerted by all screws, alternate tightening each screw

until the board is securely fastened. The device is now mounted and ready for electrical connections (Figure 9).

Figure 9: LED mounted on heat sink

Luminus Devices, Inc. • T 978.528.8000 • www.luminus.com

1100 Technology Park Drive • Billerica, MA 01821

DK-114N series - Development Kit Manual

Table 1: Additional Lab Equipment

Lab Equipment Model

12 V Lab Power Supply Lambda ZUP20-20

Oscilloscope Tektronix TDS 3024B

Waveform Generator Agilent 33220A

Multimeter Fluke 187

Photodetector Thorlabs PDA10A

3.2 Electrical Connections

1. The power supply being used must be capable of providing sucient power to drive the LED. Preset the output voltage to 0 V and keep

the power supply switched o until all connections are established. The positive terminal of the power supply should be at ground; the

negative terminal would then supply a negative voltage with respect to ground.

2. Connect the driver board to the LED and the power supply using the cables provided in the kit . The choice of the driver board to LED

cables is based on the LED connector— LEDs such as PT-39, PT-54 and CBT-40 require the appropriate variant of the shorter 3 “ cable while

LEDs such as CBT-90, PT-120 and CBT-120 with the 2 pin spade connector require the longer cable. Figure 10 illustrates the electrical

connections to the driver board; while both types of driver board to LED cables are shown for illustration, only one is required.

Figure 10: Completed electrical connections on DK-114N-1

3. Use the jumper provided with the driver board to short signal pins 2 and 3 (see Figure 3 and Appendix C). These pins correspond to

Analog ADJ and POT; shorting them enables the on-board potentiometer. Alternatively, the jumper can be removed and signal cable can

be used to short the Analog ADJ and POT pins.

4. Set the POT to the minimum current setting by rotating it fully counter-clockwise. The embedded arrow should point towards the “10”

on the POT.

5. The development kit is now ready to be powered on. Turn on the power supply and increase the source voltage to -12 V with respect to

ground. The driver will draw about 1-2 A current.

CAUTION: Do not set the power supply higher -12 V; doing so may damage the driver.

3.3 Operation

The DK-114N-1 can be used to drive LEDs in continuous-current controlled mode via the on-board POT or through an external analog

voltage. Additionally, each channel has inputs for PWM dimming using an external function generator and supports frequencies up to

40 kHz.

1. Current control via the on-board POT is achieved by shorting the Analog ADJ and POT pins. Clockwise rotation of the POT increases the

current, while counter-clockwise rotation decreases the current.

Luminus Devices, Inc. • T 978.528.8000 • www.luminus.com

1100 Technology Park Drive • Billerica, MA 01821

DK-114N series - Development Kit Manual

CAUTION: The driver board is capable of providing 14 A to any LED. LEDs has dierent drive current limitations and care must be taken not

to exceed these limitations. Consult product data sheets for current and junction temperature limitations of specic LEDs.

2. To determine the current through the LED, measure the voltage across the sense resistor test studs (see Figure 3). Figure 11 shows the

relationship between the sense resistor voltage (Vsense) and the LED current, (ILED), which is also calculated using:

where the sense resistance, Rsense = 0.005 Ω.

Figure 11: LED Current as a function of Vsense

3. To control the current externally, connect the positive of a 0-5 V signal to the Analog ADJ pin and the negative to the GND pin, using

the signal cable. Figure 12 shows the relationship between the LED current and the external voltage.

Figure 12: LED Current as a function of External Voltage

Luminus Devices, Inc. • T 978.528.8000 • www.luminus.com

1100 Technology Park Drive • Billerica, MA 01821

DK-114N series - Development Kit Manual

Sense

LED R

4. To modulate the LEDs through PWM, connect the 0-5 V pulsed output of a waveform generator across the PWM and GND pins on

the signal cable, with the PWM pin at a positive voltage with respect to GND. 5 V represents O and 0 V represents On. The Analog

ADJ and POT pins must be shorted; this allows for the LED’s peak current to be controlled via the on-board POT. Proper operation is

best monitored by using a photo detector to observe the light output from the LED. Note: Exceeding 5 V on the PWM pin may cause

permanent damage to the driver board.

5. Coreboard temperature of the Big Chip LEDs is monitored using a Murata Manufacturing Co. thermistor (part number

NCP15XH103J03RC). When using the short 8-pin cable, the on board thermistor is connected to test points THRM1 and THRM2 on

the driver board. Signal Pins 7 and 8 are also thermistor test points and are equivalent to THRM2 and THRM1. Figure 13 shows the

relationship between the thermistor (coreboard) temperature and the resistance between the thermistor test points. Note that there

is a temperature rise from the thermistor to the LED junction; for guidance on estimating the LED junction temperature (Tj), refer to

appropriate product datasheets. To monitor coreboard temperature when using the two pin driver board to LED cable, the thermistor

cable (Fig 7) must be connected to the on board thermistor. The resistance across the cable’s leads can then be used to monitor

temperature.

Figure 13: Coreboard temperature as a function of thermistor resistance

Luminus Devices, Inc. • T 978.528.8000 • www.luminus.com

1100 Technology Park Drive • Billerica, MA 01821

DK-114N series - Development Kit Manual

Appendix A: Contents of DK-114N-1 and DK-114N-3

Appendix B: Grounded Common Anode Topology

PT, CBT and CST series Big Chip LEDs are built with a common anode conguration, where the copper coreboard is at a positive

electrical potential with respect the LED cathode. In a system with multiple LEDs in direct contact with a common heat sink, the

common anode conguration causes poses a challenge to electrically addressing and isolating individual LEDs. The driver board in

the DK-114N-1, based on National Semiconductor’s LM3433 IC, addresses the challenge of connecting multiple common anode LEDs

by utilizing a grounded common anode topology, i.e., the anode is kept at ground and the cathode is at a negative potential, thus

enabling LEDs to be in contact directly with the heat sink. A basic schematic, using three grounded common anode LEDs is shown

below in Figure 14. It is important to note that while the heat sink is at ground, there is still power passing through it.

Figure 14: Grounded common anode conguration

Luminus Devices, Inc. • T 978.528.8000 • www.luminus.com

1100 Technology Park Drive • Billerica, MA 01821

DK-114N series - Development Kit Manual

Table 2: Table of Contents

DK-114N-1 DK-114N-3

Description Quantity Quantity

Driver board 1 3

Heat sink with mounting screws 1 3

Power supply to driver board cable 1 3

Driver board to LED cable (short, 8-pin

or 10-pin LED connector)-ve variants 1 each 3 each

Driver board to LED cable (long, for 2-

pin spade connector) 1 3

Signal cable 1 3

Thermistor cable 1 3

TIM sheets 412

User Manual 1 1

Appendix C: Driver Board Pin-out

Appendix D: Isolated AC/DC Power Supplies

Table 3 lists a few isolated AC-DC power supplies. A power supply with isolated outputs is required to properly drive the common anode

LEDs and failure to use an isolated power supply may damage the driver board. For best eciency, select a power supply that closely

matches the required power.

Luminus Devices, Inc. • T 978.528.8000 • www.luminus.com

1100 Technology Park Drive • Billerica, MA 01821

DK-114N series - Development Kit Manual

Table 4: Isolated AC/ DC power supplies

Power Manufacturer Input Output V/I Size Mounting Part #

30 W CUI Inc.

85-264 VAC

(47-400 Hz) 12 V / 2.5 A 3.7” x 2” x 0.85” Thru-hole/SMT FSK-S30-12U

50 W Omron

85-264 VAC

(47-63 Hz) 12 V / 4.2 A 5” x 3.34” x 1.57” DIN Rail S8SP-05005

50 W Lambda Power

90-264VAC

(47-63Hz) 12 V / 3 A 3.62” x 1.46” x 6.26”

Enclosed/Chassis

mount SWS Series

60 W Globtek Inc.

90-264 VAC

(47-440Hz 12 V / 5 A

5.24” x 2.39” x

1.62” External/Desktop DPS50

75W Lambda Power

90-264 VAC

(47-63Hz) 12 V / 6.3 A 3.7” x 1.69” x 6.69”

Enclosed/Chassis

mount SWS Series

100 W Lambda Power

90-264 VAC

(47-63Hz) 12 V / 8.5 A 3.78” x 1.77” x 7.4”

Enclosed/Chassis

mount SWS Series

100 W Elpac Power

100-264 VAC

(47-63Hz) 12V / 8.3

7.36” x 4.33” x

2.32” External/Desktop FWP10012-

D8F-NC

120 W AULT Inc. AC

100-264 VAC

(47-63Hz) 12 V / 10 A 9” x 2.9” x 2” Medical/External MW122RA12X

XF01

125 W Power-One Solutions 90-264 VAC

(47-63Hz) 12 V / 10.5 A 5” x 3” x 1.25” Open Frame MBP125-1012

150 W Lambda Power

90-264 VAC

(47-63Hz) 12 V / 12.5 A 3.9” x 2” X 7.8”

Enclosed/Chassis

mount SWS Series

Table 3: Signal pin out

Pin Description

Pin 1 GND

Pin 2 Analog ADJ

Pin 3 POT

Pin 4 Enable

Pin 5 PWM

Pin 6 Vinx

Pin 7 Thermistor

Pin 8 Thermistor

Dieses Handbuch passt für folgende Modelle

Inhaltsverzeichnis

Andere Luminus Mikrocontroller Handbücher

Luminus

Luminus DK-236 Series Bedienungsanleitung

Beliebte Mikrocontroller Handbücher anderer Marken

AMS

AMS AS7261 Demo Kit Bedienungsanleitung

Novatek

Novatek NT6861 Bedienungsanleitung

Espressif Systems

Espressif Systems ESP8266 SDK Einrichtungshandbuch

Nuvoton

Nuvoton ISD61S00 ChipCorder Leitfaden

STMicrolectronics

STMicrolectronics ST7 Assembler Linker Bedienungsanleitung

Texas Instruments

Texas Instruments Chipcon CC2420DK Bedienungsanleitung

Lantronix

Lantronix Intrinsyc Open-Q 865XR SOM Bedienungsanleitung

NEC

NEC 78GK0S/K 1+ Series Montage- und Bedienungsanleitung

Mikroe

Mikroe SEMITECH N-PLC Click Montage- und Bedienungsanleitung

Intel

Intel Agilex Bedienungsanleitung

Cypress

Cypress CY4607 HX2VL Bedienungsanleitung

DIGITAL-LOGIC

DIGITAL-LOGIC MICROSPACE Bedienungsanleitung

Texas Instruments

Texas Instruments TMS320F2837 D Series Bedienungsanleitung

CYPRES

CYPRES CY14NVSRAMKIT-001 Bedienungsanleitung

Texas Instruments

Texas Instruments INA-DUAL-2AMP-EVM Bedienungsanleitung

Espressif Systems

Espressif Systems ESP8266EX Betriebsanleitung

Abov

Abov AC33M8128L Bedienungsanleitung

Laird

Laird BL654PA Bedienungsanleitung
