MX7 Multi-Charger User’s Guide
Models MX7A385CHGR5US and MX7A386CHGR5WW
For Use with LXE (Part number 159904-0001) Lithium Ion Battery Packs
Copyright © October 2005 by LXE, Inc.
All Rights Reserved
E-EQ-MX7CHGROG-A
Notices
LXE Inc. reserves the right to make improvements or changes in the products described in this manual at any time without notice.
While reasonable efforts have been made in the preparation of this document to assure its accuracy, LXE assumes no liability
resulting from any errors or omissions in this document, or from the use of the information contained herein. Further, LXE
Incorporated, reserves the right to revise this publication and to make changes to it from time to time without any obligation to
notify any person or organization of such revision or changes.
Copyright Notice:
This manual is copyrighted. All rights are reserved. This document may not, in whole or in part, be copied, photocopied,
reproduced, translated or reduced to any electronic medium or machine-readable form without prior consent, in writing, from
LXE Inc. Further, LXE Incorporated, reserves the right to revise this publication and to make changes to it from time to time
without any obligation to notify any person or organization of such revision or changes.
Copyright © 2005 by LXE Inc. , An EMS Technologies Company
125 Technology Parkway, Norcross, GA 30092, U.S.A. (770) 447-4224
LXE is a registered trademark of LXE Inc. All other brand or product names are trademarks or registered trademarks of their
respective companies or organizations. When manual is in PDF format: "Acrobat ® Reader Copyright © 1987-2005 Adobe
Systems Incorporated. All rights reserved. Adobe, the Adobe logo, Acrobat, and the Acrobat logo are trademarks of Adobe
Systems Incorporated." applies.
FCC Information:
This device complies with FCC Rules, part 15. Operation is subject to the following conditions:
1. This device may not cause harmful interference
and
2. This device must accept any interference that may be received, including interference that may cause undesired
operation.
Warning!
This equipment has been tested and found to comply with the limits for a Class A digital device, pursuant to
part 15 of the FCC rules. These limits are designed to provide reasonable protection against harmful
interference when the equipment is operated in a commercial environment. This equipment generates, uses,
and can radiate radio frequency energy and, if not installed and used in accordance with the instruction
manual, may cause harmful interference to radio communications. Operation of this equipment in a residential
area is likely to cause harmful interference in which case the user will be required to correct the interference at
his own expense.
Changes or modifications to this device not expressly approved by LXE Inc., could void the user’s authority to operate this
equipment.
EMC Directive Requirements:
This is a Class A product. In a domestic environment this product may cause radio interference in which case the user may be
required to take adequate measures.
Industry Canada:
This Class A digital apparatus meets all requirements of the Canadian Interference Causing Equipment Regulations. Operation is
subject to the following two conditions: (1) this device may not cause harmful interference, and (2) this device must accept any
interference received, including interference that may cause undesired operation.
Cet appareil numérique de la classe A respecte toutes les exigences du Règlement sur le matériel brouiller du Canada.
Le present appareil numérique n’emet pas de bruits radioélectriques dépassant les limites applicables aux appareils numeriques
de le Classe A préscrites dans le Reglement sur le brouillage radioélectrique édits par le ministere des Communications du
Canada.
Important: This symbol is placed on the product to remind users to dispose of Waste Electrical and Electronic
Equipment (WEEE) appropriately, per Directive 2002-96-EC. In most areas, this product can be recycled,
reclaimed and re-used when properly discarded. Do not discard labeled units with trash. For information about
proper disposal, contact LXE through your local sales representative, or visit www lxe com.
Initial Release October 2005
IMPORTANT SAFETY WARNINGS US
SAVE THESE INSTRUCTIONS
This document contains important safety and operating instructions for the LXE MX7 Multi-Charger. Please read all
instructions and cautionary markings on the charger/analyzer itself before putting the unit into service.
Safety Alert Symbols
This symbol is used to call your attention to instructions concerning your personal safety. Watch for
this symbol – it will alert you to important safety precautions that must be observed to avoid death,
personal injury or property damage. Follow the instructions after the warning symbol and be alert to
the possibility of personal injury or death.
These signal words provide users with information about the seriousness of the hazard involved:
DANGER WARNING CAUTION
Indicates imminent hazards
which, if not avoided, WILL
result in severe personal injury
or death.
Indicates potential hazards
which, if not avoided, COULD
result in severe personal injury
or death.
Indicates hazards or unsafe practices which,
if not avoided, COULD result in minor or
moderate personal injury or property
damage.
Safety Instructions
Setting up the MX7 Multi-Charger
Locate or orient the AC cord so that it will not be stepped on, tripped over or subjected to damage or stress.
Analyze or charge only LXE (part no. 159904-0001) MX7A80BATT Rechargeable Lithium Ion Battery Pack in this
charger/analyzer. Other batteries or battery packs may burst causing injury or property damage.
Operating the MX7 Multi-Charger
Only users who have read and understand all operating instructions are qualified to operate the MX7 Multi-Charger.
Failure to read, understand and follow safety instructions may result in injury or death.
Keep the charger/analyzer away from any heat source. Excessive internal heating can ruin the charger/analyzer.
Use care when inserting battery. Do not "slam" or slide the battery into the pocket, this could damage the
charger/analyzer.
Keep dirt and foreign objects out of the battery pocket. Do not short circuit any of the contacts in the battery pocket,
this could result in injury or property damage.
Do not operate the charger/analyzer if it has been dropped or damaged in any way. Return the charger/analyzer to
LXE.
Storing the MX7 Multi-Charger
Disconnect charger/analyzer by pulling the plug; not the cord.
Maintaining the MX7 Multi-Charger
Service should be performed by trained persons only. Return the charger/analyzer to LXE.
Caring for Batteries
Do not dispose of batteries into a fire. Burning will generate hazardous vapors and may cause the battery to explode.
Failure to observe this warning may result in injury from inhalation of vapors or burns from flying debris.
Do not immerse batteries in water or any other liquid. If batteries are immersed, contact LXE.
Do not disassemble or perform modifications to the battery. There are no user serviceable components in the battery.
Do not place battery into pocket or toolbox with conductive objects (coins, keys, tools, etc.).
A battery placed on damp ground or grass could be electrically shorted. Lay the battery on its side when not in use.
Do not store batteries above 140°F (60°C) for extended periods.
Failure to observe these warnings could result in injury or damage to the battery from rapid discharge of energy or
overheating of the battery.
Electrical Shock Hazards
The following precautions should be observed to avoid the risk of electrical shock hazards associated with charging
batteries:
The MX7 Multi-Charger has been designed for indoor use only. Do not operate outdoors or in extremely high
humidity environments. Do not expose charger/analyzer to rain, snow or wet conditions.
Unplug the charger/analyzer from power source before cleaning. Use only mild detergent with a slightly damp cloth
to clean the outside of the charger/analyzer. Do not use solvents or flammable cleaners. Allow the case to dry fully
before using again.
Use of attachments or accessories not recommended by LXE could result in fire, electric shock or injury.
This appliance must be properly grounded. If it should malfunction or break down, grounding provides a path of
least resistance for electric current to reduce the risk of electric shock. This appliance is equipped with a cord having
an equipment grounding conductor and ground outlet that is properly installed and grounded in accordance with all
local codes and ordinances. Do not operate the charger/analyzer with a damaged AC cord or plug. LXE does not
recommend the use of any extension cord with the MX7 Multi-Charger.
The MX7 Multi-Charger has been designed for use on a nominal 100 or 120 volt or nominal 220 or 240 volt circuit
and has a grounding attachment plug. The plug is an IEC configuration that is appropriate for your country and
regulations. Make sure that the appliance is connected to an outlet having a configuration similar to the plug. No
adapter should be used with this appliance. Improper connection of the equipment-grounding conductor can result in
a risk of electric shock.
Check with a qualified electrician or service person if you are in doubt as to whether the outlet is properly grounded.
Do not modify the plug provided with the appliance. If it will not fit in the outlet, have a proper outlet installed by a
qualified electrician.
Do not disassemble the MX7 Multi-Charger. It contains no user serviceable parts.
E-EQ-MX7CHGROG-A MX7 Multi-Charger User’s Guide
Table of Contents
INTRODUCTION 1
Purpose of this Manual............................................................................................. 1
Quick Start................................................................................................................. 1
Intended Use ............................................................................................................. 1
Controls and Connectors ......................................................................................... 2
MX7 Multi-Charger..................................................................................................................2
MX7 Rechargeable Lithium Ion Battery Pack .........................................................................2
Specifications............................................................................................................ 4
Electrical Specifications ...........................................................................................................4
Operating Temperature Ranges ................................................................................................4
Dimensions ...............................................................................................................................4
INSTALLATION AND OPERATION 5
Introduction ............................................................................................................... 5
Normal Operations.................................................................................................... 5
Setup.......................................................................................................................... 6
LEDs .........................................................................................................................................7
LCD Messages..........................................................................................................................8
Using the Charge/Analyze Pocket ........................................................................... 9
Orienting the Battery Pack........................................................................................................9
Inserting the Battery Pack.........................................................................................................9
Begin Analyzing .....................................................................................................................10
Progress Monitoring............................................................................................... 11
Pocket Timer...........................................................................................................................11
Interpreting the LEDs .............................................................................................................11
RED - on any pocket ........................................................................................................................ 11
RED FLASHING - on every pocket................................................................................................. 11
GREEN - on any pocket ................................................................................................................... 11
YELLOW - on any pocket ............................................................................................................... 11
NO LIGHT - on a pocket.................................................................................................................. 11
NO LIGHT - on every pocket........................................................................................................... 11
Interpreting the LCD Screen...................................................................................................12
Charge Only...................................................................................................................................... 12
Analyze – Initial Charge................................................................................................................... 13
Analyze – Discharge......................................................................................................................... 14
Battery Fault .................................................................................................................................. 15
Analyze – Final Charge .................................................................................................................... 16
Ready................................................................................................................................................ 17
Battery Capacity ............................................................................................................................ 18
ii Table of Contents
MX7 Multi-Charger User’s Guide E-EQ-MX7CHGROG-A
Maintenance ............................................................................................................ 18
Storage .................................................................................................................... 18
Service ..................................................................................................................... 18
Troubleshooting...................................................................................................... 19
Getting Help............................................................................................................. 21
Accessories............................................................................................................. 21
IMPORTANT SAFETY WARNINGS -TRANSLATIONS 22
Illustrations

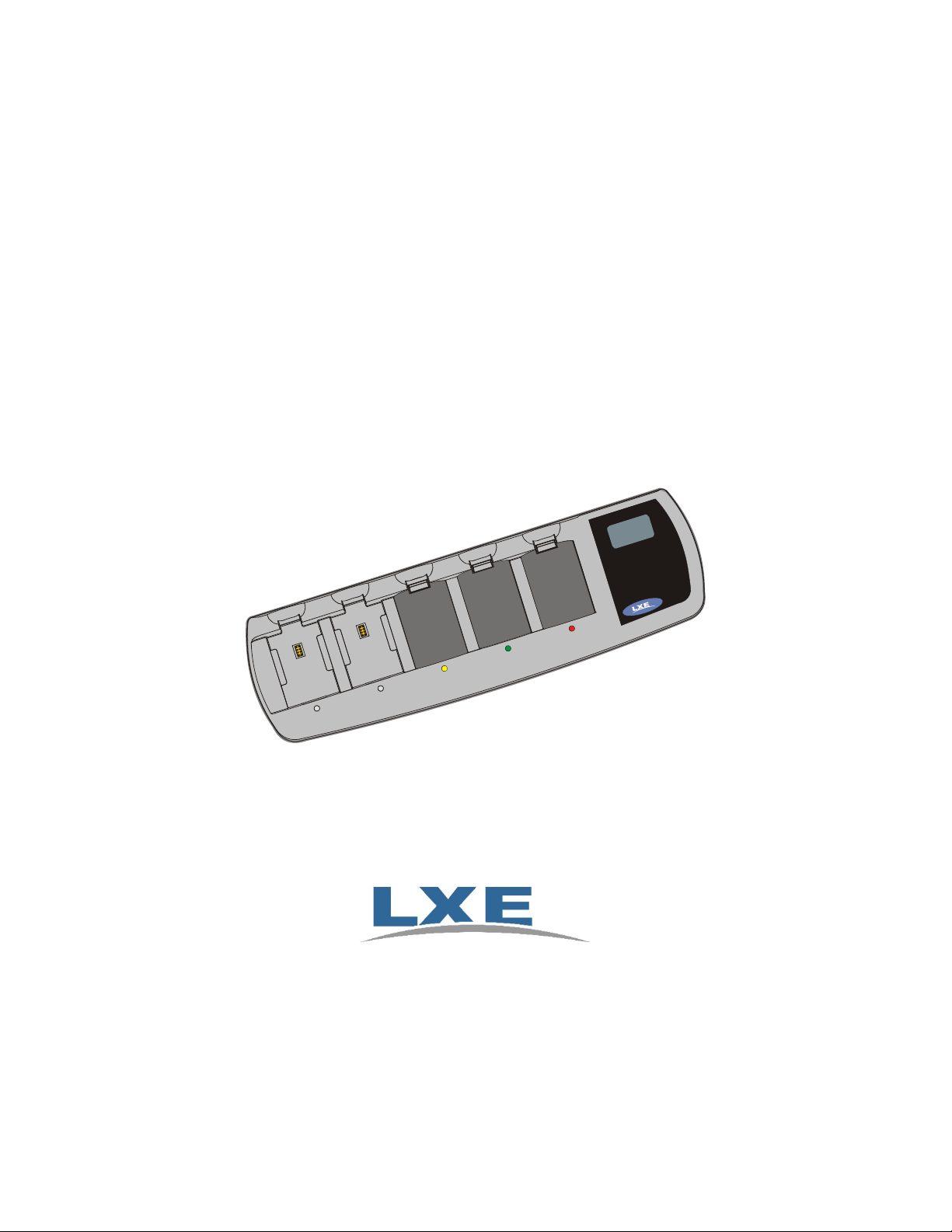

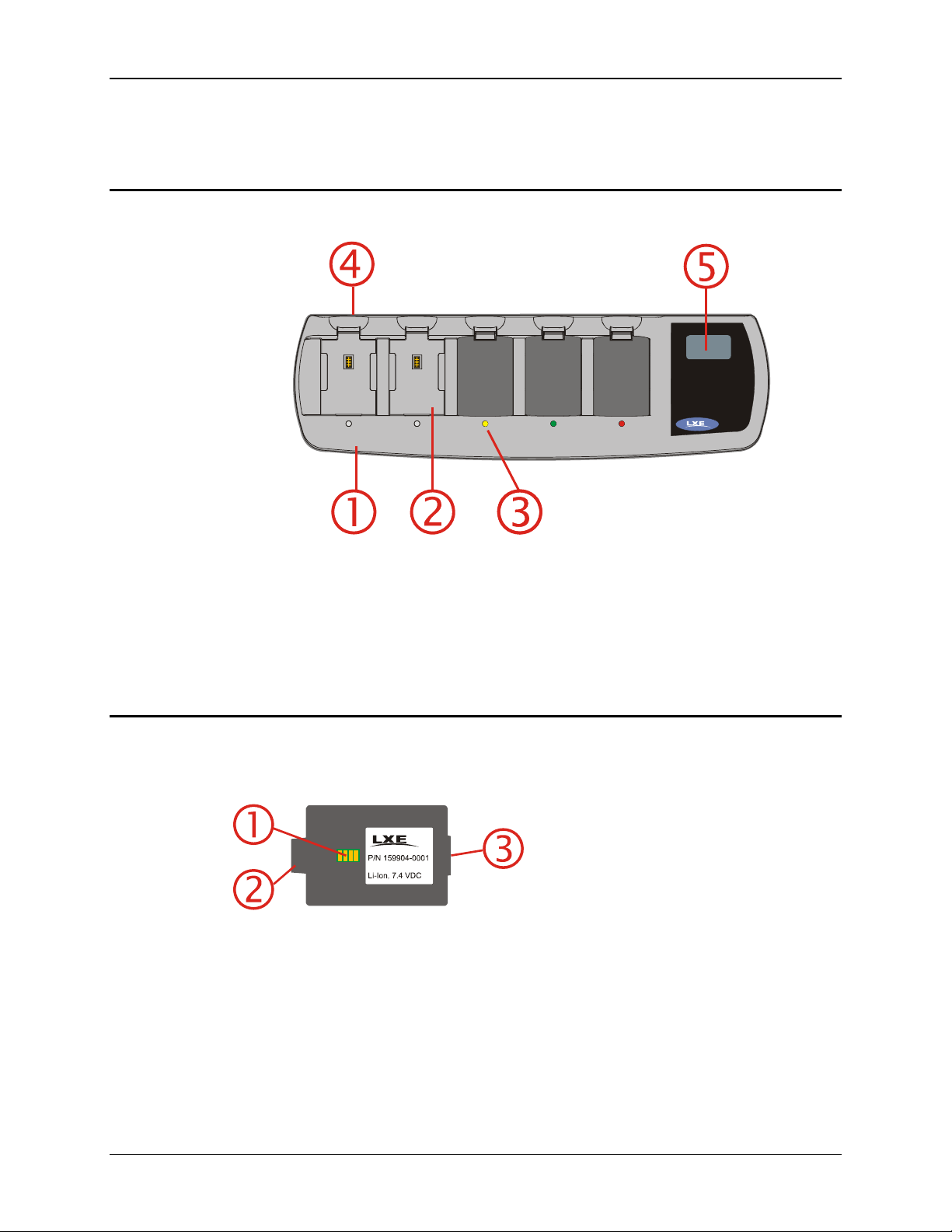

Figure 1 MX7 Multi-Charger.............................................................................................................................2
Figure 2 Lithium Ion Battery Pack..................................................................................................................... 2

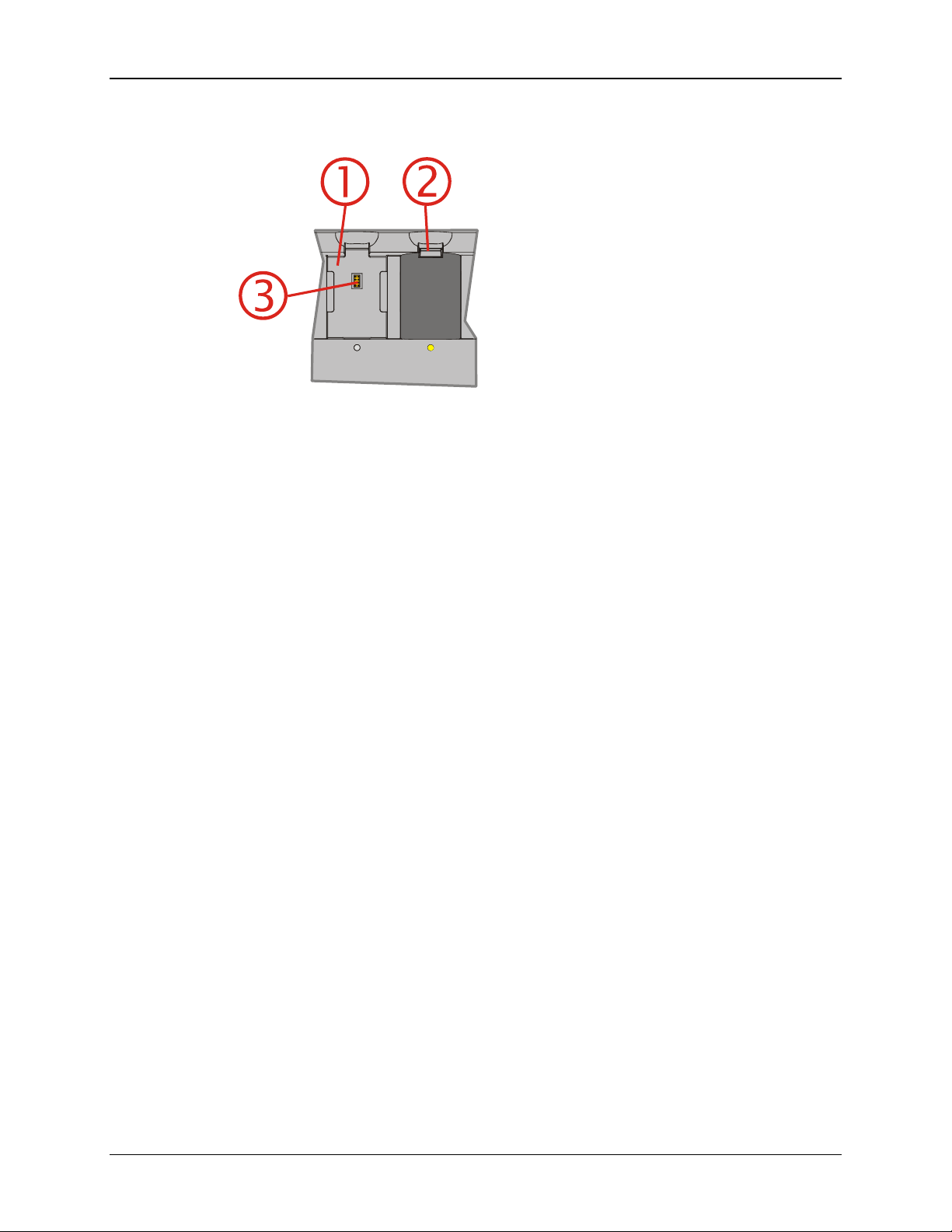

Figure 3 Battery Well........................................................................................................................................ 3
Figure 4 AC Power Supply ............................................................................................................................... 6
Figure 5 LED Location ..................................................................................................................................... 7
Figure 6 LCD Message Window.......................................................................................................................8
Figure 7 LCD Display and Dome Switch .......................................................................................................10
Figure 8 LCD Screen, Charge Only................................................................................................................12
Figure 9 LCD Screen, Ready after Charge Only.............................................................................................12
Figure 10 LCD Screen, Analyze, Initial Charge .............................................................................................13
Figure 11 LCD Screen, Analyze, Discharge ...................................................................................................14
Figure 12 LCD Screen, Battery Fault..............................................................................................................15
Figure 13 LCD Screen, Analyze, Final Charge...............................................................................................16
Figure 14 LCD Screen, Charge Only, Battery Ready .....................................................................................17
Figure 15 LCD Screen, Analyze, Battery Ready ............................................................................................ 17
E-EQ-MX7CHGROG-A MX7 Multi-Charger User’s Guide
Introduction
Purpose of this Manual
This user’s guide is intended to familiarize the user with the safety and operating instructions
necessary to use the MX7 Multi-Charger ( Model MX7A385CHGR5US / MX7A386CHGR5WW)
to simultaneously charge up to five LXE Rechargeable MX7 Lithium Ion Battery Packs (LXE Part
No. 159904-0001).
This manual should be readily available to all users and maintenance personnel using this charger.
Quick Start
This manual provides the following instructions for operating the MX7 Multi-Charger.
•Setting Up the Charger
•Inserting the Battery Pack
•Interpreting the LEDs
•Interpreting the LCD Messages
Intended Use
The LXE MX7 Multi-Charger is designed to simultaneously charge up to five MX7 Rechargeable
Lithium Ion Battery Packs in less than four hours, depending upon battery pack temperature and
conditions.
The charger/analyzer should be located in an area where it:
•Is not in high traffic areas.
•Has enough clearance to allow easy access to the power and ports on the back of the
device.
•Is protected from rain, dust or inclement weather. This device is intended for indoor use
only.
Note: Store the charger in a cool, dry place.
2 Controls and Connectors
MX7 Multi-Charger User’s Guide E-EQ-MX7CHGROG-A
Controls and Connectors
MX7 Multi-Charger
Figure 1 MX7 Multi-Charger
1 Front 4 Power Connector Location
2 Battery Charging Pocket 5 LCD Screen
3 LED Indicators
MX7 Rechargeable Lithium Ion Battery Pack
Battery Pack Model Number – 159904-0001 / MX7A380BATT
1. Contacts, Battery Charging
2. Retaining Clip
3. Tab
Figure 2 Lithium Ion Battery Pack
Note: When not in use, lay the battery pack contact-side up in a protected environment.
Controls and Connectors 3
E-EQ-MX7CHGROG-A MX7 Multi-Charger User’s Guide
1. Battery Well
2. Retaining Clip
3. Battery Charging Contacts
Figure 3 Battery Well
Note: Do not allow cleaning agents of any kind to contact the battery charging contacts; they
may be damaged. If necessary, clean them with a soft-bristle, dry brush or compressed
air.
4 Specifications
MX7 Multi-Charger User’s Guide E-EQ-MX7CHGROG-A
Specifications
Electrical Specifications
Parameter Min Max. Comment
Power Supply Input
Voltage (VAC-IN)
100 VAC 240VAC Auto-switching
Power Supply Input
Frequency (freq)
47Hz 63Hz
Note: Battery packs may leak up to 1mA current through the battery contacts when left in an unpowered multi-
charger battery well.
Operating Temperature Ranges
Minimum Maximum Comment
Operating 0°C (32°F) +50°C (120°F) Battery packs will only be charged when their temperature
is between 0°C (32°F) and 45°C (113°F).
Charging 10°C (50°F) +40°C (100°F) Battery packs will not begin charging if their temperature
is outside this range.
Storage -20°C (-4°F) +70°C (160°F) Unit is off.
Dimensions
Weight 3.5 pounds
Plug Type IEC; 3-prong
Length 17.5”
Width 5.5”
Height 1.75”
Dieses Handbuch passt für folgende Modelle
3
Inhaltsverzeichnis
Andere LXE Akkuladegerät Handbücher
LXE
LXE MX3A378 Bedienungsanleitung
LXE
LXE 9000A3775 Bedienungsanleitung
LXE
LXE HX2A3106 Bedienungsanleitung
LXE
LXE HX1A376CHGR Bedienungsanleitung
LXE
LXE 8650A378 Bedienungsanleitung
LXE
LXE MX1ISA378 Bedienungsanleitung
LXE
LXE MX5A3856 Bedienungsanleitung
LXE
LXE 9000A377CHGR5US Bedienungsanleitung
LXE
LXE MX8A3854 Bedienungsanleitung
LXE
LXE MX7 Bedienungsanleitung
