SW-AC-HO STATIC WHITE LED TAPELIGHT
DIRECT AC HIGH OUTPUT
Installation Manual
SAVE THESE INSTRUCTIONS 1
REV 2022 1007
SPECIFICATIONS AND DETAILS ARE SUBJECT TO CHANGE WITHOUT NOTIFICATION. CONTACT LYNX LINEAR LIGHTING FOR UP TO DATE DETAILS.
LYNX LINEAR LIGHTING • LYNX.LIGHTING
Before you begin, read these instructions completely and carefully.
• Be certain electrical power is OFF before and during installation, maintenance and removal.
• Luminaire wiring must be properly grounded in accordance with the NEC and any applicable local code requirements.
• Use only UL or IEC approved wire for input/output connections.
• Verify that supply voltage matches voltage on luminaire label. Installation to any other connection may void the warranty.
• Wear gloves during installation to prevent injury and do not expose wiring to metal or sharp edges.
• Do not install in areas subject to combustible vapors or gases. Verify luminaire location ratings are suitable for installation environment (refer to specification sheet as needed).
• Do not restrict luminaire’s ventilation by covering with material that will cause luminaire to overheat and potentially shorten the life span.
• Ensure LED luminaire has the correct polarity before installation.
• Lynx Linear Lighting is not liable for damages resulting from improper or faulty installation or operation or unauthorized modifications to the luminaire.
• Electrostatic discharge can damage the LED tapelight.
• Do not touch or clean the LEDs.
• Not suitable for covering with thermally insulting material.
IMPORTANT SAFETY PRECAUTIONS
WARNING: To reduce the risk of personal injury or property damage from fire, electrical shock, falling parts, abrasions, burns
and all other hazards, read all provided warnings and follow installation instructions.
This product should be installed, inspected and maintained by a qualified and licensed electrician. Installation of luminaire
must be in accordance with NEC and local code requirements.
ELECTRIC SHOCK FALLING PARTS
ABRASIONS BURNS
2
SAVE THESE INSTRUCTIONS
REV 2022 1007
SPECIFICATIONS AND DETAILS ARE SUBJECT TO CHANGE WITHOUT NOTIFICATION. CONTACT LYNX LINEAR LIGHTING FOR UP TO DATE DETAILS.
LYNX LINEAR LIGHTING • LYNX.LIGHTING
SW-AC-HO STATIC WHITE LED TAPELIGHT
DIRECT AC HIGH OUTPUT
Installation Manual

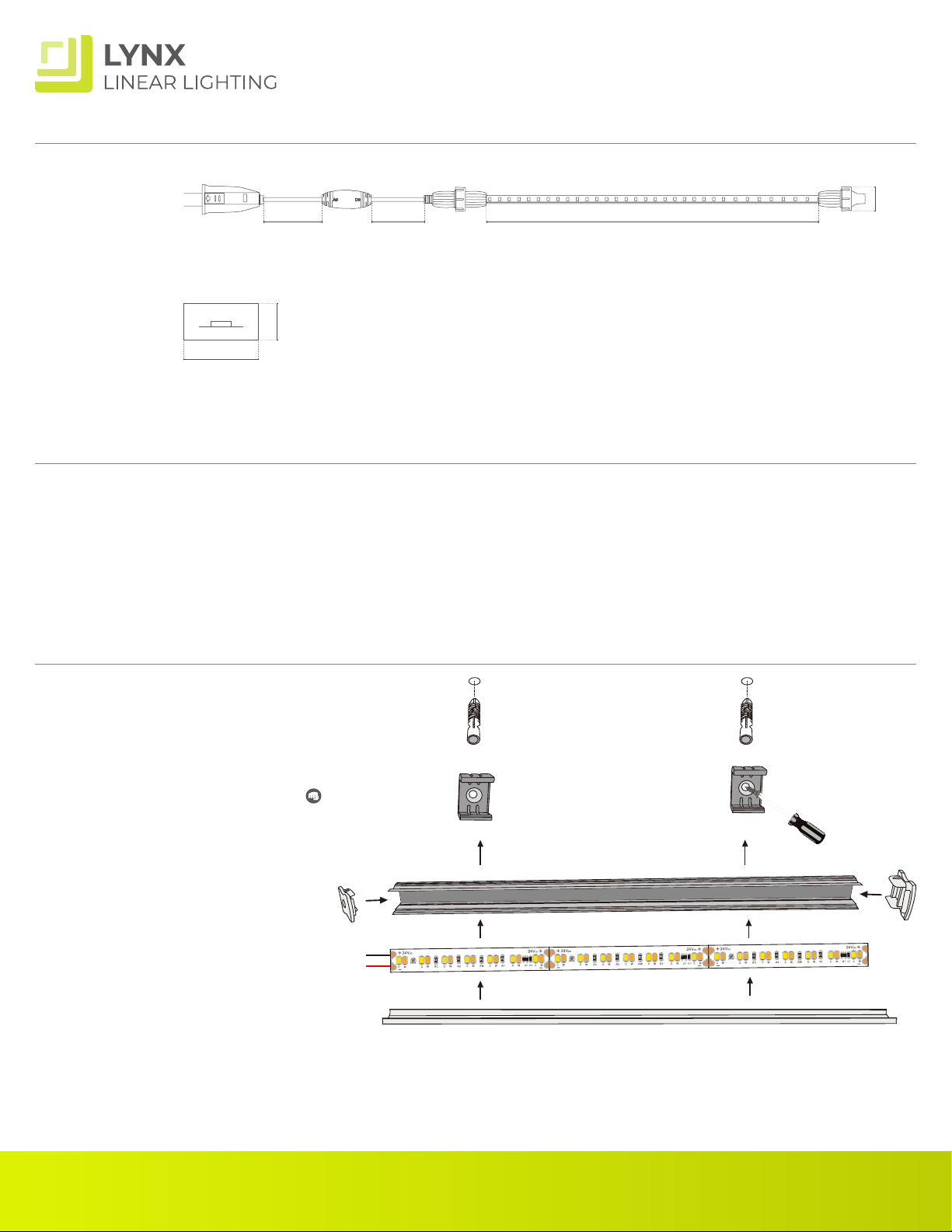

DIMENSIONS
ADDITIONAL IMAGERY
SW-AC 5.3”
MAX RUN: 164”
OPEN
7.9”11.8”
SIDE VIEW
0.5”
0.3”
ALUMINUM CHANNEL INSTALLATION INSTRUCTIONS
A) Drill holes on mounting surface, ensuring holes are level.
B) Insert anchor into drilled holes.
C) Align clips with drilled holes. Secure clips with
screwdriver, using provided screws.
D) Place tape in extrusion, press gently to secure.
E) Click lens into place.
F) Plug strip into 120V outlet. Installation is complete.
3
SAVE THESE INSTRUCTIONS
REV 2022 1007
SPECIFICATIONS AND DETAILS ARE SUBJECT TO CHANGE WITHOUT NOTIFICATION. CONTACT LYNX LINEAR LIGHTING FOR UP TO DATE DETAILS.
LYNX LINEAR LIGHTING • LYNX.LIGHTING
SW-AC-HO STATIC WHITE LED TAPELIGHT
DIRECT AC HIGH OUTPUT
Installation Manual
BRACKET INSTALLATION INSTRUCTIONS
A) Drill holes on mounting surface, ensuring holes are level.
B) Align bracket clips with drilled holes. Secure clips with screwdriver, using provided screws.
C) Secure strip in brackets.
D) Plug strip into 120V outlet. Installation is complete.
