M. Bartels SA-2 Bedienungsanleitung

Operation Manual

Stairclimber SA-2

Bedienungsanleitung

Treppenkuli SA-2

FE-18-1

EvacSkate 14

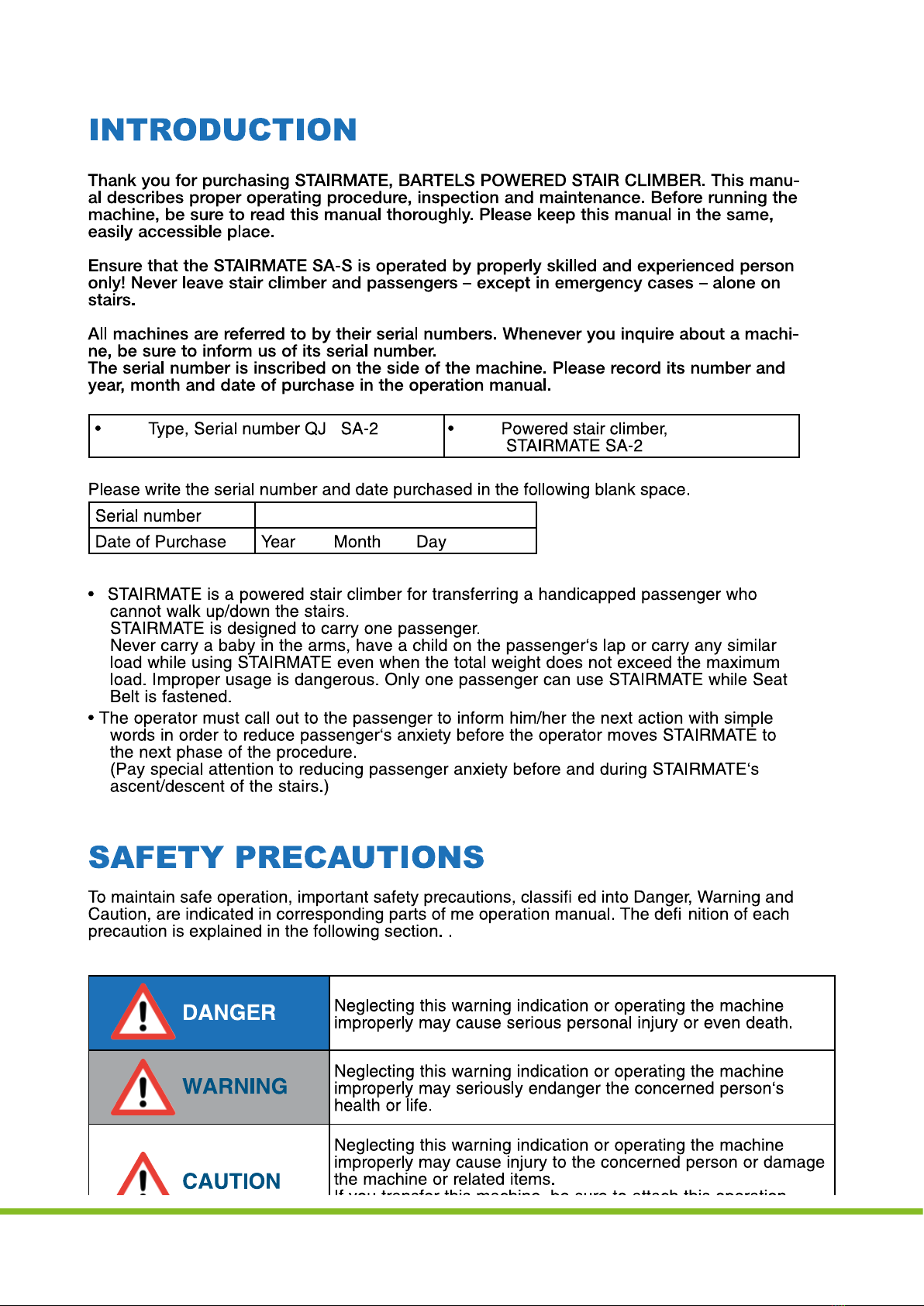

- If you transfer this machine, be sure to attach this operation manual to the machine. -

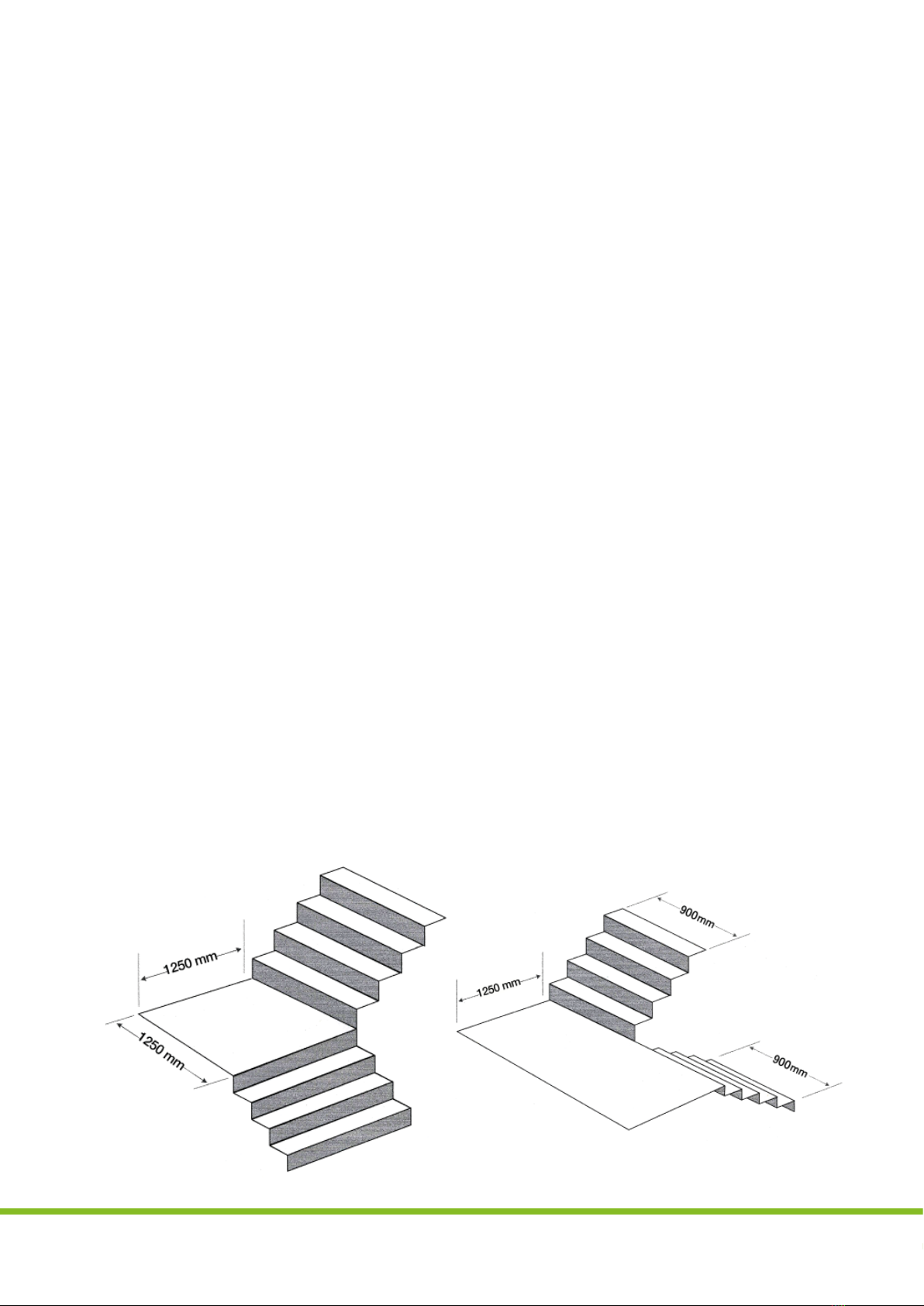

Minimum landing space

TABLE OF CONTENTS

1. ESSENTIALS OF SAFE OPERATION 4

2. CONFIGURATION AND SPECIFICATIONS 6

2.1 PRODUCT CONFIGURATION 6

2.2 SPECIFICATIONS 6

2.3 MATERIAL 7

3. NAME OF EACH UNIT 7

4. ASSEMBLING THE MACHINE 8

4.1 NAME OF EACH ASSEMBLY 8

4.2 ASSEMBLY PROCEDURE 8

4.3 HEADREST ATTACHMENT 9

5. DESCRIPTION OF EACH UNIT 10

5.1 SWITCHES 10

5.2 BATTERY PACK REMOVAL AND REINSTALLATION 11

5.3 STAIR GAUGE HANDLING PROCEDURE 12

6. BATTERY CHARGE SYSTEM 13

6.1 BATTERY 13

6:2 CHARGER 13

6.3 CHARGING PROCEDURE 14

6.4 MALFUNCTION, INSPECTION, RESOLUTION PROCEDURE 16

6.5 BATTERY REPLACEMENT 17

7. PRE-USE INSPECTION 18

8. OPERATION 22

8.1 WHEELCHAIR SETTING 22

8.2 ASCENDING STAIRS 26

8.3 DESCENDING STAIRS 29

9. DAILY MAINTENANCE AND CARE 31

9.1 BATTERY 31

9.2 RUBBER CRAWLERS 31

9.3 MISCELLANEOUS 31

10. TERMS OF GUARANTEE 31

11. INSPECTION AND MAINTENANCE 32

12. REUTILISATION 33

13. AGENTS ABROAD 34

TABLE OF CONTENS

EvacSkate 14

1. ESSENTIALS OF SAFE OPERATION

Before using STAIRMATE

STAIRMATE cannot be used on spiral staircases, curved staircases, and staircase angles

exceeding 35 degrees, stairs with larger pitch or stairs with rough edges.

Spiral staircase staircase with curve Staircase angles exceeding 35°

35°

or lager

1. Always check STAIRMATE before using it:

• The operator must check STAIRMATE before

using it.

• The initial inspection is necessary for safe

operation.

Stairs with rough edges

1. ESSENTIALS OF SAFE OPERATION

EvacSkate 14

2 Handling of Battery:

• Battery is a sealed type. It is unnecessary to reﬁll

it with water. Never dismantle Battery.

• Never position Battery near ﬂame or short-circuit

Battery.

• If Battery is cracked and its electrolytic solution

contacts skin or clothes, immediately rinse the

contaminated area with plenty of water

• If electrolytic solution splashes into the eye, rinse

the eye with plenty of clean water and consult an

ophthalmologist.

• Use special Battery Charger for charging Battery.

3 Safe operation with proper knowledge:

• The operator needs sufﬁcient training. Be sure

the training is undertaken before the operator

runs this machine for the ﬁrst time.

• Proper clothes, suitable to machine control, must

be worn.

• The machine can be run only after Wheelchair

is safely secured by Forks, Seat Belt and other

necessary items.

• No operator overworked, sick, taking medicine,

intoxicated, or otherwise inhibited may operate

STAIRMATE.

4 Operation on a staircase:

• Never run the machine on a staircase angle

exceeding 35 degrees, on a curved staircase, an

oily staircase, an icy staircase, a wet or slippery

staircase or any other inappropriate staircase.

• Obliquely ascending or descending the stairswill

result in danger of serious accidentThe operator

must avoid oblique operation on stairs.Always

approach the staircase squarely.

• Whenever running the machine upward, the

operator must always pay attention to the area

behind him/herself. Do not run STAIRMATE if

the stairs is crowded. Whenever running the

machine downward,the operator must always pay

attention to the front of the machine. Do not run

STAIRMATE if the stairs is crowded.

• Never let go of the machine unless unavoidable

circumstances separate the operator from the

machine.

5 Stopping machine

• If the machine gives trouble, malfunctions or

is damaged, immediately stop operating the

machine. Running it with a problem existing can

result in a serious accident.

EvacSkate 14

2. CONFIGURATION AND SPECIFICATIONS

2.1 PRODUCT CONFIGURATION

STAIRMATE consists of the following assemblies.

• Handle Unit

• Drive Unit

• Wheelchair Mount Unit

• Headrest

• Drive Unit Wheels

• Battery Pack

Stansard

accessories

• Changer (12V) 1 unit

• Parts List 1 copy

2.2 SPECIFICATIONS

Model SA-2

Passenger 1

Operator 1

Rubber Crawler 2 Rubber Crawlers (Width: 51mm)

Stair ascent speed 20 steps (6.45 m) / min.

Stair descent speed 28 steps (8.81 m) / min.

Maximum load 130 kg

Maximum stair angle 35°

Motor Type: permanent-magnet DC motor Rated power: 210 W / 30 min.

Brake Spring loaded electromagnetic brake

Running time (min) / charge Ascending: 600 steps / 30 min. Descending: 840 steps / 30 min.

Battery Maintenance free type sealed lead battery 12V - 20Ah

Charger Input: 100-240VAC, 50/60Hz, 1.0A MAX 0utput: 12VDC, 3A

Weight 54 kg

External dimensions

2. CONFIGURATION AND SPECIFICATIONS

EvacSkate 14

3. NAME OF EACH UNIT

Headrest

Kick Bar

Stair Gauge

Operation

Switch

Fork

Wheelchair Mount Unit

Seat Belt

Wheelchair Support Tube

WheelDC Motor, Magnetic BrakeReduction Gear

Rubber Crawler

Battery Pack

Pedal Guard

Key Switch

STAIRMATE´s Wheelchair-capable mount

A: Wheelchair height

760 mm up to 950 mm from the ﬂoor

B: Space under the X-frame Center height: 210 mm min

End height: 170 mm min: 170 mm

Crawler under-frame limits

C: Inside width between

base tubes

320 mm or wider

D: Main Wheel diameter 22 inch or larger

22“ or bigger 320 mm or broader

760 - 950 mm

The following wheelchair types cannot be

mounted:

1. Reclining type wheelchair

2. Foldable or detachable handle type wheelchair

3. Detachable armrest type wheelchair

4. Caliper brake installed Wheelchair

5. Any wheelchair that has machine part trouble.

The dimensions shown above are

standard values. Some wheelchairs may

not ﬁt.

2.3 MATERIAL

Frame: steel, powder-coated; Drive chains: rubber; Drive unit: aluminium die casting.

3. NAME OF EACH UNIT

EvacSkate 14

4. ASSEMBLING THE MACHINE

4.1 NAME OF EACH ASSEMBLY

4.2 ASSEMBLY PROCEDURE

1. Confirm that Key Switch is set to „OFF“.

Set Handle Unit‘s Hook against Guide

Roller Shaft and push it until Hook

reaches its dead-end against Guide Roller

Shaft.

2. Insert two Lock Pins into the two sides of

Handle Hook unit. Then secure each Lock

Pin with its „R“ Pin.

Headrest

Drive Unit Handle Unit

Handle Unit

Drive Unit

Guide Roller

Shaft

Hook

Lock Pins

R Pin

• Before STAIRMATE is assembled, be sure to set Key

Switch to „OFF“.

• After STAIRMATE is assembled, confirm that Lock Pin

is firmly secured by its „R“ Pin to Handle‘s Hook Point.

Insecure Lock Pin attachment can cause passenger to

fall or other serious accident.

CAUTION

4. ASSEMBLING THE MACHINE

CAUTION

4. ASSEMBLING THE MACHINE

CAUTION

EvacSkate 14

3. Lower Handle Unit to meet Guide Plate and

secure it firmly.

NOTE: Unless Handle Unit is fully locked,

STAIRMATE will not run even when

Switch is pressed UP or DOWN.

4.3 HEADREST ATTACHMENT

Install Headrest to Handle Unit with Velcro

Tape. Velcro Tape must be firmly applied

at specified height in order to support the

passenger.

Handle Unit

Guide Plate

Limit Switch

Headrest

Velcro Tape

Handle Unit

EvacSkate 14

5. DESCRIPTION OF EACH UNIT

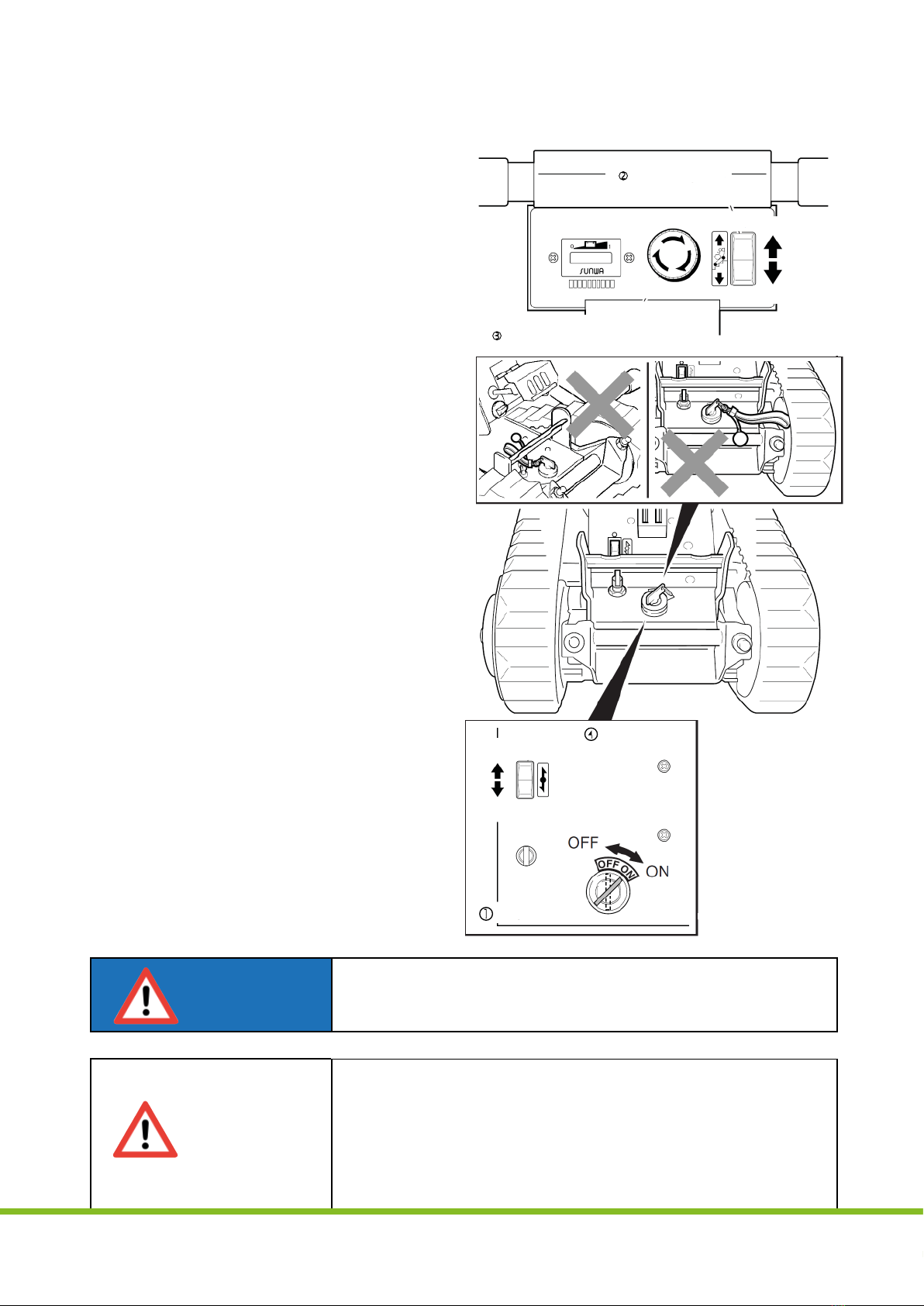

5.1 SWITCHES

1. Key Switch

It turns on/off the power supply. When it is

turned clockwise, the power will be ON and

when turned counter-clockwise, the power

will be off.

NOTE: When STAIRMATE is not to be used

(to be stored, to be charged, to be

transported), turn off Key Switch,

remove Key and keep it in an

appointed place.

2. UP/DOWN Switch

Selects ascent or descent mode. Only while

this Switch is pressed, does the machine

run. If UP Seesaw is pressed, the machine

will ascend. If DOWN Seesaw is pressed,

the machine will descend.When the finger is

released, Switch will automatically return its

neutral position and the machine will stop.

3. Emergency Stop Switch

When this Switch is pressed, the machine

will stop immediately. STAIRMATE won‘t

restart. Even when the other Switch is

pressed.Torelease the emergency stop

condition, turn Emergency Stop Switch in

the „arrow“ indicated direction.

4. Operation Switch on Drive Unit

When Forward or Reverse Switch top

is pressed, the machine will run in the

corresponding direction. When Switch

is released, Switch will return its neutral

position and the machine will stop.

NOTE: This Switch is not to be used for

stair work. Use it only for running

STAIRMATE without Handle Unit.

UP/DOWNSwitch

Ascending

Descending

Emergency Stop Switch

Operation Switch

on Drive Unit

Forward

reverse

Key Switch

Never attach the objects to Key.If any object is attached to Key,

it will be caught in Lock Unit preventing Frame from locking.

This could result in a serious accident

DANGER

• If Key Switch is kept in the ON position, Battery will more

quickly discharge.When the machine is not to be in use, be

sure to turn off Key Switch and remove it.

• Never attach the objects to Key. Doing so may cause the

objects to be caught by Rubber Crawler.

• Pay attention that the operator‘s fingers are not caught in a

Rubber Crawler while the operator pushes Operation Switch

on Drive Uint near floor level.

CAUTION

5. DESCIPTION OF EACH UNIT
