Owner’s Manual

DO NOT RETURN MERCHANDISE TO YOUR DEALER STORE DIRECTLY. CALL

MSPA AFTER SALES SERVICE CENTER FOR PRODUCT QUESTIONS OR

CONTACT MSPA AT [email protected]

Due to MSpa continuous product improvement, MSpa reserves the right to change

specifications and product appearance, which may result in updates to the

instruction manual without notice.

D-AL04/06

D-NE02

D-SC04/06

Alpine

Nest

Silver Cloud

D-TE06

D-AU04/06

D-ST04

Tekapo

Aurora

Starry

ENTER THE WORLD OF MSPA

ThankyouforchoosingMSpaandforyourconfidenceinourbrand.Webelievethatyouwillenjoymanybenefits

of using MSpa products for years to come.

Toguide you inyour initial MSpaexperience, we arepleased to presentyou with thisinstruction manual. Please

read this manual carefully before using the product for the first time.

We are delighted to welcome you to the MSpa family, and look forward to sharing with you the full spectrum of

our expertise.

Enjoy your MSpa!

Welcome,

CONTENT

Safety precautions............................………………………….........……………………...........................………

Specifications…………………………………........................................................................................…….....

Product overview………………………............................……..............................................................……….

First use and set-up preparation......................................................................................................................

Spa set-up........................................................................................................................................................

Controller operation…………………….............................................................................................................

Water maintaince and chemicals……………................................………..…...................................................

Drainage, cleaning and storage.......................................................................................................................

Disposal and environmental protection.......................................…..................................................................

Troubleshooting…………………………….....……………………….….........................................…..................

MSPA limited warranty........………....................................………...................................................................

MSpa official site MSpa Set up videos

SAFETY PRECAUTIONS

For your own safety and that of your product, make sure to follow the safety

precautions below. Fail to follow the instruction may result in serious injury,

property damage or death. Improper installation or operation will void the warranty.

READ, UNDERSTAND AND FOLLOW ALL INSTRUCTIONS

KEEP THE MANUAL FOR FUTURE REFERENCE

! DANGER

Risk of Accidental Drowning. Extreme caution must be exercised to prevent

unauthorized access by children.

Risk of drowning. Inspect the spa cover regularly for leak, premature wear and

tear, damage or signs of deterioration. Never use a worn or damaged cover: it

will not provide the level of protection required to prevent unsupervised access

to the spa by a child.

Risk of drowning. Always lock the spa cover after each use.

Risk of injury. If the supply cord is damaged, it must be replaced by the

manufacturer, service agent or similarly qualified persons avoid a hazard.

Risk of Electric Shock. Do not permit any electrical appliances, such as a light,

telephone, radio or television within 1.5m (5 feet) of a spa tub.

Risk of Electric Shock. Do not use the spa when it is raining, thundering or

lightning.

To reduce the risk of electric shock, do not use an extension cord, timers, plug

adaptors or converter plugs to connect the unit to electric supply; provide a

properly located outlet.

The appliance with incorporated heating elements must be connected to a

grounded mains supply socket and a supply cord fitted with a plug and PRCD

equipped with a tripping current of 10mA.

The appliance with earthing must only be plugged directly into an earthed

socket-outlet of the fixed wiring.

Parts containing live parts, except parts supplied with safety extra-low voltage

not exceeding 12V, must be inaccessible to occupants in the spa.

! WARNING

Parts incorporating electrical components, except remote control devices, must

be located or fixed so that they cannot fall into the spa.

Electric installation should fulfill the local requirement or standards.

The wired controller shall be properly stored at the side pocket when not used,

to protect the controller from falling or other factors.

This appliance can be used by children aged from 8 years and above and

persons with reduced physical, sensory or mental capabilities or lack of

experience and knowledge if they have been given supervision or instruction

concerning use of the appliance in a safe way and understand the hazards

involved. Children shall not play with the appliance. Cleaning and user

maintenance shall not be made by children without supervision.

To reduce the risk or injury, keep children away from this product unless they

are closely supervised at all times.

To reduce the risk of child drowning, supervise children all times. Attach and

lock spa cover after each use.

Make sure the floor is capable of supporting the expected load, which you can

find from the spec sheet, calculate the expected load of water capacity plus total

weight.

Adequate draining system must be provided around the spa to deal with

overflow water.

To reduce the risk of injury:

a) Lower water temperatures are recommended for young children and when

spa use exceeds 10 minutes. In order to avoid the possibility of hyperthermia

(heat stress) occurring it is recommended that the average temperature of

spa-pool water should not exceed 40°C (104°F).

b) Since excessive water temperatures have a high potential for causing fetal

damage during the early months of pregnancy, pregnant or possibly pregnant

women should limit spa water temperatures to 38°C (100°F).

c) Before entering a spa or hot tub the user should measure the water

temperature with an accurate thermometer since the tolerance of water

temperature regulating devices varies.

d) The use of alcohol, drugs or medication before or during spa use may lead to

unconsciousness with the possibility or drowning.

e) The use of alcohol, drugs, or medication can greatly increase the risk of fatal

hyperthermia in spas.

f) The causes and symptoms of hyperthermia may be described as follows:

Hyperthermia occurs when the internal temperature of body reaches a level

several degrees above the normal body temperature 37°C (98.6°F). The

symptoms of hyperthermia include an increase in the internal temperature of

body, dizziness, lethargy, drowsiness, and fainting. The effect of hyperemia

include failure to perceive heat; failure to recognize the need to exit spa;

unawareness of impending hazard; fetal damage in pregnant women;

physical inability to exit the spa; and unconsciousness resulting in the danger

of drowning.

g) Obese persons or persons with a history of heart disease, low or high blood

pressure, circulatory system problem, or diabetes should consult a physician

before using a spa.

h) Persons using medication should consult a physician before using a spa

since some medication may induce drowsiness while other medication may

affect heart rate, blood pressure, and circulation.

i) Check with doctor before use if pregnant, diabetic, in poor health, or under

medical care.

People with infectious disease should not use a spa or hot tub.

To avoid injury exercise care when entering or existing the spa or hot tub.

Water temperature in excess of 40°C (104°F) may be injurious to your health.

Never use a spa or hot tub alone or allow others to use the spa alone.

Do not use a spa or hot tub immediately following strenuous exercise.

Spa heat in conjunction with alcohol, drugs, or medication can cause uncon-

sciousness.

Exit immediately if uncomfortable, dizzy, or sleepy. Spa heat can cause hyper-

thermia and unconsciousness.

Do not put the spa under 0°C (32°F) environment in order to avoid freezing if

there is still water in the pool.

It’s helpful to put temp barrier mat in between the spa pool and the ground.

Similar mat which is made of foam material or other materials with heat barrier

function can also be used. Do not turn on the spa when the water is frozen.

Never pour water with a temperature higher than 40°C (104°F) into the spa

directly.

Always unplug this product from the electrical outlet before removing, cleaning,

servicing or making any adjustment to the product.

Never jump or dive into a spa or any shallow body of water.

No part of the electric appliance is to be located above the bath during use.

Do not bury the electrical cord. Locate the cord where it will not be damaged by

lawn mowers, hedge trimmers and other equipment.

Do not attempt to plug in or unplug this product while standing in water or when

your hands are wet.

Do not use the spa if damaged in delivery and/or malfunctioning in any way.

Contact the MSpa service center for further direction.

Keep all pets away from the spa to avoid any damage.

Do not add bath oil or bath salt to the spa water.

Always add chemicals to water, never add water to chemicals. Adding water to

chemicals may cause strong fumes or violent reactions and hazardous chemical

spray.

For water already used, discharge it in time or use water chemicals for cleaning.

Usually, it is recommended to drain and refill spa with clean water every 3-5

days.

Use Mspa chemical kit for disinfection in accordance with manufacturer’s

instructions.

Do not leave or set up the spa in temperature lower than 4°C(39°F) if heater is

not operating.

Always enter and exit the spa or hot tub slowly and cautiously. Caution of wet

floor.

To avoid damage to the pump, never turn on the spa or hot tubs unless it is

filled with water to the minimum water line.

Place the spa or hot tub only on a properly prepared site that can withstand the

floor loading requirement of the spa.

Do not leave the spa empty for extended period of time. Drain away water

inside the pool thoroughly for long time disuse. Do not expose the spa under

direct sunshine. Check regularly before each use. Put away the spa or fence it

up in time after using.

Open the spa top lid when the Bubble function is on.

In order to avoid a hazard due to inadvertent resetting of the thermal cut-out,

this appliance must not be supplied through an external switching device, such

as a timer, or connected to a circuit that is regularly switched on and off by the

utility.

Refer to relevant chapter for details concerning cleaning and other

maintenance.

! CAUTION

Zone 2 Zone 2

Zone 1

Zone 0

2.5 m

1.5 m 1.5 m2.0 m 2.0 m

Warning: Water protection levels of appliance at different product zones are

different see the following scheme. ( Installation regulations comply to IEC

60364-7-702)

NOTE-The measured zone dimensions are limited by walls and fixed partitions.

Zones

Zone 0

Zone 1

Zone 2

Description of the zones

Zone 0 is the interion of the basin including any recesses in their

walls or floors.

Zone 1 is limited by

• Zone 0

• A vertical plane 2m from the rim of the basin.

• The floor or the surface expected th be occupied by persons

• The horizontal plane 2.5m above the floor or the surface

Zone 2 is limited by

• A vertical plane external th zone 1 and parallel plane 1.5m

from the former.

• By the floor or surface intended to be occupied by persons.

Model No.

/ Code Shape Seating

Capacity Water

Capacity Outside

Dimensions Inside

Dimensions Height Weight

SPECIFICATIONS

BUBBLE SPA

Control System

Total Power

Heater

Massage Air Blower

Filter Pump

AC 220-240V~ 50Hz

2100W

1500W

600W

AC 12V/35W

D-NE02 / D-AL04 / D-AL06 / D-TE06 / D-SC04 / D-SC06 /

D-AU04 / D-AU06 / D-ST04

Oval

Square

Round

D-NE02

Nest

D-AL04

Alpine

D-AL06

Alpine

D-TE06

Tekapo

D-SC04

Silver Cloud

D-SC06

Silver Cloud

D-AU04

Aurora

D-AU06

Aurora

550 L

(145 Gal.)

650 L

(171 Gal.)

930 L

(245 Gal.)

930 L

(245 Gal.)

700 L

(184 Gal.)

930 L

(245 Gal.)

700 L

(184 Gal.)

930 L

(245 Gal.)

1.86 x 1.25 m

(73.5” x 49.5”)

1.58 x 1.58 m

(62” x 62”)

1.85 x 1.85 m

(73” x 73”)

1.85 x 1.85 m

(73” x 73”)

ĳP

(71”)

ĳP

(80”)

ĳP

(71”)

ĳP

(80”)

1.46 x 0.85 m

(57.5” x 33.5”)

1.18 x 1.18 m

(46.5” x 46.5”)

1.45 x 1.45 m

(57” x 57”)

1.45 x 1.45 m

(57” x 57”)

ĳP

(55”)

ĳP

(63”)

ĳP

(55”)

ĳP

(63”)

24 kg

(52.9 lbs)

23.5 kg

(51.8 lbs)

27 kg

(59.5 lbs)

29.5 kg

(65 lbs)

23 kg

(50.7 lbs)

25.5 kg

(56.2 lbs)

25 kg

(55.1 lbs)

28 kg

(61.7 lbs)

0.68m

(27”)

0.68m

(27”)

0.68m

(27”)

0.68m

(27”)

0.70m

(28”)

0.70m

(28”)

0.70m

(28”)

0.70m

(28”)

Control System Specs

D-ST04

Starry

Round 4

700 L

(184 Gal.) ĳP

(71”) ĳP

(55”) 0.70m

(28”) 25.5 kg

(56.2 lbs)

PRODUCT OVERVIEW

Packaging content

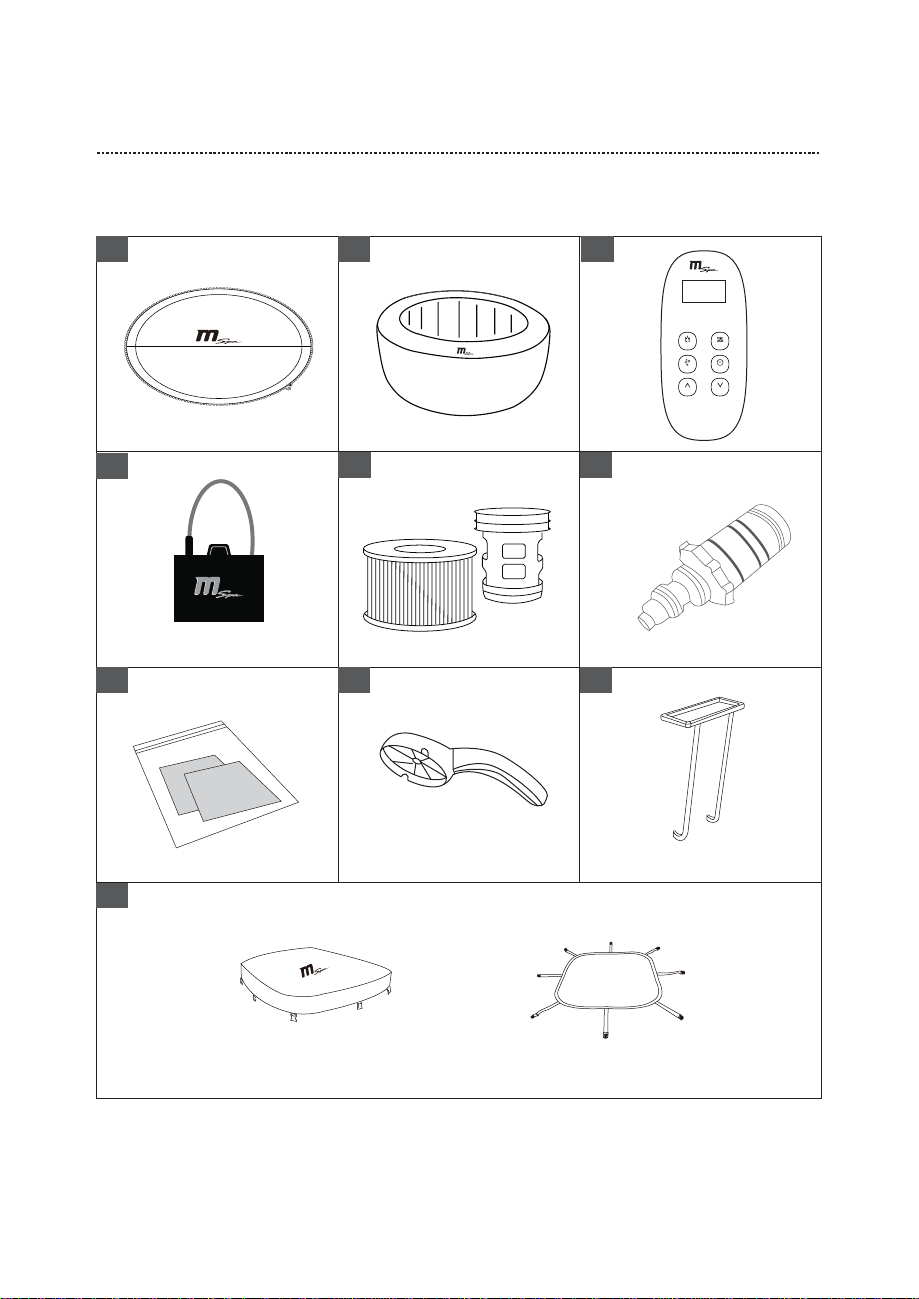

NOTE: Drawings for illustration purpose only. Actual product may vary. Not to scale.

A. B. C.

D. E. F.

G. H. I.

Only for D-NE02

Buckle spa cover Ground mat

ONLY FOR D-AL04/06, D-TE06

UP DOWN

HEATER

BUBBLE

FILTER

TIMER

°C

REF. NO. PARTS DESCRIPTION QTY.

Spa cover with aluminum foil inside

(Square shaped spa comes with a ground mat with the cover)

Spa tub

Wired controller

Digital lock (for D-NE02, D-SC04/06, D-AU04/06, D-ST04)

Filter cartridge*1, cartridge base

Spa drain valve adaptor

Repair kit

Wrench

Wicker side bar (Only for Nest D-NE02)

Buckle spa cover and ground mat set (For D-AL04/06, D-TE06)

NOTE: When ordering parts, be sure to quote the model number and description.

FIRST USE AND SET-UP PREPARATION

The spa can be installed indoor and outdoor around 10 minutes by at least one person. For household use

only.

The spa must be set up on a flat, smooth and supporting surface that is capable of supporting the

maximum load of the filled spa with listed maximum occupants.

Make sure the area is free of sharp objects under or around the spa. Uneven or unsound surfaces can

damage the spa and void your warranty. Level the surface before filling spa with water.

Provide adequate drainage system around the spa to deal with overflow water and splashes.

Make sure there is enough clearance around the spa for full access to the spa equipment for maintenance

and/or service.

Site preparation and requirements

Verify the supporting floor can support the filled weight of spa with maximum number of occupants. Check

with a qualified contractor or structural engineer to verify the requirement.

Make sure the floor is water resistant and provides non-slip surface. Do not install the spa on a carpet or

any other material that could be damaged by the moisture.

Humidity is a natural side effect of indoor spa installation. The room shall be properly ventilated to allow

moisture to escape. Install a ventilating system to prevent excess condensation moisture in the room.

Additional requirements for indoor installation

Andere Handbücher für D-NE02 Nest

Dieses Handbuch passt für folgende Modelle

Inhaltsverzeichnis

Sprachen:

Andere M-Spa Whirlpool Handbücher

M-Spa

M-Spa B-090 Alpine Bedienungsanleitung

M-Spa

M-Spa TUSCANY P-TU049 Bedienungsanleitung

M-Spa

M-Spa B-091 Alpine Leitfaden

M-Spa

M-Spa TRIBECA F-TR063W Bedienungsanleitung

M-Spa

M-Spa C-MO049 Bedienungsanleitung

M-Spa

M-Spa ELITE Series Bedienungsanleitung

M-Spa

M-Spa F-MO063W Bedienungsanleitung

M-Spa

M-Spa Alpine Bedienungsanleitung

M-Spa

M-Spa B-090 B-091 Alpine Bedienungsanleitung

M-Spa

M-Spa B-091 Alpine Bedienungsanleitung

M-Spa

M-Spa M-009LS Alpine Leitfaden

M-Spa

M-Spa MONO C-MO04 Bedienungsanleitung

M-Spa

M-Spa B100 Alpine Bedienungsanleitung

M-Spa

M-Spa B-160 Tuscany Leitfaden

M-Spa

M-Spa Blue Sea B110 Bedienungsanleitung

M-Spa

M-Spa Soho P-SH063 Bedienungsanleitung

M-Spa

M-Spa Lite LS04-NA Bedienungsanleitung

M-Spa

M-Spa Lite Bubble Spa Bedienungsanleitung

M-Spa

M-Spa MONO Bedienungsanleitung

M-Spa

M-Spa INDIGO M-IN063W Bedienungsanleitung

M-Spa

M-Spa Tekapo C-TE062 Bedienungsanleitung

M-Spa

M-Spa MONT BLANC P-MB04 Bedienungsanleitung

M-Spa

M-Spa Nest Bedienungsanleitung

M-Spa

M-Spa MONO Bedienungsanleitung

Beliebte Whirlpool Handbücher anderer Marken

Bestway

Bestway Lay-Z-Spa 54189 Bedienungsanleitung

Jacuzzi

Jacuzzi ARGA ARG101C0110 Stücklistenhandbuch

Morphy Richards

Morphy Richards Essentials PC4006 Bedienungsanleitung

Softub

Softub PRESTIGE Bedienungsanleitung

JNJ SPAS

JNJ SPAS SPA-318 Installationshandbuch

KIRAMI

KIRAMI Comfort Family Bedienungsanleitung

QCA Spa

QCA Spa VS501 PAK (VL260 TOPSIDE) Bedienungsanleitung

HoMedics

HoMedics FB-655HJ-GB Bedienungsanleitung

Everyday Hot Tubs

Everyday Hot Tubs 530 Bedienungsanleitung

anko

anko SS-601A Bedienungsanleitung

Jacuzzi

Jacuzzi Duetta 6042 Bedienungsanleitung

Pooli

Pooli OS030979B Bedienungsanleitung

Jacuzzi

Jacuzzi alimia Bedienungsanleitung

ab Solares Smart Spa Bedienungsanleitung

CalderaSpas

CalderaSpas CalderaSpas Utopia Series Bedienungsanleitung

Outsunny

Outsunny 848-047V70 Bedienungsanleitung

Aquatic

Aquatic INFINITY 1 Bedienungsanleitung

Master Spas

Master Spas MP Force Bedienungsanleitung
