Thank you for purchasing the industrial HMI touch panel series of M2I corporation.

Please read this manual carefully to know installing, wiring, operating this equipment for safe use of this

product.

M2I Corporation

Industrial HMI Touch Panel

TOPR Series (Process Module)

Hardware Manual

TOPR Series (Process Module) Hardware Manual

M2I Corporation
11-35, Simin-daero 327beon-gil, Dongan-gu, Anyang-si, Gyeonggi-do 14055, Korea, Tel: +82-70-465-3366, Fax: +82-31-465-3355, www.m2i.co.kr

2 / 18
Contents
Chapter 1 Safety Precautions................................................................................................................................................................. 3
■ Before using the product.............................................................................................................................................. 3
■ General Precautions ......................................................................................................................................................... 3
■ Design Precautions........................................................................................................................................................... 3
■ Wiring Precautions ........................................................................................................................................................... 3
■ Disposal Precautions........................................................................................................................................................ 4
■ Cell Type Battery Specifications and Exchange .................................................................................................. 4
Chapter 2 Overview .................................................................................................................................................................................... 5
2.1 Introduction of Products.............................................................................................................................................. 5
2.2 Package Contents............................................................................................................................................................ 5
2.3 Explanation of Model name ....................................................................................................................................... 6
Chapter 3 General Specifications ......................................................................................................................................................... 7
3.1 Electrical Specifications................................................................................................................................................. 7
Chapter 4 Parts Identification and Functions................................................................................................................................. 8
4.1 TOPRP Series ..................................................................................................................................................................... 8
Chapter 5 External Device Interface .................................................................................................................................................11
5.1 Serial Interface ................................................................................................................................................................11
5.2 Ethernet Communication Specifications.............................................................................................................12
5.3 USB Interface ...................................................................................................................................................................13
5.4 WLAN Specification [Only TOPRP20] ...................................................................................................................13
5.5 RCA Specification [Only TOPRP20]........................................................................................................................13
5.6 HDMI Specification [Only TOPRP20] ....................................................................................................................14
5.7 AUDIO Specification [Only TOPRP20]..................................................................................................................14
Chapter 6 Installation ..........................................................................................................................................................................14
Chapter 7 Wiring .......................................................................................................................................................................................14
7.1 Power wiring ....................................................................................................................................................................14
7.2 Ground wiring .................................................................................................................................................................15
Chapter 8 Maintenance ..........................................................................................................................................................................16
8.1 Cleaning the Display ....................................................................................................................................................16
8.2 Periodic Check Points..................................................................................................................................................16
8.3 Problems with the Device..........................................................................................................................................16
Chapter 9 Products and Warning Label Location ......................................................................................................................17
Chapter 10 Products Label....................................................................................................................................................................18
10.1 AC Power Models .......................................................................................................................................................18
10.2 DC Power Models .......................................................................................................................................................18








TOPR Series (Process Module) Hardware Manual

M2I Corporation

11-35, Simin-daero 327beon-gil, Dongan-gu, Anyang-si, Gyeonggi-do 14055, Korea, Tel: +82-70-465-3366, Fax: +82-31-465-3355, www.m2i.co.kr

3 / 18

Chapter 1 Safety Precautions

■Before using the product

To use the product safely and effectively, please read the contents of this manual thoroughly before use.

Please keep to the safety precaution, for it is to prevent accidents and potential danger from occurring.

Safety precaution is classified into ‘Warning’ and ‘Caution’ and their meanings are as follows. Also the

indicated illustrations on the product and in the manual have the following meanings.

Violating the instruction may result in serious personal injury or death.

Violating the instruction may result in slight personal injury or product damage.

Be cautious, for danger may be present.

Be cautious, for there is a possibility of an electric shock.

■General Precautions

Do not press the screen with a hard or sharp object (awl, screwdriver, pen) with too strong a force.

It may cause malfunction of touch due to damage of the front sheet.

Do not use or store in an environment with high vibration.

Do not allow foreign objects such as water, liquids, or metal powders to enter the product. This may

cause breakage or electric shock.

Do not allow foreign objects such as water, liquids, or metal powders to enter into the front(screen)

protective sheet. The screen may be invisible or may cause a malfunction of the touch.

Use the radio or mobile phone at least 30cm away from the main unit.

Two or fewer bright spots may appear on the LCD screen, and certain areas may appear brighter, but

this is not a defect in LCD characteristics.

Do not store or operate in direct sunlight. Direct sunlight can change the properties of the LCD.

■Design Precautions

Install protection circuit on the outside of Products to protect the entire control system when external

power supply or Products have problems.

As the malfunction & incorrect result of Products could damage the stability of the entire systems

and human body, you must install damage preventing interlock circuit such as emergency stop,

Protective circuits, positioning upper and lower limit switch and interlock for forward/reverse

operation.

When computer or other controllers communicate and exchange data with products or change operation

mode of products, set up protective sequence program in PC or Controller for protecting system from

communication error.

The output signal or communication lines should be separated from the power line or high tension wire.

They should be installed 100mm (3.94 Inch) or more from each other.

■Wiring Precautions

Be sure the wiring is done correctly by checking the product’s rated voltage and the terminal layout.

Incorrect wiring could result in fire, damage or malfunctions.

Tighten the terminal screw with the specified torque. If the screws of terminal are loose, it could

TOPR Series (Process Module) Hardware Manual

M2I Corporation

11-35, Simin-daero 327beon-gil, Dongan-gu, Anyang-si, Gyeonggi-do 14055, Korea, Tel: +82-70-465-3366, Fax: +82-31-465-3355, www.m2i.co.kr

4 / 18

result in short circuit, fire, malfunctions. FG Terminal must be used a dedicated ground. Not doing so

could result in malfunctions.

a. Grounding should be the Class 3 grounding. The cable for grounding should be more than 4㎟.

b. grounding point be closed to the products and make short the distance to the ground cable if possible.

Please see below.

■Installation Precautions

Do not install the location which exceeds allowed temperature. Product can be damaged or shorten

the life. Especially Install environment as below should be avoided.

Do not Install product to the place which the ambient temperature is out of limits, from 0℃to 50℃or on the

surface of control board which high pressure equipment is installed.

Do not install to the place where strong shock or vibration continuously have impacted on product.

The space between back of product and back of control board must be more than 100mm for maintenance

and ventilation.

In order to improve water retention and ventilation, the space between the back of the main body

and the console box should be 100mm or more, and install the cooling fan when installed in an

enclosed space.

■Disposal Precautions

When you dispose of product and battery, please treat it as industrial waste. It can create poisonous

substances or explosion.

■Cell Type Battery Specifications and Exchange

Mounted on mainboard Model MS920SE Battery is not replaced by the user. If the battery has run out of

service, please contact our Customer Support Center for replacement and inspection.

Item

Content

Battery Voltage

DC 3V

Battery Model

MS920SE (lithium / Rechargeable )

Battery lifetime

Permanent (In case of ambient temperature 25℃)

Battery Discharge

Last about 7 days After turn it off

*Depending on the model specifications are subject to change.

■All field-wiring connections to this unit shall be from Limited Voltage / Limited Current, below 24 Vdc

isolated secondary source with an output fuse, or Class 2.

TOPR Series (Process Module) Hardware Manual

M2I Corporation

11-35, Simin-daero 327beon-gil, Dongan-gu, Anyang-si, Gyeonggi-do 14055, Korea, Tel: +82-70-465-3366, Fax: +82-31-465-3355, www.m2i.co.kr

5 / 18

Chapter 2 Overview

2.1 Introduction of Products

This industrial HMI touch panel is an industrial control device required in industrial field. It is a device

based on RS-232C and RS-422/485, Ethernet which is used for the basic purpose of communication with

another device (PLC).

2.2 Package Contents

The components of the product are as follows.

Before using the product, please check that all of the following components are included.

Item

Figure

Quantity

Process Module

Manual

Power Connector

Accessories

(Sold separate)

USB Memory

USB Cable

SD Card

Front Protect Sheet

User Options

TOPR Series (Process Module) Hardware Manual

M2I Corporation

11-35, Simin-daero 327beon-gil, Dongan-gu, Anyang-si, Gyeonggi-do 14055, Korea, Tel: +82-70-465-3366, Fax: +82-31-465-3355, www.m2i.co.kr

6 / 18

2.3 Explanation of Model name

TOPR

□□

□

Serise

Type

Screen Size

Option

Resolution

Power

Explosion proof

P : Process

08 : 8.4"

10,30 : Premium

Q : QVGA(320*240)

D : DC

Ex : Explosion proof or special model

D : Display

10 : 10.2", 10.4"

V : VGA(640*480)

A : AC

Blank: Non-explosion proof or

general model

T : P + D

12 : 12.1"

S : SVGA(800*600)

15 : 15"

X : XGA(1024*768)

* "S" for 12.1 "model: XGA

2.3.1 Process Module (Main Unit)

TOPR

□□

□

Series

Type

Option

Power

P : Process

10 : Standard

D : DC

D : Display

20 : Premium

A : AC

T : P + D

2.3.2 Display Module (Accessory Unit)

TOPR

□□

□

Series

Type

Display Size

Option

Resolution

P : Process

08 : 8.4”

10 : Standard

Q : QVGA(320*240)

D : Display

10 : 10.4"

20 : Premium

V : VGA(640*480)

T : P + D

12 : 12.1”

30 : Premium

S : SVGA(800*600)

15 : 15”

X : XGA(1024*768)

W: WQVGA(480*272)

WVGA(800*480)

TOPR Series (Process Module) Hardware Manual

M2I Corporation

11-35, Simin-daero 327beon-gil, Dongan-gu, Anyang-si, Gyeonggi-do 14055, Korea, Tel: +82-70-465-3366, Fax: +82-31-465-3355, www.m2i.co.kr

7 / 18

Chapter 3 General Specifications

3.1 Electrical Specifications

TOPRP10D

TOPRP20D

TOPRP10A

TOPRP20A

Power

Input Voltage

DC24V

AC220V,50/60Hz

Input Voltage Range

DC 20~28V

AC100~240V, 50/60Hz

Consumption

Power

Only Process

Under 6W

With

Display

Module

TOPRD08 Series

Under 12W

TOPRD10 Series

Under 15W

TOPRD12 Series

Under 15W

TOPRD15 Series

Under 18W

Voltage endurance

DC 24V, 10ms

AC85/170V, 10ms

Insulation Resistance

500VDC, 10 ㏁

3.2 Memory Specifications

Screen Memory

128MB

Backup Memory

512KB: System buffer(10K Word), Including Alarm/Log/Recipe

Backup Period

Permanent

Real Time Clock

Built in(by Battery)

3.3 Environment Specifications

Operation Temperature(℃)

-10 ~ +50

Storage Temperature(℃)

-20 ~ +60

Operation Humidity(%RH)

0 ~ 90(No dew)

Atmosphere

No corrosive gas

Vibration Endurance

Amplitude: 10≤F＜25 ㎐(2G) X,Y,Z each direction(for 30 minutes)

Noise Immunity

1000Vp-p(Pulse width 1 ㎲)

Static Electricity Discharge

Connective discharge from EN61000-4-2: ±4 ㎸

Shock Endurance

10G X,Y,Z each direction(for 3 times)

Surge Voltage

500V(Line-Line)

Ground Connection

Class 3(Under 100Ω)

Protection Classification

IP2X(Display Module: IP65)

3.4 Structure Specifications

Dimension(㎜)

201.6X147.6X39.8

Weight(㎏)

0.8Kg

Cooling System

Natural air circulation

Case Material

AL(Aluminium)

Model

Item

TOPR Series (Process Module) Hardware Manual

M2I Corporation

11-35, Simin-daero 327beon-gil, Dongan-gu, Anyang-si, Gyeonggi-do 14055, Korea, Tel: +82-70-465-3366, Fax: +82-31-465-3355, www.m2i.co.kr

8 / 18

Chapter 4 Parts Identification and Functions

4.1 TOPRP Series

4.1.1 Product Dimension

TOPR Series (Process Module) Hardware Manual

M2I Corporation

11-35, Simin-daero 327beon-gil, Dongan-gu, Anyang-si, Gyeonggi-do 14055, Korea, Tel: +82-70-465-3366, Fax: +82-31-465-3355, www.m2i.co.kr

9 / 18

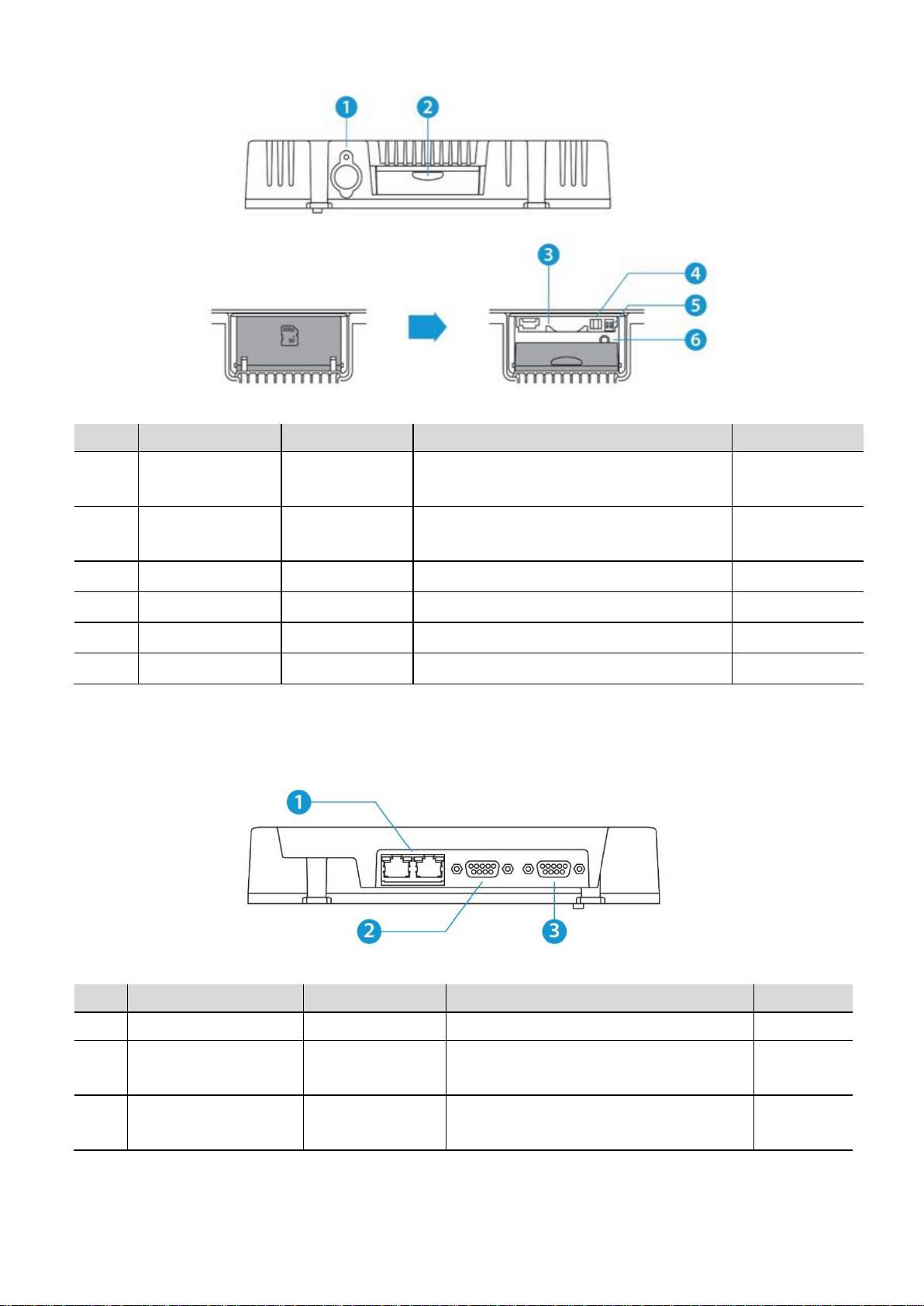

4.1.2 Part Names and Specifications

No.

Part

Form

Description

①

Power Connector

TB 5mm 3P

TOPRP10D, TOPRP20D

TOPRP10A, TOPRP20A

DC 20V~28V

AC100~240V, 50/60Hz

②

COM3 Connector

TB 3.5mm 3P

RS-485 Serial Comm. with PLC

③

Extension Module Connector

Expansion module mounting cover

4.1.3 Side Part Names and Specifications

[TOPRP10] [TOPRP20]

No.

Part

Form

Description

Etc.

①

USB HOST

USB A type

Connector for option for USB storage. 5V/0.5A limit

②

HDMI

Standard HDMI

HDMI output terminal, external video device connection

(TV / Monitor connection). * Max resolution 1920X1080.

Only TOPRP20

③

RCA Jack

Composite RCA

Jack (Yellow)

VIDEO input terminal, external video device connection.

Input format: NTSC, PAL, SECAM

Only TOPRP20

④

AUDIO

3.5mm Audio

Plug

AUDIO output terminal, external speaker connection.

* Video, WAV file playback support.

Only TOPRP20

TOPR Series (Process Module) Hardware Manual

M2I Corporation

11-35, Simin-daero 327beon-gil, Dongan-gu, Anyang-si, Gyeonggi-do 14055, Korea, Tel: +82-70-465-3366, Fax: +82-31-465-3355, www.m2i.co.kr

10 / 18

4.1.4 Top Part Names and Specifications

No.

Part

Form

Description

Etc.

①

External antenna

connector

SMA FEMALE

External antenna connector

Only TOPRP20

②

SD Card Cover

Plastic Cover

SD Card, Reset Switch, Mode Switch

included

③

SD Card Socket

Data upload / download

④

Cover Sensor

Photo coupler

Cover open / close detection

⑤

Mode Switch

DIP Switch 2P

Set Up System Mode

⑥

Reset Switch

Tact Switch

System reset Switch

4.1.5 Bottom Part Names and Specifications

No.

Part

Form

Description

Etc.

①

ETHERNET Connector

RJ45

10BASE-T/100BASE-TX, Auto-MDIX

2ch.

②

COM1

DSUB9

RS-232C/422/485 Serial Comm. with PLC

(Switchable the Comm. Software select)

③

COM2

DSUB9

RS-232C/422/485 Serial Comm. with PLC

(Switchable the Comm. Software select)

Andere Handbücher für TOPR Series

Dieses Handbuch passt für folgende Modelle

Inhaltsverzeichnis

Andere M2I Touch-Terminal Handbücher

M2I

M2I TOP-PCVIEW Series Bedienungsanleitung

Beliebte Touch-Terminal Handbücher anderer Marken

Wincor Nixdorf

Wincor Nixdorf iPOS plus Advanced Bedienungsanleitung

Ingenico

Ingenico AXIUM EX4000 Bedienungsanleitung

Heisei Electronics

Heisei Electronics Q-POS 815 Bedienungsanleitung

Amano

Amano MTX-15 Bedienungsanleitung

FLOWBIRD

FLOWBIRD CWT Compact Touch Bedienungsanleitung

Demco

Demco SP7 Bedienungsanleitung

Lathem

Lathem PC600 Series Bedienungsanleitung

Partner

Partner MF-2352 Bedienungsanleitung

NCR

NCR RealPOS 7460-2 Handbuch

Simrad

Simrad MS50 Montageanleitung

Unitech

Unitech MR350 MKII Kurzanleitung

Jungheinrich

Jungheinrich WMT 210 Bedienungsanleitung

Motorola

Motorola MTP850 Bedienungsanleitung

YASKAWA

YASKAWA 62H-MDC0 Bedienungsanleitung

MVG industries

MVG industries NeptuLink Bedienungsanleitung

Price Industries Limited

Price Industries Limited FDC Gebrauchsanweisung

Honeywell

Honeywell TemaKey Bedienungsanleitung

EBN

EBN BPC65-B-A16G Bedienungsanleitung
