Mackie Ultramix Montageanleitung

WINDOWS 95

HARDWARE CONFIGURATION

The following is a review of basic steps through the WIN95

control panel for MIDI setups. We have included this section

to help you with the task of installing your system. Please

consult your MIDI interface manuals and other

manufacturer’s Read Me files for the latest details concern-

ing WIN95 MIDI applications.

NOTE: Be sure to also have the latest driver software for

your MIDI interface (available from the interface

manufacturer).

1. From the Start menu, select Control Panel.

2. If you haven’t installed your interface hardware, double

click on the Add New Hardware icon.

3. Follow the Wizard. (Pay no attention to the man behind

the curtain.)

4. Click Next.

5. Then, if you want WIN95 to search for your hardware, click

Yes. This may take awhile, so if you’re rarin’ to go, click No.

(Skip to step 7. Do not collect $200.)

6. Click Next again.

7. If you selected No in step 5, choose “Sound, video and game

controllers” (your interface falls somewhere into all of this).

8. Insert your MIDI interface driver diskette into drive A:

and click the Have Disk button.

9. Follow the install prompts. Now go back to the Control

Panel and double-click on the Multimedia icon.

10. Click on Advanced (we’re not messing around).

11. Click on the MIDI Devices and Instruments icon. In our

case, since we loaded the appropriate MIDI interface driv-

ers, we have MusicQuest 8PortSE and 2PortSE interfaces

shown as options.

12. Double-click on one of the ports. The Properties dialog

box appears. In the illustration, the Properties dialog box

shows that the 8PortSE is enabled and active.

To enable an inactive port, click the Use MIDI Features op-

tion, and then back out of the Control Panel and restart your

computer.

A GENERAL, YET IMPORTANT NOTE: Let your com-

puter do the routing, not the interface.

If a multiport MIDI interface patching program (for example,

8portse.exe) is available to configure the interface MIDI ins

and outs, it is normally found in the Driver folder supplied

with the interface. Configure the 8PortSE by first double

clicking on the application icon to open it.

Copy the application to your hard drive and launch the appli-

cation to set it as shown below.

On smaller interfaces you probably won’t have this “.exe” file

or capability because your MIDI in and out routing is much

less flexible.

13. Save the setting and exit the program.

WINDOWS 95

ULTRAMIX SOFTWARE INSTALLATION

1. Insert the UltraMix diskette into your A: drive, open the My

Computer icon, and double-click on the Setup.exe icon. (Or,

from the Start menu, choose Run, and then type A:setup.exe.

Click OK.)

2. Click on the Continue button to cruise towards nirvana or

wherever. Remember to wipe your feet…

3. To change the location where the UltraMix software will

be installed, click Set Location and specify a different folder.

Select the options you want installed.

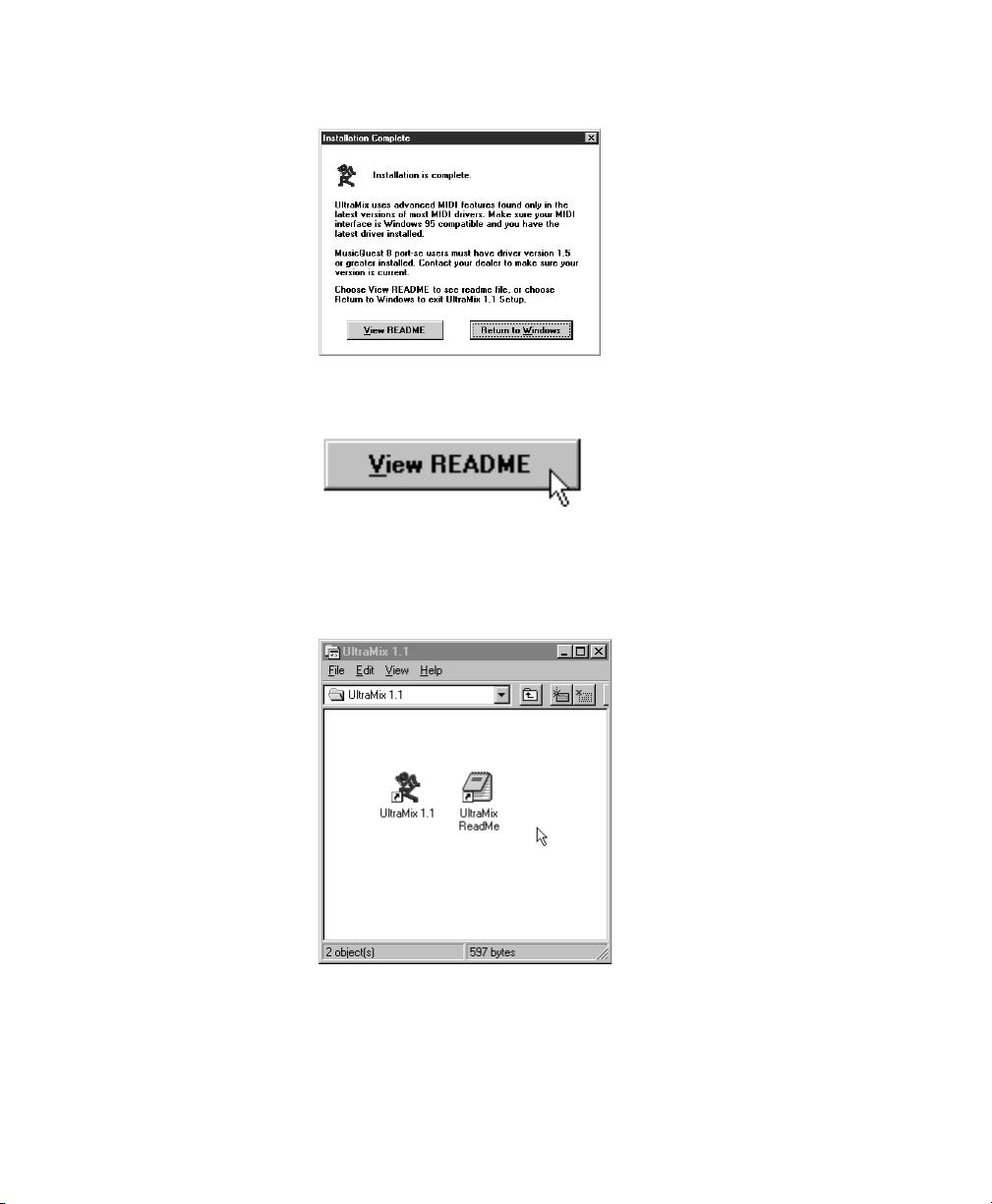

4. Click Install.

5. C:\ONGRTLNS\HOPEFU\\Y.

6. What installation procedure would be complete without a

plea to have you read the Read Me file?

7. Next, open the UltraMix 1.1 application. If you get any

prompts that ask you about your hardware setup, please re-

view your MIDI interface manuals and/or earlier hookup

suggestions.

8. Restart your computer so all of these settings take effect.

FINAL CHECKOUT

Now it’s time to make sure everything works together.

1. Open the UltraMix application (if it’s not already open).

The transport window and an untitled session window

should appear on the screen.

2. Push the BANK SELECT button on the UltraPilot (located

on the right side). The red LEDs on channels 17-32 of the

UltraPilot should light, and the glass faders on the screen

should swap banks.

3. If your external sync device supports MMC, make sure

Ext. Sync is not Bypassed. (When it’s bypassed, the Ext.

Sync button in the UltraMix transport window appears lit.

Click it to turn Bypass off.) Press the Play/Stop button on

the UltraPilot, or the spacebar on the computer keyboard.

Your tape should roll and the time code numbers in the

Transport window should increase.

If this doesn’t work, then something isn’t quite right. Read

through the setup and installation instructions again and

see if you can get things straightened out. If you’re still

stumped, check Appendix G: Troubleshooting, on page 211.

Go Ahead – Make Your First (Fader) Move

1. Move a fader on the UltraPilot. If the corresponding fader

on the computer screen moves, congratulations. You’re now

set to sail the sea of automation. If for some odd reason it

doesn’t work, again we suggest rereading the previous sec-

tions. And in that case, may we suggest liquid refreshment?
