Mackie S225 Bedienungsanleitung

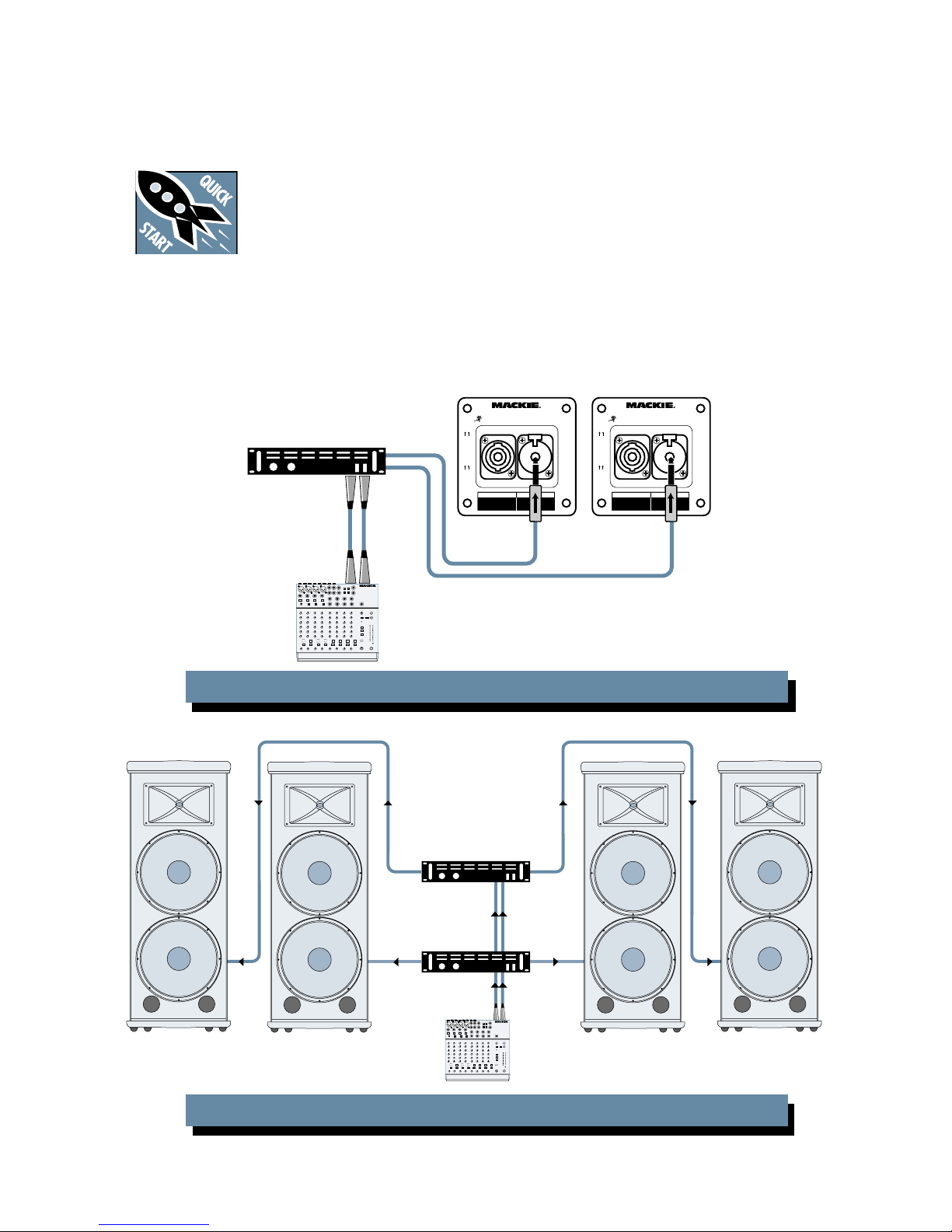

HOOKUP DIAGRAMS

Quick-Start

Make all initial connections with the

power switches OFF on all equip-

ment. Make sure all master volume,

level, or gain controls are all the way

down.

1. Connect the line-level outputs from your mixing

console (or other signal source) to the inputs of

your power ampliﬁer.

S225: WITH A MIXER AND TWO POWER AMPLIFIERS

2. Connect the “Speaker Output”from your power

ampliﬁer (or powered mixer) to the INPUT connec-

tor on the S225.

3. Turn on your mixing console (or other signal

source).

4. Turn on the ampliﬁer. Turn up its volume or gain

control(s) as recommended by the manufacturer.

5. Start the signal source, whether it be speaking

into a microphone or starting a CD player. Adjust

the volume controls on the mixer (or other signal

source) for normal operation.

S225: WITH A MIXER AND POWER AMPLIFIER

SERIAL NUMBER MANUFACTURING DATESERIAL NUMBER MANUFACTURING DATE

S225

"MACKIE" AND THE "RUNNING MAN" FIGURE

NOMINAL IMPEDANCE: 4 OHMS

POWER HANDLING: CONT/ 700W • PEAK / 2800W

PIN 1 + +

PIN 1 - -

TIP +

SLEEVE -

1/4"NL4

SERIAL NUMBER MANUFACTURING DATESERIAL NUMBER MANUFACTURING DATE

S225

"MACKIE" AND THE "RUNNING MAN" FIGURE

NOMINAL IMPEDANCE: 4 OHMS

POWER HANDLING: CONT/ 700W • PEAK / 2800W

PIN 1 + +

PIN 1 - -

TIP +

SLEEVE -

1/4"NL4

S225 S225

Mixer or

Preamplifier

Right

Line-level

Output

Left

Line-level

Output

Stereo

Power Amplifier

1202-VLZ PRO

S225

1202-VLZPRO

Stereo Power Amplifier

From LEFT

SPEAKER OUT From RIGHT

SPEAKER OUT

From LEFT

SPEAKER OUT From RIGHT

SPEAKER OUT

Line-level

THRU Connection

S225 S225S225

SERIAL NUMBER MANUFACTURING DATESERIAL NUMBER MANUFACTURING DATE

S225

"MACKIE" AND THE "RUNNING MAN" FIGURE

NOMINAL IMPEDANCE: 4 OHMS

POWER HANDLING: CONT/ 700W •PEAK / 2800W

PIN 1 + +

PIN 1 - -

TIP +

SLEEVE -

1/4"NL4

S225

SERIAL NUMBER MANUFACTURING DATESERIAL NUMBER MANUFACTURING DATE

S225

"MACKIE" AND THE "RUNNING MAN" FIGURE

NOMINAL IMPEDANCE: 4 OHMS

POWER HANDLING: CONT/ 700W •PEAK / 2800W

PIN 1 + +

PIN 1 - -

TIP +

SLEEVE -

1/4"NL4

S225

SERIAL NUMBER MANUFACTURING DATESERIAL NUMBER MANUFACTURING DATE

S225

"MACKIE" AND THE "RUNNING MAN" FIGURE

NOMINAL IMPEDANCE: 4 OHMS

POWER HANDLING: CONT/ 700W •PEAK / 2800W

PIN 1 + +

PIN 1 - -

TIP +

SLEEVE -

1/4"NL4

S225

SERIAL NUMBER MANUFACTURING DATESERIAL NUMBER MANUFACTURING DATE

S225

"MACKIE" AND THE "RUNNING MAN" FIGURE

NOMINAL IMPEDANCE: 4 OHMS

POWER HANDLING: CONT/ 700W •PEAK / 2800W

PIN 1 + +

PIN 1 - -

TIP +

SLEEVE -

1/4"NL4

S225

Mixer or

Preamplifier

Right

Line-level

Output

Left

Line-level

Output

Stereo

Power Amplifier

1202-VLZ PRO

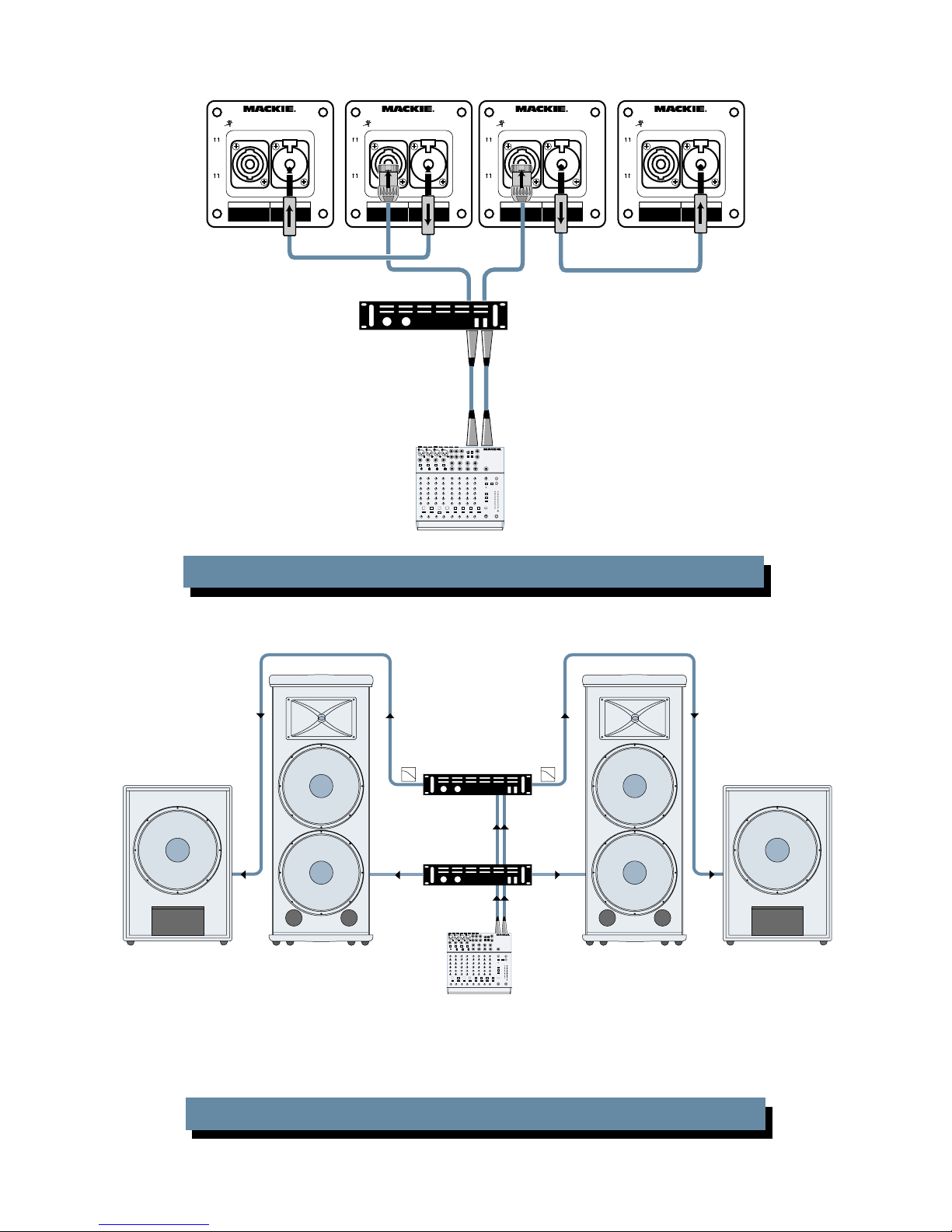

S225: WITH A MIXER AND POWER AMPLIFIER, USING THE 1/4" THRU JACKS

S225: WITH A MIXER, TWO POWER AMPLIFIERS, AND TWO S218SSUBWOOFERS

The S225s can be used with the Mackie S218s subwoofers to create an incredibly powerful

system. The FR Series M•1400 power ampliﬁers have a built-in subwoofer crossover. If you are not

using a Mackie M•1400 ampliﬁer, you can use an active crossover between the ﬁrst and second

ampliﬁers with the crossover set between 125 Hz to 180 Hz. This allows more ampliﬁer power for

the low frequencies rather than being wasted as heat in the S218s’internal built-in crossover.

S225

1202-VLZPRO

Stereo Power Amplifier

From LEFT

SPEAKER OUT From RIGHT

SPEAKER OUT

Line-level

THRU Connection

S225

S218s

Mackie M•1400 Power Amplifier

Subwoofer Mode

S218s
