LynxPro Overview

Battery Change Procedure

Quick Start

With MadgeTech App

App Overview

Support

14-15

Home/Devices Page

Add Devices Page

Reports Page

Top Navigation Bar

Settings

Device Summer Page

Device Settings

Quick Start

With MadgeTech 4 Data Logger Software

603.456.2011 |[email protected] |madgetech.com

LynxPro Overview

Play Button:

When device is in Manual Mode this button

can be used to start the device or mark

specic readings

Bluetooth Button:

Used to enable/disable Bluetooth

broadcasting

LCD Screen:

Displays current status and readings

Battery Door:

User replaceable CR2450 battery

Alarm:

Alarm is activated

Bluetooth:

Visible when Bluetooth is turned on.

Additional blinking arrows when connected

to app

Running:

Will ash when actively running. Solid when

waiting to start (manual mode)

USB Connect:

Connected via USB to power source

Battery:

Health monitor of the device battery

Current Reading:

The last reading the LynxPro has taken

Battery

Door

Play Button Bluetooth

Button

LCD Screen

Bluetooth

Running

Alarm

Current

Reading

USB

Connect

Battery

603.456.2011 |[email protected] |madgetech.com

App Overview

Home/Devices Page

Serial Number:

The non-editable serial number for the device.

Device ID:

The customizable name each device is given. This

can be changed in the Device Settings page.

Connection Level:

The Bluetooth connection level to the device. In

order to improve this, move your phone or tablet

closer to the device.

Current Status:

The Current Status is color coded as:

Devices that you have previously claimed appear

here. A quick overview of each device is provided.

Gray: The device is out of range or the

Bluetooth is not enabled

Solid Yellow: The device is in range,

but idle

Blinking Green: The logger is waiting to start - either in Manual

Start which requires starting via the Play button on the logger or

in delayed start waiting to start automatically when the delay start

time is reached.

Green: The device is actively logging

Red: The device has detected

alarm conditions

To remove a device from your list, slide to the left.

603.456.2011 |[email protected] |madgetech.com

Add Devices Page

Reports Page

Devices that have Bluetooth enabled that have not previously

been claimed by the current phone will appear here. If you do

not see your device, move the phone closer to it. Click on a

device to add it to your Home/Devices page.

Displays all previously created reports.

Reports can be sorted based on date or utilize ltering

as outlined below:

Show All: Will display all currently available reports.

Show Alarms: Will display only reports with data that

has triggered alarms.

Show PDF: Will display only reports saved as PDFs.

Show .csv: Will display only reports saved as .csv les.

Show SN: Filter by serial number/device ID

Show Anomalies: Show only problem reports

Show Not Shared: Show only les that have

not been shared

Reports highlighted in red contain an alarm condition.

Reports with blue title are a .pdf, while green titles

signify .csv les.

Click on the report icon to see a report summary and

graph. The green check mark on report indicates that

the report has been shared.

To share a report, click on the desired report.

Determine whether to use defaults to send to

contacts set in App Settings or Select App to

share to other contact(s).

To delete a report, slide left.

603.456.2011 |[email protected] |madgetech.com

Main Menu

Top Navigation Bar

Quick Access Buttons

Clicking the main menu in the top left corner will

launch the Main Menu.

Help

Launches a series of resources including User Guide,

Online Support, FAQs, Licence Agreement, Privacy

Policy, and a Contact Us link.

Watch

Launches the Devices (Watch) page.

Add

Launches the Add Devices page.

Reports

Launches the Reports page.

Settings

Launches general settings for the app.

About

Provides information regarding the current version of

the app you are running.

Help Button

Initiate in-app, on-page guided assistance.

Quick Connect Button

Enable or Disable Quick Connect.

When Quick Connect is on and Bluetooth is enabled,

the device will automatically connect and download

readings when within range. If Automatic Report

Generation and Automatic Report Sharing are also

enabled, Quick Connect will automatically connect,

download data, generate a report and share the

report to the default contact.

603.456.2011 |[email protected] |madgetech.com

Help Button

Quick Connect

Button

Settings

The App Settings screen allows preferences to be set for the app.

Report Settings

Automatic Generation: Select whether a report is automatically

created when a device is connected, either through Quick

Connect or manual connection. Enabling this will automatically

clear the device’s readings and restart the device once the report

has been generated.

Automatic Report File Format: Select the desired format for

automatically generated reports.

Retention Period: Specify the number of days to retain a report

before automatic deletion. Will only generate a warning. Will not

do automatic deletion but will prompt the operator to do so.

Share by SMS: Specify the number to receive reports. For

nonautomatic report sharing, alternate numbers may be used.

Share by Email: Specify the address to receive reports. For

nonautomatic report sharing, alternate numbers may be used.

Automatic Sharing: Automatically share report upon creation

to the number and/or email above. Note that only successfully

downloaded reports are shared automatically.

General Settings

Units: Select whether to display readings in Celsius or Fahrenheit.

Time Format: Select whether to use a 12- or 24-hour clock.

Date Format: Select between the Day-Month (DM) or Month-Day

(MD) date format.

Quick Connect: When Quick Connect is on and Bluetooth is

enabled, the device will automatically connect and download

readings when within range. If Automatic Report Generation and

Automatic Report Sharing are also enabled, Quick Connect will

automatically connect, download data, generate a report and

share the report to the default contact. Quick Connect can also

be toggled on or off using the ‘Q’ button located in

the top navigation.

Audible Alerts: Enable or disable audible alarms.

Pop-Up Hint Control: Tap Restore to restore all pop-up hints.

Tap Hide to hide all pop-up hints.

603.456.2011 |[email protected] |madgetech.com

Notications Settings

Logger Checks Schedule: Select how frequently daily checks

should be performed for VFC requirements

Report Alert Time: Select the time checks should be

completed at. For 12 hour checks, the Report Alert Time

will be every 12 hours

Prior Warning: Specify how long before the Report Alert Time a

notication should be sent

Repeat Warning: Specify how long after the initial warning all

subsequent notication should be sent

Calibration Period: Specify your calibration interval, as stated in

your Standard Operating Procedure (SOP)

Prior Warning: Specify how many days in advance you would like

to receive a calibration reminder.

Device Main Page

The device summary page gives an overview of the

current status of the selected device.

Device Control Buttons:

Quick Start: Start the device with the current settings.

Clear Alarm: Clear an active alarm on the device.

Release: Will exit the page and remove the device from your Devices/Home Page.

Report: Generate a report from the current data set. You will then be prompted to specify

the report format, le name and the number and/or email address to automatically share to.

Reports can also be shared from the Reports page after they are created.

603.456.2011 |[email protected] |madgetech.com

Device ID:

The user set name of the device. Tap on the

device to see the device specications

Reading Interval:

The current reading rate of the device.

Additionally, ETTF (estimated time to full)

estimates the approximate amount of time the

device can run with the current reading rate

before the device memory is full.

Number of Readings:

The total number of readings currently stored on

the device. Additionally, the percentage of how

full the device’s memory is provided.

Status/Alarms:

Provides the current status of the device as either

Nominal (no alarm) or Alarmed (active alarm). Tap

on an individual alarm to get details.

Refresh Button:

Used to update the data without having to exit

and reenter the device main page.

Graph:

The Graph shows all data currently on the

device. Tap the graph to expand view. Dotted

lines represent times that have been Marked by

pressing the Play button on the device. Minimum,

Average and Maximum statistics are also provided

for the current dataset.

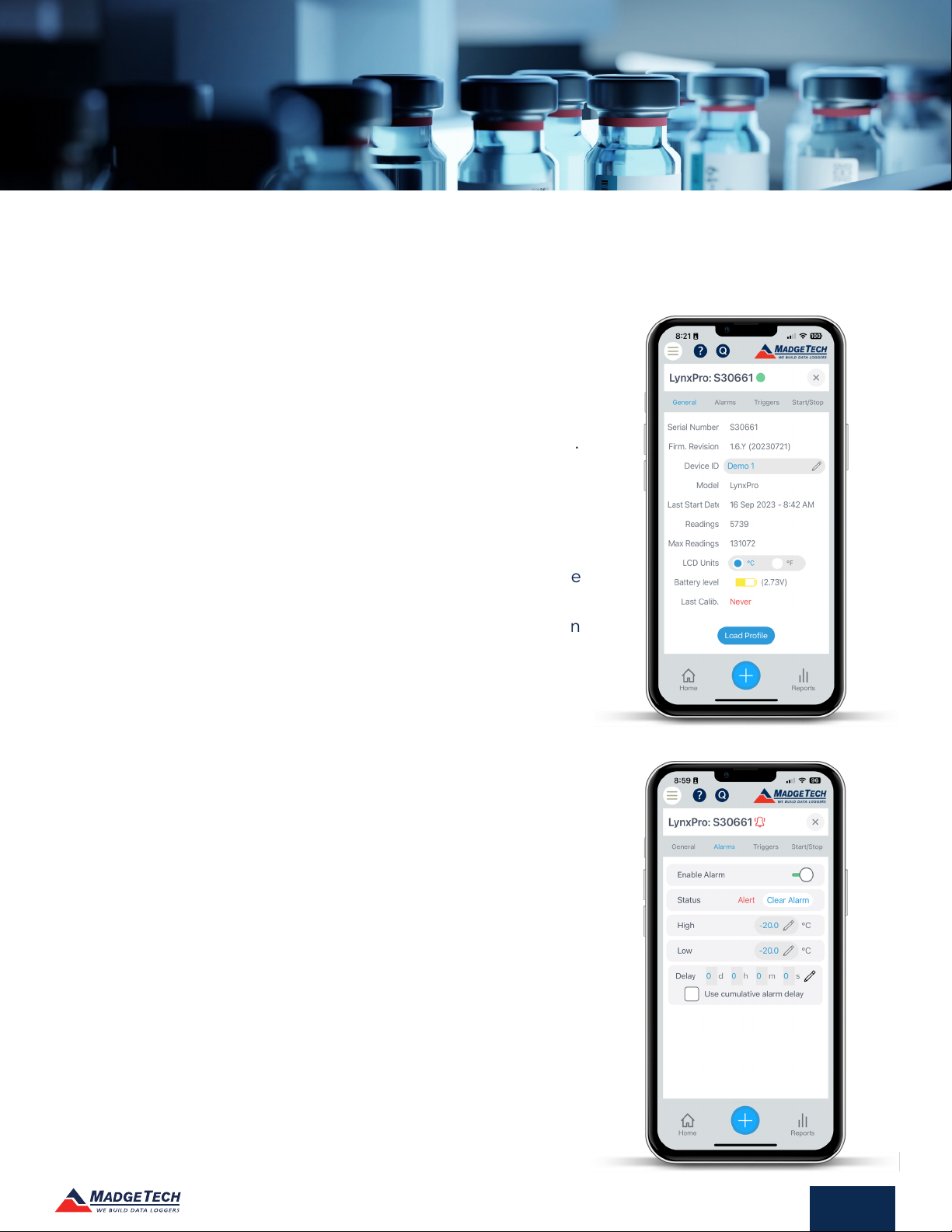

Device Settings

General Settings

Serial Number: Displays the non-editable serial number

assigned to the device.

Firmware Revision: Displays the current rmware revision on

the device.

Device ID: Specify the desired name to be used on the device.

Model: Displays the model of the current device.

Last Start Date: Displays the last time the device was started.

Readings: Displays the number of readings currently

on the device.

Maximum Readings: Displays the total number of readings the

device can store.

LCD Units: Specify whether the LCD should display readings in

Celsius or Fahrenheit. Note this will only change the display on

the LCD. To change the display in the app and reports, adjust

in General App Settings.

Battery Level: Displays the current battery level of the device.

Last Calibration: Date the unit was last calibrated

Load Prole: Access library of previously saved proles.

The Device Settings page includes all device-specic preferences.

Alarm Settings

Enable Alarm: Alarms must be enabled in order to edit

alarm settings.

Status: Display whether an alarm is currently active and allow

you to Clear Alarm.

High: Set the high threshold for triggering alarm.

Low: Set the low threshold for triggering alarm.

Delay: Specify the length of time the temperature and/or

humidity must remain outside of the specied range before

triggering an alarm.

Cumulative Alarm Delay: Count the cumulative time from the

start of record that the temperature and/or humidity is outside

of the specied range to trigger an alarm.

603.456.2011 |[email protected] |madgetech.com

Inhaltsverzeichnis

Andere MadgeTech Datenlogger Handbücher

MadgeTech

MadgeTech PR1000EX-30A Technisches Datenblatt

MadgeTech

MadgeTech Process101A 20mA Technisches Datenblatt

MadgeTech

MadgeTech HiTemp140X2 Series Technisches Datenblatt

MadgeTech

MadgeTech EggTemp-RH Technisches Datenblatt

MadgeTech

MadgeTech TC101A Bedienungsanleitung

MadgeTech

MadgeTech Volt101A-30V Technisches Datenblatt

MadgeTech

MadgeTech HiTemp140-FR Technisches Datenblatt

MadgeTech

MadgeTech TSR101 Series Bedienungsanleitung

MadgeTech

MadgeTech pHTemp101 Bedienungsanleitung

MadgeTech

MadgeTech RHTEMP1000EX Technisches Datenblatt

MadgeTech

MadgeTech HiTemp140-FPST-36 Bedienungsanleitung

MadgeTech

MadgeTech MadgeNet RFRHTemp2000A Technisches Datenblatt

MadgeTech

MadgeTech Level2000 Bedienungsanleitung

MadgeTech

MadgeTech PR140 Bedienungsanleitung

MadgeTech

MadgeTech HITEMP140-FR Technisches Datenblatt

MadgeTech

MadgeTech X Series Technisches Datenblatt

MadgeTech

MadgeTech HiTemp140X2 Series Technisches Datenblatt

MadgeTech

MadgeTech octtemp 2000 Bedienungsanleitung

MadgeTech

MadgeTech RTDTempX Series Technisches Datenblatt

MadgeTech

MadgeTech QuadRTDTempV2 Technisches Datenblatt

MadgeTech

MadgeTech Pulse101A Bedienungsanleitung

MadgeTech

MadgeTech Temp101 Bedienungsanleitung

MadgeTech

MadgeTech MadgeNET RFTCTemp2000A Technisches Datenblatt

MadgeTech

MadgeTech RHTemp2000 Bedienungsanleitung

Beliebte Datenlogger Handbücher anderer Marken

TESTO

TESTO 176 Bedienungsanleitung

HT Italia

HT Italia XL421 Bedienungsanleitung

HBM

HBM SOMAT XR CX22B-R Bedienungsanleitung

Agtrix

Agtrix 380i Bedienungsanleitung

Hobo

Hobo H8 Pro Bedienungsanleitung

Beijing ART Tech

Beijing ART Tech PCI2320 Bedienungsanleitung

Athena

Athena GET SL1 Bedienungsanleitung

Motec Systems

Motec Systems C185 Bedienungsanleitung

Beijing ART Tech

Beijing ART Tech USB2832 Bedienungsanleitung

Rotronic

Rotronic HygroLog HL20 Bedienungsanleitung

MRC

MRC DW-6092 Bedienungsanleitung

Racelogic

Racelogic VBOX LapTimer Bedienungsanleitung

Edu-Logger

Edu-Logger 900-240 Bedienungsanleitung

Elma

Elma DT173 Bedienungsanleitung

Comet

Comet U0121M Bedienungsanleitung

pico Technology

pico Technology PT-104 Bedienungsanleitung

Soil Instruments

Soil Instruments GTecLink Bedienungsanleitung

APLICOM

APLICOM A11 Bedienungsanleitung
