Magellan 750M Installations- und Betriebsanleitung

Vehicle Navigation System

Installation & Reference Addendum

Vehicle Navigation Made Portable

TABLE OF CONTENTS

Precautions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2

Important Information: Please Read This First!

DO . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2

DO NOT . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2

Battery Precautions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3

Components . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4

Installation Preparation . . . . . . . . . . . . . . . . . . . . . . . . . . . 6

DO . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6

DO NOT . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6

Component Placement . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7

Battery Connection . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8

Moving from Fixed Vehicle Mount . . . . . . . . . . . . . . . . . . . . 9

Installation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 10

Initialization . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 13

Calibration . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 15

Full Calibration . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 15

Quick Calibration . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 17

Operations . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 18

Battery Charger . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 18

Battery Operation / Stand-Alone Mode . . . . . . . . . . . . . . . . . 18

Map Area Switching . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 19

Preparing Navigation Computer for 750NAV

In-Vehicle Fixed Installation . . . . . . . . . . . . . . . . . . . . . . . . 19

Storage . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 20

Troubleshooting . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 21

750MCare and Maintenance . . . . . . . . . . . . . . . . . . . . . . . 25

750MReplacement Parts . . . . . . . . . . . . . . . . . . . . . . . . . . 25

Battery Replacement & Disposal . . . . . . . . . . . . . . . . . . . . 26

Map Area Illustration . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 27

The Magellan 750M™

Vehicle Navigation Made Portable™

Important Information: Please Read This First!

To reduce the risk of personal injury, please follow these important Dos

and Do Nots.…

DO…

• Secure the Display to ashtray, glove box or other suitable location.

• Make certain GPS Antenna Wire is not in driver’s or passengers’ way when placed

on vehicle roof.

DO NOT…

• DO NOT expose the 750MTM to damp locations or to any type of fluids.

• DO NOT place Carry Case on dashboard, rear deck or in truck bed.

• DO NOT place Display on a seat or in a location where it is not secure.

• DO NOT operate system without the Battery attached to the Battery Cable.

• DO NOT obstruct any airbag or other vehicle safety device.

PRECAUTIONS

This symbol is intended to alert the user to the presence of

important operating instructions. Failure to heed the

instructions can result in injury or material damage.

This symbol indicates information which can be helpful in

the use of the 750MNavigation System.

TIP

BATTERY PRECAUTIONS

DO…

• Only charge the Battery using the Battery Charger supplied to avoid damage.

• The Battery contains diluted sulfuric acid, a very toxic substance. If sulfuric acid

contacts skin or clothing, immediately wash with plenty of clean water. If the acid

splashes into eyes, immediately flush with plenty of clean water and consult a

physician. Sulfuric acid in the eyes may cause a loss of eyesight and acid on the

skin will cause burns.

• Check the Battery for any sign of irregularities in appearance. If any cracks or

deformities are noticed, replace the Battery with a new one. Call Magellan

Customer Service center at 1-877-4CARNAV (1-877-422-7628) for a replacement.

• Avoid mechanical shock to Battery such as dropping which may cause damage

and/or deterioration to the Battery.

DO NOT…

• DO NOT connect the Battery to direct power; use the specified Battery Charger.

• DO NOT use a dry cloth or duster to clean the Battery. Avoid static electricity that

could cause the Battery to explode. If the Battery requires cleaning, disconnect the

Battery from the Battery Cable and clean with a slightly damp cloth only.

• DO NOT expose the Battery to extremely hot temperatures or leave in direct sun-

light, in front of a stove, or near a fire.

• DO NOT use the Battery in a dusty environment which may short the battery.

• DO NOT throw the Battery in a fire or extreme heat which may cause the Battery to

emit toxic gas or explode.

• DO NOT attempt to disassemble or destroy the Battery, as injury may result.

• DO NOT allow metallic objects or liquids to contact or short-circuit the Battery

terminals, as burns or injuries may result.

• DO NOT apply organic solvents such as paint thinner, gasoline, kerosene, or liquid

detergents to the Battery which may cause leakage.

Upon purchasing the 750Mverify that the product box contains both a Carry Case (which

contains all of the 750Mcomponents) and the Battery.

Before installation, please verify that the pre-assembled 750Msystem in the Carry Case includes

the following components:

If any part is missing, please contact a Magellan retailer or Magellan’s

customer service department at 1-877-4-CARNAV (1-877-422-7628).

COMPONENTS

Docking Station with Navigation Computer Display

Carry Case with Shoulder Strap Battery

Antenna and

Antenna Spool Quick Mount Bracket

Power Adapter Battery Cable Battery Charger

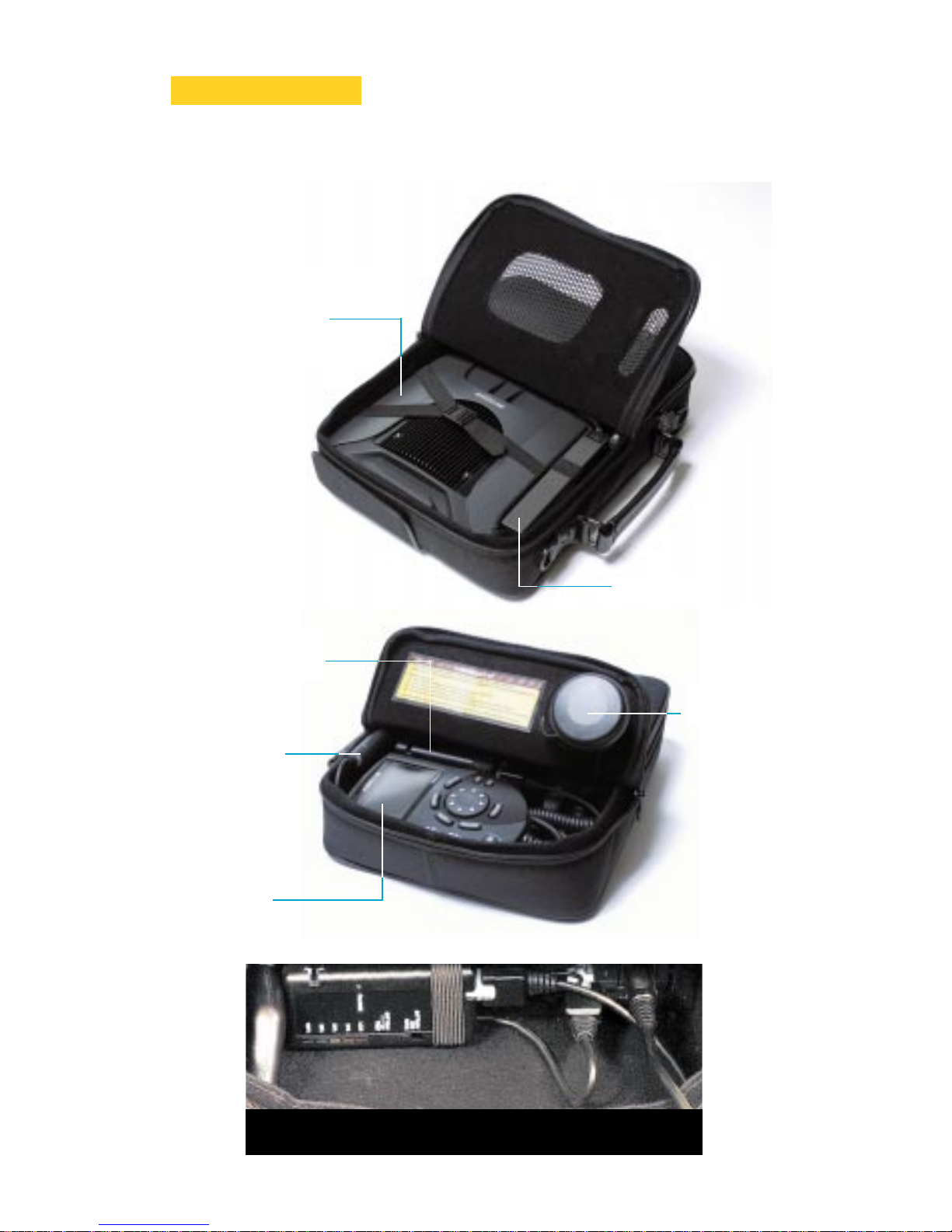

The 750MCarry Case has been designed to provide Magellan’s Portable Vehicle Navigation

system with expandable functionality and user friendliness.

Special features include the Air Vents and a Communication Port Access Flap. Additionally, the

system is pre-assembled and fits neatly into specialized compartments for ease of use.

The Air Vents are designed to allow proper airflow to the 750MNavigation Computer,

therefore, must not become obstructed. The Access Flap is designed for accessibility to the

750M Communication Ports. As future developments of the 750Moccur, such as software

updates, map changes, etc., these ports will allow the user to make changes easily.

Air Vent

Expansion Ports

Access Flap

Computer

and Battery

Compartment

Display,

Antenna,

Power

Adapter,

and Battery

Charger

Compartment

DO…

• Position Carry Case to eliminate movement while driving with handle facing toward front of

vehicle.

• Place Carry Case in the same orientation each time the system is used to reduce calibration

requirements.

• Complete calibration steps when system is powered up for the first time and after the 750M

has:

- been moved to a different vehicle;

- or has its in-vehicle location changed.

• Place GPS Antenna on vehicle roof so that it has a clear view of the sky. If obstructed by a

rack or other attached roof equipment, the GPS Antenna may not receive satellite signals.

DO NOT…

• DO NOT obstruct Carry Case Air Vents from airflow. Failure to keep Air Vents free of

obstructions could cause permanent damage to the 750MNavigation Computer.

• DO NOT allow any part of the 750Mto become wet, moist or allow any part of the 750Mto

become exposed to any liquids.

• DO NOT expose any 750Mpart to extreme heat or cold for extensive periods of time.

• DO NOT tangle, kink, or excessively twist GPS Antenna Wire when winding or unwinding

from Antenna Storage Spool.

• DO NOT store antenna on Navigation Computer side of Carry Case.

INSTALLATION PREPARATION

To optimize 750Moperation and to reduce the risk of damage to

vehicle or the 750M …

Component Placement

The 750Mvehicle navigation system components are pre-assembled in the Carry Case as

shown in the picture below with the exception of the Battery.

Navigation

Computer &

Docking

Station

Battery

GPS

Antenna

Display

Power

Adapter

Battery

Charger

Expanded View of Battery Charger

and System Connections

Battery Connection

It is important that the Battery be connected to the Battery Cable before using the 750M

system. Please be sure that the Battery is attached to the Battery Cable each time the system is

used.

Upon first use of the 750Mor if the Battery has become disconnected, be sure to connect the

Battery to the Battery Cable. Verify that the Battery is connected correctly using the ‘BATTERY

TEST’ button. When pressed, the Battery Status Indicator should illuminate indicating the

charge of the battery. A reading of 70% or greater is preferred. Refer to ‘Battery Charger’ in

the ‘Operations’ section for further details.

DO NOT operate the system without the Battery attached to the

Battery Cable. A 12-volt power source exists at the Battery Cable

conductors even if the Battery is removed during 750Moperation.

Battery Charger Test Button

System Configuration Diagram

Power

Adapter

Battery

Charger

Display

GPS

Antenna

Navigation

Computer

Open the Navigation Computer side of the Carry Case and locate the Battery Cable . Place the

Battery in the Carry Case, conductor side up, under the elastic strap, and secure the

fasteners. Connect the Battery Cable to the exposed metal electrodes of the Battery.

When unpacking Battery, check that it is free of cracks, deformities

and leakage. Replace if necessary by calling Magellan Customer

Service at 1-877-4CARNAV (1-877-422-7628).

Mount the Battery only in the upright position.

Moving from Fixed Vehicle Mount to

Carry Case

To remove the Navigation Computer from the

fixed vehicle mount to the 750MCarry Case,

follow these simple steps:

1. Pull the red locking tab on Docking Station

in vehicle.

2. Grasp the Navigation Computer and pull

outward.

3. Open the Navigation Computer side of the

Carry Case.

4. Ensure the red locking tab is pulled out.

5. Insert the Navigation Computer into

Docking Station inside the Carry Case.

6. Lock the 750Minto place by pressing the

red locking tab.

7. Close the Carry Case.

Battery in Upright Position

Navigation Computer Removal

Installation in Carry Case

Correctly Installed Battery

Red Locking

Tab

Inhaltsverzeichnis

Andere Magellan Auto-Navigationssystem Handbücher

Magellan

Magellan RoadMate 1400 - Automotive GPS Receiver Stücklistenhandbuch

Magellan

Magellan Magellan eXplorist 300 Konfigurationshandbuch

Magellan

Magellan ROADMATE COMMERCIAL 9270T-M Bedienungsanleitung

Magellan

Magellan RoadMate 1212 - Automotive GPS Receiver Bedienungsanleitung

Magellan

Magellan RoadMate 6000T - Automotive GPS Receiver Bedienungsanleitung

Magellan

Magellan Maestro 4040 - Automotive GPS Receiver Bedienungsanleitung

Magellan

Magellan RoadMate 6000T - Automotive GPS Receiver Bedienungsanleitung

Magellan

Magellan Magellan eXplorist 300 Bedienungsanleitung

Magellan

Magellan RoadMate 1212 - Automotive GPS Receiver Konfigurationshandbuch

Magellan

Magellan Maestro 3210 - Automotive GPS Receiver Konfigurationshandbuch

Magellan

Magellan RoadMate 1400 - Automotive GPS Receiver Bedienungsanleitung

Magellan

Magellan Triton 1500 - Hiking GPS Receiver Gebrauchsanweisung

Magellan

Magellan Maestro 4000 - Automotive GPS Receiver Bedienungsanleitung

Magellan

Magellan Magellan eXplorist 300 Bedienungsanleitung

Magellan

Magellan RoadMate 1440 - Automotive GPS Receiver Bedienungsanleitung

Magellan

Magellan 800 Bedienungsanleitung

Magellan

Magellan Maestro 3210 - Automotive GPS Receiver Bedienungsanleitung

Magellan

Magellan eXplorist - Hiking GPS Receiver Konfigurationshandbuch

Magellan

Magellan RoadMate 6000T - Automotive GPS Receiver Bedienungsanleitung

Magellan

Magellan RoadMate 1430 - Automotive GPS Receiver Bedienungsanleitung

Magellan

Magellan Maestro 4210 - Automotive GPS Receiver Bedienungsanleitung

Magellan

Magellan Triton 1500 - Hiking GPS Receiver Konfigurationshandbuch

Magellan

Magellan RoadMate 1212 - Automotive GPS Receiver Bedienungsanleitung

Magellan

Magellan Magellan eXplorist 300 Stücklistenhandbuch

Beliebte Auto-Navigationssystem Handbücher anderer Marken

Clarion

Clarion Navigation In-Car Entertainment Bedienungsanleitung

Rosen

Rosen DP-1001 Bedienungsanleitung

Alpine

Alpine INE-W970HD Bedienungsanleitung

Skoda

Skoda AMUNDSEN+ Bedienungsanleitung

Blaupunkt

Blaupunkt TravelPilot DX-N Bedienungsanleitung

Pioneer

Pioneer MZ360500EX Bedienungsanleitung

Sanyo

Sanyo NVM-4030 - Easy Street - Automotive GPS... Bedienungsanleitung

Kenwood

Kenwood DNN991HD Bedienungsanleitung

AvMap

AvMap Geosat 2C Bedienungsanleitung

Eonon

Eonon GE01B Bedienungsanleitung

Pioneer

Pioneer AVIC-Z920DAB Bedienungsanleitung

Nextar

Nextar M3-MX - Automotive GPS Receiver Bedienungsanleitung

Furrion

Furrion NV2200 Bedienungsanleitung

Mio

Mio MOOV 200-Series Bedienungsanleitung

Prestigio

Prestigio GeoVision 5150 Bedienungsanleitung

Hummer

Hummer 2006 H3 Bedienungsanleitung

Garmin

Garmin StreetPilot c510 Bedienungsanleitung

Garmin

Garmin nüvi 2200 Bedienungsanleitung
