PLEASE READ THIS MANUAL CAREFULLY BEFORE USING YOUR

COMBO WASHER AND DRYER AND KEEP IT FOR FUTURE REFERENCE.

Model MCSCWD27W5 / MCSCWD27S5 / MCSFLW27W / MCSFLW27S /

24” Combo Washer and Dryer

24” Front Load Washer

User’s Manual

MCSCWD27G5

PRODUCT REGISTRATION

Thank you for purchasing a Magic Chef®product. The first step to protect your new product is to complete the product

registration on our website: www.mcappliance.com/register. The benefits of registering your product include the following:

1. Registering your product will allow us to contact you regarding a safety notification or product update.

2. Registering your product will allow for more efficient warranty service processing when warranty service is required.

3. Registering your product could act as your proof of purchase in the event of insurance loss.

Once again, thank you for purchasing a Magic Chef product.

CONTENTS

PRODUCT REGISTRATION . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2

IMPORTANT SAFETY INSTRUCTIONS . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4

SPECIFICATIONS . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6

INSTALLATION INSTRUCTIONS . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7

BEFORE USE . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 10

OPERATION INSTRUCTIONS. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 11

WASH CYCLE PARAMETERS. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .1

CARE AND MAINTENANCE . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

TROUBLESHOOTING . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2

LIMITED WARRANTY . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2

IMPORTANT SAFETY INSTRUCTIONS

This manual contains Safety Instructions, Installation and Operating Instructions, and Troubleshooting Tips. Please

carefully read this manual before using your washing machine for instructions on how to use and maintain the

product properly. Be sure to follow the safety instructions to avoid injury or damage to the product.

Keep this manual. When passing on/selling the device to a third party, the manual must be handed over along

with the device.

Before calling for service, please make sure unit is installed and being used correctly, and read thetroubleshooting

section.

WARNING: When using your appliance, follow the precautions listed below.

NOTE: Specifications may change at any time without notice.

State of California Proposition 65 Warnings

WARNING: The California Safe Drinking Water and Toxic Enforcement Act requires the Governor of

California to publish a list of substances known to the State of California to cause cancer, birth defects, or other

reproductive harm, and requires business to warn of potential exposure to such substances. This product contains

a chemical known to the State of California to cause cancer, birth defects, or other reproductive harm. This

appliance can cause low-level exposure to some of the substances listed, including benzene, formaldehyde, and

carbon monoxide.

1. Read all instructions before using this product.

2. This appliance is for household use only. It is not intended for commercial applications.

3. The appliance is intended for indoor use only. DO NOT use outdoors.

4. DO NOT use this appliance for other than its intended purpose.

5. Use only detergents or softeners recommended for use in this manual and keep them out of the reach of

children.

6. This machine is not intended for use by persons (including children) with reduced physical, sensory or

mental capabilities, or lack of experience and knowledge, unless they are given supervision or instruction

concerning the use of the washer by a person responsible for their safety.

7. This appliance must beproperly installed in accordance with the installation instructions before it is to beused.

8. DO NOT unplug your appliance by pulling on its power cord. Always grasp the plug firmly and pull it

straight out from the outlet.

9. Do not operate any appliance that has a damaged cord or plug, if it is damaged or malfunctions in any way,

or if the outlet is not in proper working order. Contact customer service or a service technician.

10. ALWAYS turn off and unplug from outlet before servicing, changing accessories or cleaning the unit. Allow

unit to cool down completely before cleaning, moving or servicing. Turning the unit off does not disconnect

it from the power source.

11. DO NOT put anything flammable or explosive in, on, or near the appliance. DO NOT wash or dry articles

of clothing or any items that have been soaked in flammable or explosive chemicals. To reduce the risk

of fire, clothes, cleaning rags, mop heads and the like which have traces of any flammable substance, such

as cooking oils, petroleum based oils or distillates, waxes, fats, etc., must not be placed in the washing

machine. These items may contain flammable substances which, even after washing, may smoke or catch

fire. DO NOT dry articles containing foam rubber or similarly textured rubber like materials.

12. ALWAYS wait for the washer tub to completely stop moving before reaching in to add or remove any clothes.

13. The loading door must be closed when the tub is spinning.

14. DO NOT operate this washer unless all enclosure panels are properly installed.

15. DO NOT tamper with or modify the controls.

16. WARNING: Risk of child entrapment. DO NOT allow children to play on or in the appliance. Close

supervision of children is necessary when the appliance is used around them.

17. The appliance must be plugged into a properly installed and grounded outlet that meets the voltage

requirements listed on the ratings label.

18. CAUTION: The power cord is equipped with a 3-prong grounding plug to protect against shock hazards.

ALWAYS plug the cord into a properly installed and grounded 3-prong wall receptacle, and DO NOT remove

the grounding prong.

19. Under certain conditions, hydrogen gas may be produced in a household hot water system that has not

been used for two weeks or more. Hydrogen gas is highly explosive. If the hot water system has not been

used for more than two weeks, turn on all hot water faucets and let the water flow for several minutes

prior to using your compact washer.

20. DO NOT modify or repair the unit by yourself. Contact customer service or a qualified service technician if

service is required.

21. To reduce the risk of electric shock or fire, do not use an extension cord or outlet adapters to connect the

unit to an electrical power source. The appliance must be properly grounded using a three-prong electric

receptacle wall outlet.

22. DO NOT install the washing machine in a moist or wet area, or where it can get wet or exposed to outside

weather conditions. DO NOT spray with water when cleaning.

23. DO NOT put children on top of, or allow children or pets to climb in or on, the washer. ALWAYS check

inside before using.

24. Glass door may be very hot during the operation. Keep children and pets away from the washer while in use.

25. Regularly clean the power plug to remove dust and dirt, in order to prevent electrical failure.

26. It is recommended to unplug the unit when it is not in use.

27. ALWAYS be sure to properly and securely connect the power cord to the outlet, and the water hoses to

prevent leakage or electrical shock.

28. DO NOT operate the unit or handle the plug with wet hands.

29. The water temperature to the washing machine should not exceed 131 °F (55 °C).

30. DO NOT wash raincoats, heavy jackets, or similar, heavy items.

31. DO NOT machine wash fiberglass materials (such as curtains and window coverings that use fiberglass

materials.) Small particles may remain in the washing machine and stick to fabrics in subsequent wash loads

causing skin irritation.

32. When removing from service and discarding, be sure to removethe door from the unit and cut thepowercord.

33. DO NOT reach into the wash tub when the agitator is moving.

34. CAUTION: Content may be HOT when washing and/or drying cycle is completed.

READ AND FOLLOW THIS

SAFETY INFORMATION CAREFULLY

SAVE THESE INSTRUCTIONS

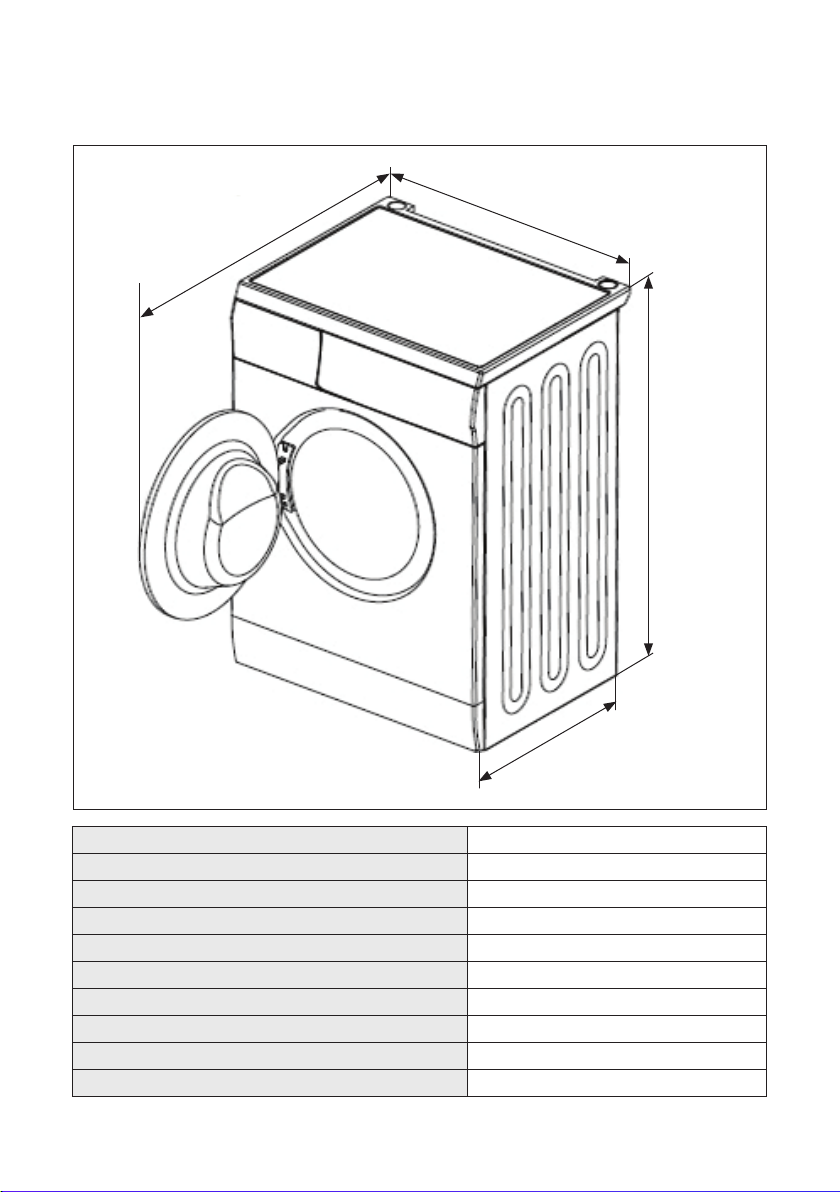

SPECIFICATIONS

Height 33.5” (850 mm)

Width 23.5” (595 mm)

Depth 23.5” (595 mm)

Depth with Door Opened 42.5” (1080 mm)

Weight 160.9 lbs. (73.0 kg)

Voltage / Frequency AC 120V~60Hz

Rated Current 11.0A

Max. Washing Capacity 26.4 lbs. (12.0 kg)

Max. Dry Capacity (For MCSCWD27W5/MCSCWD27S5/MCSCWD27G5 only) 17.6 lbs. (8.0 kg)

Drum Size 2.7 cu. ft.

Figure 1

33.5”

(850 mm)

23.5” (595 mm)

42.5” (1080 mm)

INSTALLATION INSTRUCTIONS

1. The washing machine must be properly grounded. In the event of a short circuit, grounding can reduce the

danger of electrical shock.

2. Washing machineshould be operated in a circuit separate from other electrical appliances.

INCLUDED PARTS

Before starting installation, make sure all included parts are

in thepackage inside thedrum.

INSTALLATION REQUIREMENTS

ELECTRICAL REQUIREMENTS

1. A 120v, 60Hz, AC 15-or 20amp, fused electrical supply

is required. A time-delay fuse or circuit serving only this appliance should beused.

2. This washer is equipped with a power supply cord having a 3 prong grounding plug.

3. To minimizepossibleshock hazard, the cord must be plugged into a 3 prong outlet, properly grounded in

accordance with local codes and ordinances. If a proper outlet is not available, it is the responsibility of the

customer to have the properly grounded outlet installed by a qualified electrician.

4. If codes permit and a separate ground wire to be used, it is recommended that a qualified electrician

determine the proper ground path.

5. DO NOT ground to a gas pipe.

6. Check with a qualified electrician if you are not sure the washer is properly grounded.

7. DO NOT have a fuse in the neutral or ground circuit.

8. Certain internal parts are intentionally not grounded and may present a risk of electric shock only during

servicing. Service Personnel – Do not contact the following parts whilethe appliance is energized: Drain

Pump, Door Lock, Drying Heater (Combo), Fan Motor (Combo).

LOCATION REQUIREMENTS

Selecting theproper location for your washer improves performance and minimizes noise and possible washer

“walk.” The washer can be installed under a custom counter or in a basement, laundry room, closet, or recessed area.

You will need:

• A water heater set for 120° F (49° C).

• A grounded electrical outlet located within 6 ft.( 1.8 m)of where thepower cord is attached to the back of

the washer.

• Hot and cold water faucets located within 4 ft. (1.2 m)of the hot and cold water fill valves ,and water

pressure of 20 - 100 psi (137.9 - 689.6 kPa).

• A level floor with a maximumslope of 1” (25 mm) under entire washer. Installing the washer on soft floor

surfaces, such as carpets or surfaces with foam backing.is not recommended.

• A sturdy and solid floor to support the washer with a total weight (water and load) of 200lbs.

• Do not operate your washer in temperatures below 32° F (0° C). Some water can remain in the washer and can

cause damage in low temperatures.

Water Hoses (2) Cable Tie

Transport

Hole Plugs (4)

Figure 2

• Thelocation must belarge enough to allow the washer door to be fully opened. The door opens more than

90°, and is not reversible.

• Additional spacing should be considered for ease of installation and servicing.

• Minimum spacing of 1” (25 mm) on all sides of the washer is recommended to reduce noise transfer.

• Additional clearances might be required for wall, door, and floor moldings.

• Spacing for companion appliance should also be considered.

Figure 3

Figure 4

INSTALLATION

CAUTION: Packing materials may be dangerous to children.

Please dispose them properly and DONOT let children play with

any packing materials.

Before using this washing machine, transport bolts must be

removed from the backside of this machine. Please take the

following steps to remove the bolts:

1. Loosen all bolts and then remove them.

2. Insert the transport hole plugs into the holes.

3. Keep thetransport bolts for future use.

Make sure that thesmall foam triangleis removed withthebottom

foam piece. If not, carefully lay the unit down and removeit.

When you unpack your washing machine, check if there is any

damage or missing pieces. If any items missing, please contact

customer service.

LEVELINGTHE WASHER

1. When positioning the washing machine, make sure the

legs are screwed in close to the cabinet. If not, turn them

to their original positions by hand or with a wrench and

tighten the nuts with a wrench.

2. After positioning the washing machine, push on all four

corners at the top of washing machine. If the washing

machinehas any wobble, or is not stable when being

pressed, adjust theleg to level the machine.

3. To level the unit, loosen thelock nut with a wrench and

turn the leg by hand until it tightly contacts with the floor.

Press theleg with one hand and tighten thelocking nut

close to the cabinet with the other hand.

4. Repeat steps 2 and 3 as needed.

5. Use a bubble level to check front to back, side to side, and

corner to opposite corner to ensure the washing machine

is level. Repeat above steps if needed.

Figure 5

Figure 6

DRAIN SYSTEM

STANDPIPEDRAIN SYSTEM

- WALL OR FLOOR

2” (5 cm)

Figure 7 Figure 8

The standpipe drain requires a

minimum diameter standpipe of 2”

(5 cm). The minimum carry-away

capacity can be no less than 17 gal.

(64 L) per minute. The top of the

standpipe must be at least 24” (60

cm) high and no higher than 39”

(100 cm) from the bottom of the

washer.

INSTALL INLET PIPE

Connect the end of the water inlet hose with the90°

elbow to the back of the washing machine and turn

clockwise to tighten. Note the position of the Hot and

Cold water inlets.

Connect the other end of the water inlet hose to the

appropriate Hot and Cold water tap. Tighten by turning

clockwise, and turn on the water valve to check for leaks

If any leaks are found, verify all connections are tight and

washers are present, and repeat the procedure.

LAUNDRY TUB DRAIN SYSTEM

The laundry tub needs a minimum 20 gal. (76 L) capacity.

The top of the laundry tub must be at least 60cm above

the foor.

FLOOR DRAIN SYSTEM

The floor drain system requires a siphon break that

may be purchased separately. The siphon break must

be a minimum of 28” ( 71 cm) from the bottom of

the washer.

Additional

hoses might

be needed.

Figure 9 Figure 10

min. 24”

(61 cm)

max. 39”

(100 cm)

min. 24”

(60 cm)

max. 39”

(100 cm)

min. 28”

(71 cm)

Figure 11

Figure 12

Hot

Connector to water inlet is a 90° bend.

Cold

NOTE: Images are for reference only.

BEFORE USE

CHECK LIST AND PREPARATION BEFORE WASHING

Read all instructions carefully to avoid any damage or issues with the washing machine and to clothes. ALWAYS

follow instructions on fabric care labels on clothing articles for proper care.

WARNING: DO NOT leave items to be washed in the washing machine for long periods of time. Items left in the

machine may get moldy and get spots. Clothes may also become discolored if they are not washed according to the

stated washing temperature and instructions.

SELECTINGDETERGENT

• Low foaming powdered detergent is recommended for use with the washing machine.

• Some detergents may not completely dissolve if there is too much detergent or if the water temperature is

too low.

• Bleach can damage clothes. Use bleach with caution and follow detergent and clothing article care

instructions.

Washing method is based on weight of clothes, soil level, local water hardness as well as the recommendations

from the detergent manufacturers.

NOTE: DONOT place or store laundry products, such as detergent, bleach, or liquid fabric softener, on top of

your washer/dryer combounit. Wipeup any spills immediately. These products can damage thefinish and controls.

Keep all laundry products in a safe, dry space out of reach of children.

SEPARATE CLOTHES TO BE WASHED

Classify clothes to be washed into cottons, blended fibers, synthetic fibers, silks, wools, etc. Light and dark clothes

should also be separated.

NOTE:New, colored fabrics should be washed separately.

• Accessories: Loose accessories on some clothes may become damaged and/or damage the washing machine.

Clothes that contain buttons or embroideries should be turned inside-out before being washed.

• Fasteners: Zippers must be closed and buttons or hooks must be firmly affixed. Any loosebands or ribbons

should be tied together before being washed.

• Water-proof materials: It is not recommended to wash water-proof fabrics as they may become damaged

and/or cause damage to the washing machine and other items being washed.

REMOVE ALL LOOSE OBJECTS FROM CLOTHES

Check all pockets/compartments of clothes to be washed and remove any loose items such as coins. Looseitems

may damage the washing machine.

BALANCING THE LOAD

Washing large, heavy garments, such as towels, jeans, jackets etc., may cause an unbalanced load. It is suggested to

add one or two more items to balance the load to allow smooth and complete draining.

Dieses Handbuch passt für folgende Modelle

Inhaltsverzeichnis

Sprachen:

Andere Magic Chef Waschmaschine Trockner Handbücher

Magic Chef

Magic Chef MCSCWD20W Bedienungsanleitung

Beliebte Waschmaschine Trockner Handbücher anderer Marken

Whirlpool

Whirlpool WFC8090GX Bedienungsanleitung

Whirlpool

Whirlpool LTE5243DQ6 Bedienungsanleitung

Bosch

Bosch XQG100-WDU285H00W Bedienungsanleitung

montpellier

montpellier MWD7512S Bedienungsanleitung

LG FHD0905 T Series Bedienungsanleitung

Midea

Midea MF200D85B Bedienungsanleitung

Maytag

Maytag MGT3800XW Bedienungsanleitung

Siemens

Siemens WD15G440TR Technisches Datenblatt

Equator

Equator Clothes Processor EZ1500 Bedienungsanleitung

Splendide

Splendide WDC7100XCP Bedienungsanleitung

John Lewis

John Lewis JLWD 1408 Bedienungsanleitung

Ariston

Ariston A1200WD Bedienungsanleitung

Whirlpool

Whirlpool YLTE5243DQ5 Bedienungsanleitung

Whirlpool

Whirlpool WFCR 75230 Installationsanleitung

ATT

ATT Hammer Jet v1 Bedienungsanleitung

AEG

AEG LAVAMAT 63742 VI Bedienungsanleitung

Electrolux

Electrolux EWW8024P5WB Bedienungsanleitung

GE GTD42EASJWH Bedienungsanleitung
