Magic Chef MCWBC77DZC Bedienungsanleitung

PLEASE READ THIS MANUAL CAREFULLY BEFORE USING YOUR

WINE AND BEVERAGE CENTER AND KEEP IT FOR FUTURE REFERENCE.

Wine and Beverage Center

User's Manual

Model MCWBC77DZC

ENG - 2

Thank you for purchasing a Magic Chef® product. The first step to protect your new

product is to complete the product registration on our website:

www.mcappliance.com/register. The benefits of registering your product include the

following:

Once again, thank you for purchasing a Magic Chef® product.

1. Registering your product will allow us to contact you regarding a safety notification

or product update.

2. Registering your product will allow for more efficient warranty service processing

when warranty service is required.

3. Registering your product could act as your proof of purchase in the event of

insurance loss.

PRODUCT REGISTRATION

ENG - 3

TABLE OF CONTENTS

PARTS 4

SPECIFICATIONS 4

IMPORTANT SAFETY INSTRUCTIONS 5

INSTALLATION INSTRUCTIONS

BEFORE USING YOUR APPLIANCE 5

FREESTANDING INSTALLATION 6

BUILT-IN INSTALLATION 6

ELECTRICAL CONNECTION 7

APPLIANCE FEATURES

DUAL TEMPERATURE ZONES 8

INTERIOR LIGHT 8

ENGAGED WINE SHELVES 8

TO REMOVE A SHELF 8

TO REPLACE A SHELF 8

UPPER ZONE 9

LOWER ZONE 9

OPERATING YOUR APPLIANCE

TEMPERATURE CONTROL AND DISPLAY 10

INDICATOR LIGHTS 10

STANDBY 10

LOCK AND UNLOCK 11

TEMPERATURE SETTING 11

INTERIOR LIGHT 11

AUTOMATIC DEFROST 12

CARE AND MAINTENANCE

CLEANING YOUR APPLIANCE 12

VACATION TIME 12

MOVING YOUR APPLIANCE 12

ENERGY SAVING TIPS 12

TROUBLESHOOTING GUIDE 13

WARRANTY 15

ENG - 4

PARTS

1) Interior Light 7) Door Handle

2) Direct Current (DC) Electric Fan 8) Partition Gasket

3) Inner Rear 9) Tempered Glass Door

4) Zone Partition

5) Temperature Control & Display

6) Wire Shelf / Glass Shelf* *Shelves are available for either wine,

beverage, or combination

storage use

SPECIFICATIONS

Product Description Wine and Beverage Center

Unit Dimensions

(inches)

Width Height Depth

23.4” 34.4” 24.4”

Net Weight (lbs) 108.4 lbs

Note: Height includes door cap; Depth includes door handle.

ENG - 5

IMPORTANT SAFETY INSTRUCTIONS

Before Using Your Appliance

•Remove the exterior and interior packing.

•Before connecting the appliance to the power source, let it stand upright for

approximately 4 hours. This will reduce the possibility of a malfunction in the cooling

system resulting from improper handling during transportation.

•Clean the interior surface with lukewarm water using a soft cloth (see Care and

Maintenance instructions on page 12).

INSTALLATION INSTRUCTIONS

To reduce the risk of fire, electric shock and/or

injury when using your appliance, follow these

basic precautions:

Read all instructions before using the wine and beverage center.

DANGER or WARNING: Risk of child entrapment.

To avoid the possibility of child entrapment, please take the following

precautions before throwing out the appliance:

-Remove all doors from the unit.

-Leave the shelves in place so that children may not easily climb inside.

Never allow children to operate, play with, or crawl inside the appliance.

Refrigerants: All refrigeration products contain refrigerants. Under the

guidelines of federal law, refrigerants must be removed before the disposal of

the product. It is the consumer’s responsibility to comply with federal and

local regulations when disposing of this product.

Never clean the appliance parts with flammable fluids. The fumes can create a

fire hazard or explosion.

Do not store or use gasoline or any other flammable vapors and liquids in the

vicinity of this or any other appliance. The fumes can create a fire hazard or

explosion.

SAVE THESE INSTRUCTIONS

ENG - 6

Freestanding Installation

•This appliance is designed to be built-in or freestanding.

•Locate the appliance away from direct sunlight and sources of heat (stove, heater,

radiator, etc.). Direct sunlight may affect the acrylic coating and heat sources may

increase electrical consumption. Ambient temperature below 68oF (20oC) or above

90oF (32oC) will hinder the performance of this appliance. This unit is not designed

for use in a garage or any other outside installation.

•Avoid locating the appliance in moist areas.

•Plug the appliance into a dedicated, properly installed grounded wall outlet. This

appliance should be operated on a separate electrical circuit from other operating

appliances. Do not under any circumstances cut or remove the third (ground) prong

from the power cord. Any questions concerning power and/or grounding should be

directed toward a certified electrician or an authorized service center. This unit is not

designed to be installed in an RV or used with an inverter.

•After plugging the appliance into a wall outlet, allow the unit to cool down for

approximately 3-4 hours before placing wine bottles or beverage cans in the

appliance.

Built-In Installation

The cutout dimensions illustrated in

Figure A allows the door to swing open

and also allows access to the pull-out

shelves when installed as a built-in unit.

If you are installing the unit between

frameless cabinets, a ½” wide filler strip

or side panel may be needed on the hinge

side. The filler strip will act as a spacer

between the appliance case and the

adjacent cabinet door swing. The width of

the opening must include the filler panels.

Note: The door should protrude at least

1” beyond the surrounding cabinets.

Figure A –The cutout depth must be 24”

ENG - 7

Electrical Connection

•This appliance should be properly grounded for your safety. The power cord of this

appliance is equipped with a three-prong plug which mates with standard three-

prong wall outlets to minimize the possibility of electric shock.

•Do not, under any circumstances, cut or remove the third ground prong from the

power cord supplied.

•This appliance requires a standard 115V AC / 60Hz electrical outlet with a three-

prong ground.

•This appliance is not designed to be used with an inverter.

•To prevent accidental injury, the power cord should be secured behind the appliance

and not left exposed or hanging.

•Never unplug the appliance by pulling the power cord. Always grip the plug firmly and

pull straight out from the receptacle.

•Do not use an extension cord with this appliance. If the power cord is too short, have

a qualified electrician or service technician install an outlet near the appliance. The

use of an extension cord can negatively affect the performance of the unit.

If any problems with the appliance persist, please contact the Customer Service

Department at 888 775-0202 to consult with a representative. Or, visit our website at

www.mcappliance.com to request warranty service.

Improper use of the grounded plug can result in the risk of electric shock. If the

power cord is damaged, please contact an authorized service center.

ENG - 8

APPLIANCE FEATURES

Dual Temperature Zones

•There are two zones in this appliance. They are divided by a partition.

•Each zone has its independent temperature control and display.

•Each of the two zones can be used to store wine bottles or beverages.

•The upper zone can hold up to 16 bottles or 63 cans.

•The lower zone can hold up to 28 bottles or 77 cans.

Note: Besides the wine shelves made of steel wire, two glass shelves are supplied for

your convenience to store beverages. Please keep the shelves that are temporarily

not in use in good condition for future use.

Interior Light

•Each zone has its own interior light, which can be switched on or off by pressing the

light pad on the control panel. Energy-efficient LEDs are installed for long-term

durability.

Engaged Wine Shelves

•All of the shelves have tabs to engage the cabinet on both sides.

•Any of the shelves can be removed to accommodate larger bottles.

To Remove a Shelf

•Remove all bottles (cans) from the shelves.

•Lift the shelf upward and then gently

pull out the shelf.

To Replace a Shelf

•Place the sides of the shelf back onto the

supporting guides of the cabinet and push

back until the shelf tabs slide into place.

Note: Ensure that the tabs are firmly

engaged in place before storing any bottles.

ENG - 9

Upper Zone

•There are two wine shelves of full depth in the upper zone. Each shelf can hold up to

8 bottles with the necks of the bottles alternating front to back.

•The second supporting guide in the upper zone (counting from the top, see Figure B

below) is not designed for wine storage; the shelves are for beverage use only.

Lower Zone

•There are two wine shelves of full depth in the lower zone. Each shelf can hold up to

8 bottles with the necks of the bottles alternating front to back.

•There are two wine racks in the lower zone. Each wire rack holds up to 6 bottles with

the bottle necks facing the front (see Figure C below).

Figure B –For beverage use only Figure C –Each wire rack holds up to 6 bottles

The Second

Supporting Guide

ENG - 10

Temperature Control and Display

•The temperature in the upper zone and lower zone can be independently controlled

and displayed.

•The temperature in either zone can be controlled between 39oF to 61oF (4oC to 16oC).

(The zone temperature may have a tolerance of +/-5oF (+/-3oC) from the setting

depending on different loading and ambient conditions).

•The temperature control and display, the indicator, the warmer and colder

control pads near the symbol (left side) are for the upper zone of the wine cooler.

•The temperature control and display, the indicator, the warmer and colder

control pads near the symbol (right side) are for the lower zone of the wine cooler.

•The indicator lights for standby and lock, as well as the control pads to

lock and for lighting are for both zones.

Indicator Light

• When lit, the standby indicator light shows that the unit is in “Standby” mode.

•When lit, the lock indicator light indicates that all of the control pads are locked

and no adjustment can be made to that zone.

•When lit, indicates that the corresponding zone is in the refrigeration cycle

(compressor is running). The indicator light will turn off once the desired

temperature is reached.

Standby

•When the unit is plugged in, the display and pads will illuminate for 3 seconds and an

audible beep will be heard. Then the unit will automatically resume its previous

setting from when it was unplugged. If the unit was previously in “Standby” mode

when unplugged, it will resume in “Standby” mode and the standby indicator

will remain lit.

• You can manually set your unit to “Standby” mode by pressing and holding both the

warmer and colder buttons of the lower zone control pads for approximately 3

seconds, provided that the control pads are unlocked and no other setting is in

operation (the display does not flash). The standby indicator light will turn on

to confirm “Standby” mode. Repeating this action once more will restart the unit. The

standby indicator light will turn on to confirm “Standby” mode after restarting.

OPERATING YOUR APPLIANCE

Andere Handbücher für MCWBC77DZC

Inhaltsverzeichnis

Sprachen:

Andere Magic Chef Weinkühler Handbücher

Magic Chef

Magic Chef MCWC8DCT3 Bedienungsanleitung

Magic Chef

Magic Chef MCWC50DBTC Bedienungsanleitung

Magic Chef

Magic Chef MCWC30SV Bedienungsanleitung

Magic Chef

Magic Chef MCWC45A Bedienungsanleitung

Magic Chef

Magic Chef MCWC44DZ Bedienungsanleitung

Magic Chef

Magic Chef MCWC6B Bedienungsanleitung

Magic Chef

Magic Chef MCWC12B Bedienungsanleitung

Magic Chef

Magic Chef MCWC6B Bedienungsanleitung

Magic Chef

Magic Chef BTWB530ST Bedienungsanleitung

Magic Chef

Magic Chef MCBC58DST Bedienungsanleitung

Magic Chef

Magic Chef MCWC12SV Bedienungsanleitung

Magic Chef

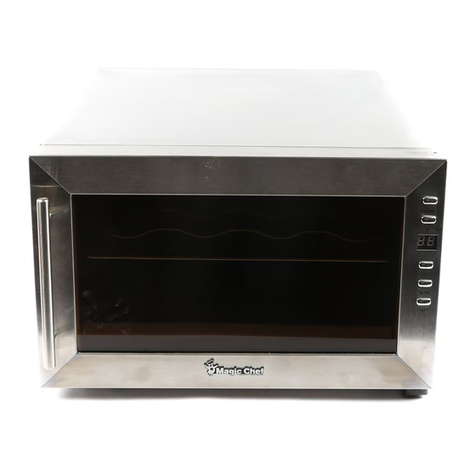

Magic Chef MCWC8DSCT Bedienungsanleitung

Magic Chef

Magic Chef MCWC50DSTF Bedienungsanleitung

Magic Chef

Magic Chef MCBC58DSTF Bedienungsanleitung

Magic Chef

Magic Chef MCWC6B Bedienungsanleitung

Magic Chef

Magic Chef MCWBC24DST Bedienungsanleitung

Magic Chef

Magic Chef MCWBC77DZ1 Bedienungsanleitung

Magic Chef

Magic Chef HMWC50ST Bedienungsanleitung

Magic Chef

Magic Chef MCWC28B Bedienungsanleitung

Beliebte Weinkühler Handbücher anderer Marken

U-Line

U-Line Echelon Wine Captain 2075WC Betriebsanleitung

Haier

Haier WS50GA Bedienungsanleitung

Cavist

Cavist 62 Bedienungsanleitung

Kenmore

Kenmore 461.99130 Bedienungsanleitung

Miele

Miele KWT 6422 iG Bedienungsanleitung

Danby

Danby DWC113BLSDB Bedienungsanleitung

Caple

Caple Wi6128 Bedienungsanleitung

Avanti

Avanti WC1001 Bedienungsanleitung

Frigidaire

Frigidaire FFWC38F6LS Bedienungsanleitung

Titan

Titan TT-W2454SZ Installationshandbuch

Klarstein

Klarstein Botella 166 Uno Bedienungsanleitung

Costway

Costway FP10130WL Bedienungsanleitung

Lemair

Lemair LWC59 Bedienungsanleitung

Haier

Haier JC-125GEA Bedienungsanleitung

Caple

Caple WCi46B Bedienungsanleitung

Climadiff

Climadiff CLI24 Kurzanleitung

Viking

Viking VCWB301LSS Bedienungsanleitung

Caple

Caple WC6511 Bedienungsanleitung
