Magliner C5 Bedienungsanleitung
www.magliner.com
ASSEMBLY INSTRUCTIONS
INSTRUCCIONES DE MONTAJE
Table of Contents:
Parts List .................................... 2
Assembly Instructions .............. 2
C5 Stair Climber:
Narrow Aisle
Hand Truck
For safe, efficient product use, Magline recommends inspecting
equipment regularly and replacing damaged components
immediately.
Magline, Inc.
1205 W. Cedar Street • Standish, MI 48658 USA
1-800-MAGLINE (624-5463) • (989) 512-1000 (outside U.S. & Canada)
No. 3 1/2"
7/16"

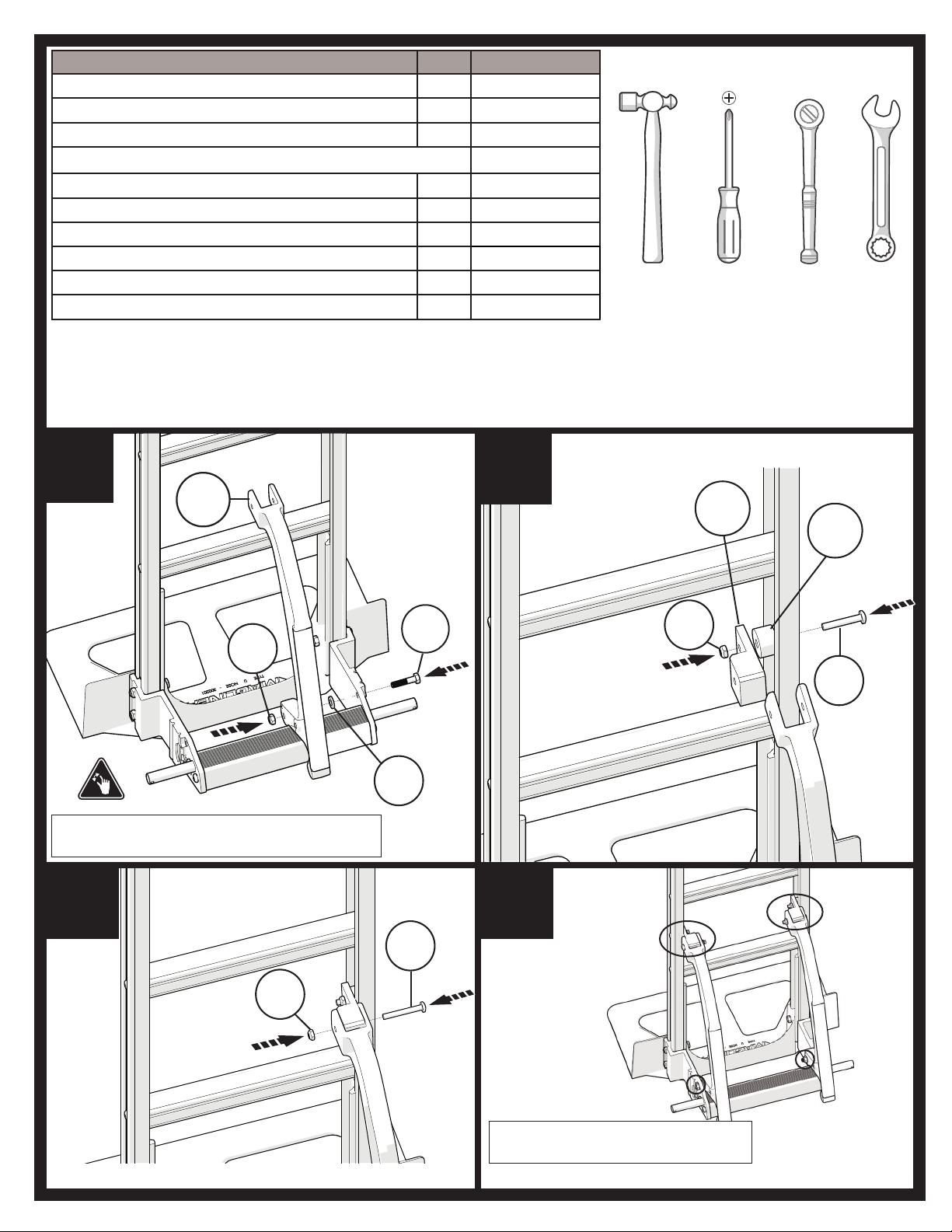

TOOLS REQUIRED
Description Qty. Part No.
C5 stair climber 2 302098
Frame spacer 2 304282
Mounting bracket 2 302109
Hardware Pack consists of the items below:
Hex head cap screw - 5/16"-18 x 1-3/8" long 280062
Pan head machine screw - 1/4"-20 x 1-1/2" long 2 80105
Pan head screw - 1/4"-20 x 1-7/8" long 2 80039
Lock nut - 1/4"-20 4 80675
Lock nut - 5/16"-18 2 80676
Washer - 5/16" 2 80739
1/2"
If you are assembling the stair climbers while assembling an entire Narrow Aisle Hand Truck, complete steps 1 - 6 of the hand
truck assembly (B9481 instructions) before proceeding to Step 1 below.
If you are retrofitting the stair climbers to an existing Narrow Aisle Hand Truck, remove the cotter pin, wheels and washers
before proceeding to Step 1 below.
Finger tighten these two fasteners at this time
so that the stair climber can be rotated.
1
`
2
3
B9482 © Copyright 2020 Magline, Inc.
Repeat for the other side.
Fully tighten all fasteners at this time.
4
80062
80739
302098
80676
80675
80105
302109
304282
80675
80039
