Operation

and Installation

Manual

Model: M2500CD

Multi-Media Receiver

with AM/FM Tuner

MUTE MODE 1 PAUSE 2 INT 3 RPT 4 RDM 5 DIR - 6 DIR+

BAND

DIS AUX IN

APS

4x45W

MULTI-MEDIA RECEIVER

USB

Memory Card

Button Location and Functions

Your new M2500CD in-dash multi-media receiver

has been designed to give you many years of listen-

ing pleasure. Take a moment to read through this

Introduction

•

FCC REGULATIONS STATE THAT ANY UNAUTHORIZED

CHANGES OR MODIFICATIONS TO THIS EQUIPMENT

MAY VOID THE USER’S AUTHORITY TO OPERATE IT.

• TO REDUCE THE RISK OF FIRE OR ELECTRIC

SHOCK, DO NOT EXPOSE THIS EQUIPMENT TO

RAIN OR MOISTURE.

Caution

Warnings

•

Use the proper power supply. This product is

designed for operation with a negative grounded

12V DC battery system. Never operate this product

with other battery systems, especially a 24V DC

battery system. If the product is used with the

improper system it may cause a fire or an

accident.

•

Do not disassemble, modify the unit or attempt to

repair the product yourself. If the product needs to

be repaired, consult your dealer.

• Do not install the unit in a place exposed to direct sun-

light or excessive heat or humidity. Avoid places with

too much dust or the possibility of water splashing.

• THIS DEVICE IS INTENDED FOR CONTINUOUS

OPERATION.

• TO REDUCE THE RISK OF FIRE OR ELECTRIC

SHOCK AND ANNOYING INTERFERENCE, USE

ONLY THE RECOMMENDED ACCESSORIES.

manual and become familiar with the operations and

features of this outstanding product.

1. Volume/Select Knob:

Volume:

Rotate the knob to adjust the volume

level.

Select:

Press the knob to enter the sound

characteristics menu. Pressing the knob will

change the menu item as follows: “BAS”

bass > “TRE” treble > “BAL” balance >

“FAD” fader > “DSP OFF” equalizer > “VOL”

volume.

2. Disc Slot: Insert a disc into the slot with label

facing up.

3. Display Area: Displays: radio, disc, aux, SD card

and USB functions.

4. Display Button: Press to switch between infor-

mation display and clock.

5. Eject Button ( ): Ejects the disc from the disc

slot.

Automatic Program Search (APS): Press and hold

for automatic station memory storing. Press and

release for scanning memorized stations.

MUTE MODE 1 PAUSE 2 INT 3 RPT 4 RDM 5 DIR - 6 DIR+

BAND

DIS AUX IN

APS

4x45W

MULTI-MEDIA RECEIVER

12 5 64 7

Button Location and Functions (Continued)

7. USB Slot: Plug in your USB device, “USB-DRIV”

then “LOAD” will appear in the display.

8. SD Card Slot: Insert a SD card with the notch

in the card facing down, “MEM-CARD” then

“LOAD” will appear in the display

3.5mm Auxiliary Audio Input Jack: Plug-in

device with a 3.5mm audio input plug.

10. Down ( l ) and Up ( l ) Controls:

Radio:

Press and release to automatically scan

to the next radio station. Press and hold to

manually tune in a radio station.

CD, SD or USB:

Changes tracks or files

11. Radio Band Button (BAND): Selects the desired

radio band in the following order: FM1, FM2,

FM3, AM1 and AM2.

12. Multi-Function Button (6, DIR+):

Radio: Recalls a memorized radio station,

and programs a radio station into memory.

Disc, SD or USB: Press to select the next

directory.

13. Multi-Function Button (5, DIR-):

Radio: Recalls a memorized radio station,

and programs a radio station into memory.

Disc, SD or USB: Press to select the previ-

ous directory.

14. Multi-Function Button (4, RDM):

Radio: Recalls a memorized radio station,

and programs a radio station into memory.

Disc, SD or USB:

Press to randomly play

tracks/chapters.

15. Multi-Function Button (3, RPT):

Radio: Recalls a memorized radio station,

and programs a radio station into memory.

Disc, SD or USB:

Press to repeat the current

track/file. Press again to cancel the repeat

function.

16. Multi-Function Button (2, INT):

Radio: Recalls a memorized radio station,

and programs a radio station into memory.

Disc, SD or USB:

Press to activate the

intro

function which will play the beginning of

every track/file for 10 seconds.

17. Multi-Function Button (1, PAUSE):

Radio: Recalls a memorized radio station,

and programs a radio station into memory.

Disc, SD or USB: Press to pause the current

track/file. Press again to resume play.

18.

Mode Button (MODE): Press the MODE button to

change the operating mode as follows:

“RADIO” AM/FM Radio

“S-CDP” Disc Player*

“USB DRIV” USB*

“MEM CARD” SD Card*

“AUX” 3.5mm Auxiliary Input

*Available only when there is media inserted

into Disc slot, USB slot or SD Card slot.

19. Power/Mute Button ( MUTE):

Power: Press to turn the unit on when the

unit is off, press and hold the button to

turn the unit off.

Mute: When the unit is on press and release

this button to mute the audio, press again to

restore the audio.

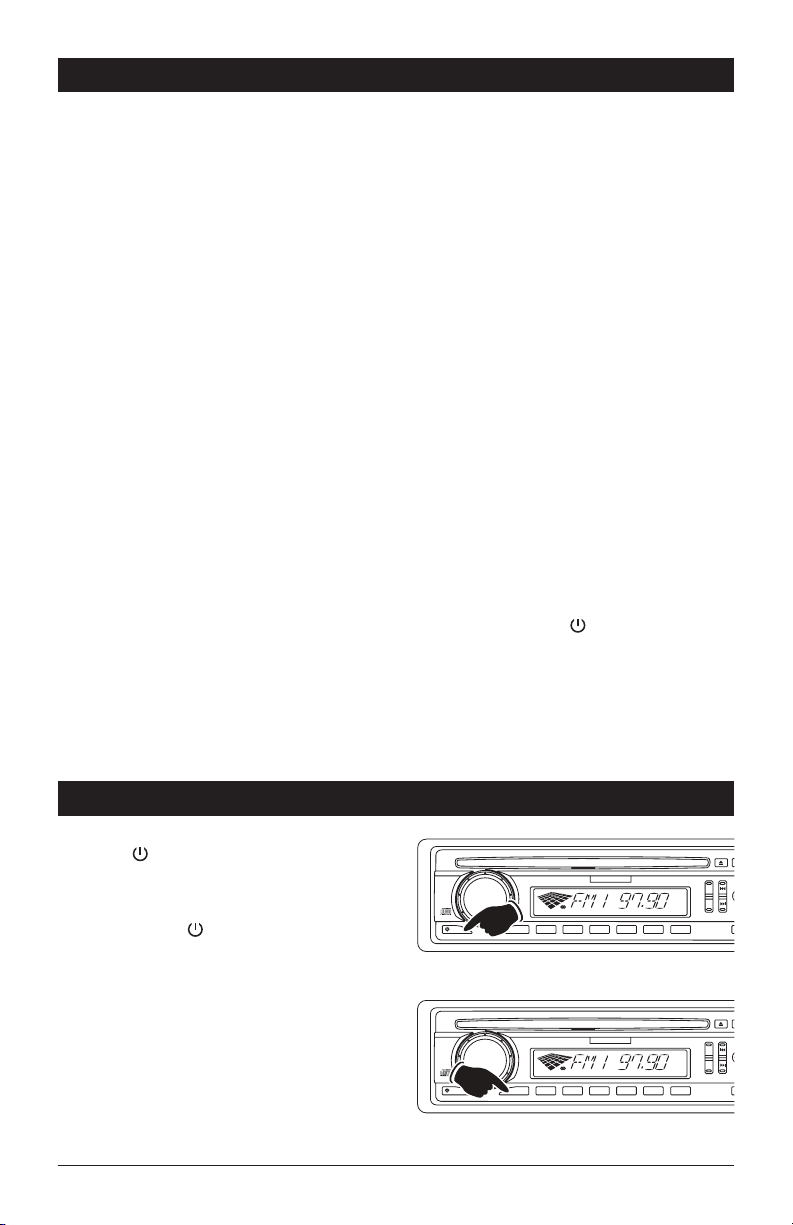

General Operations

Turning the Unit On:

Press the button to turn the unit on when the unit

is off.

Turning the Unit Off:

Press and hold

the

button to turn the unit off.

Mode Selection:

Press the MODE button to change the operating

mode as follows:

“RADIO” AM/FM Radio >

“S-CDP” Disc Player* >

“USB DRIV” USB* >

“MEM CARD” SD Card* >

“AUX” 3.5mm Auxiliary Input

*Available only when there is media inserted

into Disc slot, USB slot or SD Card slot.

MUTE MODE 1 PAUSE 2 INT 3 RPT 4 RDM 5 DIR - 6 DIR+

BAND

DIS

4x45W

MULTIMEDIA RECEIVER

MUTE MODE 1 PAUSE 2 INT 3 RPT 4 RDM 5 DIR - 6 DIR+

BAND

DIS

4x45W

MULTIMEDIA RECEIVER

Sound Controls

Volume:

•

Increase the volume by rotating the knob clock-

wise.

•

Decrease the volume by rotating the know counter-

clockwise.

Sound Characteristics Menu:

By pressing the volume knob, the modes will be

displayed in the following order: “BAS” bass,

“TRE” treble, “BAL” balance, “FAD” fader and

“DSP OFF” equalizer.

Bass:

Press the

volume

knob until “BAS” appears in

the display. Turn the

volume

knob clockwise

to increase the bass and counterclockwise to

decrease the bass.

Treble:

Press the volume knob button until “TRE”

appears in the display. Turn the volume knob

clockwise to increase the treble and counter-

clockwise to decrease the treble.

Balance:

Press the volume knob button until “BAL” appears

in the display. Turn the volume knob clockwise

to increase the balance to the right and counter-

clockwise to increase the balance to

the left.

MUTE MODE 1 PAUSE 2 INT 3 RPT 4 RDM 5 DIR - 6 DIR+

BAND

DIS

4x45W

MULTIMEDIA RECEIVER

Increase

Decrease

MUTE MODE 1 PAUSE 2 INT 3 RPT 4 RDM 5 DIR - 6 DIR+

BAND

DIS A

4x45W

MULTIMEDIA RECEIVER

Fader:

Press the volume knob button until “FAD”

appears in the display. Turn the volume knob

clockwise to increase the balance to the front

speakers and counterclockwise to increase the

balance to the rear speakers.

Equalizer:

Press and hold the volume knob until “DSP OFF”

appears in the display. Rotate the volume knob and

the equalizer setting will appear in the display: POP

M, ROCK M, CLASS M (classic), JAZZ M or DSP

OFF (off). The unit will leave equalizer programing

after 5 seconds of

no button activity.

Mute:

Press the

MUTE button to cutoff the audio.

Press it again to restore the audio.

MUTE MODE 1 PAUSE 2 INT 3 RPT 4 RDM 5 DIR - 6 DIR+

BAND

DIS A

4x45W

MULTIMEDIA RECEIVER

Loudness:

Loudness will boost high and low tones at low

volume levels.

1. Press and hold the volume knob until the

graphic equalizer function appears in the dis-

play “DSP OFF”.

2. Press the volume knob 2 more times until

“LOUD OFF” appears in the display.

3. Rotate the volume knob and “LOUD ON”

appears in the display.

The unit will leave loud-

ness programing after 5 seconds of

no button

activity.

MUTE MODE 1 PAUSE 2 INT 3 RPT 4 RDM 5 DIR - 6 DIR+

BAND

DIS A

4x45W

MULTIMEDIA RECEIVER

Hold

MUTE MODE 1 PAUSE 2 INT 3 RPT 4 RDM 5 DIR - 6 DIR+

BAND

DIS

4x45W

MULTIMEDIA RECEIVER

LOUD POP ROCK CLAS JAZZ RPT INT RDMTA TP AF PTY

Radio Operation

Selecting a Band:

Press the MODE button until either “FM1,

FM2, FM3”, AM1 or AM2” appears in the

display.

Next press the BAND button to select the

desired band: “FM1, FM2, FM3” or “AM1,

AM2”.

MUTE MODE 1 PAUSE 2 INT 3 RPT 4 RDM 5 DIR - 6 DIR+

BAND

DIS

4x45W

MULTIMEDIA RECEIVER

MUTE MODE 1 PAUSE 2 INT 3 RPT 4 RDM 5 DIR - 6 DIR+

BAND

DIS A

4x45W

MULTIMEDIA RECEIVER

MODE 1 PAUSE 2 INT 3 RPT 4 RDM 5 DIR - 6 DIR+

BAND

DIS AUX IN

APS

4x45W

MULTIMEDIA RECEIVER

USB

Memory Card

Hold

MODE 1 PAUSE 2 INT 3 RPT 4 RDM 5 DIR - 6 DIR+

BAND

DIS AUX IN

APS

4x45W

MULTIMEDIA RECEIVER

USB

Memory Card

MUTE MODE 1 PAUSE 2 INT 3 RPT 4 RDM 5 DIR - 6 DIR+

BAND

DIS A

4x45W

MULTIMEDIA RECEIVER

Radio Station

Radio Band

Preset Number

Hold

Manual Tuning:

Press and hold either the lor l button

until “MANUAL” appears in the display. Press

either lor l button again until the

desired radio station appears in the display.

Automatic Search Tuning:

Press and release the lor l button to

seek to the next or previous station automati-

cally. Then press and release the button again to

seek to the next radio station.

Preset Radio Stations:

The six numbered preset buttons can store and recall

stations for each band (FM1, FM2, FM3, AM1 or AM2).

Memorizing a Station:

1. Select a radio band.

2. Tune in a radio station.

3. Press and hold any of the preset buttons for

three seconds to memorize the station. The

preset number will appear in the display.

Recalling a Station:

1. Select a band

(FM1, FM2, FM3, AM1 or AM2)

2. Press one of the six preset buttons to select

a stored station.

Automatically Program Stations:

1. Select a band (AM or FM).

Press and hold the APS button for two sec-

onds. The radio automatically selects strong

stations and stores them in each preset number

for the selected radio band. The new stations

replace stations already stored in that band.

After the new stations are stored into memory,

the tuner will start playing the memorized stations

each for 5 seconds. When a desired station is

reached, press the APS button to stop scanning.

MODE 1 PAUSE 2 INT 3 RPT 4 RDM 5 DIR - 6 DIR+

BAND

DIS AUX IN

APS

4x45W

MULTIMEDIA RECEIVER

USB

Memory Card

Hold

Scanning Programmed Stations:

To scan preset stations stored in the current

band:

1. Select a band (AM or FM).

Press and release the APS button. The radio

pauses for five seconds at each preset station.

3. When the desired station is reached, press

the APS button again to stop scanning.

MODE 1 PAUSE 2 INT 3 RPT 4 RDM 5 DIR - 6 DIR+

BAND

DIS AUX IN

APS

4x45W

MULTIMEDIA RECEIVER

USB

Memory Card

Radio Operation (Continued)

Distance/Local Reception:

To eliminate weaker fringe stations when scanning

for station change the radio reception from distance

(DX) to local (LOCAL).

To switch from distance to local reception press

and hold the volume knob until equalizer func-

tion “DSP OFF” appears in the display.

2. Press the volume knob until

“DX” appears in

the display.

3. Rotate the volume knob until “LOCAL”

appears in the display

Note: The unit will leave feature programing after

5 seconds of no button activity.

Stereo/Mono Operation:

Note: “

” will appear in the display when a FM

stereo station is being received.

For weaker FM stereo stations selecting mono

reception usually improves reception.

To switch from stereo to mono reception press

and hold the volume knob until equalizer func-

tion “DSP OFF” appears in the display.

2. Press the volume knob until

“STEREO” appears

in the display.

3. Rotate the volume knob until “MONO” appears

in the display

Note: The unit will leave feature programing after

5 seconds of no button activity.

MUTE MODE 1 PAUSE 2 INT 3 RPT 4 RDM 5 DIR - 6 DIR+

BAND

DIS A

4x45W

MULTIMEDIA RECEIVER

Hold Stereo Indicator

MUTE MODE 1 PAUSE 2 INT 3 RPT 4 RDM 5 DIR - 6 DIR+

BAND

DIS

4x45W

MULTIMEDIA RECEIVER

MUTE MODE 1 PAUSE 2 INT 3 RPT 4 RDM 5 DIR - 6 DIR+

BAND

DIS A

4x45W

MULTIMEDIA RECEIVER

Hold

MUTE MODE 1 PAUSE 2 INT 3 RPT 4 RDM 5 DIR - 6 DIR+

BAND

DIS

4x45W

MULTIMEDIA RECEIVER

CD (Music) Disc, SD Card and USB Drive Operation

Loading a Disc:

Insert a disc into the disc slot with the label side

up.

Inserting the disc will automatically switch

the unit to the “S-CDP” mode.

Note: If a disc does not insert, DO NOT FORCE it

into the slot, there maybe a disc already inserted

into the M2500CD.

Ejecting a Disc:

Press the button to eject the disc from the

unit. Remove the disc.

MUTE MODE 1 PAUSE 2 INT 3 RPT 4 RDM 5 DIR - 6 DIR+

BAND

DIS A

4x45W

MULTIMEDIA RECEIVER

Label Side Up

MODE 1 PAUSE 2 INT 3 RPT 4 RDM 5 DIR - 6 DIR+

BAND

DIS AUX IN

APS

4x45W

MULTIMEDIA RECEIVER

USB

Memory Card

Inserting the SD Card:

Open the door covering the SD card slot by

lifting up on the bottom of the door.

Gently insert the SD card into the slot with the

angle key in the card facing up until it clicks into

place. Inserting the SD card will automatically

switch the unit to the SD “MEM CARD” mode.

Note: If a card does not insert, DO NOT FORCE

it into the slot, flip the card over and try again.

Close the door.

Removing the SD Card:

Open the door covering the SD card slot.

Push in on the SD card until you hear a click,

then release the SD card and remove it.

Close the door.

MODE 1 PAUSE 2 INT 3 RPT 4 RDM 5 DIR - 6 DIR+

BAND

DIS AUX IN

APS

4x45W

MULTIMEDIA RECEIVER

Inserting the USB Drive:

Open the door covering the USB slot by lifting

up on the bottom of the door.

Gently insert the USB drive into the slot.

Inserting the USB drive will automatically

switch the unit to the SD “USB DRIVE” mode.

Note: If a drive does not insert, DO NOT FORCE

it into the slot, flip the drive over and try again.

Removing the USB Drive:

Remove a USB drive at any time by pulling the

device out of the socket.

MODE 1 PAUSE 2 INT 3 RPT 4 RDM 5 DIR - 6 DIR+

BAND

DIS AUX IN

APS

4x45W

MULTIMEDIA RECEIVER

Select Tracks/Files:

Press and release either the lor l button

to move to the next or previous track. The track

number appears in the display area.

MODE 1 PAUSE 2 INT 3 RPT 4 RDM 5 DIR - 6 DIR+

BAND

DIS AUX IN

APS

4x45W

MULTIMEDIA RECEIVER

USB

Memory Card

Elapsed Time

Track Number

CD (Music) Disc, SD Card and USB Drive Operation (continued)

Pause Play:

Press the

1 PAUSE

button to pause play. Press it

again to resume play.

Intro Function:

The default setting is the intro function is off. Press

the 2 INT button to change the intro function.

“INT ON” = The track

will play for 10 seconds

then skip to the next

track and play

for 10 seconds.

“INT OFF”= The intro function is cancelled.

Repeat Function:

The default setting is to repeat the entire disc. Press

the 3 RPT button to change the repeat function.

“RPT ON” will appear in the display.

“RPT ON” = The track playing will continuously

repeat.

“RPT OFF”= The entire disc repeats continuously.

Random Function:

The default setting is to play the tracks in numeri-

cal order. Press the 4 RDM button to change the

random play function. “RDM ON” will appear in the

display.

“RDM ON” = The tracks will play in random

order.

“RDM OFF”= The tracks will not play in random

order.

MP3 Directory Selection:

Press the 5 DIR- button to select a previous direc-

tory. Press the 6 DIR+ button to select the next

directory.

Note: Not all MP3 media have multiple directory so

this function may not be applicable.

MUTE MODE 1 PAUSE 2 INT 3 RPT 4 RDM 5 DIR - 6 DIR+

BAND

DIS A

4x45W

MULTIMEDIA RECEIVER

MUTE MODE 1 PAUSE 2 INT 3 RPT 4 RDM 5 DIR - 6 DIR+

BAND

DIS

4x45W

MULTIMEDIA RECEIVER

LOUD POP ROCK CLAS JAZZ RPT INTRDM TA TP AF PTY

MUTE MODE 1 PAUSE 2 INT 3 RPT 4 RDM 5 DIR - 6 DIR+

BAND

DIS

4x45W

MULTIMEDIA RECEIVER

LOUD POP ROCK CLAS JAZZRPT INT RDM TA TP AF PTY

MUTE MODE 1 PAUSE 2 INT 3 RPT 4 RDM 5 DIR - 6 DIR+

BAND

DIS

4x45W

MULTIMEDIA RECEIVER

LOUD POP ROCK CLAS JAZZ RPT INT RDM TA TP AF PTY

MODE 1 PAUSE 2 INT 3 RPT 4 RDM 5 DIR - 6 DIR+

BAND

DIS AUX IN

APS

4x45W

MULTIMEDIA RECEIVER

USB

Memory Card

Fast Forward Fast Rewind:

Press and hold the button to fast forward play.

Press and hold the button to fast rewind play.

MODE 1 PAUSE 2 INT 3 RPT 4 RDM 5 DIR - 6 DIR+

BAND

DIS AUX IN

APS

4x45W

MULTIMEDIA RECEIVER

USB

Memory Card

Hold for Fast Rewind

Hold for Fast Forward

CD (Music) Disc, SD Card and USB Drive Operation (continued)

Auxiliary Audio Input

Front Audio/Video Input Jack:

1. Connect an audio device using a 3.5mm cable

(not supplied) into the socket mounted on the

front of the unit.

2. Press the MODE button until “AUX” appears in

the display.

Note: The unit will not control the auxiliary source,

but can adjust the sound controls. Refer to the audio/

video device’s owners manual for proper operation.

Once your search method has been selected use

the Volume knob to enter your selection.

3. After you finished entering in the search informa-

tion press the Volume knob to confirm search.

Note: When using the File Search method press the

Volume knob to search after song title is enter, if

no matching file is found “NO FOUND” will appear

in the display.

MODE 1 PAUSE 2 INT 3 RPT 4 RDM 5 DIR - 6 DIR+

BAND

DIS AUX IN

APS

4x45W

MULTIMEDIA RECEIVER

USB

Memory Card

MUTE MODE 1 PAUSE 2 INT 3 RPT 4 RDM 5 DIR - 6 DIR+

BAND

DIS

4x45W

MULTIMEDIA RECEIVER

MUTE MODE 1 PAUSE 2 INT 3 RPT 4 RDM 5 DIR - 6 DIR+

BAND

DIS

4x45W

MULTIMEDIA RECEIVER

Displaying MP3 Information:

Press the BAND button and the following file infor-

mation will be displayed:

TITLE > SONG > ARTIST > ALBUM > DIR (directory)

After the information has all been display the unit will

revert to showing track and elapse time information.

Note:

Some CD-R’s, CD-RW’s, USB drives and

SD cards may be incompatible with this unit

depending on media type and recording method.

MODE 1 PAUSE 2 INT 3 RPT 4 RDM 5 DIR - 6 DIR+

BAND

DIS AUX IN

APS

4x45W

MULTIMEDIA RECEIVER

USB

Memory Card

MP3 Search:

Press the APS button and select one of the

following methods for searching:

TIME SCH “Time Search”

TRK SCH “Track Search”

FILE SCH “File Search”

DIR SCH “Directory Search”

MODE 1 PAUSE 2 INT 3 RPT 4 RDM 5 DIR - 6 DIR+

BAND

DIS AUX IN

APS

4x45W

MULTIMEDIA RECEIVER

USB

Memory Card

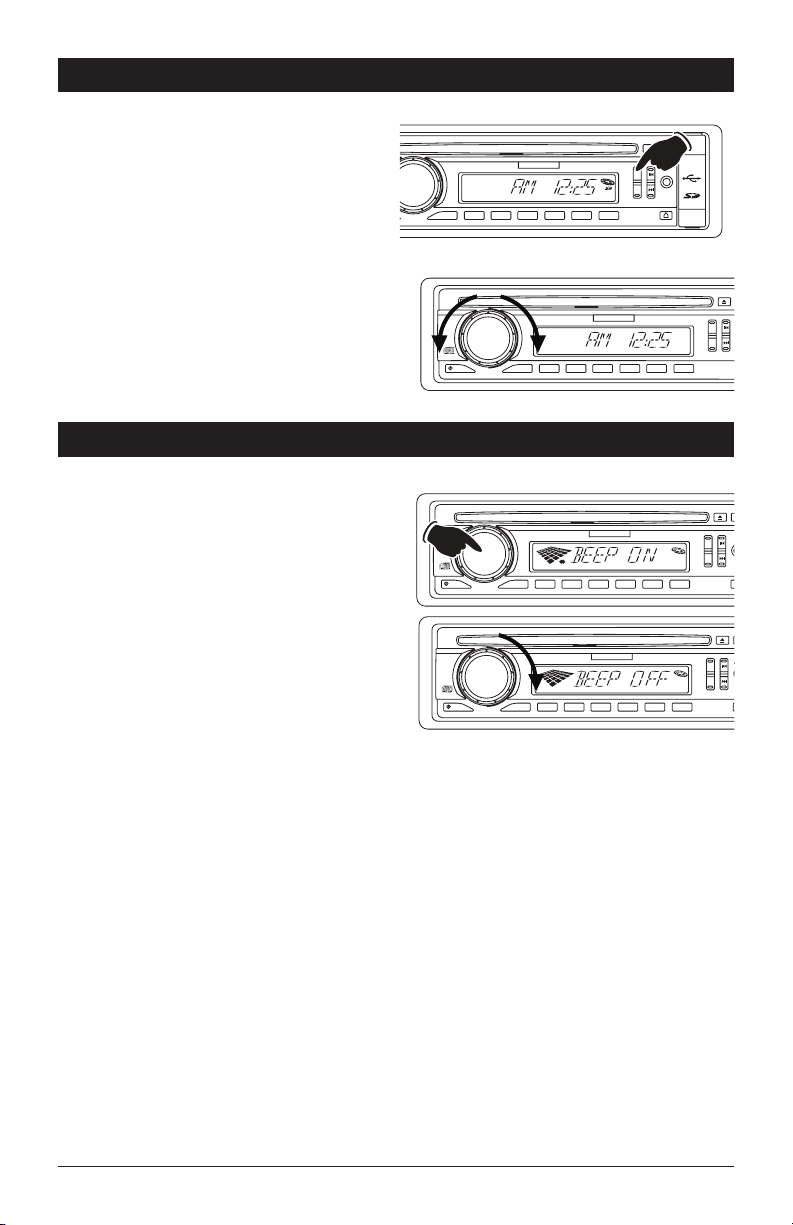

Setting the Clock

Setting the Clock:

Press and hold the DIS button until the time

starts flashing.

Rotate the volume knob clockwise to adjust the

hours

Note: The clock is a 12 hour clock with AM and

PM indicators.

3. Rotate the volume knob counter-clockwise to

adjust the minutes.

After waiting a few seconds the unit will exit

clock program

ming.

Additional Features

Button Press Beep Confirmation:

If you don’t want the M2500CD to beep every-

time a button is pressed follow the instructions

below:

Press and hold the volume knob until equalizer

function “DSP OFF” appears in the display.

2. Press the volume knob until

“BEEP ON”

appears in the display.

3. Rotate the volume knob until “BEEP OFF”

appears in the display

Note: The unit will leave feature programing after

5 seconds of no button activity.

MODE 1 PAUSE 2 INT 3 RPT 4 RDM 5 DIR - 6 DIR+

BAND

DIS AUX IN

APS

4x45W

MULTIMEDIA RECEIVER

USB

Memory Card

Hold

MUTE MODE 1 PAUSE 2 INT 3 RPT 4 RDM 5 DIR - 6 DIR+

BAND

DIS

4x45W

MULTIMEDIA RECEIVER

Hours

Minutes

MUTE MODE 1 PAUSE 2 INT 3 RPT 4 RDM 5 DIR - 6 DIR+

BAND

DIS

4x45W

MULTIMEDIA RECEIVER

Hold

MUTE MODE 1 PAUSE 2 INT 3 RPT 4 RDM 5 DIR - 6 DIR+

BAND

DIS

4x45W

MULTIMEDIA RECEIVER

Inhaltsverzeichnis

Andere Magnadyne Autoradiosystem Handbücher

Magnadyne

Magnadyne M4-LCD Bedienungsanleitung

Beliebte Autoradiosystem Handbücher anderer Marken

JL Audio

JL Audio Stealthbox SB-CAN-G2MVX3D/10TW3 Bedienungsanleitung

Clarion

Clarion PU-9836A Bedienungsanleitung

Sony

Sony MEX-BT5750U Bedienungsanleitung

Mitsubishi Electric

Mitsubishi Electric AR0M Bedienungsanleitung

Sony

Sony RM-X7BT Bedienungsanleitung

Insignia

Insignia NS-HD5113 Bedienungsanleitung

Clarion

Clarion BTD3341 Bedienungsanleitung

USA SPECS

USA SPECS PA11-VW6 Bedienungsanleitung

Sony

Sony MEX-N4380BT Bedienungsanleitung

Kenwood

Kenwood KCD-BT6544U/UY Bedienungsanleitung

JVC

JVC KD-DB912BT Bedienungsanleitung

Philips

Philips CSQ405/98 Bedienungsanleitung

Alpine

Alpine TDM-7544 Bedienungsanleitung

Autotek

Autotek TransAm TA 1400 Bedienungsanleitung

Clarion

Clarion PN-3124N-A Bedienungsanleitung

Denso TEN

Denso TEN FT0108A Bedienungsanleitung

Pyle

Pyle PLD57MU Bedienungsanleitung

Harman

Harman Chrysler Radio Navigation System RB4 Bedienungsanleitung
