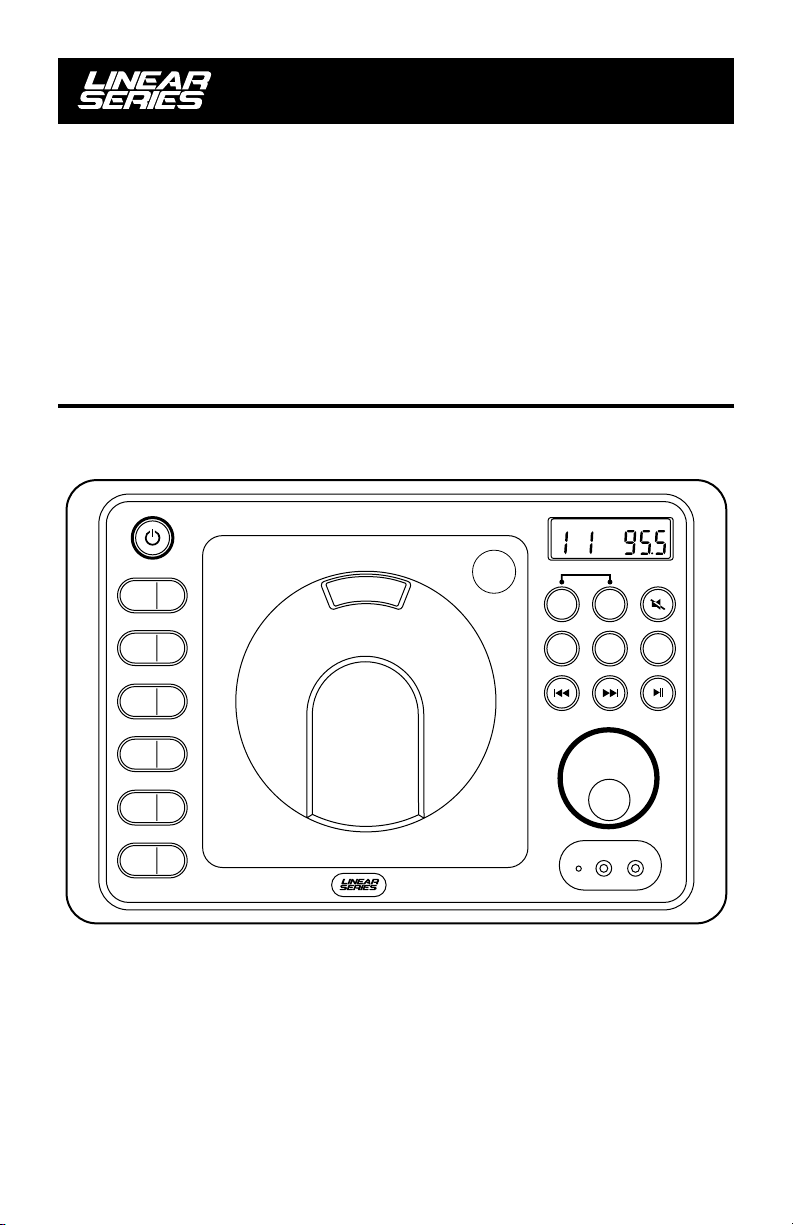

Magnadyne LINEAR SERIES RV4000 Technisches Datenblatt

Operation

and Installation

Manual

RV4000

AM / FM Stereo

Multi-Media Receiver

AS/PS

SLP

ALM

DISP

DIM

PUSH

3-Beam Laser Pickup

A B

AUX

AM/FM

DISC

SPEAKER

SPK FM ST

RESET AUX

HEADPHONES

Please take the time to read all of the information in this manual. Familiarity with operation and installation

procedures will help you obtain the best possible performance from your new AM/FM Stereo Multi-Media

Receiver.

WARNING! To prevent fire or electrical shock hazard, do not expose this product to moisture, or remove

cover or bottom screws. No user-serviceable parts inside. Refer servicing to qualified person

nel.

Introduction

Index

Button Locations and Functions 3-4

General Operation 5

Sound Controls 5-7

Speaker Selection 7

Setting the Clock 7-8

Sleep Timer Operation 8

Alarm Operation 9

Radio Operations 10-11

Disc Warnings 11

Music Disc Operation 12-13

MP3 Disc Operation 14-15

Audio Input 16

Headphone Output 16

Reset Button 17

Additional Feature 17

Installation 18

Speaker Connections 19

Wiring and Auxiliary Connections 20

Safety Instructions 21

Warranty 22

Button Locations and Functions

1. Power On/Off: Press to turn the unit on or off.

2. Disc Door: To play a disc, insert the disc with label facing forward.

3. Disc Door Release: Press to open the door so the disc can be inserted.

Auxiliary Button (AUX):

Press to choose auxiliary audio in mode.

Display Area: This area displays all function information for the radio, clock, disc player and auxiliary

input device.

6. Mute Button: Press to mute the audio, press again to restore the audio.

7. Speaker Selection Buttons: Press to switch the speakers sets A and B on and off.

8. Disc Button: Press to select the music player mode.

9. Radio Button (AM/FM): Press to select the radio mode. Sequential presses will select radio band:

FM 1, FM 2, FM 3, AM 1 and AM 2.

10.Play/Pause Button (ll): Press to pause disc play, press again to resume play.

11. Seek Down (l), Seek Up (l) Buttons:

Radio Mode: Press to tune the radio to a lower or higher radio station.

Disc Mode: Press to search for the beginning or next track.

12. Volume and Select Button: Rotate to increase or decrease the volume level. Press to select the sound

controls: Bass, Treble and Balance.

13. Headphone Socket: Accepts 3.5mm stereo headphone jacks.

14. Audio Input Jack: Press the AUX button until “Audio” appears in the display then plug in a device via

the 3.5mm audio input socket.

Note: The RV4000 does not control the device, it just allows the audio to be played through the system.

15. Reset Button: Press to reset the unit to it’s default settings.

AS/PS

SLP

ALM

DISP

DIM

PUSH

3-Beam Laser Pickup

A B

AUX

AM/FM

DISC

SPEAKER

SPK FM ST

RESET AUX

HEADPHONES

125

1415

Button Locations and Functions (Continued)

16. Dimmer Button (DIM): Press to dim the lighting in the display area. Sequential presses will select dif-

ferent levels of display area lighting.

17. Radio Preset Button (6): Recalls a memorized radio station, and programs a radio station into

memory.

18. Display Button (DISP): Press to toggle through the available display information.

19. Radio Preset Button (5): Recalls a memorized radio station, and programs a radio station into

memory.

20. Alarm Button: Sets the alarm. (See “Alarm Operation” for more details).

21. Radio Preset Button (4): Recalls a memorized radio station, and programs a radio station into

memory.

22. Sleep Button: Sets the sleep timer. (See “Sleep Timer Operation” for more details).

23. Radio Preset Button (3): Recalls a memorized radio station, and programs a radio station into

memory.

24. Radio AS/PS Button: Automatic radio station memory storing (AS) and Preset radio station scanning

(PS). (See “AM/FM Operation” for more details).

25. Radio Preset Button (2): Recalls a memorized radio station, and programs a radio station into

memory.

26. EQ/LOUD Button (Equalizer and Loudness):Press to select between the preset sound equalization

settings. Press and hold the button to boost high and low tones at low volume levels (loudness).

27. Radio Preset Button (1): Recalls a memorized radio station, and programs a radio station into

memory.

General Operations

Selecting a Play Source:

To select a play source, press one of the follow-

ing mode buttons:

AUX (Auxiliary Audio Input),

AM/FM (AM or FM Radio Band) or

DISC (Music)

Dimming the Display:

Press the DIM button to select the desired level

of brightness for the display area.

Display Selection:

Press the DISP button to display the clock.

Press again to return to previous display.

Press and hold to perform clock setting functions

(See “Setting the Clock” for more details).

Volume:

Increase the volume by rotating the

VOLUME

knob clockwise. Decrease the volume by rotating

the

VOLUME

knob counterclockwise.

Sound Controls

A B

AUX

AM/FM

DISC

SPEAKER

AS/PS

SLP

ALM

DISP

DIM

PUSH

A B

AUX

AM/FM

DISC

SPEAKER

SPK FM ST

RESET AV

HEADPHONES

AS/PS

SLP

ALM

DISP

DIM

PUSH

SPK FM ST

RESET AV

HEADPHONES

AS/PS

SLP

ALM

DISP

DIM

PUSH

SPK FM ST

RESET AV

HEADPHONES

AS/PS

SLP

ALM

DISP

DIM

PUSH

SPK FM ST

RESET AV

HEADPHONES

AS/PS

SLP

ALM

DISP

DIM

PUSH

RESET AV

HEADPHONES

SPK A+B FM

A B

AUX

AM/FM

DISC

SPEAKER

A B

AUX

AM/FM

DISC

SPEAKER

A B

AUX

AM/FM

DISC

SPEAKER

Power On/Off:

Press the POWER button to turn the unit On/Off.

Sound Controls

Bass:

Select the Bass mode by pressing the VOLUME

knob. Increase the Bass by rotating the VOLUME

knob clockwise. Decrease the Bass by rotating the

knob counterclockwise. After 6 seconds control

reverts back to volume control.

Bass, Treble and Balance Control

Select the desired sound mode by pressing the VOLUME knob. The modes will be displayed in the fol-

lowing order: Bass, Treble, Balance and Volume.

Balance:

Select the Balance mode by pressing the VOLUME

knob. Adjust the Balance by rotating the knob.

r -

- L = Equal sound right and left

r 7 = Right speaker only

L 7 = Left speaker only

After 6 seconds control reverts back to volume

control.

Treble:

Select the Treble mode by pressing the VOLUME

knob. Increase the Treble by rotating the VOLUME

knob clockwise. Decrease the Treble by rotating

the knob counterclockwise. After 6 seconds con-

trol reverts back to volume control.

Equalizer (EQ):

Press the EQ button to choose between the

preset equalizer settings: Flat, Classic, Rock, Pop

and Jazz as indicated in the display area.

Loud:

To boost high and low tones at low volume

levels, press and hold the EQ button until “LOUd

On” appears in the display. To deselect, press

and hold the EQ button again until “LOUd OFF”

appears in the display.

Hold

AS/PS

SLP

ALM

DISP

DIM

PUSH

RESET AV

HEADPHONES

AS/PS

SLP

ALM

DISP

DIM

PUSH

RESET AV

HEADPHONES

AS/PS

SLP

ALM

DISP

DIM

PUSH

RESET AV

HEADPHONES

AS/PS

SLP

ALM

DISP

DIM

PUSH

RESET AV

HEADPHONES

AS/PS

SLP

ALM

DISP

DIM

PUSH

RESET AV

HEADPHONES

A B

AUX

AM/FM

DISC

SPEAKER

A B

AUX

AM/FM

DISC

SPEAKER

A B

AUX

AM/FM

DISC

SPEAKER

A B

AUX

AM/FM

DISC

SPEAKER

A B

AUX

AM/FM

DISC

SPEAKER

Sound Controls (Continued)

Mute:

Press the button to mute the volume level.

Press the button again to restore the volume.

Speaker Selection

Selecting Speaker Sets:

• Press the Abutton to toggle speaker set A on

and off. “SPK A” appears in the display when

speaker set A is on.

• Press the Bbutton to toggle speaker set B on

and off. “SPK B” appears in the display when

speaker set B is on.

Note: When “SPK A+B” appears in the display both

speaker sets A and B are on. When nothing appears

in the displaying both speaker sets are off

Setting the Clock

1. Press the DISP button until the clock appears in

the display.

2. Press and hold the DISP button until the hours

number starts flashing.

3. Rotate the VOLUME knob until the correct Hour

appears in the display.

Note: When setting the clock make sure to

select the correct AM or PM indicator.

Hold

A B

AUX

AM/FM

DISC

SPEAKER

A B

AUX

AM/FM

DISC

SPEAKER

AS/PS

SLP

ALM

DISP

DIM

PUSH

AUX

AM/FM

SPK A FM ST

RESET AV

HEADPHONES

AS/PS

SLP

ALM

DISP

DIM

PUSH

RESET AV

HEADPHONES

AS/PS

SLP

ALM

DISP

DIM

PUSH

RESET AV

HEADPHONES

AS/PS

SLP

ALM

DISP

DIM

PUSH

RESET AV

HEADPHONES

A B

AUX

AM/FM

DISC

SPEAKER

A B

AUX

AM/FM

DISC

SPEAKER

AS/PS

SLP

ALM

DISP

DIM

PUSH

RESET AV

HEADPHONES

A B

AUX

AM/FM

DISC

SPEAKER

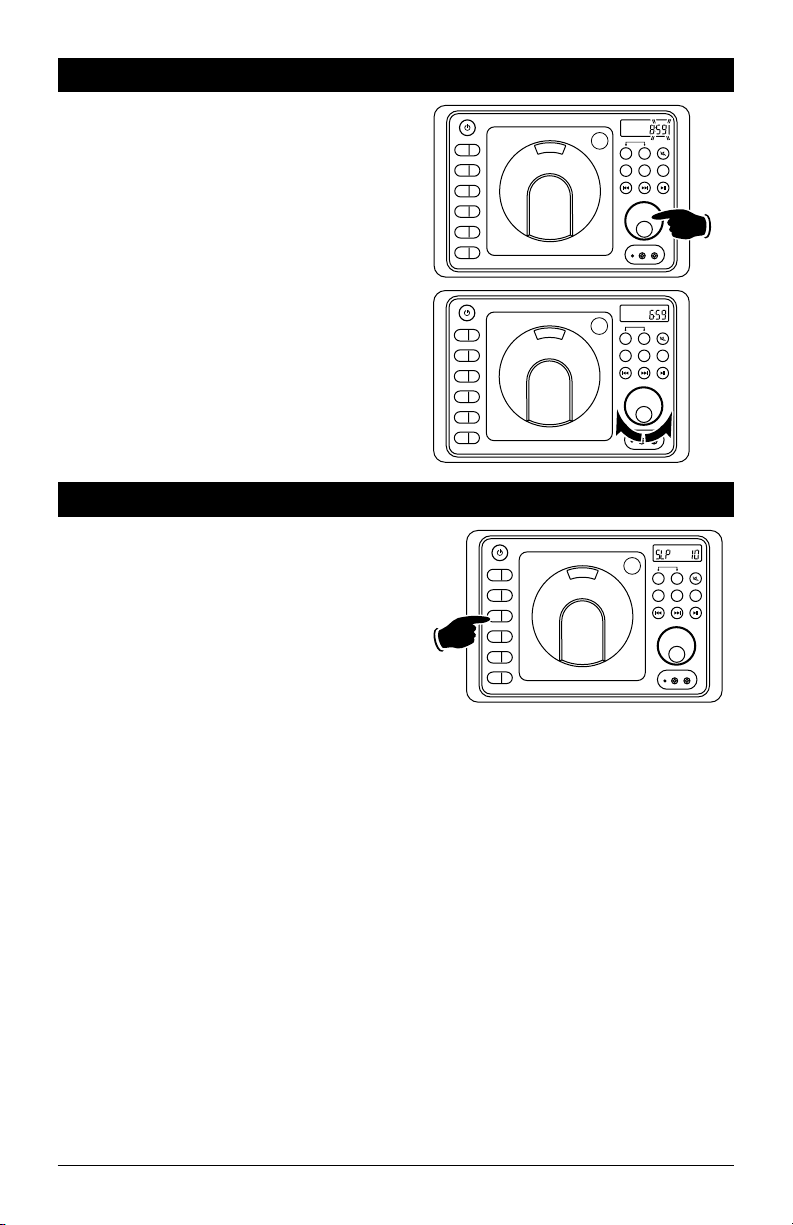

Sleep Timer Operation

Setting the Sleep Timer:

1. Press the SLP button until the “SLP 10”

appears in the display.

2. Keep pressing the SLP button again until the

desired sleep time appears in the display (00,

10, 20, 30, 40, 50, 60, 70, 80 minutes).

3. Wait 5 seconds and the display will return to

normal operation and “SLP” will appear in the

display.

After the designated sleep timer has expired

the unit will turn off automatically

Cancelling the Sleep Timer:

1. Press the SLP button until “00” is displayed.

2. Wait 5 seconds and the display will return to

normal operation.

Setting the Clock (Continued)

4. Press the VOLUME knob and the Minute indica-

tors will start flashing.

Rotate the

VOLUME

knob until the correct

Minutes appears in the display

. Wait 5 seconds

and the colon between the hours and the min-

utes will start flashing indicating the clock is set.

AS/PS

SLP

ALM

DISP

DIM

PUSH

RESET AV

HEADPHONES

AS/PS

SLP

ALM

DISP

DIM

PUSH

RESET AV

HEADPHONES

AS/PS

SLP

ALM

DISP

DIM

PUSH

RESET AV

HEADPHONES

A B

AUX

AM/FM

DISC

SPEAKER

A B

AUX

AM/FM

DISC

SPEAKER

A B

AUX

AM/FM

DISC

SPEAKER

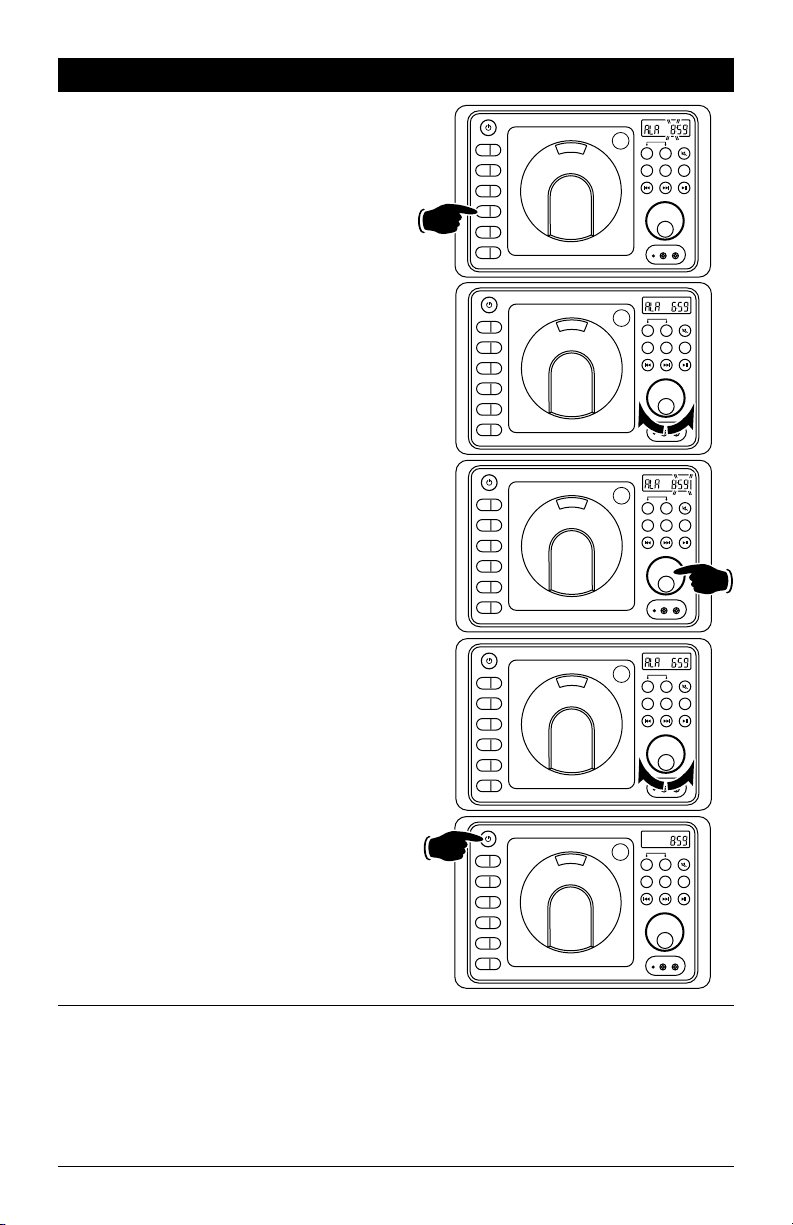

Alarm Operation

Setting the Alarm Timer:

1. Press the ALM button and the clock will

appear in the display with the hour number

flashing.

2. Rotate the VOLUME knob until the correct

Hour appears in the display. “ALM” will

appear in the display indicating the alarm is

activated.

Note 1: When setting the alarm clock make

sure to select the correct AM or PM indicator.

Note 2: When setting the alarm DO NOT use

12:00 AM, because that time is used to cancel

the alarm.

3. Press the VOLUME knob and the minute indi-

cators will start flashing.

Rotate the

VOLUME

knob until the correct

minutes appears in the display

. Wait 5 seconds

and the colon between the hours and the

minutes will start flashing. The letter “ALM”

will appear in the display indicating the alarm

is set.

5. Press the POWER button to turn the unit off.

The unit will automatically turn on when the

set alarm time is reached.

Cancelling the Alarm Timer:

Follow the procedures above except set the alarm

time to 12:00 AM. When the display exits alarm

timer programming the “ALM” will disappear

from the display indicating the alarm has been

cancelled.

AS/PS

SLP

ALM

DISP

DIM

PUSH

RESET AV

HEADPHONES

AS/PS

SLP

ALM

DISP

DIM

PUSH

RESET AV

HEADPHONES

AS/PS

SLP

ALM

DISP

DIM

PUSH

RESET AV

HEADPHONES

AS/PS

SLP

ALM

DISP

DIM

PUSH

RESET AV

HEADPHONES

ALM

AS/PS

SLP

ALM

DISP

DIM

PUSH

RESET AV

HEADPHONES

A B

AUX

AM/FM

DISC

SPEAKER

A B

AUX

AM/FM

DISC

SPEAKER

A B

AUX

AM/FM

DISC

SPEAKER

A B

AUX

AM/FM

DISC

SPEAKER

A B

AUX

AM/FM

DISC

SPEAKER

Radio Operations

Selecting the Play Source:

Press the AM/FM button and “rAdIO” appears in

the display. After a brief moment either AM or

FM will appear in the display.

Selecting the AM or FM:

Press the AM/FM button repeatedly and select

from FM 1, FM 2, FM 3, AM 1 or AM 2.

Seek Tuning in a Radio Station:

Press and release the l button to tune in a

lower radio station. Press and release the l

button to tune in a higher radio station.

Note: The unit will automatically switch from

FM Mono to FM Stereo when the signal strength

increases to a stereo level. If the stereo signal

should become weak, the unit will switch back

to Mono. FM stereo reception is indicated when

“ST” appears in the display.

SPK A FM ST

Radio

Frequency

Band Indicator FM Stereo Indicator

Preset Button

Number

Preset Band

Group

Memorizing Radio Stations:

1. Press the AM/FM button to select either the

FM 1, FM 2, FM 3, AM 1 or AM 2 radio band.

2. Tune-in the desired radio station.

3. To memorize the station press and hold any-

one of the six radio station recall buttons until

the preset number appears.

Hold

A B

AUX

AM/FM

DISC

SPEAKER

AS/PS

SLP

ALM

DISP

DIM

PUSH

RESET AV

HEADPHONES

SPK AST

AS/PS

SLP

ALM

DISP

DIM

PUSH

RESET AV

HEADPHONES

SPK AST

A B

AUX

AM/FM

DISC

SPEAKER

Manual Tuning in a Radio Station:

Press and hold the l button to manually tune

in a lower radio frequency. Press and hold the

l button to manually tune in a higher radio

frequency.

A B

AUX

AM/FM

DISC

SPEAKER

AS/PS

SLP

ALM

DISP

DIM

PUSH

RESET AV

HEADPHONES

SPK AST

AS/PS

SLP

ALM

DISP

DIM

PUSH

RESET AV

HEADPHONES

SPK AST

A B

AUX

AM/FM

DISC

SPEAKER

Inhaltsverzeichnis

Andere Magnadyne Stereo-Receiver Handbücher

Magnadyne

Magnadyne Linear M3200CD Bedienungsanleitung

Magnadyne

Magnadyne Linear M5000CD Bedienungsanleitung

Magnadyne

Magnadyne PPC-200 Bedienungsanleitung

Magnadyne

Magnadyne M2080 Bedienungsanleitung

Magnadyne

Magnadyne LS8600UCDW Bedienungsanleitung

Magnadyne

Magnadyne M9000 Bedienungsanleitung

Magnadyne

Magnadyne Linear M4100CD Bedienungsanleitung

Magnadyne

Magnadyne LS3500CDB Bedienungsanleitung

Magnadyne

Magnadyne LS7600CD Bedienungsanleitung

Magnadyne

Magnadyne LS7500CD Bedienungsanleitung

Magnadyne

Magnadyne LS4000B Linear Series Bedienungsanleitung

Magnadyne

Magnadyne LS4500W Bedienungsanleitung

Beliebte Stereo-Receiver Handbücher anderer Marken

Marantz

Marantz CINEMA 70S Bedienungsanleitung

Kenwood

Kenwood KMDX92 Bedienungsanleitung

Yamaha

Yamaha RX-830 Bedienungsanleitung

Pioneer

Pioneer AVH-Z7250BT Bedienungsanleitung

Yamaha

Yamaha RX-750 Bedienungsanleitung

Denon

Denon AVR-1311 Bedienungsanleitung

Denon

Denon AVR-S760H Bedienungsanleitung

Denon

Denon AVR-X7200W Bedienungsanleitung

Pioneer

Pioneer SC-LX904 Handbuch

Sony

Sony XAV-1500 Bedienungsanleitung

Radio Shack

Radio Shack DX-399 Bedienungsanleitung

Sony

Sony STR-DE535 - Fm Stereo/fm-am Receiver Bedienungsanleitung

Pioneer

Pioneer SX-1000TA Bedienungsanleitung

Yamaha

Yamaha MusicCast TSR-5B3D Bedienungsanleitung

Sony

Sony STR-DE335 - Fm Stereo/fm-am Receiver Bedienungsanleitung

Sony

Sony STR-DG500 - Multi Channel Av Receiver Bedienungsanleitung

Panasonic

Panasonic AJSD955B - DVCPRO50 STUDIO DECK Bedienungsanleitung

Pioneer

Pioneer SX-838 Bedienungsanleitung
