Introduction
MAHINDRA GOA PICK-UP
1
Congratulations! On purchasing
the MAHINDRA GOA PICK-UP.
Your MAHINDRA is a dynamic blend of
comfort, ruggedness and utility.
Before you start driving your MAHINDRA,
we strongly suggest you to spend some
time understanding it better. A good way to
do this would be to read this manual while
simultaneously exploring your MAHINDRA
physically.
We’ll be delighted to know about your
experience with the your MAHINDRA. We
wish you happy & safe motoring in your
new vehicle.
4
Introduction
MAHINDRA GOA PICK-UP
1
Note
In view of policy of continuously
improving our products, we reserve the
right to alter specifications or designs
without prior notice and without
liability / Obligation. Illustrations do
not show the vehicle in the standard
form. Please be aware that this manual
applies to all models and options. As a
result you may find some explanations
for equipment not installed on your
vehicle.Alltheinformation,illustration,
and specifications in this manual are
based on the latest product information
available at the time of publication.
Due to improvements and changes in
design & specifications there may be
differences between your vehicle and
the information on this manual.
An Authorised Mahindra Dealer
knows your vehicle best. So when
maintenance or service is necessary,
that’s the place to go.
Caution
Any unauthorised add-on electrical
/ electronic installation (or) installing a
mobile two-way communication system
in your Mahindra vehicle could affect
electronically controlled fuel injection
system (CRDe / MPFI), ABS and other
electronic units. Before installing such
system / equipment contact your Mahindra
Authorised dealer.
Introduction
Warning
AWARNINGindicatesasituation
in which serious or fatal injury could
result if the warning is ignored.
Caution
A CAUTION indicates a hazardous
situation which, if not avoided may result
in minor (or) moderate injuries, damage to
your vehicle or other properties.
Note
A NOTE provides information
and sometimes suggests how to make
better use of your vehicle.
5
Introduction
MAHINDRA GOA PICK-UP
1
Modification of your Mahindra
This vehicle should not be modified with
non-genuine products. Modification with
non-genuine parts / products could affect
performance, durability & safety of the
vehicle, and may even violate governmental
regulations. In addition, performance
problems or damage resulting due to the
unauthorised modification may not be
covered under warranty.
Keep this manual in the vehicle as a
reference for safe & enjoyable driving of
your Mahindra. This should be given along
with the vehicle to the next owner when
the vehicle is sold to the next owner.
Environmental Caring
Your vehicle has been designed with
the aim of caring for the environment. A
number of features have been incorporated
in your vehicle to ensure environmental
compatibility throughout their life cycle.
As a user, you too can contribute to
protect the environment by operating your
vehicle in a proactive manner. It is mostly
depends on your driving style and the way
you maintain your vehicle. Do not dispose
of parts replaced in the course of regular
vehicle maintenance (like battery, oil filter,
air filter, etc.) and oil containers (empty
or with used oil, etc.) with house hold
waste. Dispose of them through specialist
organizations. In all cases, comply with
state, territory and/or local bye-laws.
6
Introduction
MAHINDRA GOA PICK-UP
1

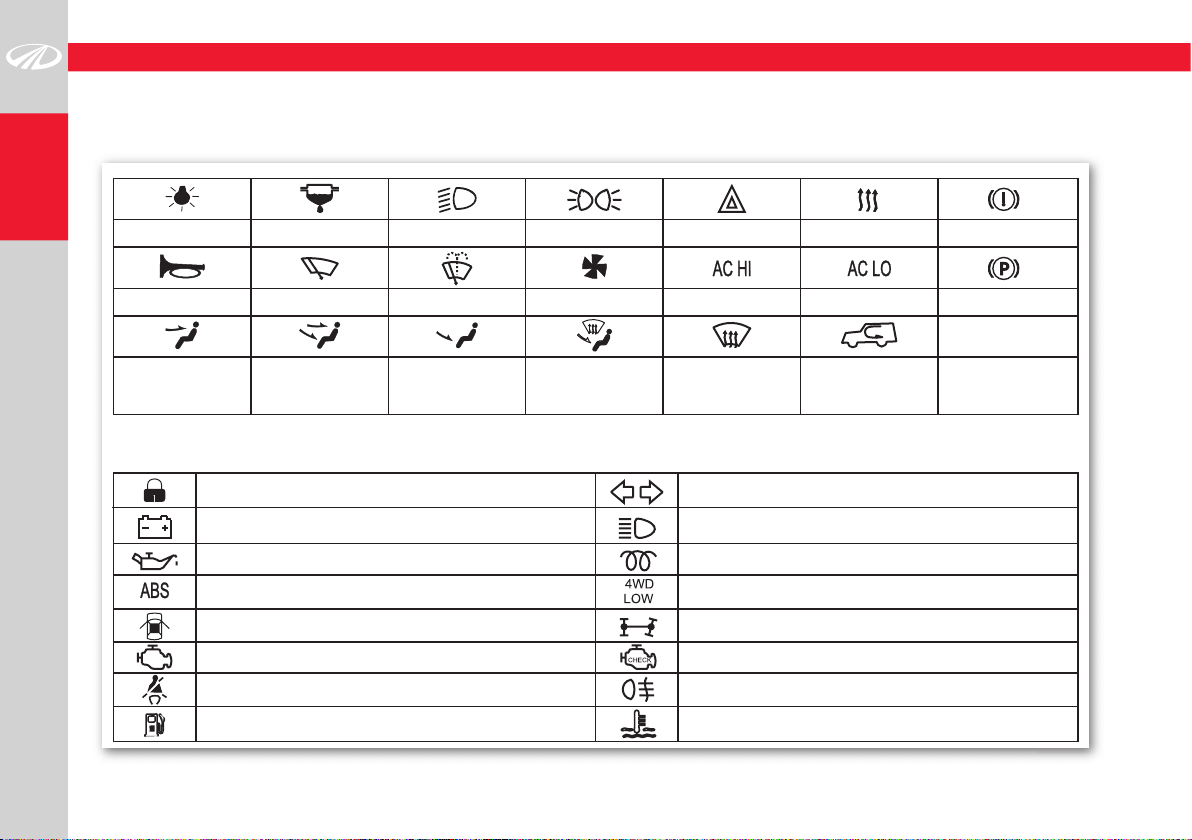

Graphic Symbols on your vehicle
Some of the following symbols are used to identify controls & display on your vehicle.
LIGHTS WATER IN FUEL FILTER HEADLIGHT LOW BEAM PARKING LIGHTS HAZARD WARNING
FLASHER REAR WINDOW
DEFROSTER LOW BRAKE FLUID
HORN WINDSCREEN WIPER WINDSCREEN WIPER &
WASHER VENTILATOR FAN AC HIGH COOL AC LOW COOL PARKING BRAKE
AC FACE MODE AC FACE/FLOOR MODE AC FLOOR MODE AC FLOOR &
DEFROSTING MODE DEFROSTER MODE AIR RECIRCULATION
Some of indicators & warning lights in instrument cluster
Security System Status
Battery Discharge Warning Light
Low Engine Oil Pressure Warning Light
Anti-Lock Brake System Warning Light
Door Ajar Warning Light
Engine Mallfunction Light
Seat Belt Warning Light
Fuel
Turn signal warning light
Head light beam
Engine pre-heater/glow-plug light
4WD Low indicator light
4WD high indicator light
Check Engine Warning Light
Rear Fog Light
Temperature
7
Before Driving
MAHINDRA GOA PICK-UP
2
Contents
Identification Numbers _____________ 8
Keys and Door Locks _______________ 9
Seating Adjustments ______________ 14
Ignition Switch cum Steering Lock ___ 21
Dash Board - LHD_________________ 23
Dash Board - RHD ________________ 24
Combination Levers_______________ 25
Combination Levers / Guiding Light __ 31
Instrument Cluster _______________ 33
Instrument Cluster (Australia)_______ 34
Follow Me Home Headlight _________ 45
Rear View Mirror _________________ 46
Foot Pedals _____________________ 48
Steering ________________________ 51
Transmission / Gear Shift __________ 52
Bonnet Release Lever _____________ 53
Bonnet Opening__________________ 54
8
Before Driving
MAHINDRA GOA PICK-UP
2
Identification Numbers
Vehicle Identification Number (VIN)/
Vehicle Serial Number

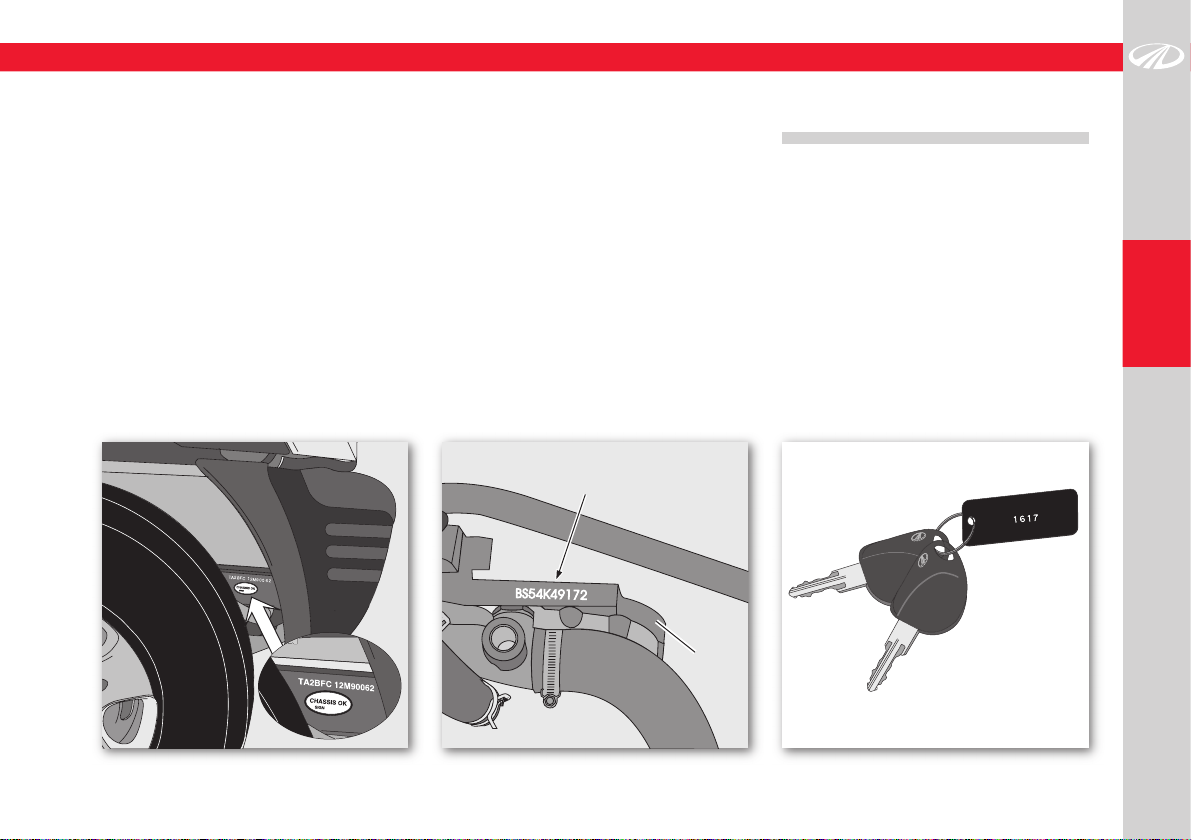

The vehicle serial number / VIN is the
legal identity of your vehicle. It is used
in registering the ownership. To locate
the vehicle serial number and the engine
number, open the bonnet. You will find
both the numbers on a label near the
bonnet release lever.
Front
Cover
Engine Number
9
Before Driving
MAHINDRA GOA PICK-UP
2
Chassis Number
The chassis number is punched on the
right side of the chassis close to the front
right wheel, as shown in diagram given
alongside.
Engine Number
The engine number is punched on left-
hand side top face of the engine
Keys and Door Locks
Keys
Your Mahindra comes with a set of two
identical keys. The keys operate all locks
in your Mahindra including those of the
doors, ignition cum steering and fuel lid (if
applicable). We advise you to keep one of
these keys at a safe place for emergency
use (but not in the vehicle).
Central Lock
Close
Central Lock
Open
10
Before Driving
MAHINDRA GOA PICK-UP
2
Note
A new pair of keys can be acquired
through Mahindra Authorised Dealer
by stating the key number provided on
the tag.
Warning
Do not leave the ignition key in
your vehicle especially when children
are in the vehicle.
Never leave children & pet animals
unattended inside the vehicle
Door locks
Both the front doors can be locked from
both the inside and the outside, using
either the door-lock lever or the key when
the door is closed. The upper door-lock
levers needs to be depressed individually
to lock doors from the inside. The driver’s
door can be locked only from the outside
with the key. This ensures you will never be
stranded outside, even if the keys are left
inside the vehicle.
The rear doors (of double cab models) can
be unlocked from inside only.
Central Door Locking
The central door locking system can be
operated only from the driver’s door and
only when the door is closed. It can be
activated from the outside with the key
or from the inside with the door-locking
lever. In case of failure in the vehicle’s
electrical system, both the front doors can
be opened with the key. The driver upper
door-lock lever needs to be depressed to
lock all doors simultaneously, from inside.
For Remote locking / car security system
activation, if installed, please refer security
system manual, supplied with the vehicle.
Caution
Ifyouhavedecidedtokeepthedoors
locked when you are driving, remember
that it may become more difficult for those
assisting you to get access to your vehicle
in case of emergency.
Warning
Before opening the door,
always look for and avoid oncoming
traffic.
