Maico ER-AP 60 VZ Kurzanleitung
WIRING DIAGRAM
ER-AP 60 VZ
Version: 2021-12-14 - MAICO VENTILATOREN, www.maico-fans.com - We are not responsible for mistakes or printing errors and retain the
right to make technical modifications without giving prior notice Page 1
S1 on (after approx. 50 s)
S1 off (overrun time 6 min.)
Using a 1-pin switch can cause reverse polarity voltages. Combination with an X2 capacitor necessary!
WIRING DIAGRAM
ER-AP 60 VZ
Version: 2021-12-14 - MAICO VENTILATOREN, www.maico-fans.com - We are not responsible for mistakes or printing errors and retain the
right to make technical modifications without giving prior notice Page 2

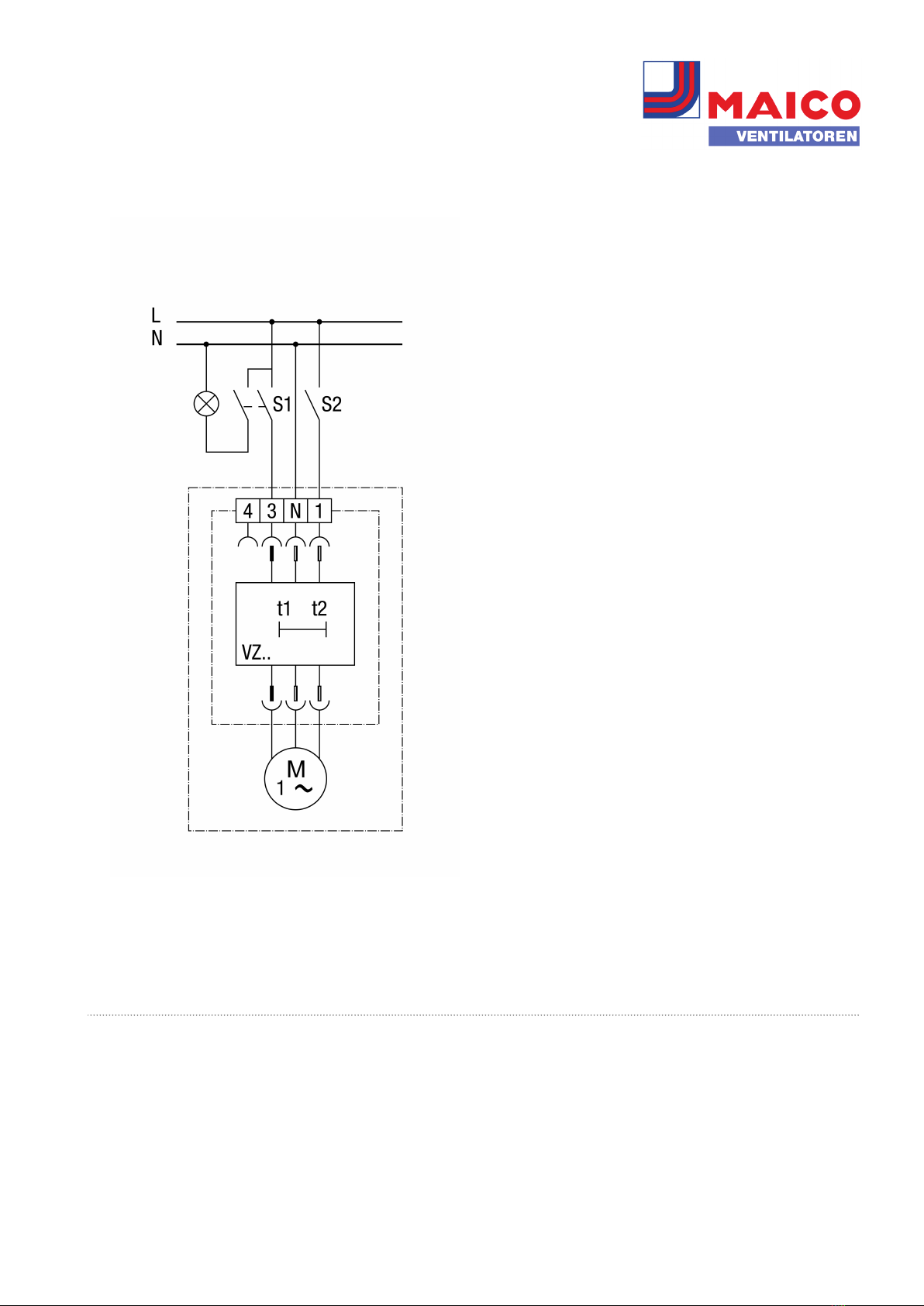

Switching option 1
S1 and S2 on (after aprox. 50 s)
S1 off (overrun time 6 min.)
In addition, the fan can be switched off with switch S2 independent of the room lighting.
Using a 1-pin switch can cause reverse polarity voltages. Combination with an X2 capacitor necessary!
WIRING DIAGRAM
ER-AP 60 VZ
Version: 2021-12-14 - MAICO VENTILATOREN, www.maico-fans.com - We are not responsible for mistakes or printing errors and retain the
right to make technical modifications without giving prior notice Page 3

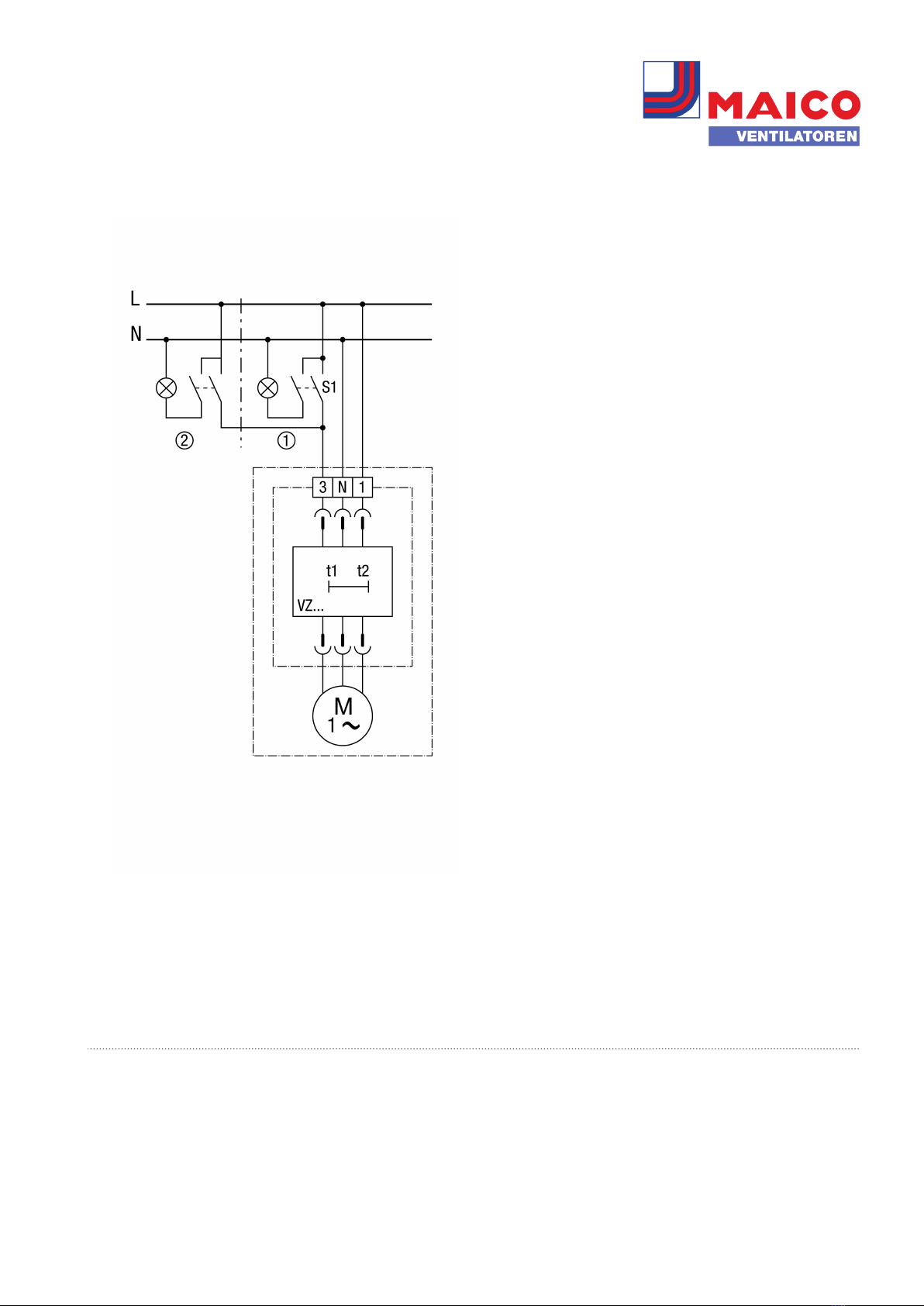

Switching option 2
S1 or S2 on (after aprox. 50 s)
S1 off (overrun time 6 min.)
The fan has an overrun time of approximately 6 minutes after switching off with the last switch to have been used.
1Main room
2Second room
Using a 1-pin switch can cause reverse polarity voltages. Combination with an X2 capacitor necessary!
